Zoncare Portable 3Channel 12Lead Veterinary E
Reference: 1600848533412
Pathological Analysis Equipments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

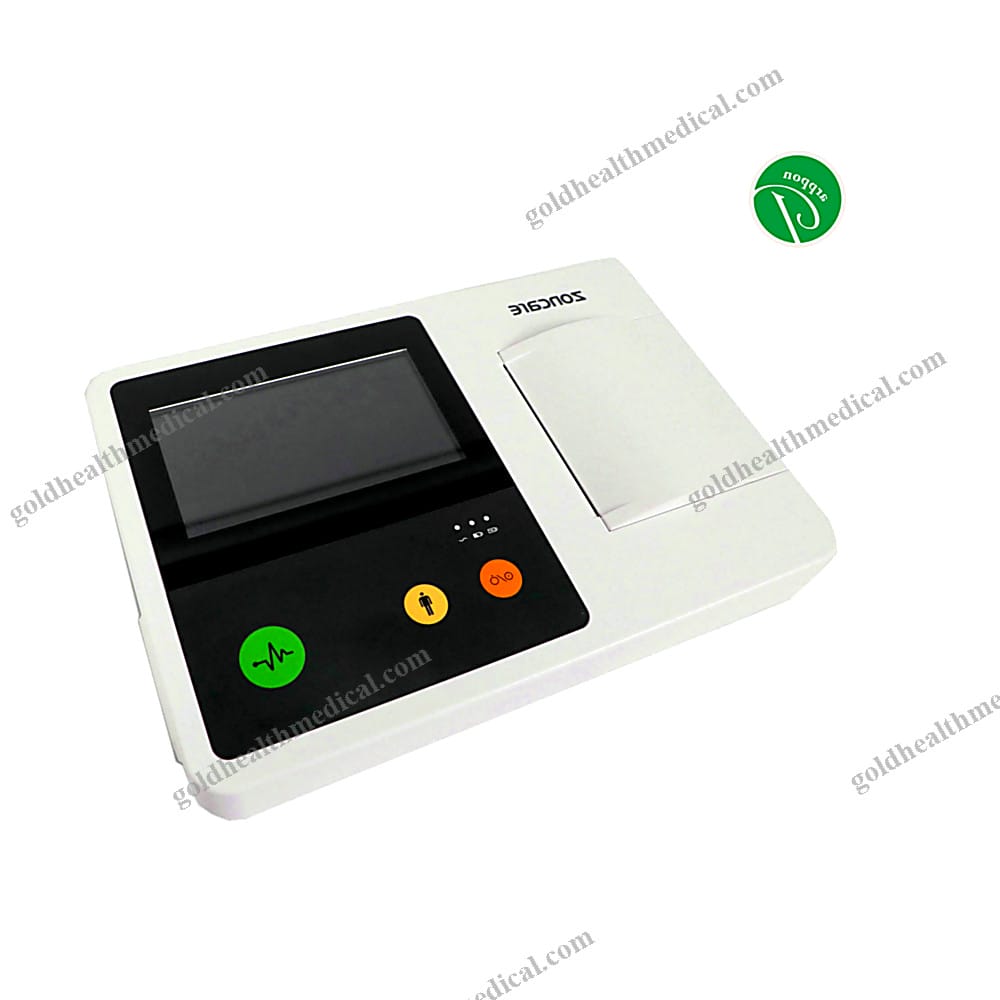

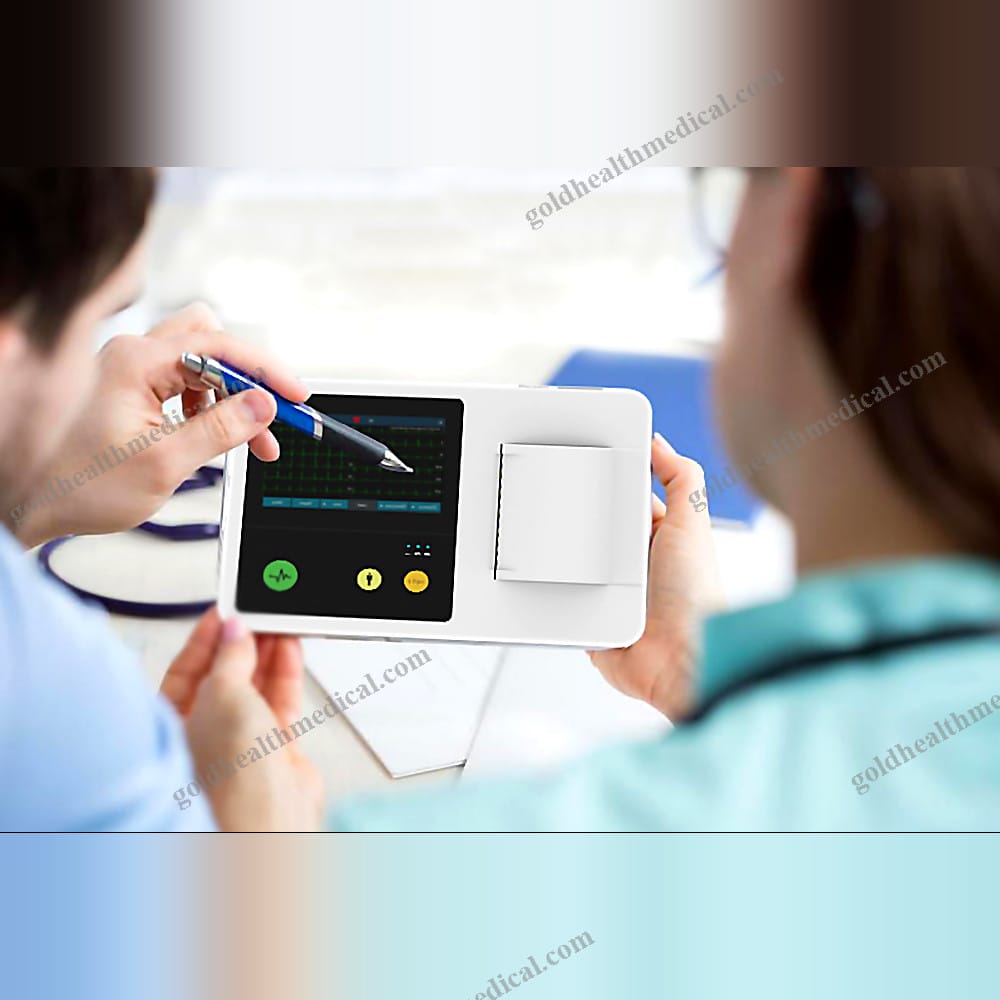

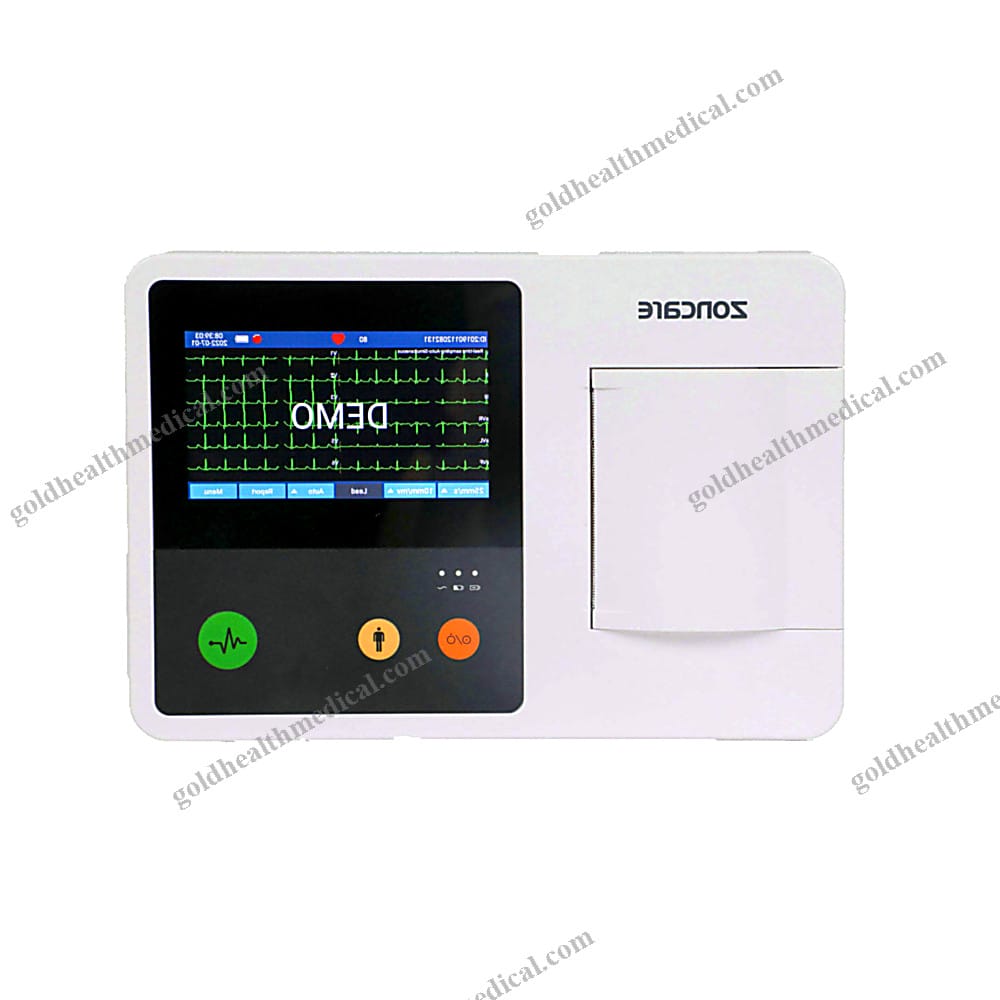

GoldHealth Medical presents a cutting-edge Portable ECG Machine designed for precision and convenience.
This advanced device features a high-resolution LCD screen, offering exceptional clarity for accurate readings. Engineered for versatility, it is ideal for hospitals, clinics, research labs, and home healthcare settings.
Key Features and Specifications:
- Frequency Response: 0.01Hz ~ 350Hz, ensuring precise signal capture across a wide range.
- Time Constant: ≥ 3.2 seconds for reliable baseline stability.
- Patient Current Leakage: <10μA, prioritizing patient safety with minimal electrical exposure.
- Input Impedance: ≥10MΩ, delivering superior signal quality with minimal interference.
- Calibrating Voltage: 1mV±3%, guaranteeing consistent accuracy in every measurement.
- A/D Conversion: 24-bit resolution for highly detailed digital signal processing.
- CMRR (Common Mode Rejection Ratio): >80dB, >100dB with filter, eliminating unwanted noise for clear readings.
- EMG Filter: 35Hz (-3dB) / 25Hz (-3dB), reducing muscle artifact interference.
- Sensitivity Options: 1/2, 1, 2 (cm/mV) with a conversion deviation ≤5%, allowing customizable scaling for diverse clinical needs.
- Recording System: Thermal-array technology with 8 dots/mm (vertical) and 16 dots/mm (horizontal at 25mm/sec), ensuring sharp and durable printouts.
- Paper Speed: 25mm/s, 50mm/s ±3%, providing flexibility for different diagnostic requirements.
- Recording Paper: High-speed roll, 50mm x 20m, for uninterrupted operation.
- Input Circuit Current: ≤50nA, minimizing power consumption while maintaining performance.
- Safety Standard: Compliant with IEC Class I, Type CF, ensuring the highest level of safety for both patients and operators.
- Power Supply: AC: 220V / 110V, 50/60Hz; DC: 12V rechargeable battery, offering reliable operation in any setting.
- Skin Voltage Tolerance: ±300mV, accommodating a wide range of patient conditions.
- Noise Level: <15μVp-p, ensuring clean and artifact-free signals.
- Dimensions (Packing): 400mm x 280mm x 160mm, compact and portable for easy transport.
- Weight: 1.2 KG, lightweight yet robust for seamless mobility.
- MOQ (Minimum Order Quantity): 1 unit, catering to both small-scale and large-scale needs.
Why Choose GoldHealth Medical?
GoldHealth Medical’s Portable ECG Machine stands out with its combination of advanced technology, user-friendly design, and unwavering reliability. Whether you’re conducting routine diagnostics or managing complex cardiac cases, this device ensures precision and efficiency. Its portability and intuitive interface make it an indispensable tool for modern healthcare professionals.
Experience the future of cardiac diagnostics with GoldHealth Medical—where innovation meets excellence.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Company Name: GoldHealth Medical
Product Introduction:
Experience precision and reliability with GoldHealth Medical's advanced ECG machine, designed to meet the needs of modern healthcare environments. Engineered for accuracy, durability, and ease of use, this device is ideal for hospitals, clinics, research institutions, and home healthcare settings. Its cutting-edge technology ensures exceptional performance in cardiac diagnostics, empowering medical professionals with actionable insights.
Key Features and Specifications:

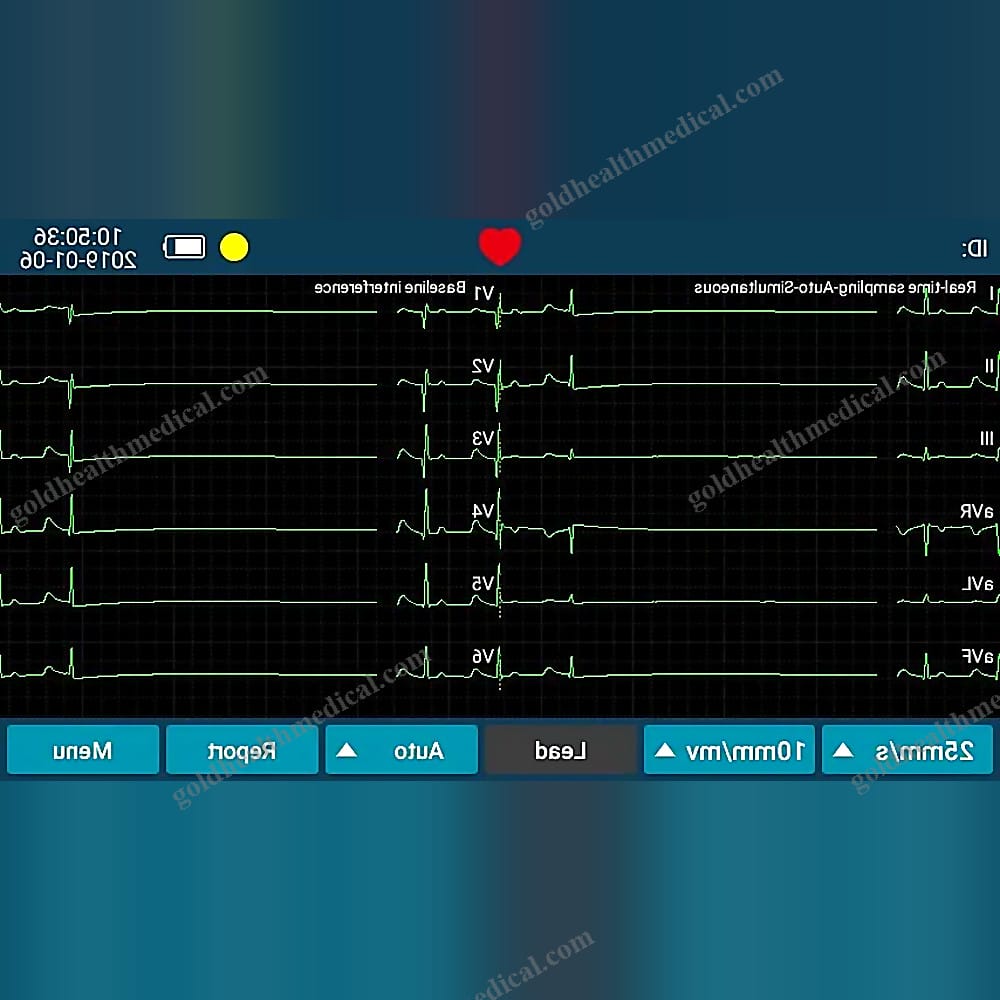

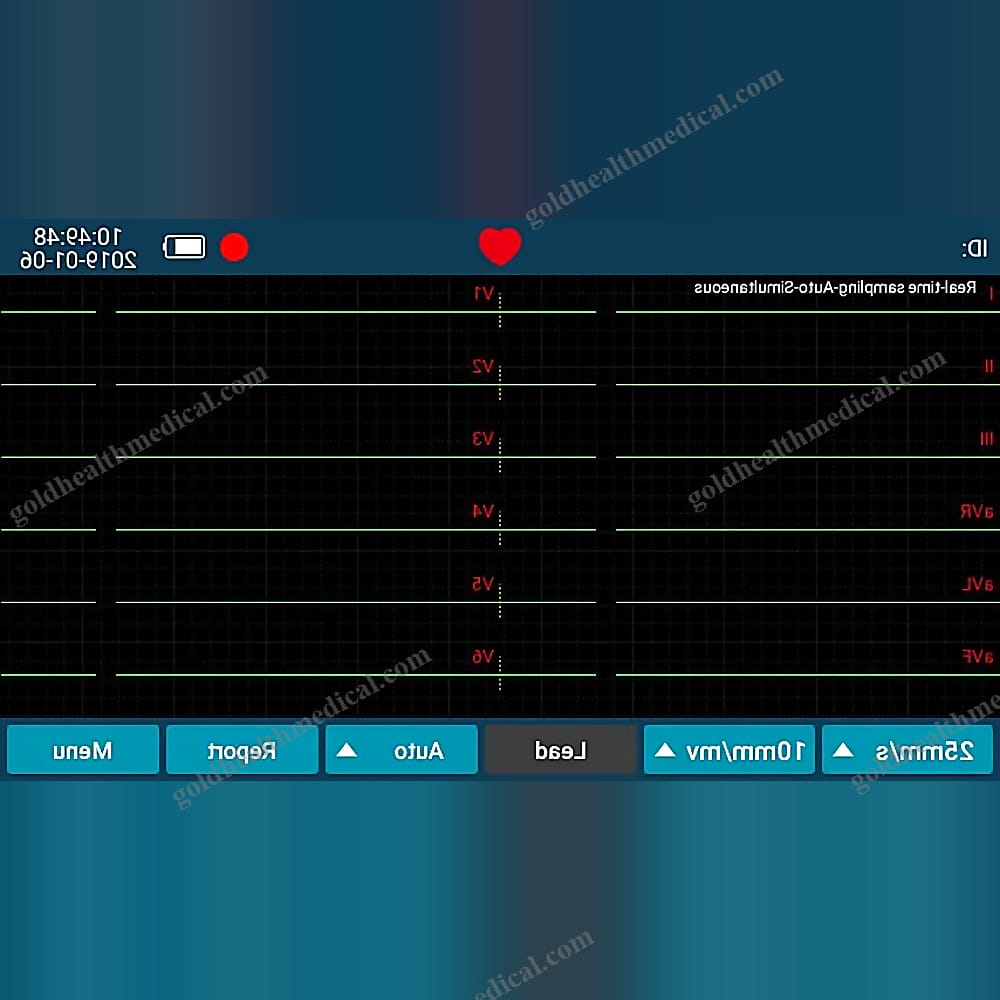

- Display: High-resolution 5-inch Color LCD for clear and detailed visualization of ECG waveforms.
- Digital Sampling Rate: 32,000 Hz (1 ms), delivering unparalleled precision in capturing cardiac signals.
- ECG Leads: Simultaneous 3-lead monitoring for comprehensive and real-time analysis.
- ECG Storage: Store up to 250 ECG records with expandable storage via SD card, ensuring seamless data management.
- Channel: 3-channel output for enhanced diagnostic accuracy.
- Power Source: Electric-powered for consistent and reliable operation.
- Material: Constructed with a robust combination of metal and high-grade plastic for durability and longevity.
- Instrument Classification: Class I medical device, ensuring compliance with rigorous safety and performance standards.
- Safety Standard: Compliant with GB15979-2002, guaranteeing the highest levels of safety and reliability.
- Shelf Life: 1 year, ensuring optimal performance within the specified period.
- Quality Certification: CE-certified, meeting international standards for medical devices.
Packaging and Delivery:
- Packaging Options:
- General foam and carton packaging for secure transit.
- Large wooden box packaging for added protection during shipping.
- Port of Delivery: Shanghai
After-Sales Service:
- Warranty: Comprehensive 1-year warranty for peace of mind.
- Support: Free spare parts provided to ensure uninterrupted operation and long-term usability.
Supply Capability:
- Monthly production capacity of 1,000 units, ensuring timely delivery and availability to meet your demands.
GoldHealth Medical is committed to delivering innovative, high-quality medical solutions that empower healthcare providers and improve patient outcomes. Choose excellence, choose GoldHealth Medical.
