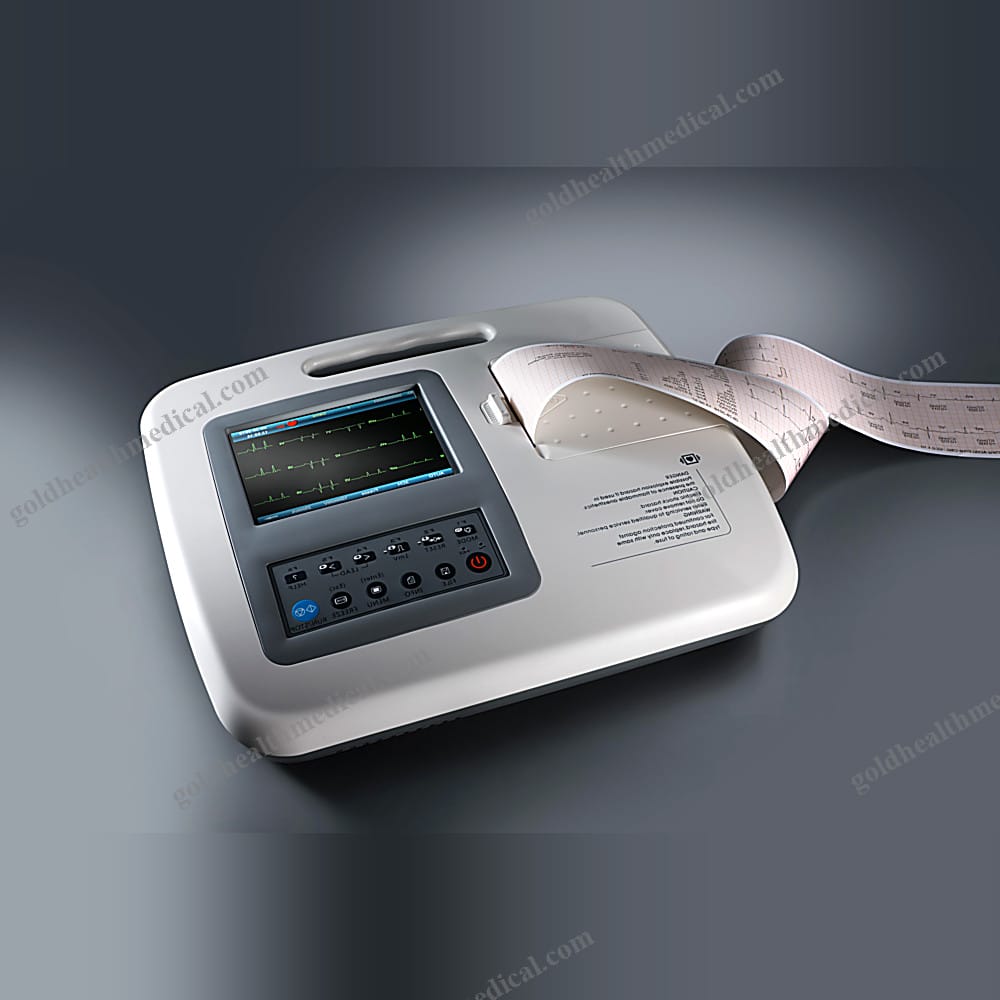

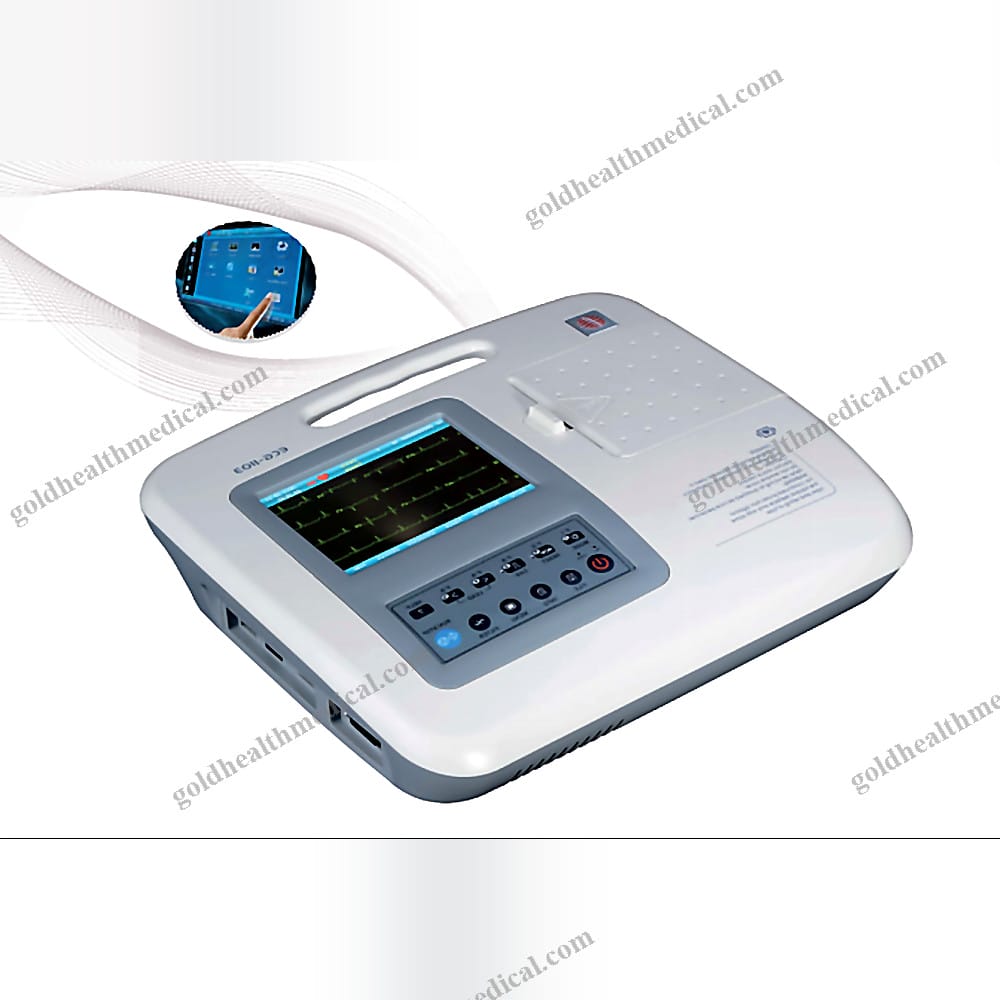

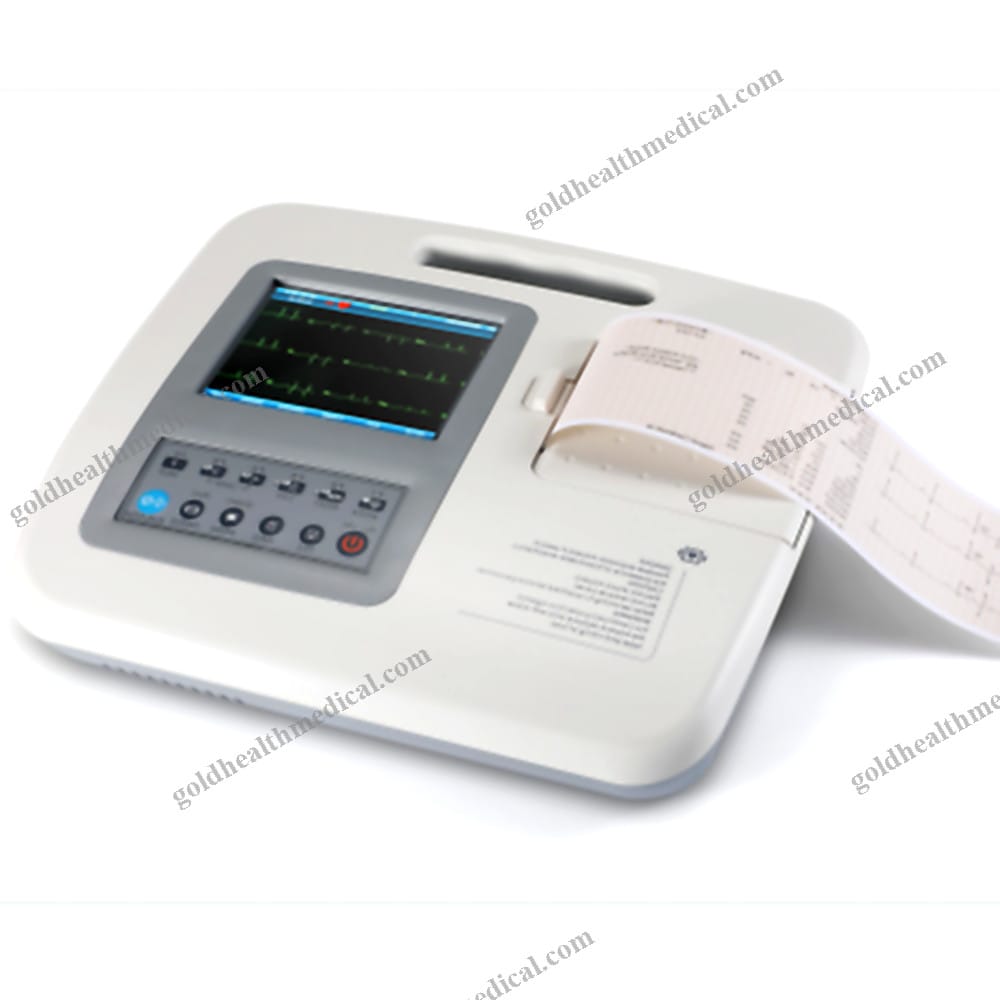

Portable 12Lead ECG Machine with Touch Screen
Reference: 1600796703411
Pathological Analysis Equipments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical: Digital Three-Channel ECG
Experience precision and reliability with the Digital Three-Channel ECG from GoldHealth Medical. Designed for seamless integration into hospitals, clinics, and research facilities, this advanced ECG system combines cutting-edge technology with user-friendly features to deliver unparalleled performance.
Key Features:
- 5.6-inch Color LCD Touch Screen: Intuitive interface for effortless operation.
- 12-Lead Simultaneous Acquisition: Capture comprehensive cardiac data with precision.
- Extensive Storage Capacity: Save up to 5,000 ECG files internally, with additional storage via USB.
- Advanced Functionalities:
- Freeze, Pre-10-second Print, and Trigger Print functions for detailed waveform analysis.
- HR Detection Alarm and Pacemaker Detection for enhanced patient monitoring.
- Cine-loop Playback for reviewing saved ECG waveforms.
- Auto-save Option to streamline workflows.
- Seamless Data Transfer: Supports magnetic card readers and barcode scanners for efficient information management.
- Optional PC Data Management Software: Elevate your data handling capabilities.
Technical Specifications:
- Input Circuit: Floating design with defibrillator and pacemaker protection.
- Standard 12-Lead Configuration: Ensures accurate and reliable readings.
- Impedance and Current Parameters:
- Input Impedance: 50 Ω.
- Input Circuit Current: 50nA.
- Leakage Current: <10µA.
- Calibration Voltage: 1mV ±2%.
- A/D Converter: High-resolution 24-bit for exceptional signal clarity.
- Frequency Response: 0.05Hz–165Hz (-3dB).
- Time Constant: ≥3.2s.
- Noise Level: <12µVp-p.
- Filter Options:
- AC: 50/60Hz (-20dB).
- EMG: 25Hz/35Hz/45Hz (-3dB).
- ADS and Baseline Auto-adjustment.
- Sensitivity Settings: AUTO, 2.5, 5, 10, 20, 40 (mm/mV ±5%).
Measurement and Data Management:
- Comprehensive Measurements: HR, PR/QT/QTC Interval, P/QRS/T Axis, and more.
- Patient Data: Includes date, time, ID, name, gender, age, height, and weight.
- System Data: Sensitivity, speed, and institution details.
- Analysis Report: Selectable On/Off feature for tailored reporting.
Print System:
- High-Speed Thermal Dot Recording: Delivers precise and clear outputs.
- Print Speeds: 5, 6.25, 10, 12.5, 25, 50 (mm/s, ±3%).
- Paper Compatibility: Roll paper (112mm × 20m or 30m).
Power Source:
- AC Power: 100V–240V (±10%), 50/60Hz (±1Hz).
- DC Power: Lithium battery supports over 2 hours of continuous operation after a full charge.
Safety and Compliance:
- Safety Classification: Type CF.
- Standards: Compliant with MDD93/42/EEC, IEC60601-2-25, IEC60601-1, IEC60601-2-51:2003, ANSI/AAMI EC-11, and EN 1441-1997.
Input and Output:
- External Input: 10mm V ±5%; Input Impedance: 100KΩ.
- External Output: 10mm V ±5%; Output Impedance: 100Ω.
Dimensions and Weight:
- Equipment Size: 345 x 300 x 80mm.
- Carton Size: 400 x 180 x 355mm.
- Net Weight: 2.5Kg (battery included).
- Gross Weight: 4.5Kg.
GoldHealth Medical’s Digital Three-Channel ECG is engineered to meet the demands of modern healthcare environments. Its robust design, advanced features, and compliance with international standards make it an indispensable tool for cardiac diagnostics. Elevate your practice with a device that combines innovation, precision, and reliability.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Company: GoldHealth Medical
Product Name: Digital Three-Channel ECG
Product Overview:
The Digital Three-Channel ECG by GoldHealth Medical is a cutting-edge diagnostic tool designed to deliver precision and reliability in cardiac monitoring. Engineered for healthcare professionals and institutions, this device combines advanced technology with user-friendly functionality, ensuring accurate readings and seamless integration into clinical workflows.
Key Features and Specifications:
- Display: High-resolution 7-inch screen for clear visualization of ECG waveforms and data.
- Channels: Three-channel configuration for comprehensive cardiac signal analysis.
- Power Source: Electric-powered for consistent performance without interruptions.
- Material: Durable construction using premium metal and high-grade plastic components.
- Instrument Classification: Class II medical device, ensuring safety and efficacy in professional settings.
- Safety Standards: Compliant with GB9706.1-2007, guaranteeing adherence to rigorous safety protocols.
- Certifications: CE, ISO, and FSC certifications, reflecting global quality benchmarks.
- Shelf Life: 2-year shelf life, ensuring long-term usability and reliability.
- Place of Origin: Proudly manufactured in China with international quality standards.
Warranty and Support:
- Warranty: 2-year comprehensive warranty for peace of mind.
- After-Sales Service: Includes free spare parts to minimize downtime and ensure uninterrupted service.
Supply and Packaging:
- Packaging: Securely packaged in durable cartons to protect the device during transit.
- Supply Ability: Capable of delivering 200 units per day to meet high-volume demands.
Why Choose GoldHealth Medical?
GoldHealth Medical’s Digital Three-Channel ECG stands out for its precision engineering, robust build quality, and commitment to safety. Designed for hospitals, clinics, research labs, and home healthcare, this device is an indispensable tool for accurate cardiac diagnostics. With a focus on innovation and reliability, GoldHealth Medical ensures every product meets the highest standards of performance and durability.
