HE01C Portable Digital ECG Machine
Reference: 1600251798165
Pathological Analysis Equipments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

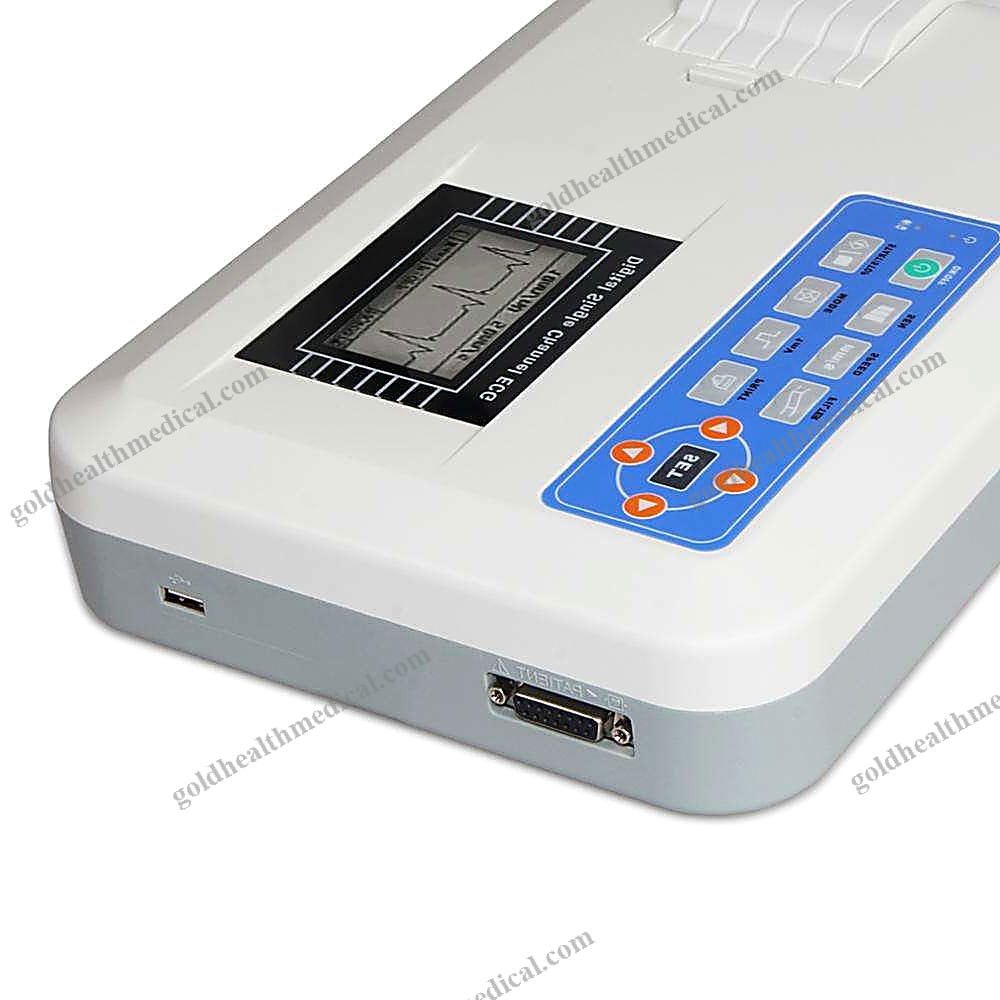

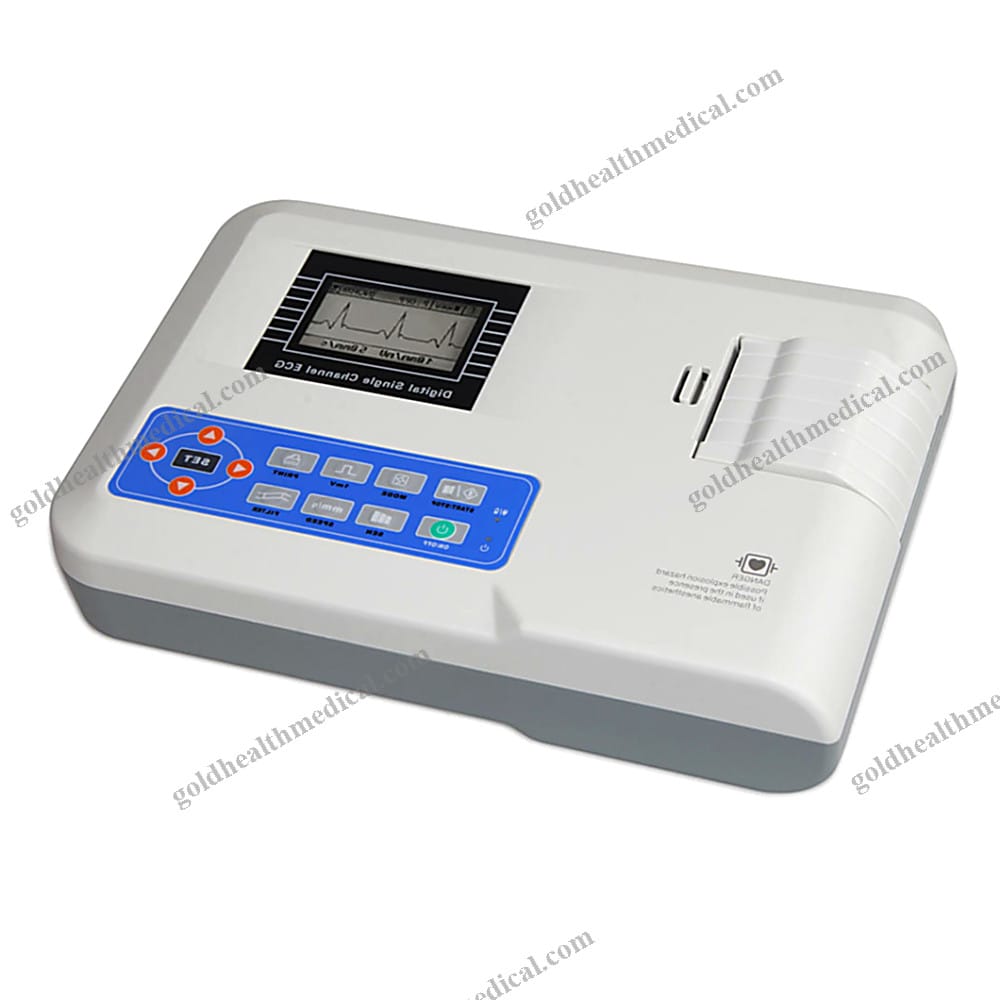

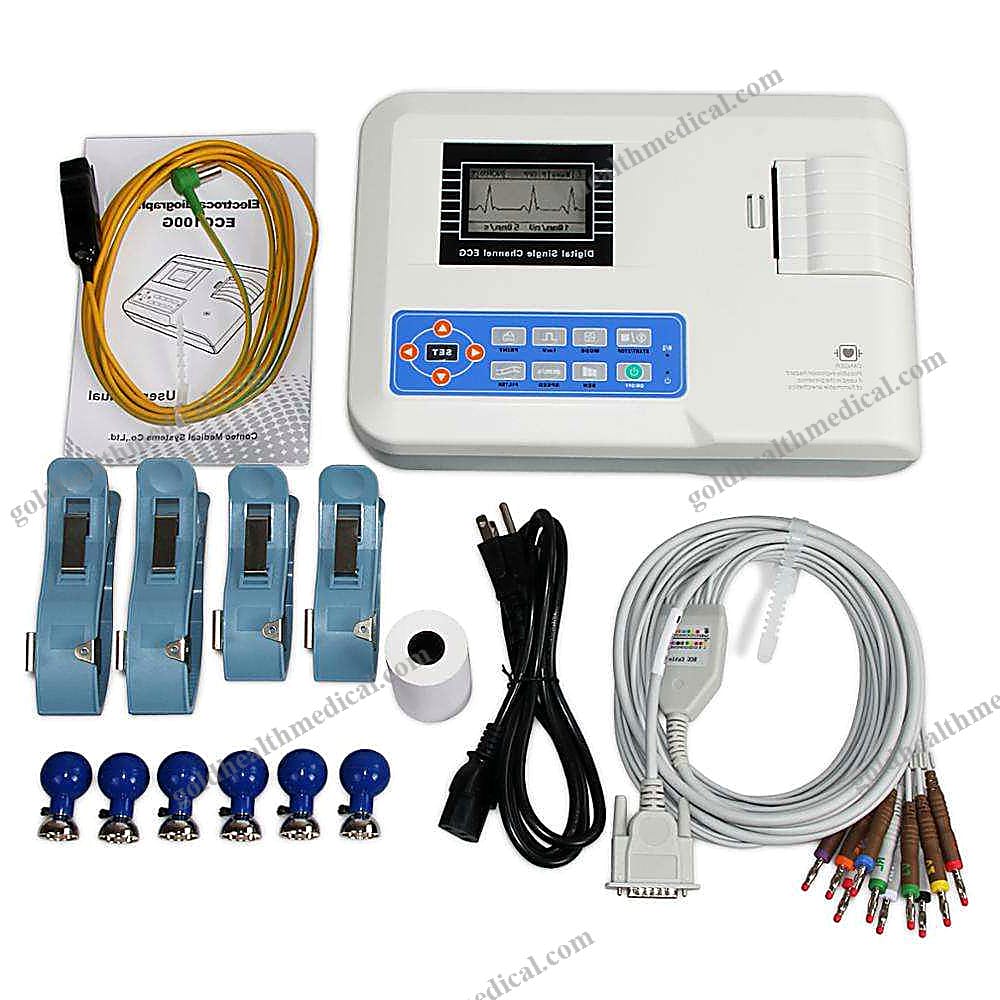

GoldHealth Medical Portable Digital ECG Machine
Features:

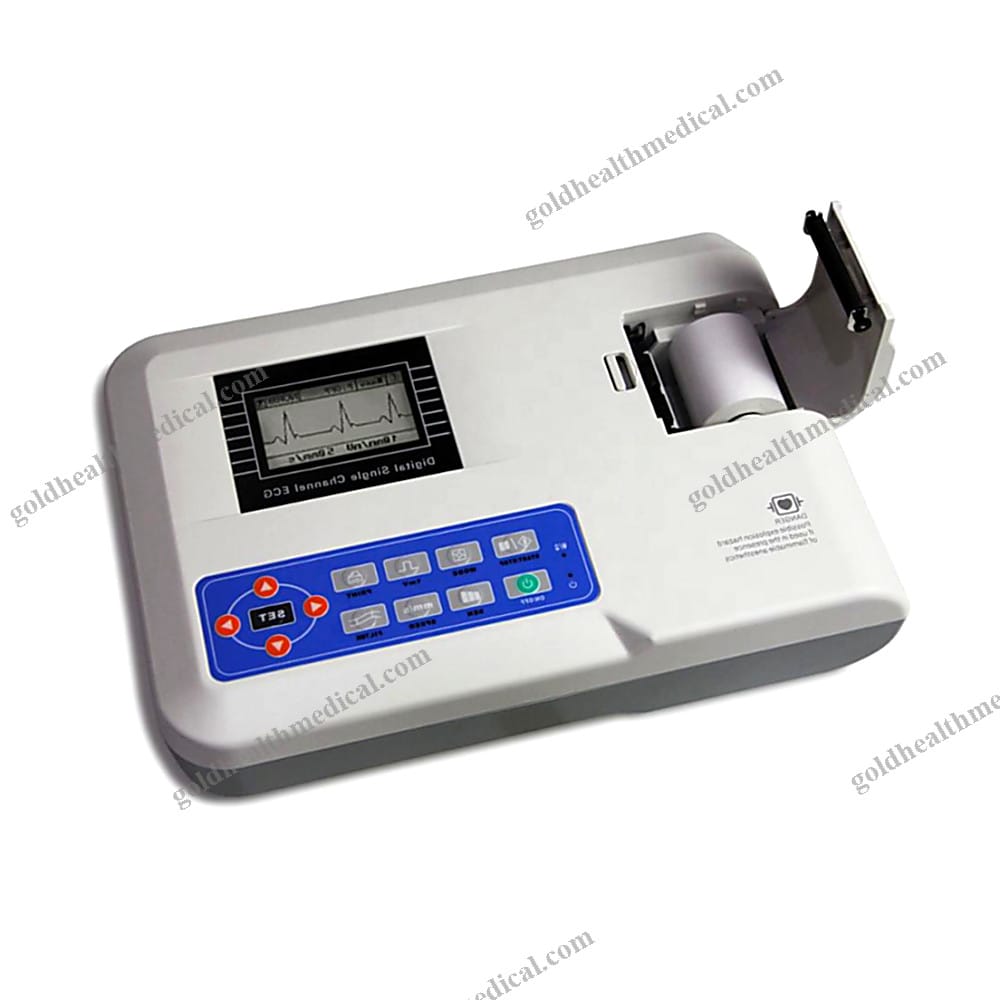

- High-Resolution Thermal Printing: Equipped with an advanced thermal-array printing system, delivering crisp and clear ECG traces with annotations including lead marks, sensitivity, paper speed, and filter status.
- Superior Frequency Response: Achieves an impressive frequency response of up to 150Hz, ensuring precise waveform capture.
- Continuous Printing Capability: Seamlessly prints channel traces and detailed annotations, providing comprehensive diagnostic information.
- Advanced Digital Filtering: High-resolution digital filters effectively suppress baseline drift without distorting the ECG waveform, ensuring accurate readings.
- One-Touch Operation: Simplifies the user experience with intuitive, single-button functionality.
- Floating Input Circuit: Designed to meet stringent IEC safety standards, ensuring reliable and safe operation.
- Long-Lasting Battery: Powered by a rechargeable battery that supports over 50 patient examinations on a single charge.
- 12-Lead Standard: Supports standard 12-lead configurations with automatic lead changes for versatile diagnostic capabilities.
Technical Specifications:
- Input Circuit: Floating design with defibrillator protection.
- Lead Standard: 12 leads with automatic lead change.
- Patient Current Leakage: Less than 10ΞΌA.
- Input Impedance: Greater than or equal to 10MΞ©.
- Calibrating Voltage: 1mV Β± 3%.
- A/D Conversion: 12-bit precision.
- Frequency Response: 0.05Hz to 150Hz (IEC standard).
- Time Constant: Over 3.2 seconds.
- CMRR: Greater than 80dB, and over 100dB with filter.
- EMG Filter: 35Hz (-3dB) / 25Hz (-3dB).
- Sensitivity: 1/2, 1, 2 (cm/mV), with conversion deviation β€ 5%.
- Recording System: Thermal-array with 8 dots/mm (vertical) and 16 dots/mm (horizontal at 25mm/sec).
- Paper Speed: 25mm/s and 50mm/s Β± 3%.
- Recording Paper: 50mm x 20m high-speed roll.
- Input Circuit Current: Less than or equal to 50nA.
- Safety Standard: Compliant with IEC Class I, Type CF.

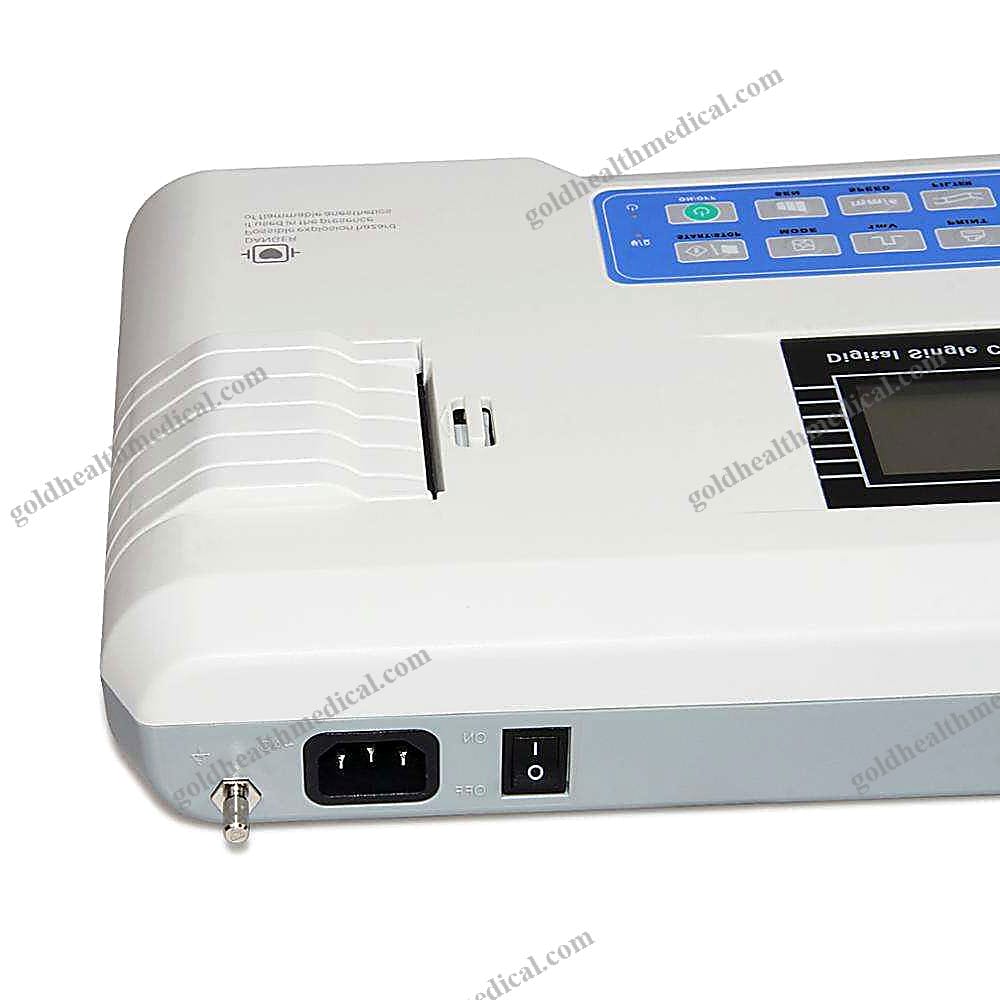

- Power Supply: AC: 220V / 110V, 50/60Hz; DC: 12V rechargeable battery.
- Skin Voltage Tolerance: Β±300mV.
- Noise Level: Less than 15uVp-p.
- Dimensions: 310mm x 230mm x 70mm.
- Weight: 2.75kg.
Why Choose GoldHealth Medical?
GoldHealth Medical is renowned for delivering top-tier medical devices with exceptional precision and reliability. Our portable ECG machine stands out with its cutting-edge technology, user-friendly design, and unwavering commitment to safety and accuracy. Trusted by healthcare professionals worldwide, our products are engineered to meet the highest standards of quality and performance.
Customer Confidence:
- Proven Expertise: With over two decades of experience, GoldHealth Medical has earned a reputation for excellence in the medical equipment industry.
- Quality Assurance: We provide a one-year warranty for our medical equipment, ensuring peace of mind for our customers.
- Global Reach: Our products are widely recognized and utilized in hospitals, clinics, and research institutions across Africa, the Middle East, Europe, Asia, and South America.
GoldHealth Medicalβs portable ECG machine is the ideal solution for accurate, reliable, and efficient cardiac diagnostics, empowering healthcare providers to deliver superior patient care.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Overview
GoldHealth Medical introduces an advanced Class II medical instrument designed to deliver precision and reliability in electrocardiography. Engineered with cutting-edge technology, this device is tailored for healthcare professionals and institutions seeking accuracy, durability, and ease of use.
Key Features and Specifications
- Power Source: Powered by electricity for consistent and reliable performance.
- Lead Configuration: Equipped with a standard 12-lead system to ensure comprehensive cardiac monitoring.
- Material: Constructed from high-quality, medical-grade plastic for enhanced durability and hygiene.
- Shelf Life: Designed with a 1-year shelf life, ensuring long-term usability.
- Quality Certification: CE-certified, guaranteeing compliance with international safety and performance standards.
Warranty and Support
- Warranty: Backed by a 1-year warranty for peace of mind and assurance of quality.
- After-Sales Service: Access to online technical support, ensuring prompt assistance whenever needed.
Packaging and Delivery
- Packaging Details: Securely packaged in a robust wooden case to protect the device during transit.
- Package Dimensions: 99 x 99 x 99 cm, optimized for efficient storage and transportation.
- Gross Weight: 99.000 kg, ensuring stability and ease of handling.
- Ports: Available for shipping from major ports including Shanghai, Ningbo, and Tianjin.
Supply Capability
- Monthly Supply: Capable of delivering up to 1,000 units per month, ensuring scalability to meet high demand.
GoldHealth Medicalβs electrocardiography device stands out with its precision engineering, user-centric design, and commitment to quality, making it an ideal choice for hospitals, clinics, research labs, and home healthcare settings.
