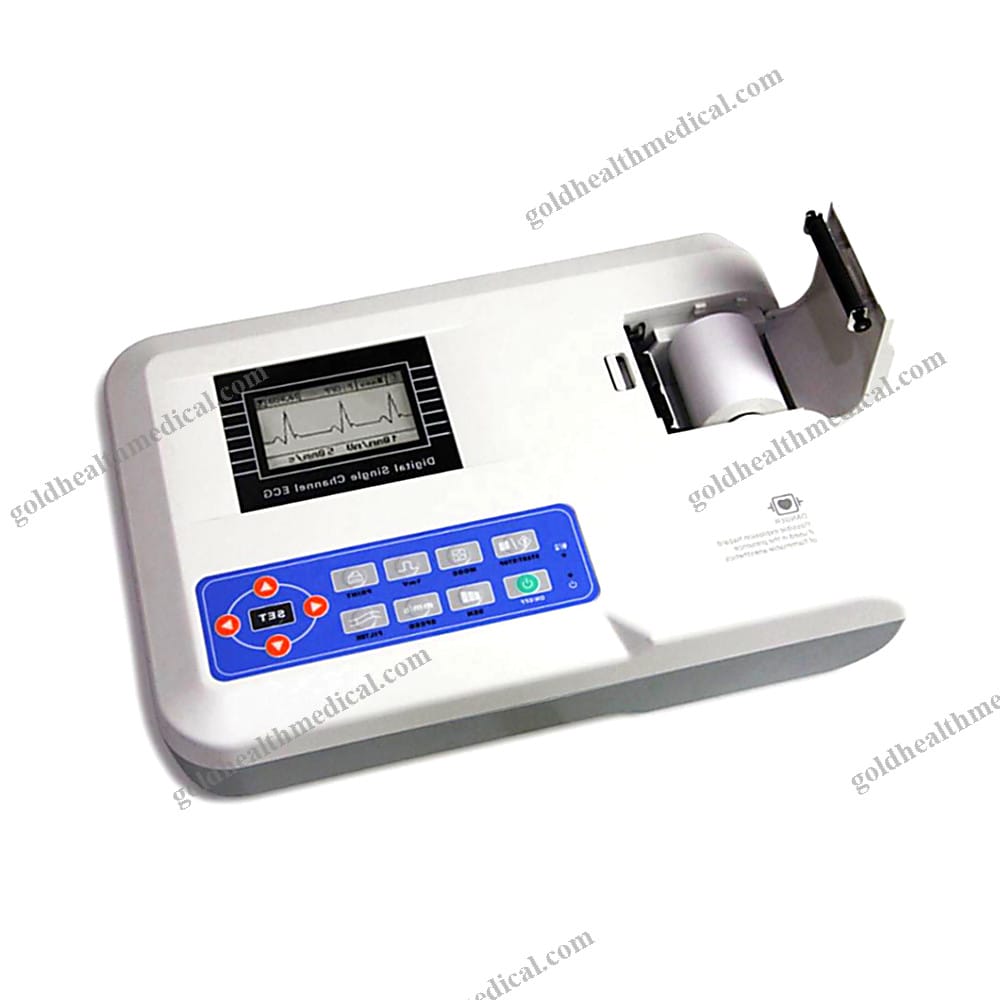

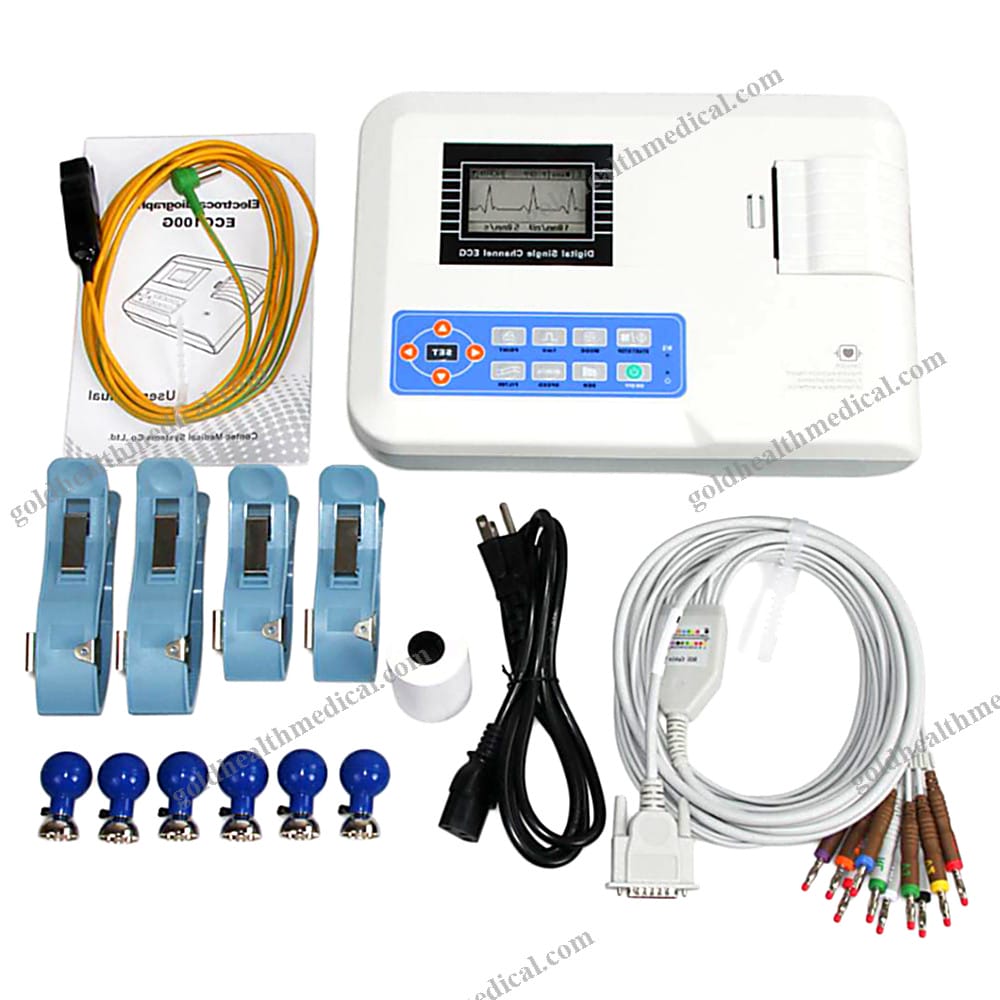

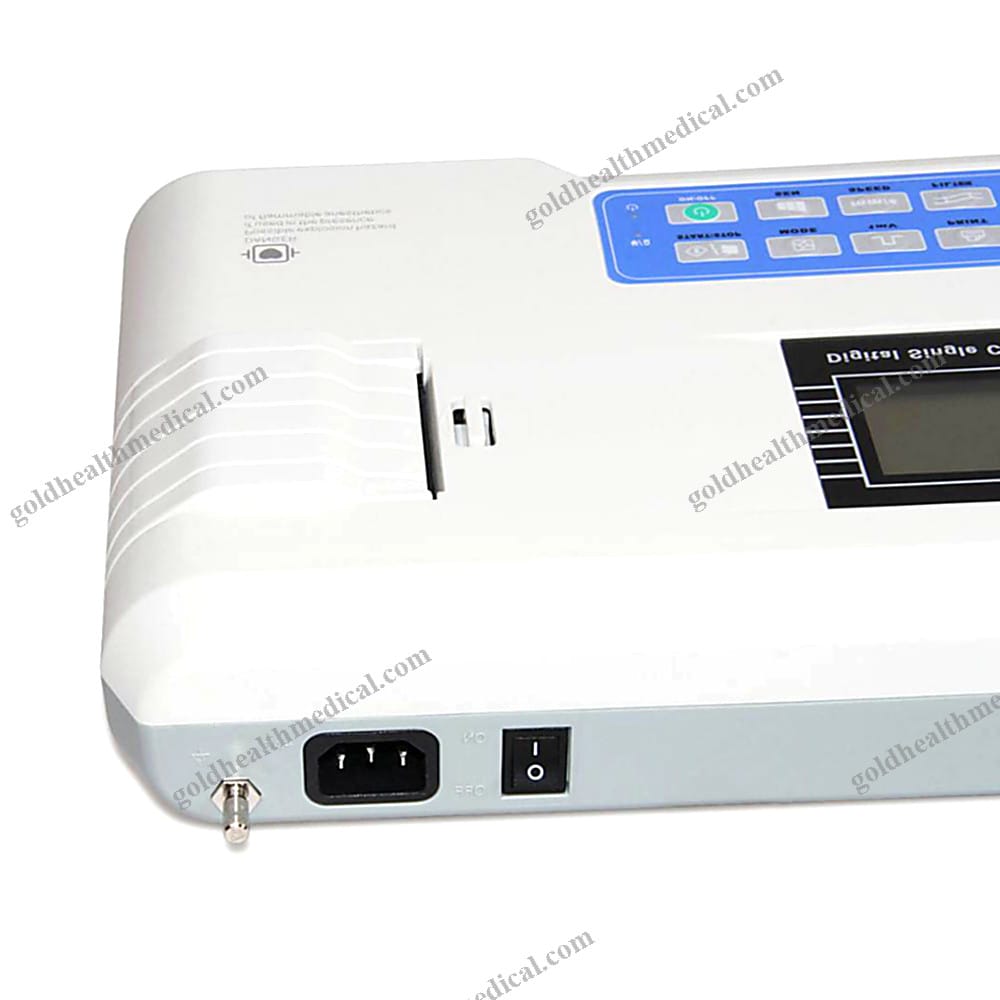

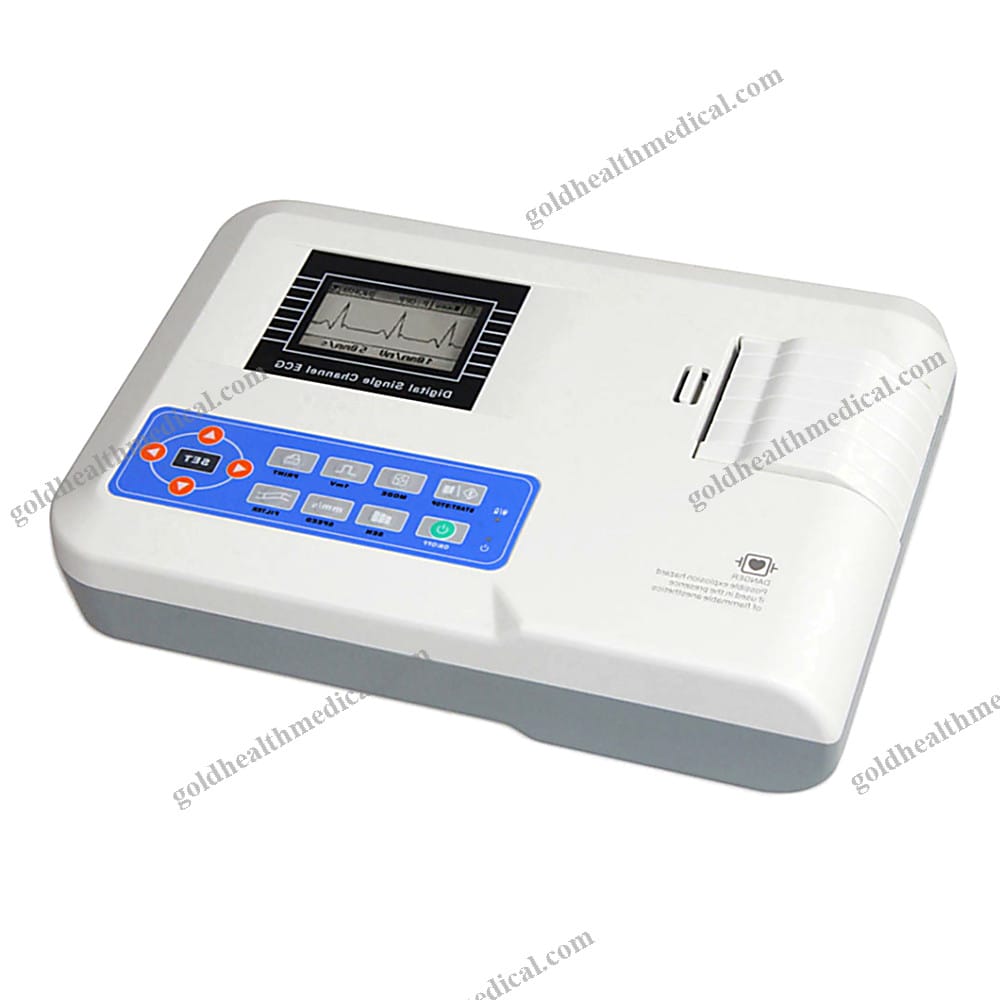

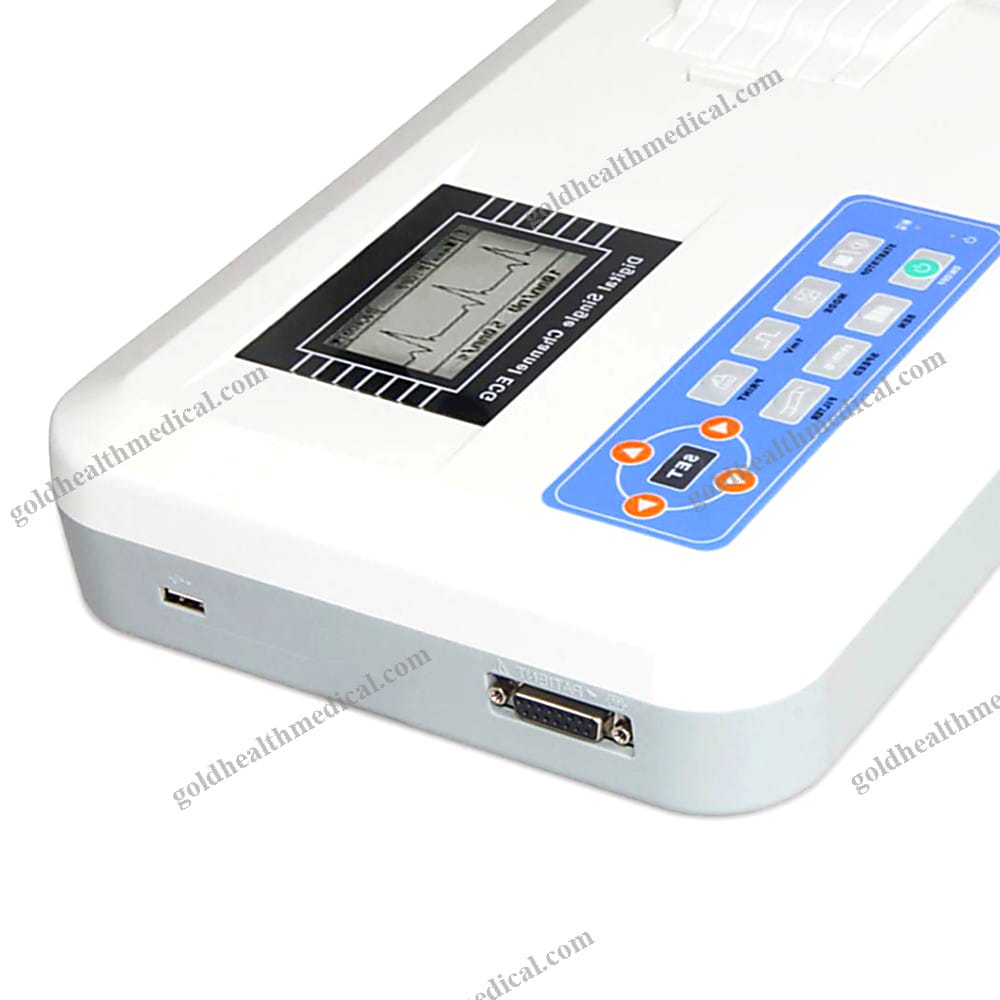

Portable Digital ECG Machine with 1 Channel 150Hz
Reference: 1600469512045
Pathological Analysis Equipments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical Portable Digital Electrocardiogram Machine
Product Highlights
Experience precision and reliability with GoldHealth Medical's portable digital electrocardiogram machine, designed to deliver exceptional performance in diverse healthcare settings. This advanced device combines cutting-edge technology with user-friendly features, making it an ideal choice for professionals and institutions alike.
- High-Resolution Thermal Printing: A state-of-the-art thermal-array printing system ensures sharp, detailed ECG traces and annotations, including lead marks, sensitivity settings, paper speed, and filter status.
- Superior Frequency Response: With a frequency response of up to 150Hz, this device captures even the most subtle cardiac signals with remarkable clarity.
- Advanced Digital Filtering: Equipped with a high-resolution digital filter, it effectively eliminates baseline drift without distorting the ECG waveform, ensuring accurate diagnostics.
- Intuitive One-Touch Operation: Simplified controls allow for seamless operation, saving time and enhancing workflow efficiency.
- Enhanced Safety Standards: The floating input circuit design meets IEC safety standards, ensuring maximum protection for both patients and operators.
- Long-Lasting Battery Life: Powered by a rechargeable battery, it supports over 50 patient examinations on a single charge, offering unmatched portability and convenience.
Technical Specifications
- Lead Standard: 12 leads with automatic lead switching
- Input Circuit: Floating design with defibrillator protection
- Patient Current Leakage: Less than 10ΞΌA for enhanced safety
- Input Impedance: Greater than or equal to 10MΞ©
- Calibrating Voltage: 1mV Β±3% for precise calibration
- A/D Conversion: 12-bit resolution for accurate signal processing
- Frequency Response: 0.05Hz to 150Hz (IEC standard)
- Time Constant: Greater than 3.2 seconds
- CMRR: Greater than 80dB, exceeding 100dB with filter enabled
- EMG Filter: 35Hz (-3dB) / 25Hz (-3dB) for noise reduction
- Sensitivity Settings: 1/2, 1, 2 (cm/mV) with conversion deviation β€5%
- Recording System: Thermal-array technology with 8 dots/mm (vertical) and 16 dots/mm (horizontal at 25mm/sec)
- Paper Speed: 25mm/s and 50mm/s Β±3%
- Recording Paper: 50mm x 20m high-speed roll
- Input Circuit Current: Less than or equal to 50nA
- Safety Standard: Compliant with IEC Class I, Type CF
- Power Supply: AC: 220V / 110V, 50/60Hz; DC: 12V rechargeable battery
- Skin Voltage Tolerance: Β±300mV
- Noise Level: Less than 15ΞΌVp-p for minimal interference
- Dimensions: 310mm x 230mm x 70mm
- Weight: 2.75kg
Why Choose GoldHealth Medical?
GoldHealth Medical is committed to delivering innovative, high-quality medical devices that empower healthcare professionals worldwide. Our products are engineered with precision and designed to meet the rigorous demands of modern medical environments. With decades of expertise, we ensure every device reflects our dedication to excellence and patient care.
Applications
This portable ECG machine is perfect for hospitals, clinics, research labs, rehabilitation centers, and home healthcare. Its compact design and advanced features make it a versatile tool for accurate cardiac diagnostics.
Stand Out Features
- Unmatched portability with a lightweight design and long-lasting battery
- High-resolution thermal printing for clear, detailed reports
- Advanced filtering technology for precise ECG waveform analysis
- Compliance with international safety standards for peace of mind
GoldHealth Medical is your trusted partner in advancing cardiac care. Explore the possibilities today.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Overview
GoldHealth Medical proudly presents an advanced medical instrument designed to deliver precision and reliability in electrocardiography. Engineered with cutting-edge technology, this Class II medical device is crafted to meet the rigorous demands of healthcare professionals and institutions worldwide. Its robust build, intuitive design, and exceptional performance make it an indispensable tool for accurate cardiac diagnostics.
Key Features and Specifications
- Material Composition: Constructed with high-grade metal and durable plastic for enhanced longevity and resilience.
- Lead Configuration: Equipped with a standard 12-lead system for comprehensive and detailed ECG readings.
- Power Source: Powered by electricity, ensuring consistent and uninterrupted performance.
- Instrument Classification: Class II medical device, reflecting its safety and effectiveness in clinical environments.
- Shelf Life: Designed with a shelf life of 1 year, maintaining optimal functionality under recommended storage conditions.
- Quality Certification: CE-certified, guaranteeing compliance with international safety and quality standards.
Warranty and Support
- Warranty Period: Backed by a 1-year warranty, underscoring our commitment to quality and customer satisfaction.
- After-Sales Service: Access to online technical support, ensuring seamless operation and quick resolution of any queries.
Origin and Supply
- Place of Origin: Proudly manufactured in Jiangsu, China, leveraging state-of-the-art production facilities.
- Packaging Details: Securely packaged in wooden cases or cartons to safeguard the device during transit.
- Supply Capacity: With a robust production capability of 3000 units per month, we ensure timely delivery to meet your needs.
Why Choose GoldHealth Medical?
Our electrocardiography device stands out for its precision engineering, user-centric design, and unwavering reliability. Whether you're equipping a hospital, clinic, or research lab, this instrument is engineered to elevate your diagnostic capabilities and deliver exceptional patient care. Partner with GoldHealth Medical to experience innovation that truly makes a difference.
