SRC601 Portable 12Channel ECG Machine with
Reference: 1600924363778Pathological Analysis Equipments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

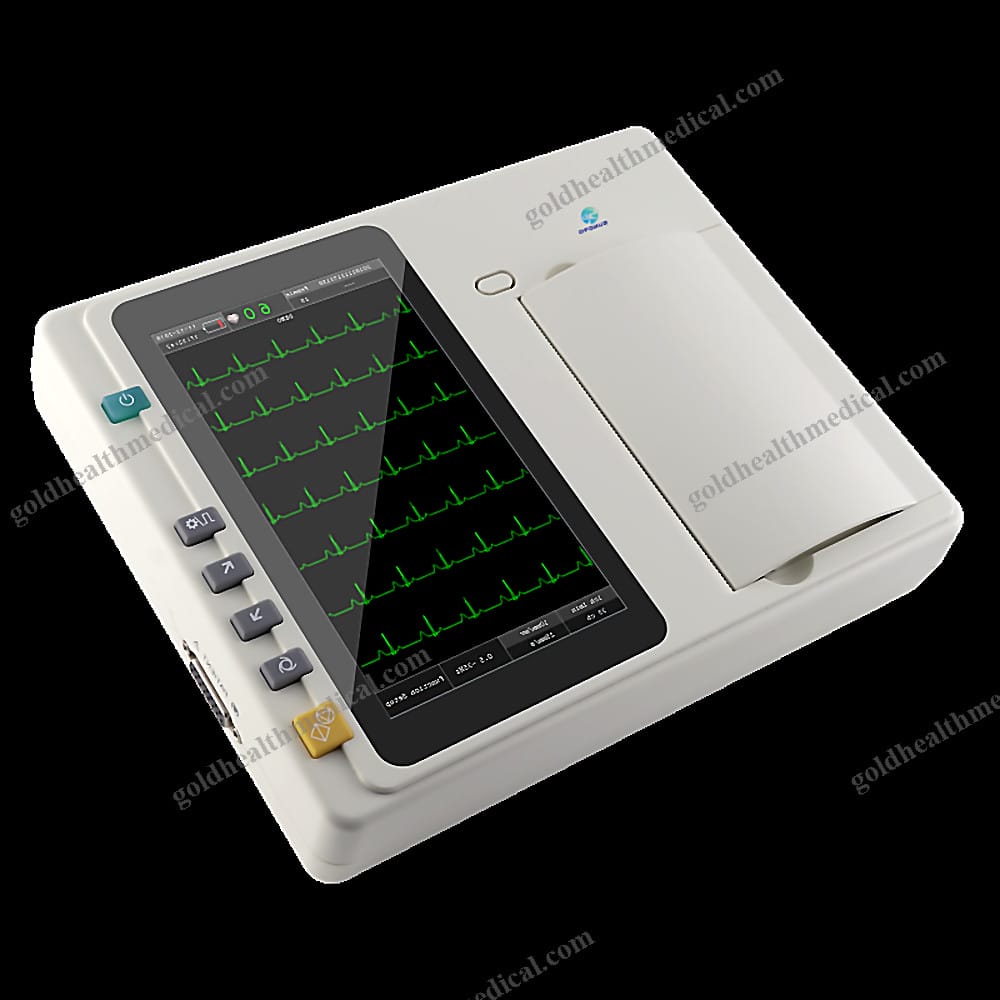

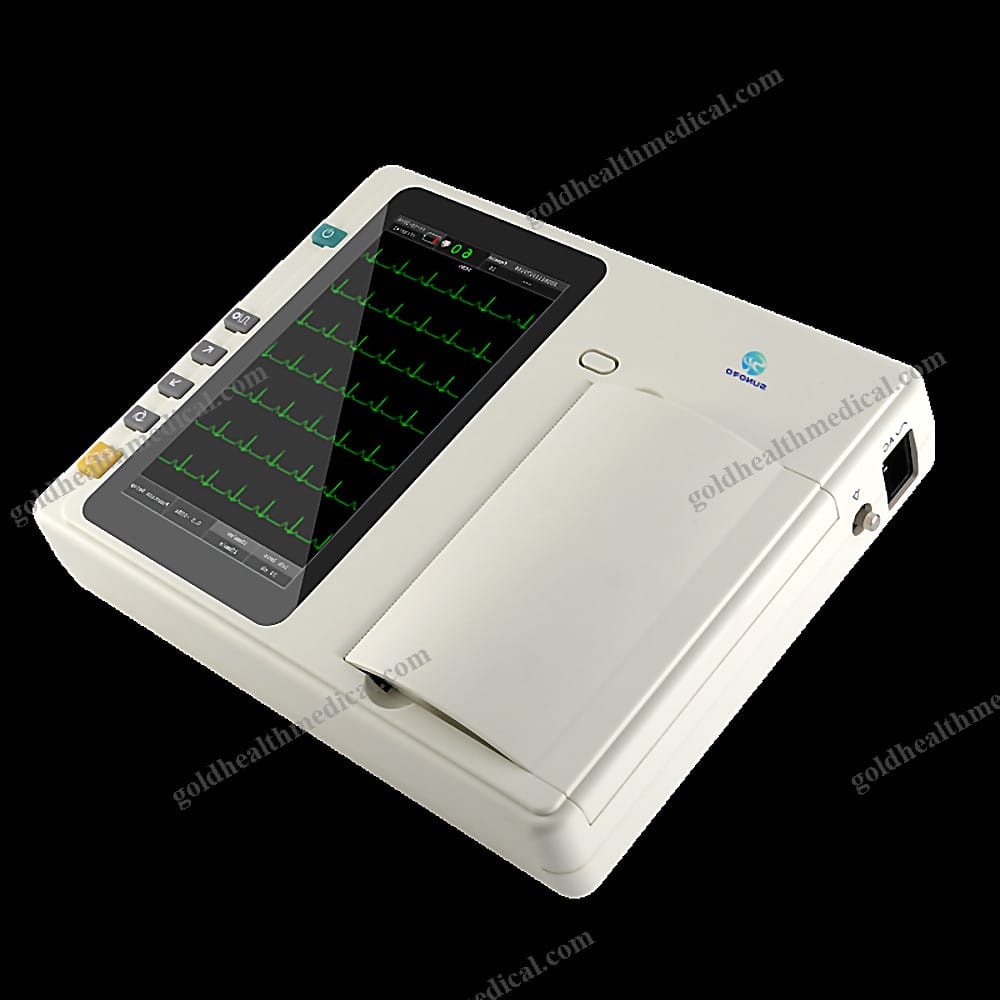

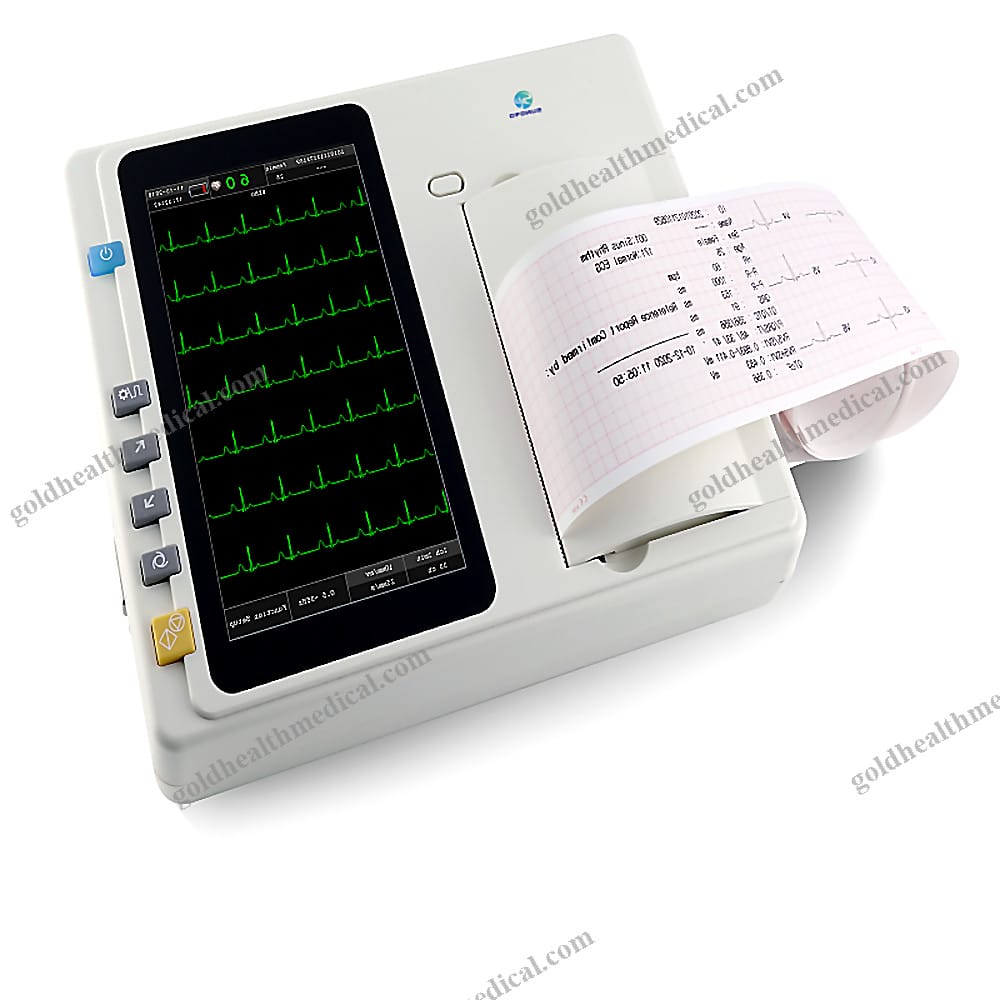

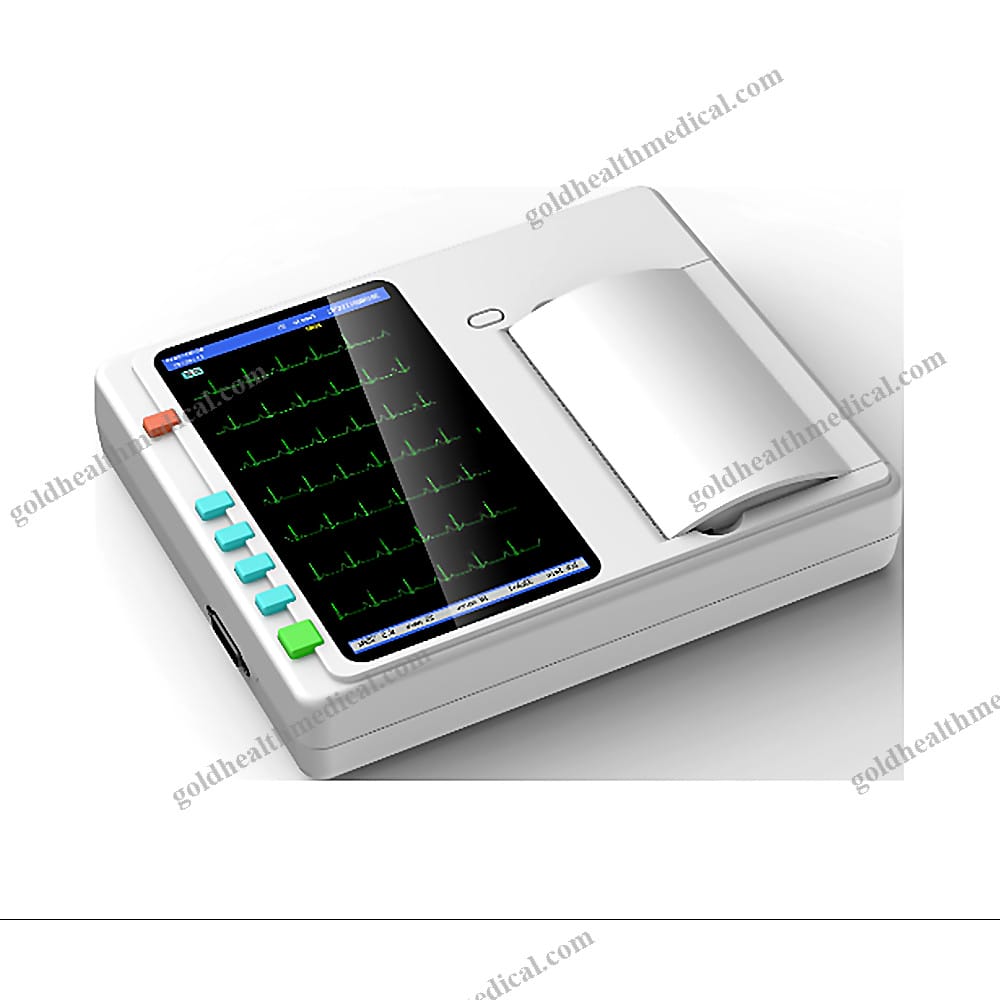

GoldHealth Medical Portable ECG Machine
Experience precision and reliability with the GoldHealth Medical Portable ECG Machine, designed to deliver exceptional performance in cardiac diagnostics. Featuring a 7-inch high-resolution color touch screen, this device combines advanced technology with an intuitive interface for seamless operation.
Key Features:
- 12-lead simultaneous acquisition and display: Capture comprehensive cardiac data with precision.
- Automatic measurement and interpretation: Advanced algorithms provide accurate analysis and insights.
- Complete digital filtering: Resists baseline drift, AC interference, and EMG noise for clear readings.
- Compact and lightweight design: Engineered for portability without compromising durability.
- Expandable memory: Supports USB flash drives and micro SD cards for extended storage.
- Software upgradable: Easily update via USB or SD card to access the latest features.
- Built-in rechargeable Li-ion battery: Ensures uninterrupted performance during use.
Technical Specifications:
- Leads: Standard 12 leads with simultaneous acquisition.
- Measurement Range: ±5mVpp.
- Input Circuit: Floating design with defibrillator protection.
- Input Impedance: ≥50MΩ.
- Input Circuit Current: <0.05μA.
- Recording Modes:
- Automatic: 3CH, 4+1R, 3CHx2+2CHx3, 6CHx2.
- Manual: 3CH, 2CH, 3CH+1R, 2CH+1R.
- Rhythm: Any lead selectable.
- Filters:
- EMG Filter: 25Hz/30Hz/40Hz/75Hz/100Hz/150Hz.
- DFT Filter: 0.05Hz/0.15Hz.
- AC Filter: 50Hz/60Hz.
- CMRR: >100dB.
- Patient Leak Current: <10μA (220V-240V).
- Frequency Response: 0.05Hz to 150Hz (-3dB).
- Sensitivity: 2.5mm/mV, 5mm/mV, 10mm/mV, 20mm/mV (±5% error).
- Anti-baseline Drift: Automatic adjustment.
- Time Constant: ≥3.2s.
- Noise Level: <15μVp-p.
- Paper Speed: 12.5mm/s, 25mm/s, 50mm/s.
- Recording System: Thermal printing.
- Paper Specification: Roll 110mm x 20M.
- Safety Standard: IEC l/CF.
- Sample Rate: 1000sps/channel.
- Power Supply:
- AC: 100~240V, 50/60Hz, 30VA~100VA.
- DC: 14.8V/2200mAh built-in lithium battery.
Standard Configuration:
- Main machine: 1 unit.
- Patient cable: 1 unit.
- Limb electrodes: 1 set (4 pieces).
- Chest electrodes: 1 set (6 pieces).
- Power cable: 1 unit.
- Recording paper: 1 roll (80mm x 20M).
- Paper axis: 1 unit.
GoldHealth Medical’s Portable ECG Machine is engineered to meet the needs of hospitals, clinics, research labs, and home users. Its advanced features, portability, and reliability make it an indispensable tool for cardiac diagnostics. Elevate your practice with a device that combines cutting-edge technology with user-centric design.
