Product summary

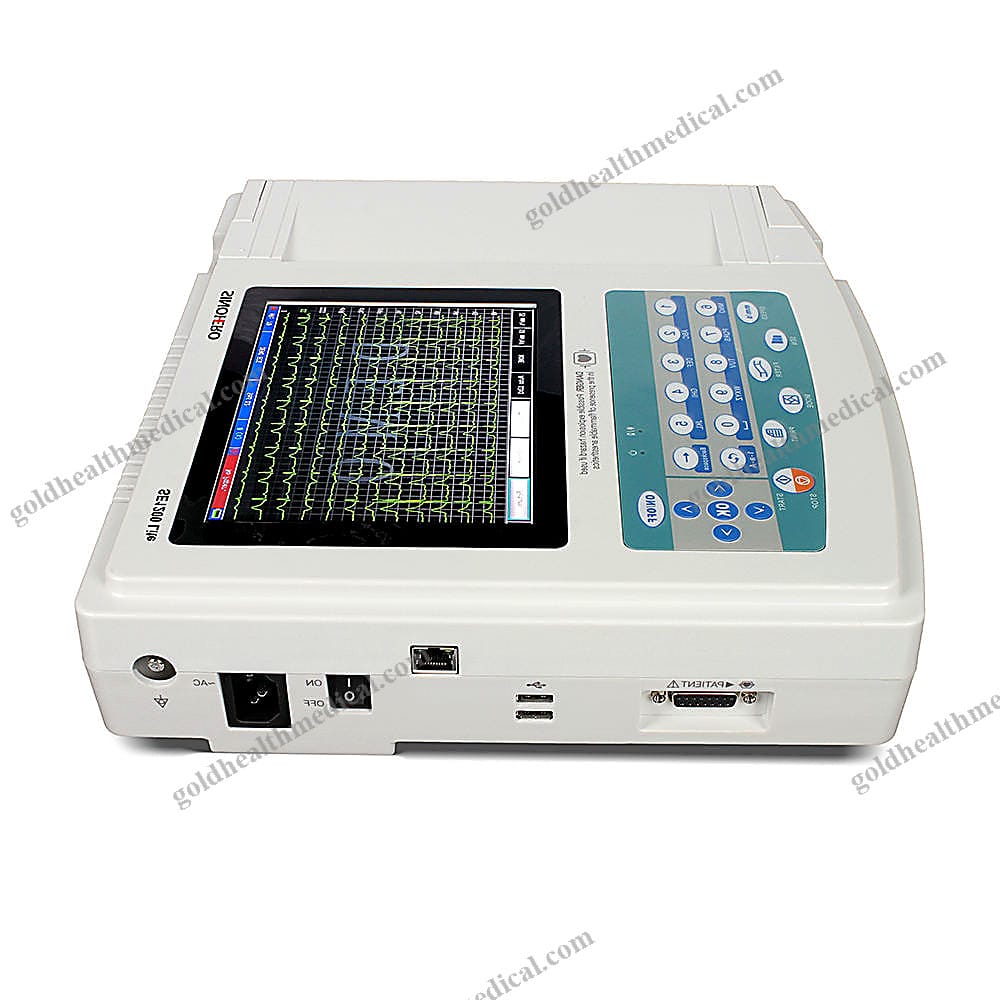

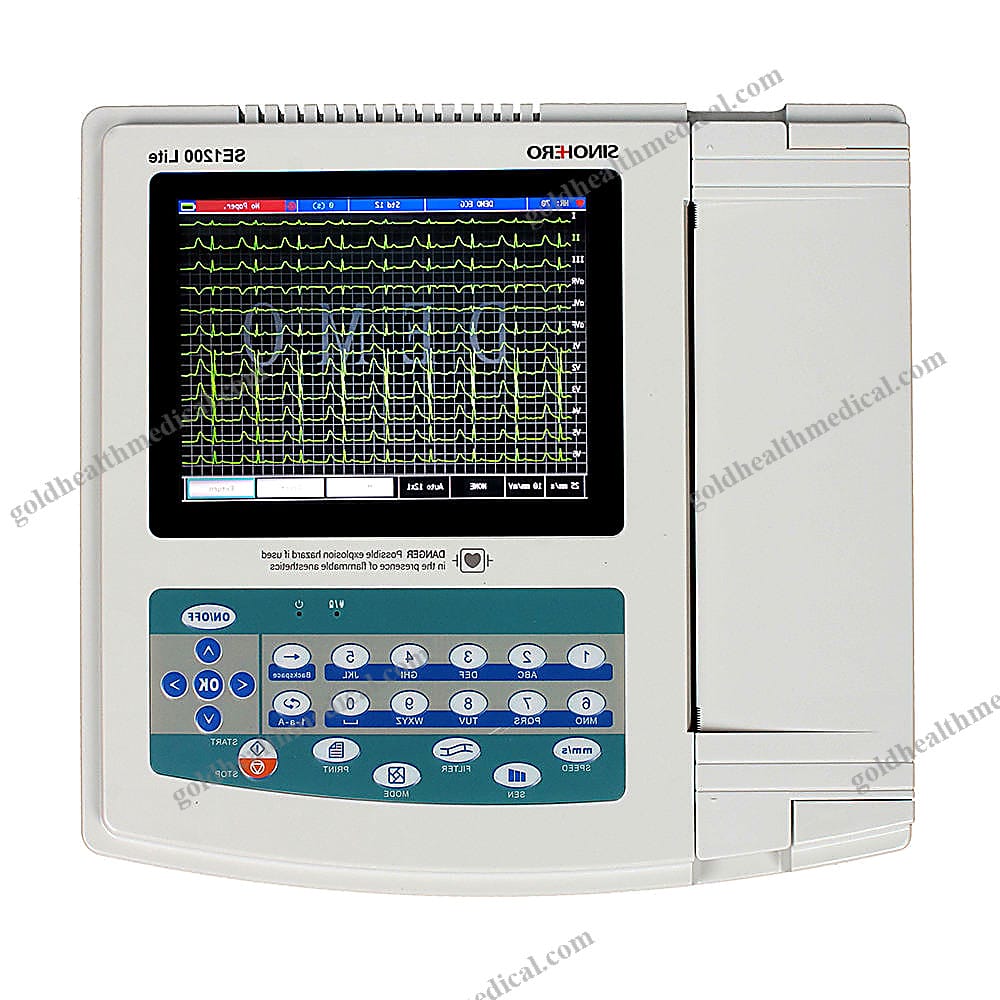

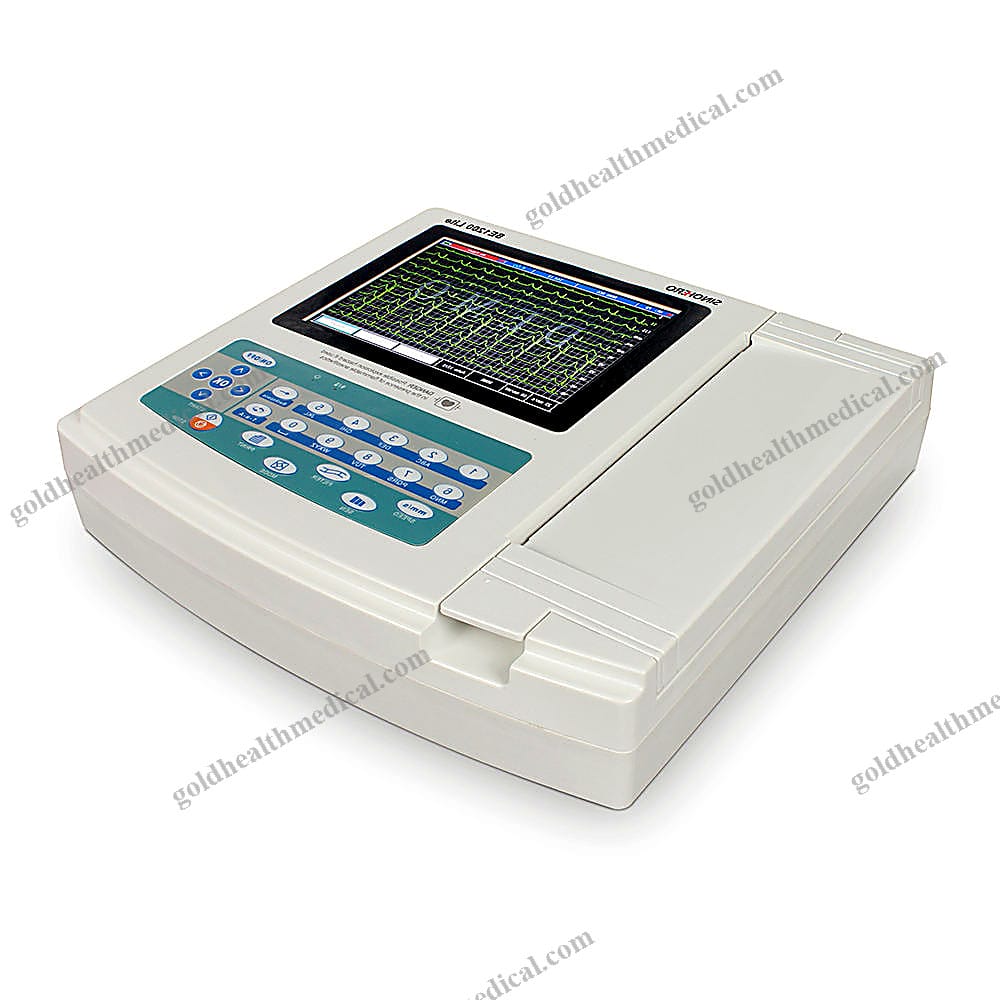

GoldHealth Medical Digital 12-Channel ECG Machine
Experience precision and reliability with the GoldHealth Medical Digital 12-Channel ECG Machine, designed to deliver exceptional performance for healthcare professionals. Featuring an intuitive 8.4” color TFT full-touch screen, this state-of-the-art device combines advanced functionality with user-friendly operation, making it ideal for hospitals, clinics, and home care environments.
Key Features
- 8.4” High-Resolution Touch Screen: A vibrant, full-touch display with 800×600 pixels ensures clear visualization of ECG waveforms and data.
- Anti-Defibrillation & Pacemaker Detection: Built-in protection ensures safe operation even in critical care scenarios.
- Auto Measurement & Diagnosis: Intelligent algorithms provide accurate analysis, saving time and enhancing diagnostic confidence.
- 12-Lead Simultaneous Acquisition: Capture, amplify, and record all 12 leads at once for comprehensive cardiac assessments.
- Versatile Display & Print Modes: Customize views and outputs to suit specific clinical needs.
- Lead State Map: Real-time monitoring of lead connectivity ensures reliable data collection.
Technical Specifications
- Compact & Portable Design:
- Dimensions: 340mm(L) x 320mm(W) x 85mm(H)
- Weight: 3.2kg
- Power Supply:
- Dual DC and AC power options
- Safety Class: Category I, CF type
- Battery Life:
- Rechargeable Lithium battery (3700mA)
- Operating Time: ≥120 minutes on a full charge
- Filters:
- AC Filter
- EMC Filter
- Drift Filter
- Advanced Digital Signal Processing
- Performance Metrics:
- Patient Leak Current: <10µA
- Enduring Polarization Voltage: ±300mV
- Noise Level: <15µVp-p
- Frequency Response: 0.05Hz–150Hz (-3dB)
- Time Constant: ≥3.2s
- Input Impedance: 50MΩ
- Input Circuit Current: <50nA
- Tolerance Voltage: ±650mV
- Common Mode Rejection Ratio (CMRR): ≥60dB, ≥100dB (with filter)
- Input Method: Floating with defibrillation protection
Memory & Connectivity
- Internal Storage:
- Built-in MSF capable of storing over 1000 patient cases
- Digital filter mode for enhanced signal clarity
- Communication Interfaces:
- Ethernet
- RS232
- USB
Recording System
- Thermal Printing Technology:
- High-speed thermal paper (210mm x 20m)
- Record Speeds:
- Auto Record: 25mm/s, 50mm/s (±5% error)
- Rhythm Record: 25mm/s, 50mm/s (±5% error)
- Manual Record: 5mm/s, 6.25mm/s, 10mm/s, 12.5mm/s, 25mm/s, 50mm/s (±5% error)
- Sensitivity Options: 2.5, 5, 10, 20, 40mm/mV (±5% error)
- Standard Sensitivity: 10mm/mV ±0.2mm/mV
Why Choose GoldHealth Medical?
GoldHealth Medical’s 12-Channel ECG Machine is engineered to meet the demands of modern healthcare. Its robust design, advanced features, and seamless operation make it a trusted tool for accurate cardiac diagnostics. Whether in a busy hospital or a remote clinic, this device ensures precision, portability, and peace of mind.
Transform the way you monitor heart health with GoldHealth Medical.
