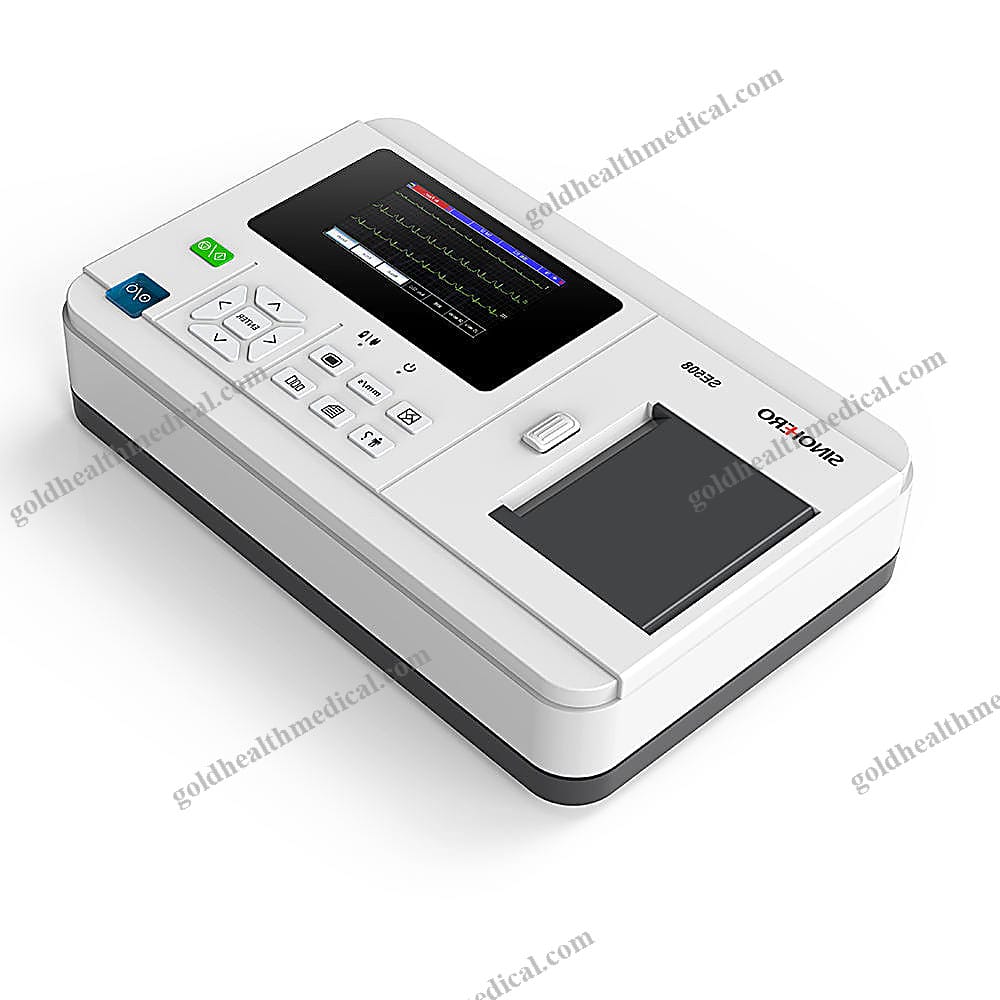

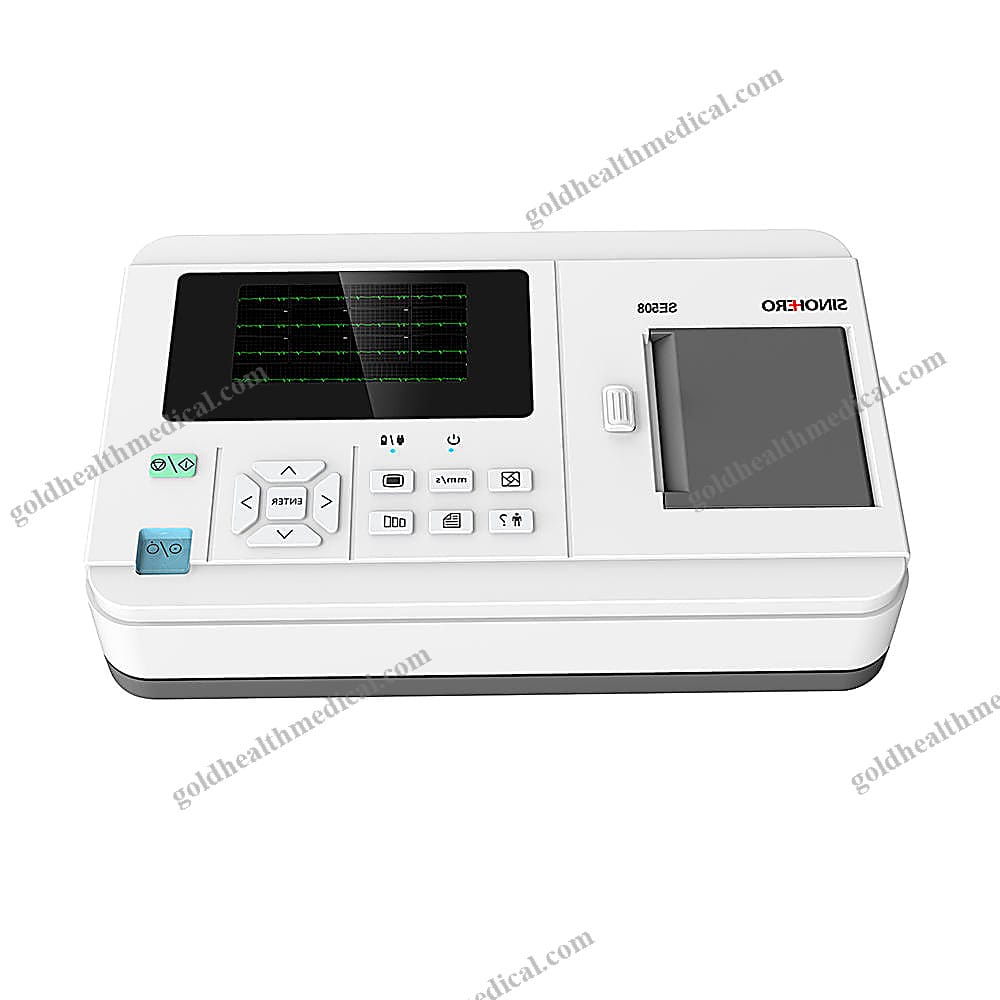

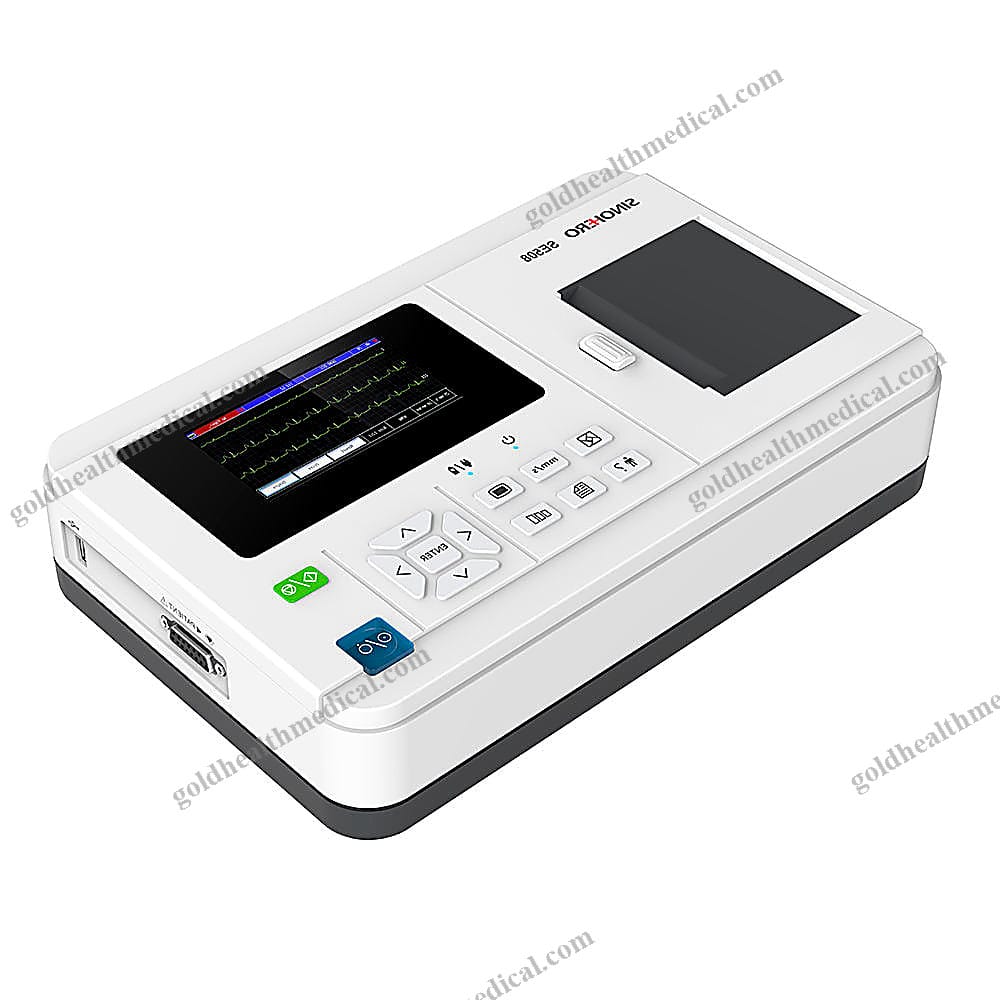

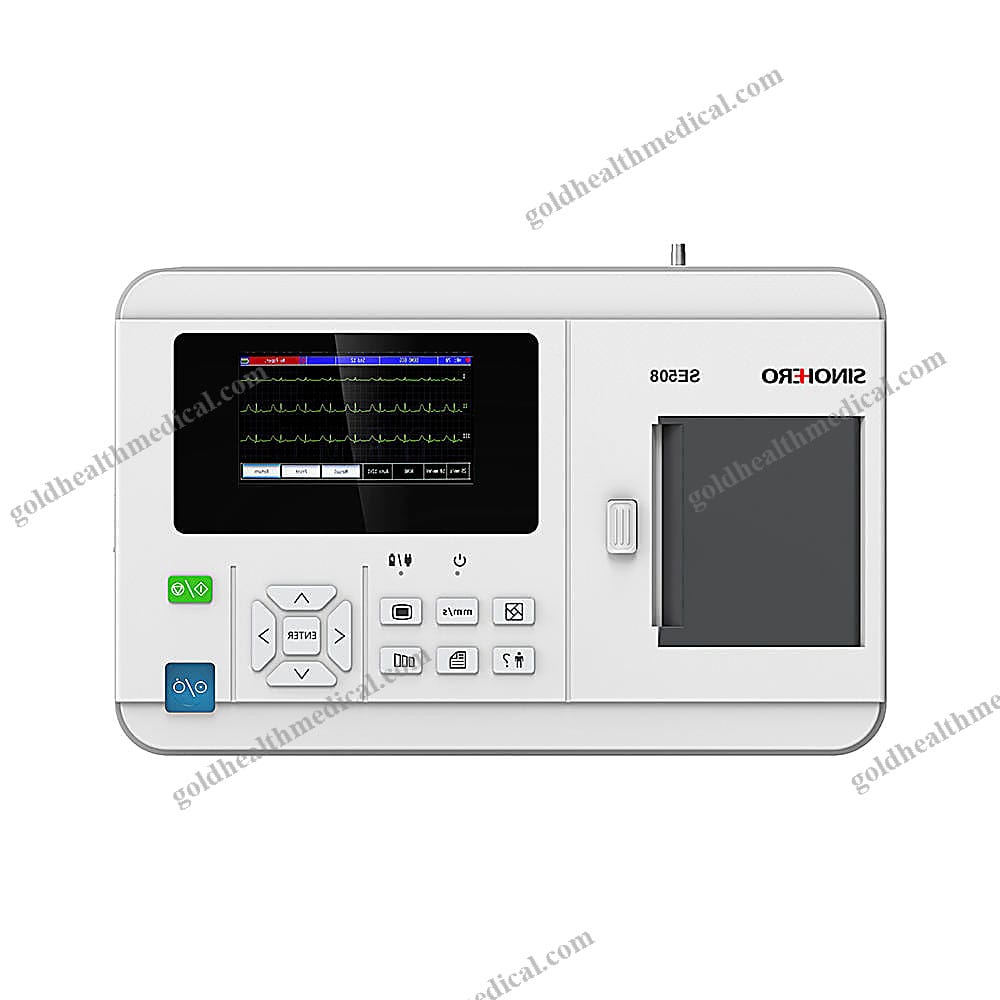

SE508 12Lead Digital ECG Machine
Reference: 1600475663878
Pathological Analysis Equipments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical presents a cutting-edge digital 3-channel 12-lead ECG monitor, designed for precision, reliability, and ease of use in professional healthcare environments.
This advanced portable EKG machine is engineered to simultaneously collect 12-lead ECG signals and print ECG waveforms using a high-quality thermal printing system. Featuring a vibrant 4.3-inch color display, this device delivers exceptional performance with the following capabilities:
- Intelligent Operation: Equipped with an intuitive interface, it supports both AUTO and Manual modes for recording and displaying ECG waveforms. Automatic measurement and diagnosis of ECG parameters ensure accuracy and efficiency.
- Enhanced Usability: A multi-language interface, AC/DC power options, rhythm lead selection, and the ability to print trend charts and histograms of P-R intervals make this device adaptable to diverse clinical needs.
- Comprehensive Data Management: Built-in case database management allows storage of up to 1000 cases. Standard USB connectivity enables data export, review, analysis, and report printing via PC software.
Key Features and Benefits:
- Unmatched Accuracy: Utilizes 12-lead simultaneous acquisition and an advanced algorithm for automatic measurements and interpretation, ensuring reliable readings even in challenging situations.
- Robust Design: Constructed with durable materials, this device resists environmental influences and minimizes electromagnetic interference, making it ideal for long-term monitoring.
- User-Friendly Interface: Smart operational design includes quick-start functionality, a one-button workflow, and a lead map to assist with electrode placement and identify poor connections or missing electrodes effortlessly.
- Clear Visualization: The large 4.3-inch color screen provides simultaneous sampling and display of all 12 leads, ensuring clarity and precision during use.
- Cost-Effective Solution: Offers exceptional value with competitive pricing and supportive distribution policies.
Technical Specifications:
- Display: 4.3β color LCD screen
- EMG Filter: EMG Filter, AC filter (50Hz/60Hz/OFF)
- Low Pass Filter: 150Hz/100Hz/75Hz/OFF
- CMRR: >123dB
- Time Constant: β₯3.2s
- AD Conversion: 24 bits
- Input Impedance: β₯100MΞ© (1Hz)
- Polarization Voltage: Β±950 mV Β±5%
Package Includes:
- 1x Portable ECG Machine
- 1x Lead Cable
- 1x Limb Electrode (4 pieces)
- 1x Chest Electrode (6 pieces)
- 1x Data Transmission Line
- 1x Thermal Recording Paper
- 1x Power Cord
- 1x Earth Wire
- 1x User Manual
Applications:
Ideal for hospitals, clinics, research institutions, laboratories, rehabilitation centers, and home healthcare settings.
GoldHealth Medicalβs ECG monitor combines innovative technology with practical design, empowering healthcare professionals to deliver superior patient care.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Overview
GoldHealth Medical proudly presents a state-of-the-art digital 3-channel ECG/EKG machine, designed for precision, reliability, and ease of use in medical diagnostics. This advanced device is tailored for healthcare professionals and institutions, offering exceptional performance in both clinical and home environments.
Key Features
- High-Resolution Display: Equipped with a 4.3-inch color display for clear visualization of 3-channel, 12-lead ECG readings.
- Unmatched Accuracy: Delivers 98% accuracy in pathological analysis, ensuring dependable diagnostic results.
- User-Friendly Interface: Intuitive controls and digital functionality streamline operation for users of all skill levels.
- Compact and Portable: Lightweight design with a single package size of 40.6 x 28.9 x 20 cm and a gross weight of just 2.9 kg, making it ideal for transport and storage.
Technical Specifications
- Power Source: Electric
- Instrument Classification: Class II
- Safety Standard Compliance: EN 149-2001+A1-2009
- Material Composition: Durable metal and high-quality plastic construction
- Print Mode: Adjustable sensitivity for customized reporting
- Shelf Life: 1 year
Certifications and Quality Assurance
- Certified Standards: CE, ISO
- Warranty: Comprehensive 1-year warranty for peace of mind
- After-Sales Support: Access to online technical support for seamless troubleshooting and assistance
Applications
- Medical Healthcare: Ideal for hospitals, clinics, laboratories, and rehabilitation centers.
- Household Use: Empowers patients and caregivers with professional-grade diagnostics at home.
Why Choose GoldHealth Medical?
Our ECG/EKG machine combines cutting-edge technology with meticulous design, ensuring superior performance and reliability. Whether for professional or personal use, this device sets a new benchmark in pathological analysis equipment, delivering precision and convenience in every application.
Packaging Details
- Selling Units: Single item
- Single Package Size: 40.6 x 28.9 x 20 cm
- Single Gross Weight: 2.9 kg
GoldHealth Medical is committed to advancing healthcare solutions with innovative, high-quality products that meet the needs of modern medical professionals and patients alike.
