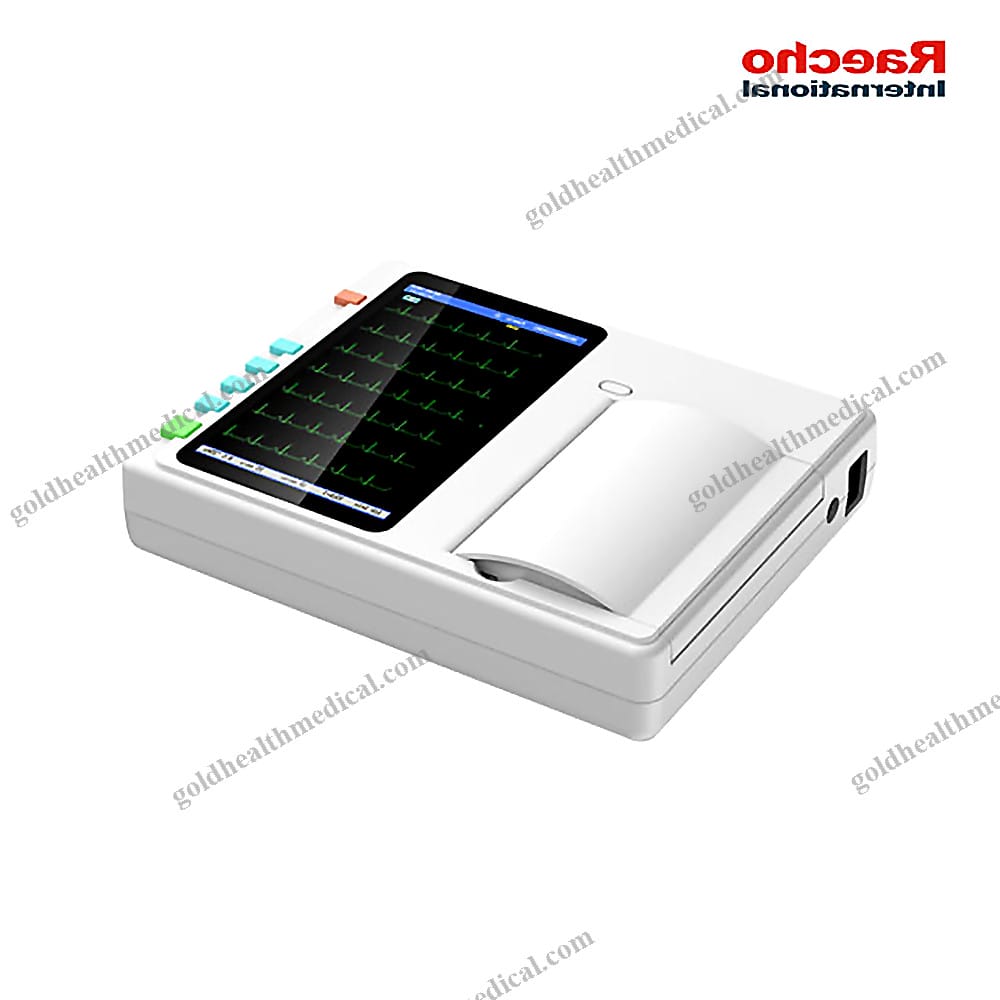

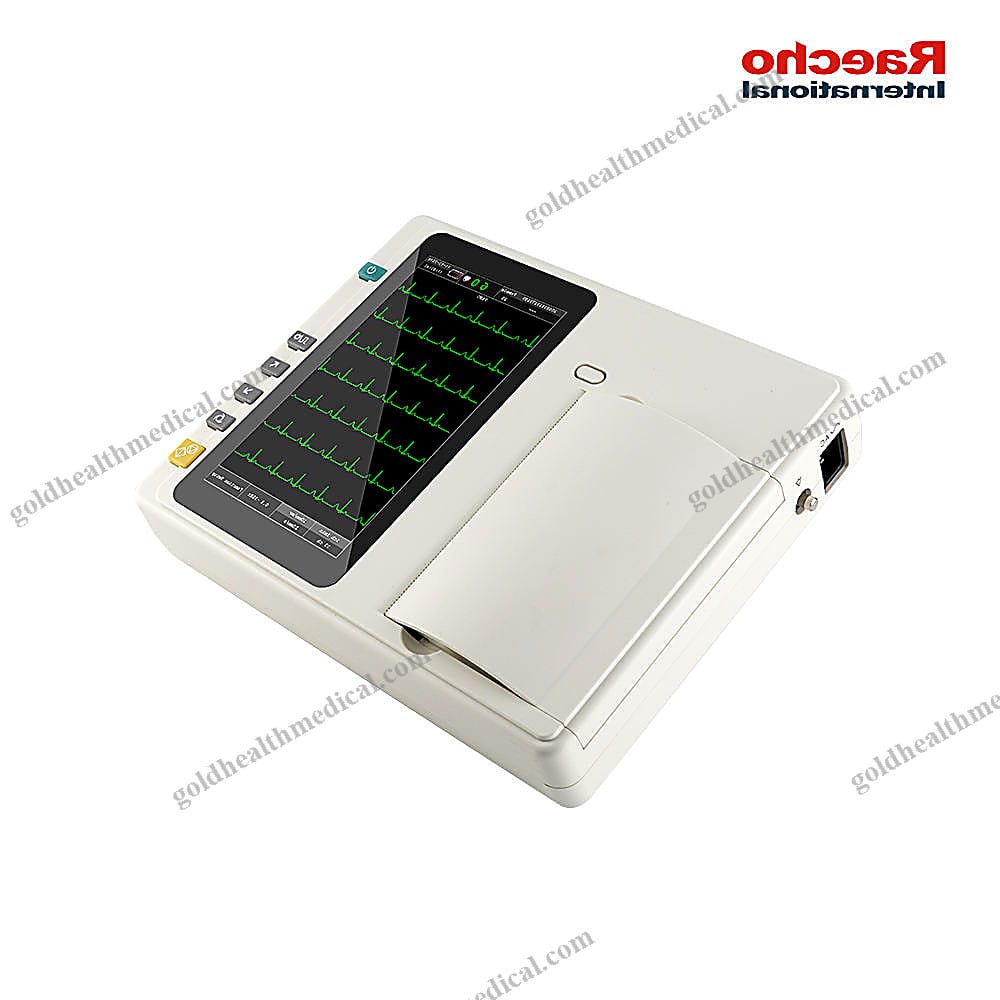

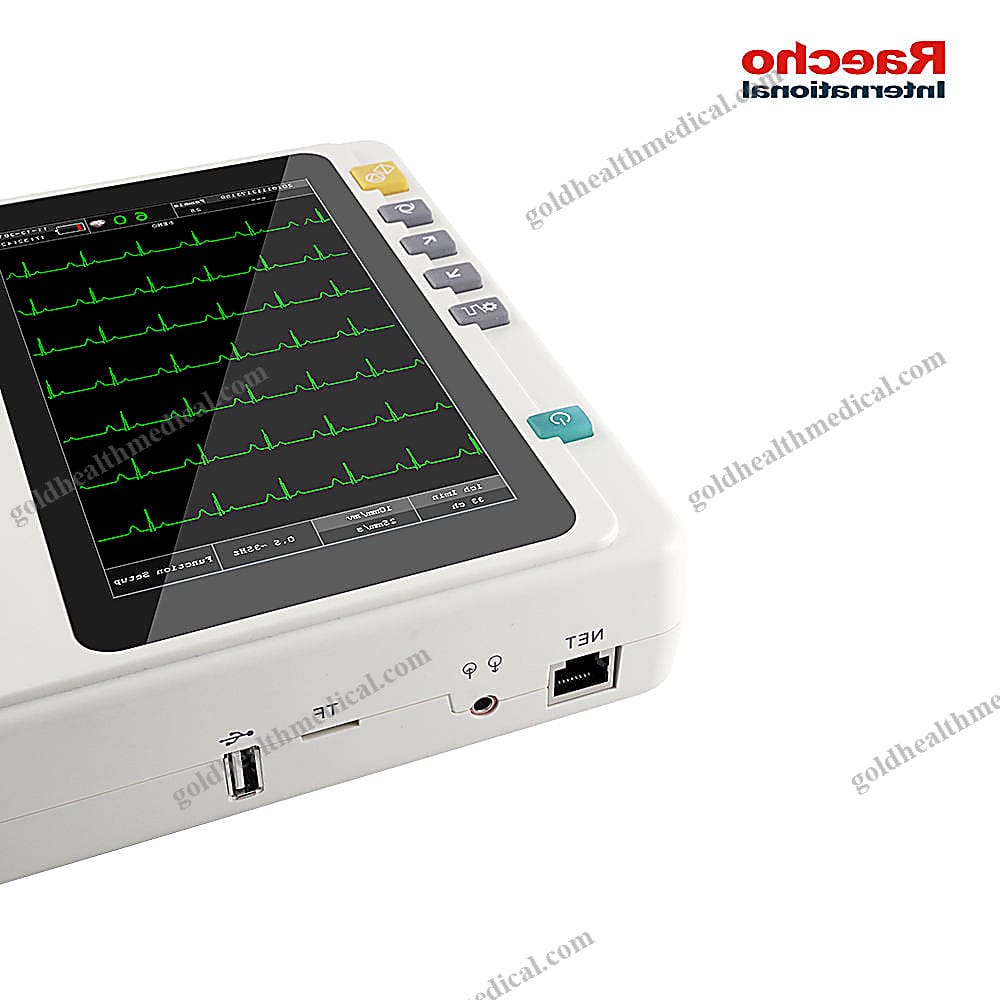

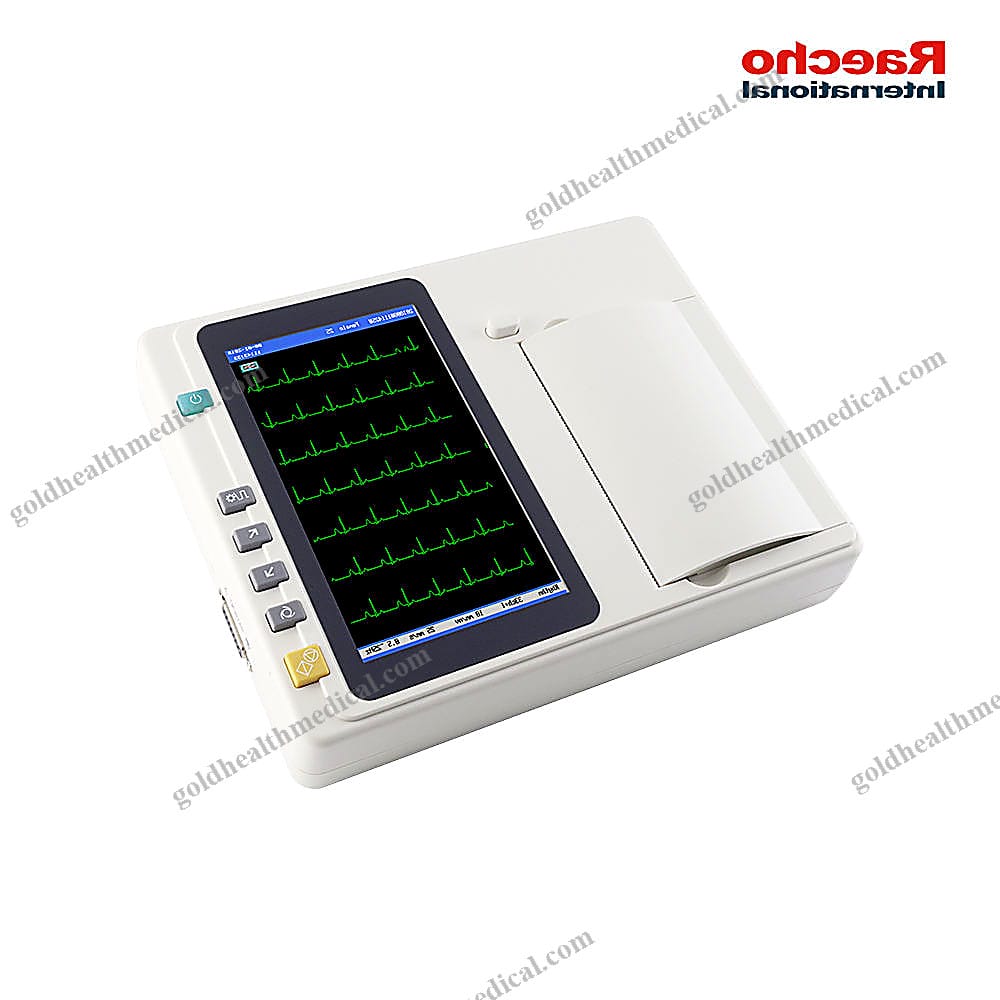

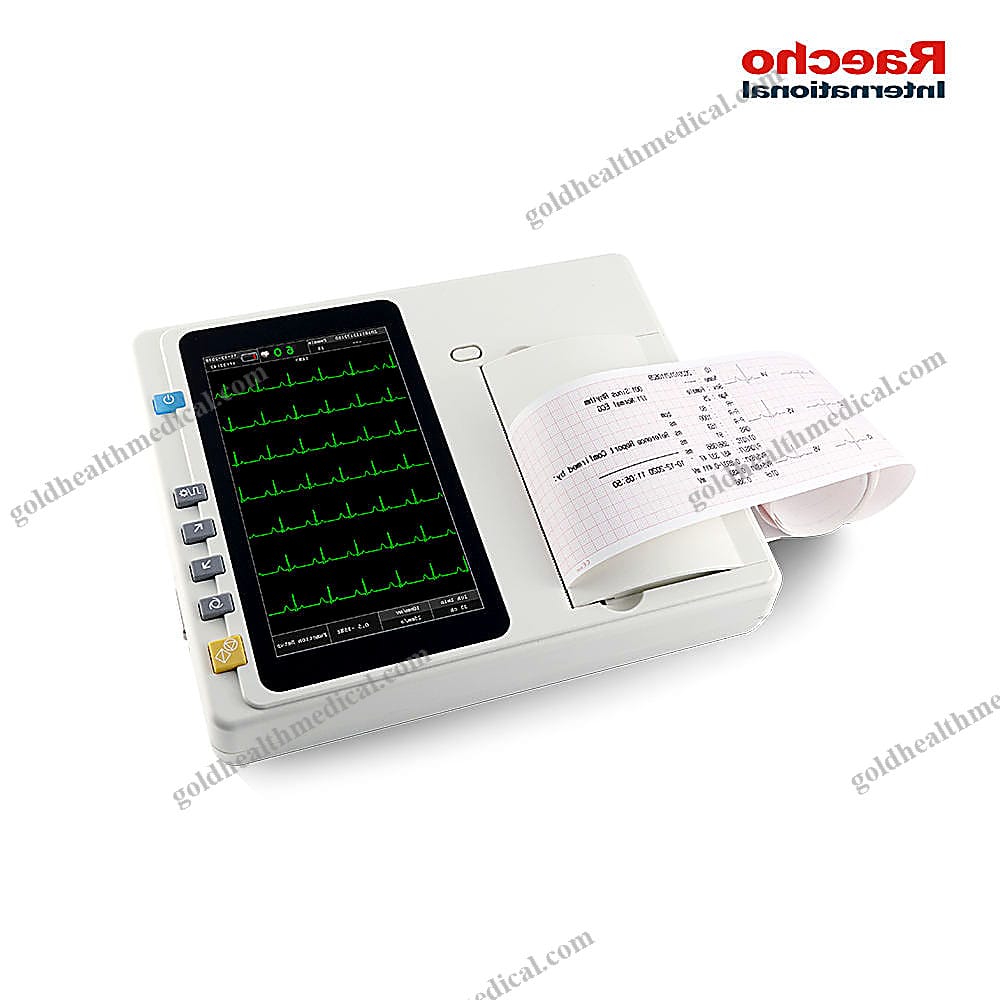

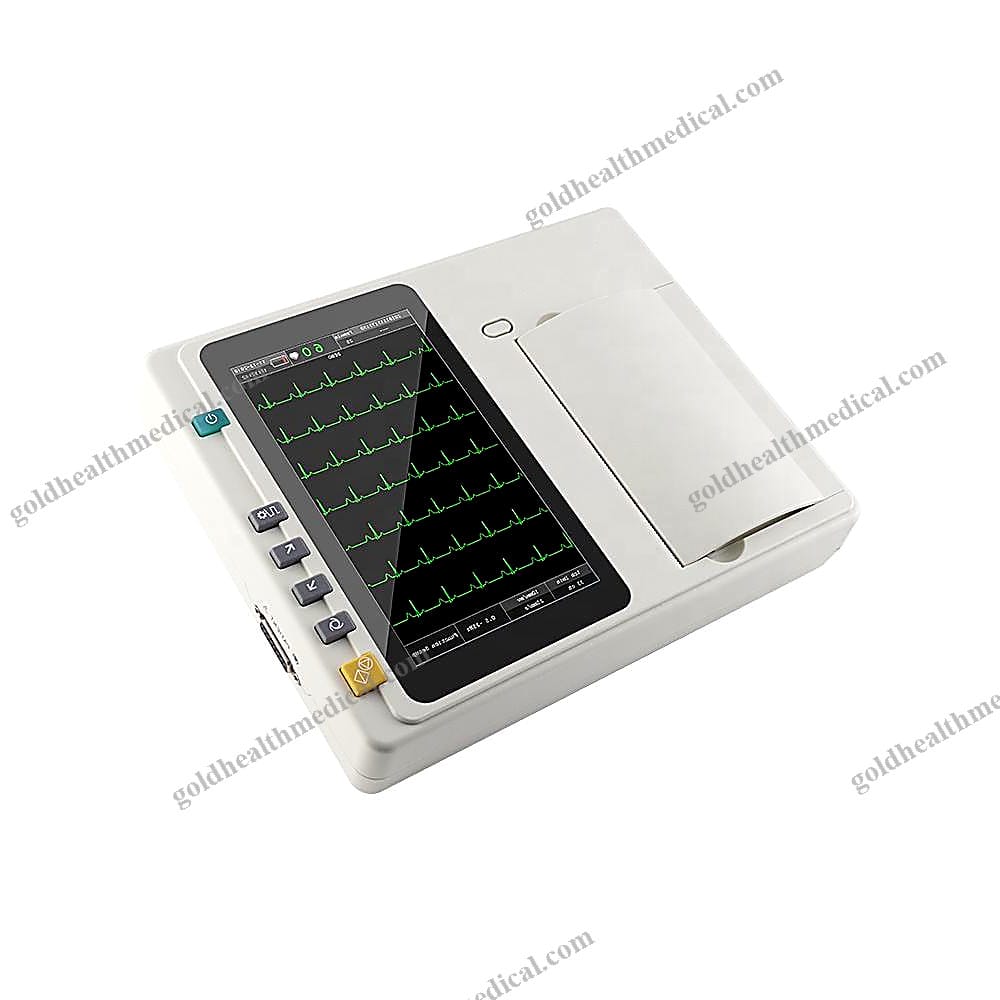

Portable 12Lead ECG Machine with 3 EKG Channels
Reference: 1600967741986
Pathological Analysis Equipments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical: Revolutionizing Cardiac Care with Advanced ECG Technology
Product Overview
GoldHealth Medical presents a cutting-edge electrocardiograph designed to deliver precision, reliability, and ease of use in cardiac diagnostics. Engineered for professionals and caregivers, this device combines advanced technology with an intuitive interface to ensure accurate ECG acquisition and interpretation.
Key Features
- High-Resolution Touch Screen: A 7-inch color display provides crystal-clear visualization of ECG waveforms and data.
- 12-Lead Simultaneous Acquisition: Capture and display all 12 leads at once for comprehensive cardiac analysis.
- Automatic Measurement and Interpretation: Intelligent algorithms provide precise ECG readings and diagnostic insights.
- Advanced Digital Filtering: Eliminate baseline drift, AC interference, and EMG noise for clean, artifact-free signals.
- Compact and Portable Design: Lightweight and ergonomic, making it ideal for both clinical and mobile use.
- Expandable Memory: Supports USB flash drives and micro SD cards for extended storage capacity.
- Seamless Software Upgrades: Effortlessly update firmware via USB or SD card to access the latest features.
- Built-In Rechargeable Battery: Powered by a long-lasting lithium-ion battery for uninterrupted performance.
Technical Specifications
- Lead System: Standard 12-lead configuration with simultaneous acquisition.
- Measurement Range: ±5mVpp.
- Input Circuit: Floating design with defibrillator protection.
- Input Impedance: ≥50MΩ.
- Input Circuit Current: ≤0.05μA.
- Recording Modes:
- Automatic: 3CHx4+1R, 3CHx4, 3CHx2+2CHx3, 3CHx2+2CHx3+1R, 6CHx2.
- Manual: 3CH, 2CH, 3CH+1R, 2CH+1R.
- Rhythm: Any lead selectable.
- Filters:
- EMG Filter: 25Hz/30Hz/40Hz/75Hz/100Hz/150Hz.
- DFT Filter: 0.05Hz/0.15Hz.
- AC Filter: 50Hz/60Hz.
- Common Mode Rejection Ratio (CMRR): >100dB.
- Patient Leak Current: <10μA (220V-240V).
- Frequency Response: 0.05Hz-150Hz (-3dB).
- Sensitivity: 2.5mm/mV, 5mm/mV, 10mm/mV, 20mm/mV (±5% accuracy).
- Anti-Baseline Drift: Automatic adjustment.
- Time Constant: ≥3.2s.
- Noise Level: <15μVp-p.
- Paper Speed: 12.5mm/s, 25mm/s, 50mm/s.
- Recording System: Thermal printing with 80mm x 20M roll paper.
- Sampling Rate: 1000 samples per second per channel.
- Power Supply:
- AC: 100-240V, 50/60Hz, 30VA-100VA.
- DC: 14.8V/2200mAh built-in lithium battery.
Why Choose GoldHealth Medical?
Our ECG device stands out with its unparalleled combination of precision, portability, and user-friendly design. Whether you're in a hospital, clinic, or home care setting, this device ensures reliable performance and accurate diagnostics. Backed by rigorous safety standards and a commitment to innovation, GoldHealth Medical is your trusted partner in cardiac care.
Standard Configuration
- Main unit: 1 piece.
- Patient cable: 1 piece.
- Limb electrodes: 1 set (4 pieces).
- Chest electrodes: 1 set (6 pieces).
- Power cable: 1 piece.
- Recording paper (80mm x 20M): 1 roll.
- Paper axis: 1 piece.
GoldHealth Medical is dedicated to empowering healthcare providers with tools that enhance patient outcomes and streamline workflows. Experience the future of cardiac diagnostics today.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
GoldHealth Medical presents an advanced 12-Lead Electrocardiograph designed to deliver precision, reliability, and ease of use for healthcare professionals and institutions. Engineered with cutting-edge technology, this device is tailored for a wide range of medical environments, from hospitals and clinics to research labs and home care settings.
Product Highlights
- Simultaneous 12-Lead Acquisition: Ensures accurate and comprehensive cardiac data capture for reliable diagnostics.
- High Precision Measurement: A measurement range of ±5mVpp, input impedance ≥50MΩ, and a CMRR >100dB guarantee exceptional signal clarity and minimal interference.
- Patient Safety First: Ultra-low patient leak current of <10pA (at 220V-240V) ensures maximum safety during operation.
- Versatile Paper Speed Options: Adjustable speeds of 12.5mm/s, 25mm/s, and 50mm/s provide flexibility for different diagnostic requirements.
- Class II Medical Instrument: Meets stringent industry standards for performance and safety.
Technical Specifications
- Power Source: Electricity
- Lead Configuration: Standard 12 leads
- Acquisition Mode: Simultaneous 12 leads acquisition
- Input Circuit Current: <0.05μA
- Sample Rate: Normal: 1000 samples per second per channel
- Paper Specification: Roll format, 80mm x 20M
- Shelf Life: 1 year
Certifications and Support
- Quality Certification: CE
- Warranty: 1 year
- After-Sale Service: Comprehensive online technical support to ensure uninterrupted performance
Why Choose GoldHealth Medical?
Our electrocardiograph combines state-of-the-art engineering with user-centric design, making it an indispensable tool for modern healthcare. With its robust build, advanced features, and commitment to patient safety, this device sets a new benchmark in cardiac diagnostics.
Experience the GoldHealth Medical difference—where innovation meets precision.
