Portable 12Channel Digital ECG Machine
Reference: 1601291221911
Pathological Analysis Equipments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical presents an advanced electrocardiograph designed to elevate cardiac diagnostics with precision and ease.
Product Highlights
- Simultaneous 12-lead ECG signal acquisition with a high-resolution thermal printing system.
- Intuitive operation via both button controls and a responsive touch screen interface.
- Automatic and manual modes for recording and displaying ECG waveforms.
- Intelligent features including automatic measurement, diagnosis, and alerts for "Lead off" and "Lack of paper."
- Multi-language support for global usability.
- AC/DC power options with extended battery life for uninterrupted performance.
Key Features
-
High-Precision Signal Processing:
Achieves exceptional ECG waveform quality using a 24-bit sampling accuracy, enhanced by power frequency, baseline, and EMG filters. -
Comprehensive Display:
Simultaneously showcases 3/6/12-lead ECG waveforms alongside critical parameters such as print mode, sensitivity, paper speed, and filter settings on a single screen for efficient comparative diagnosis. -
Flexible Printing Options:
Offers multiple formats including auto 12x1, auto 6x2+1 (rhythm lead), auto 6x2, auto 3x4+1 (rhythm lead), rhythm 12, rhythm 10, rhythm 8, rhythm 6, and manual modes. - Capable of printing trend charts and histograms of the P-R interval for detailed rhythm analysis.
-
Adjustable waveform length and time-stamped prints for tailored documentation.
-
Adjustable Paper Speeds:
Supports speeds of 5mm/s, 6.25mm/s, 10mm/s, 12.5mm/s, 25mm/s, and 50mm/s to meet diverse clinical needs. -
Automated Analysis and Diagnosis:
Provides precise measurements and diagnostic insights for key parameters: - Heart Rate (HR)
- P-R Interval, P Duration, QRS Duration, Q-T Interval, Q-Tc
- P Axis, QRS Axis, T Axis
-
R(V5), S(V1), R(V5)+S(V1)
Reduces physician workload with reliable auto-diagnosis conclusions. -
Enhanced Data Management:
Built-in high-capacity memory for seamless case review, storage, and statistical analysis. -
Multilingual Support:
User interface and reports available in multiple languages, including English, Chinese, Turkish, Portuguese, German, Russian, and Kazakh. -
Extended Battery Life:
Up to 10 hours of standby time and over 3 hours of continuous printing in optimal DC conditions, ideal for home visits and physical examinations.
Technical Specifications
- Working Environment:
- Temperature: 5°C to 40°C
- Relative Humidity: 25% to 95% (non-condensing)
-
Atmospheric Pressure: 700 hPa to 1060 hPa
-
Transport and Storage Conditions:
- Temperature: -20°C to +55°C
- Relative Humidity: ≤95%
-
Atmospheric Pressure: 500 hPa to 1060 hPa
-
Dimensions:
340mm (L) × 320mm (W) × 85mm (H) -
Weight:
3.2 kg

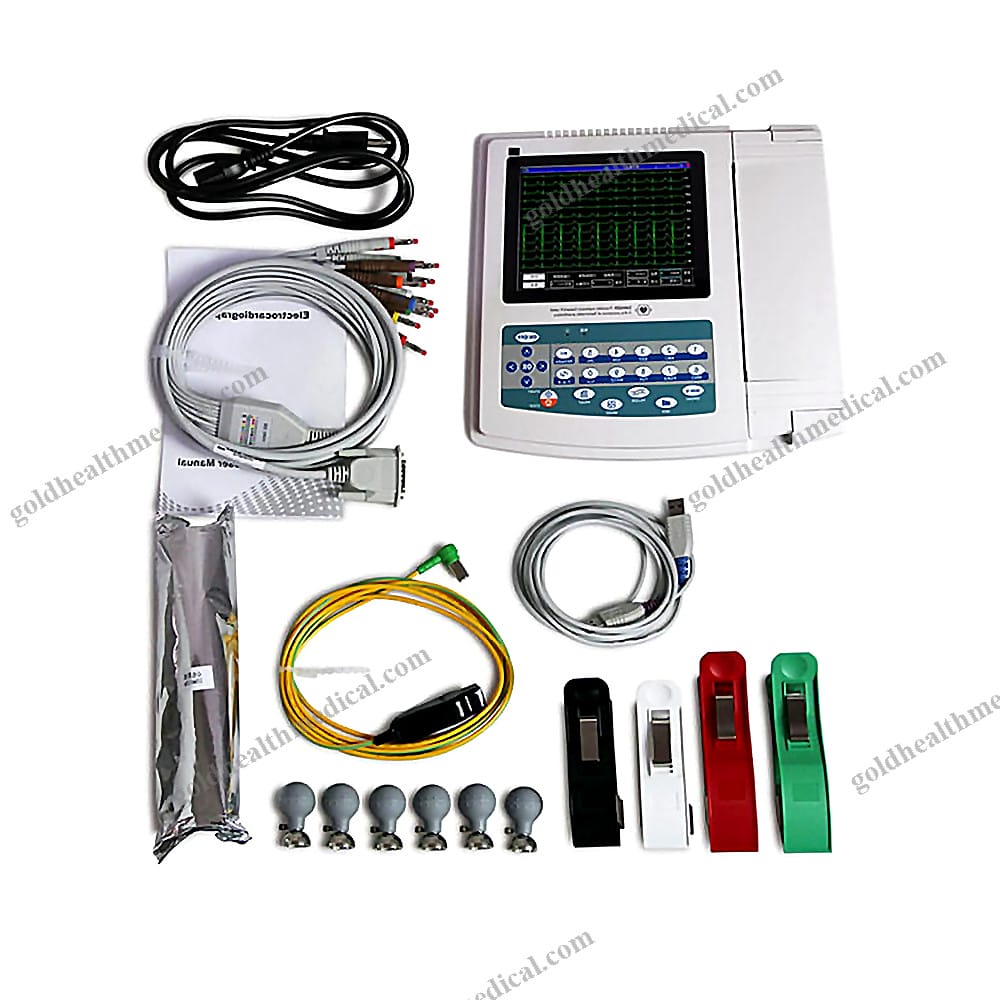

Standard Accessories
- Lead cable
- Limb electrodes
- Chest electrodes
- Thermal recording paper
- Power cord
- Earth wire
- User manual
GoldHealth Medical’s electrocardiograph is engineered to deliver unparalleled accuracy, versatility, and reliability, empowering healthcare professionals with cutting-edge tools for cardiac care.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Company: GoldHealth Medical
Product Description:
The GoldHealth Medical ECG Monitor is a cutting-edge Class II medical instrument designed to deliver precision and reliability in cardiac diagnostics. Engineered with advanced technology, this device ensures accurate readings and seamless operation, making it an indispensable tool for healthcare professionals and caregivers alike.
Key Features and Specifications:
- Material: High-grade, durable plastic for long-lasting performance
- Power Source: Electric, ensuring consistent and reliable operation
- Instrument Classification: Class II medical device, meeting rigorous industry standards
- Shelf Life: 3 years, offering extended usability and value
- Quality Certification: CE-certified, guaranteeing compliance with international safety and quality benchmarks
- Place of Origin: Guangdong, China, renowned for its expertise in medical device manufacturing
Packaging Details:
- Package Dimensions: 45 x 45 x 30 cm, compact and optimized for secure transport
- Gross Weight: 7.500 kg, lightweight yet robust for easy handling
Warranty and Support:
- Warranty: Comprehensive 1-year warranty for peace of mind
- After-Sales Service: Includes free spare parts to ensure uninterrupted performance
Unique Selling Points:
- Designed for versatility, suitable for hospitals, clinics, research labs, and home care environments
- Combines precision engineering with user-friendly functionality, setting a new standard in cardiac monitoring
- Backed by GoldHealth Medical’s commitment to innovation and excellence in healthcare solutions
Ideal For:
- Hospitals and clinics seeking reliable diagnostic tools
- Research institutions conducting advanced cardiac studies
- Home users requiring professional-grade monitoring equipment
- Rehabilitation centers and elderly care facilities prioritizing patient well-being
GoldHealth Medical’s ECG Monitor is more than a device—it’s a trusted partner in cardiac health management.
