LTSE23 Advanced Portable ECG Machine with 12Lead
Reference: 1601102643453
Pathological Analysis Equipments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

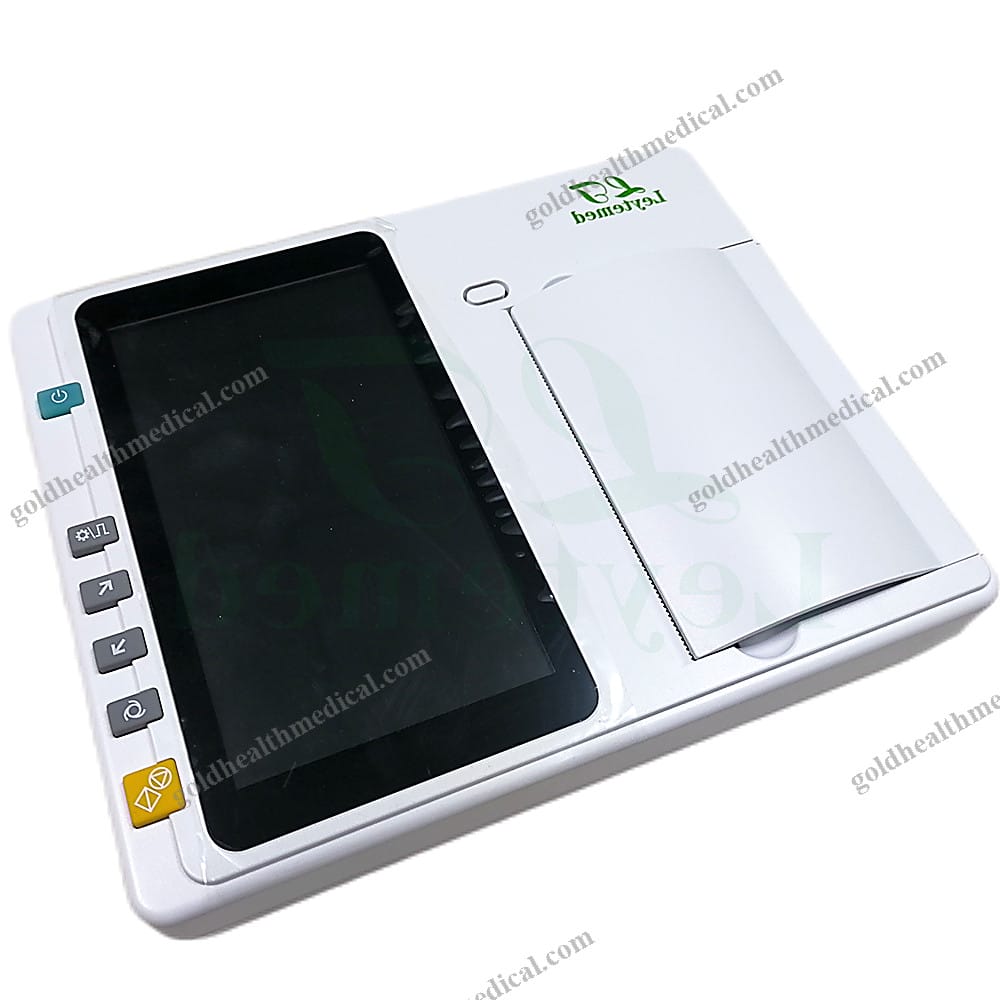

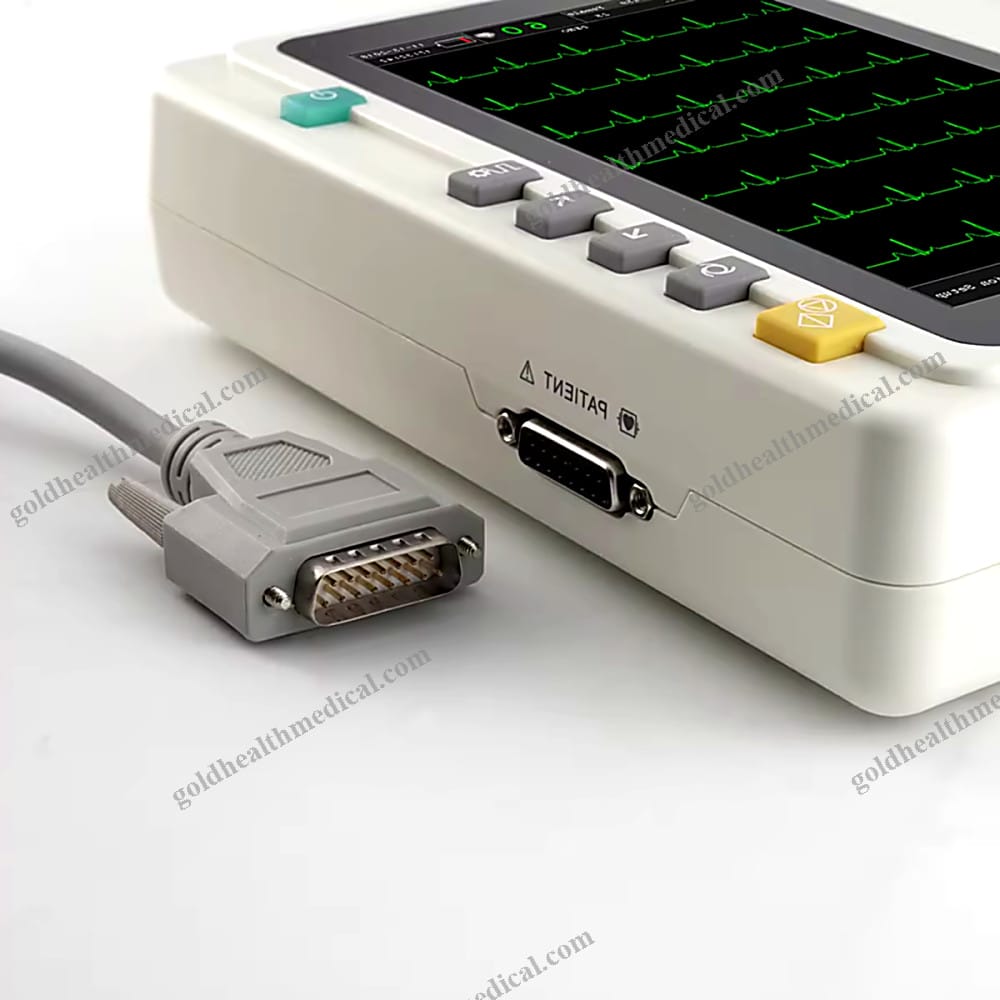

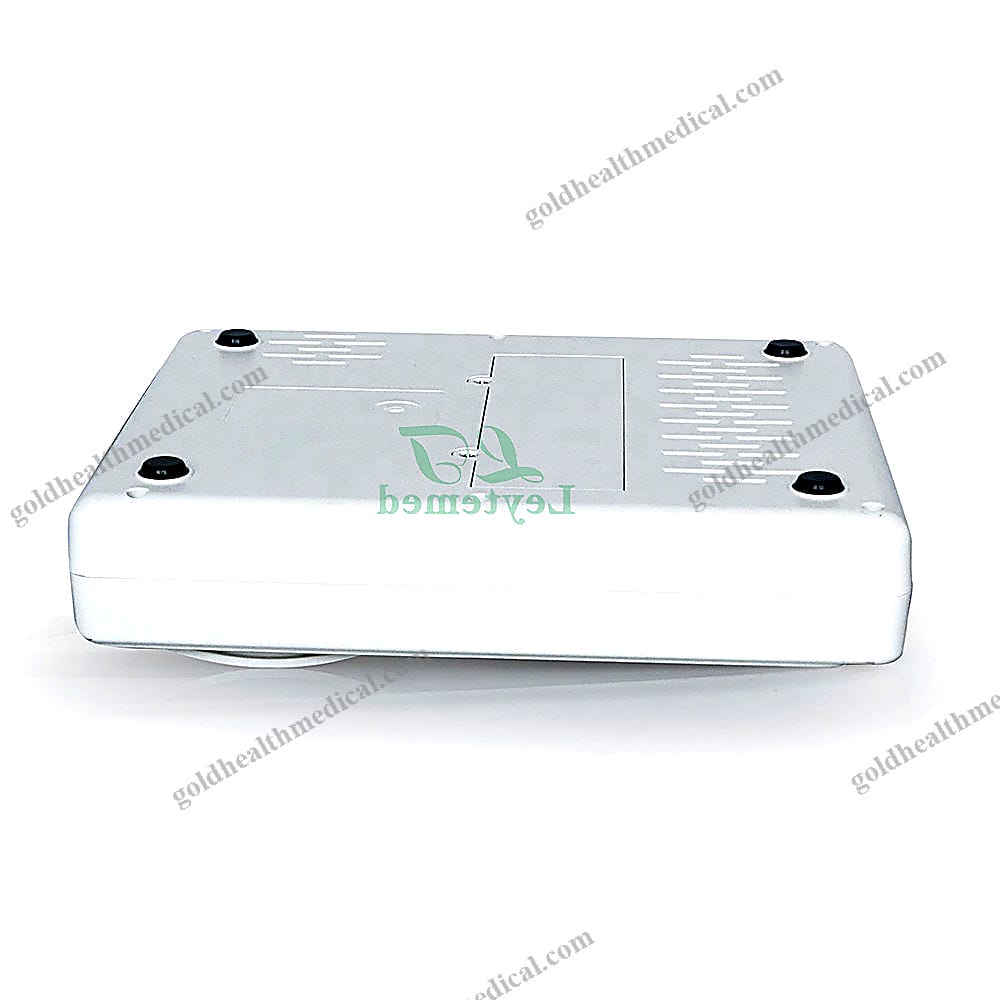

GoldHealth Medical ECG Machine
Revolutionize cardiac diagnostics with GoldHealth Medical's advanced ECG technology, designed for precision and ease of use across medical environments.
Product Highlights

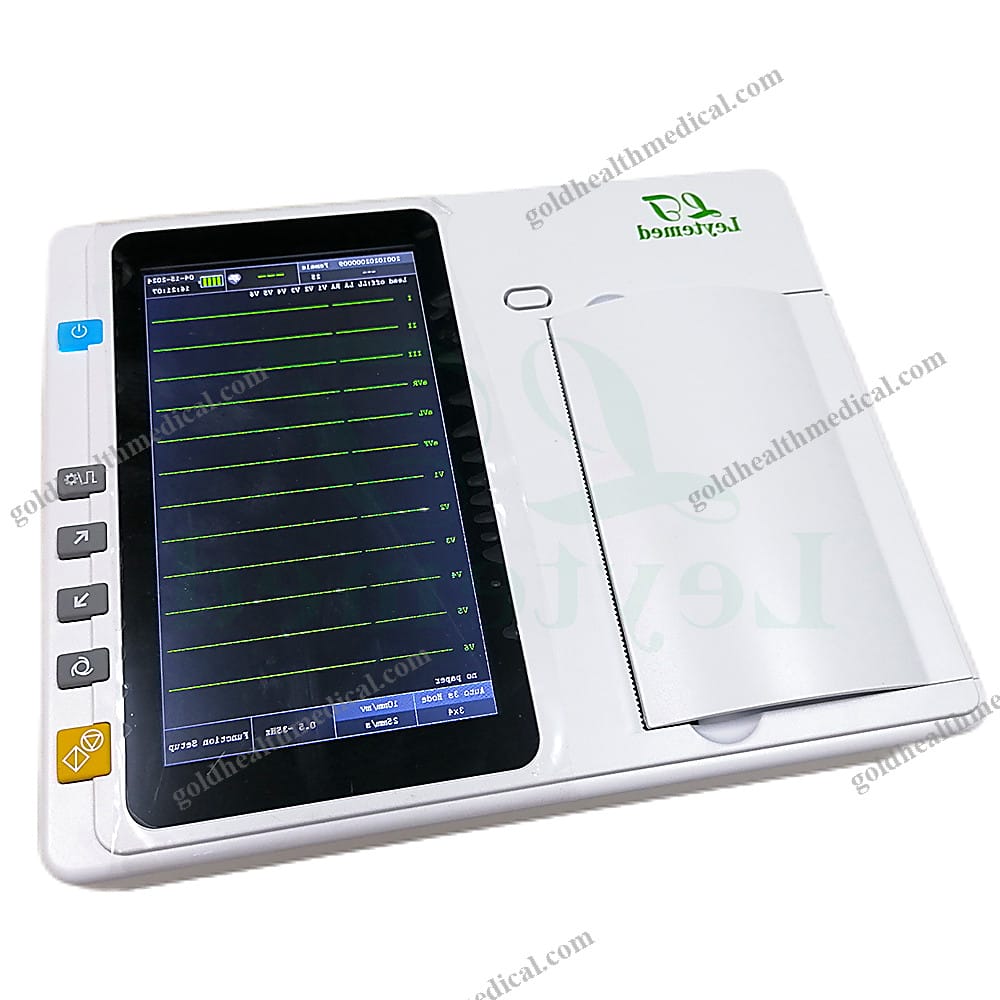

- Crystal-Clear Display: 7-inch high-resolution color touchscreen for intuitive operation and clear visualization
- Comprehensive Lead System: Simultaneous acquisition and display of all 12 leads for complete cardiac assessment
- Intelligent Analysis: Built-in automatic ECG measurement and interpretation capabilities
- Advanced Signal Processing: Multi-layer digital filtering system effectively eliminates baseline drift, AC interference, and EMG noise
- Portable Design: Compact and lightweight construction for maximum mobility
- Expandable Storage: Supports both USB flash drives and micro memory cards for extended data capacity
- Future-Proof Technology: Simple software upgrades through USB or memory card
- Reliable Power Solution: Integrated rechargeable lithium-ion battery for uninterrupted operation
Technical Specifications
- Display: 7-inch high-definition touchscreen interface
- ECG Analysis: Comprehensive diagnostic capabilities
- Lead Configuration: Standard 12-lead system with simultaneous acquisition
- Input Protection: Advanced floating circuit with defibrillator protection
- Impedance: ≥50MΩ input impedance
- Circuit Safety: ≤0.05μA input circuit current
- Recording Options:
- Automatic: Multiple 3-channel configurations
- Manual: Flexible 2-3 channel selections
- Rhythm: Any lead selectable
- Filter System:
- EMG Filter: 25Hz to 150Hz range
- DFT Filter: 0.05Hz/0.15Hz options
- AC Filter: 50Hz/60Hz selection
- Common Mode Rejection Ratio (CMRR): >100dB
- Patient Safety: <10μA patient current leakage
- Frequency Response: 0.05Hz~150Hz (-3dB)
- Sensitivity Settings: 2.5mm/mV to 20mm/mV range
- Baseline Management: Automatic anti-drift system
- Noise Performance: <15μVp-p
- Thermal Printing System:
- Paper Speed: 12.5mm/s to 50mm/s
- Paper Specification: 80mmx20m roll

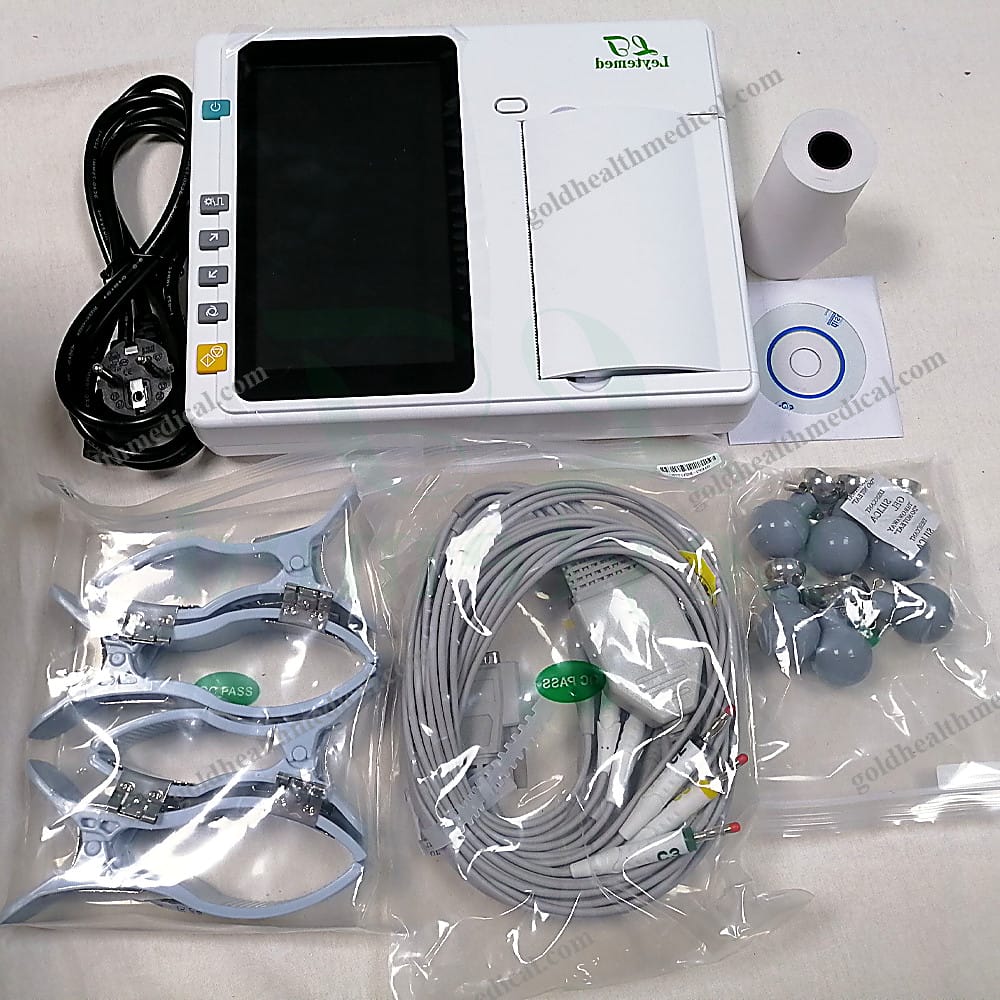

Standard Accessories
- Patient cable set
- Limb electrodes (4 sets)
- Chest electrodes (6 sets)
- Grounding cable
- Paper axis assembly
- Thermal paper roll
- Fuse set (2 units)
- 3-cord power cable
- AC adapter
GoldHealth Medical's ECG solution combines cutting-edge technology with user-centric design, delivering exceptional accuracy and reliability for modern healthcare professionals. The system's advanced filtering capabilities and comprehensive analysis tools ensure precise cardiac assessments, while its portable design and expandable features make it an ideal choice for diverse medical settings.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Name: ECG Machine by GoldHealth Medical
Key Features and Benefits:
- Advanced 12-Lead ECG Technology: Delivers precise and reliable cardiac diagnostics with standard 12-lead functionality, ensuring comprehensive heart health assessments.
- 7-Inch High-Resolution Color Display: Provides crystal-clear visualization of ECG waveforms and data, enabling quick and accurate analysis.
- Anti-Baseline Drift Technology: Automatically corrects signal interference for consistent and dependable readings, even in challenging environments.
- Multiple Sensitivity Settings: Offers adjustable sensitivity levels (2.5mm/mV, 5mm/mV, 10mm/mV, 20mm/mV) to meet diverse diagnostic needs.
Technical Specifications:
- Power Source: Electric
- Instrument Classification: Class II medical device
- Shelf Life: 1 year
- Package Dimensions: 32 x 25 x 17 cm
- Gross Weight: 3.000 kg
- Material: Durable, medical-grade components
Applications:
- Designed for daily cardiac checks in hospitals, clinics, and home care settings.
- Ideal for use in research institutions, rehabilitation centers, and senior care facilities.
Certifications and Compliance:
- Certified to meet CE and ISO standards, ensuring safety, reliability, and global acceptance.

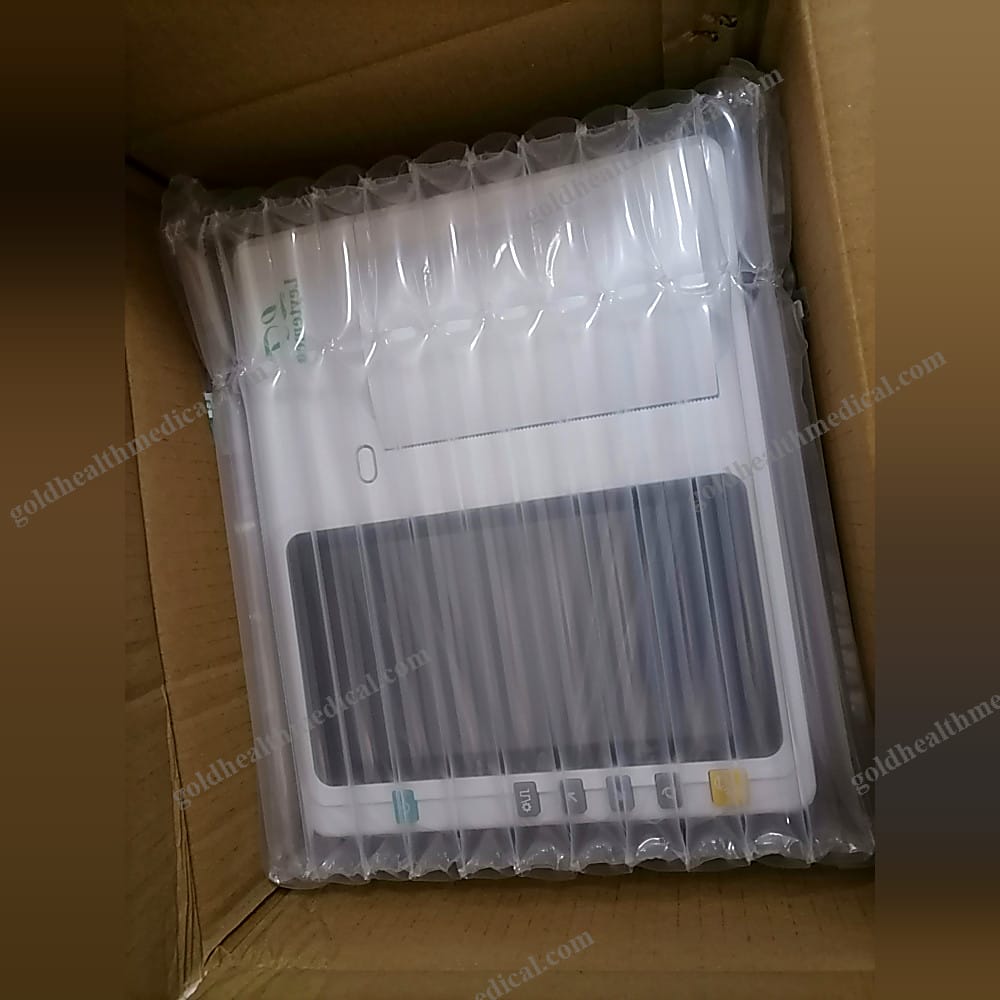

Packaging Details:
- Securely packaged in a robust carton box to ensure safe transportation and storage.
Warranty and Support:
- 1-Year Warranty: Backed by GoldHealth Medical’s commitment to quality and reliability.
- Online Technical Support: Access expert assistance anytime to ensure uninterrupted performance.
Why Choose GoldHealth Medical’s ECG Machine?
GoldHealth Medical combines cutting-edge technology with user-centric design to deliver an ECG machine that is both powerful and intuitive. Whether for professional healthcare environments or personal health monitoring, this device sets a new benchmark for precision, durability, and ease of use.
Ordering Information:
- Minimum Order Quantity (MOQ): 1 unit
- Perfect for small clinics, large hospitals, and individual practitioners alike.
Experience the next generation of cardiac diagnostics with GoldHealth Medical’s ECG Machine – where innovation meets excellence.
