JM6062 Veterinary ECG Instrument for 12Le
Reference: 1601004600922
Pathological Analysis Equipments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

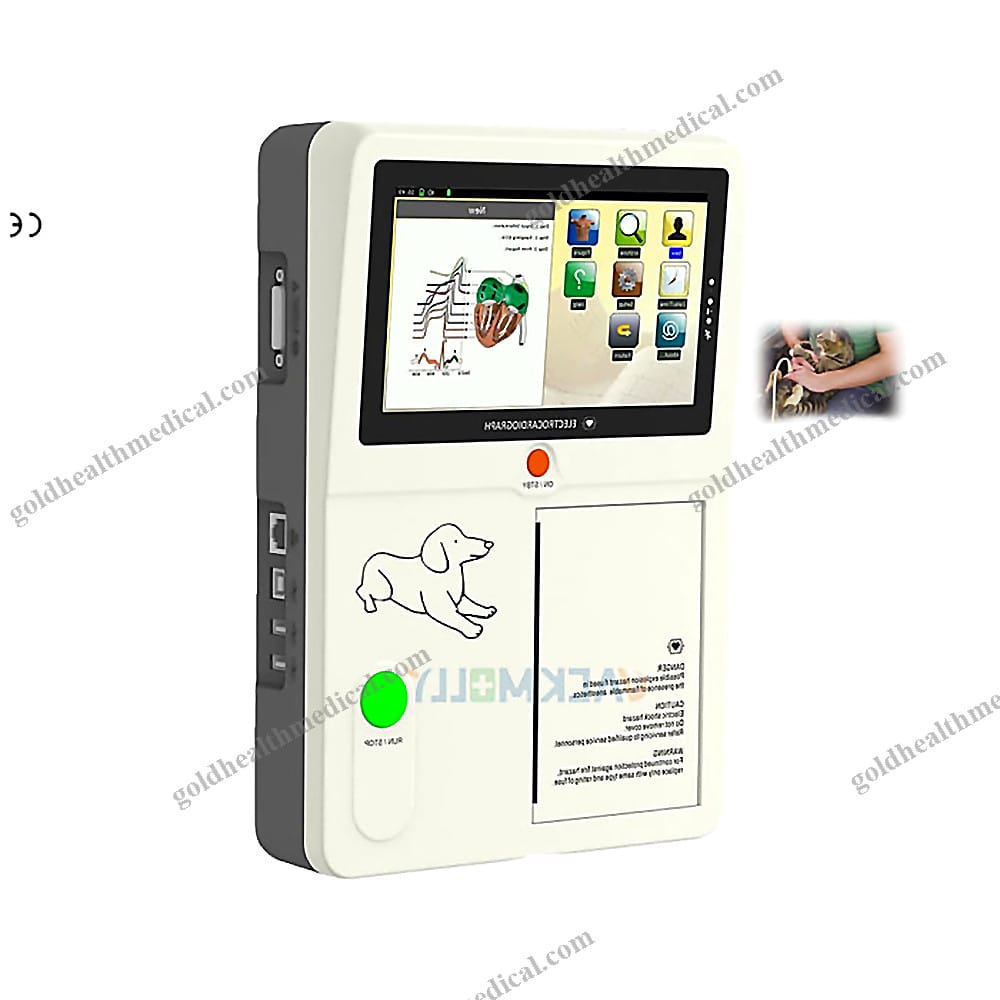

GoldHealth Medical presents an advanced 6-channel veterinary ECG instrument designed for comprehensive 12-lead ECG analysis in animals.
Features
- 12-lead ECG Synchronous Sampling System: Delivers precise and synchronized data acquisition for accurate diagnostics.

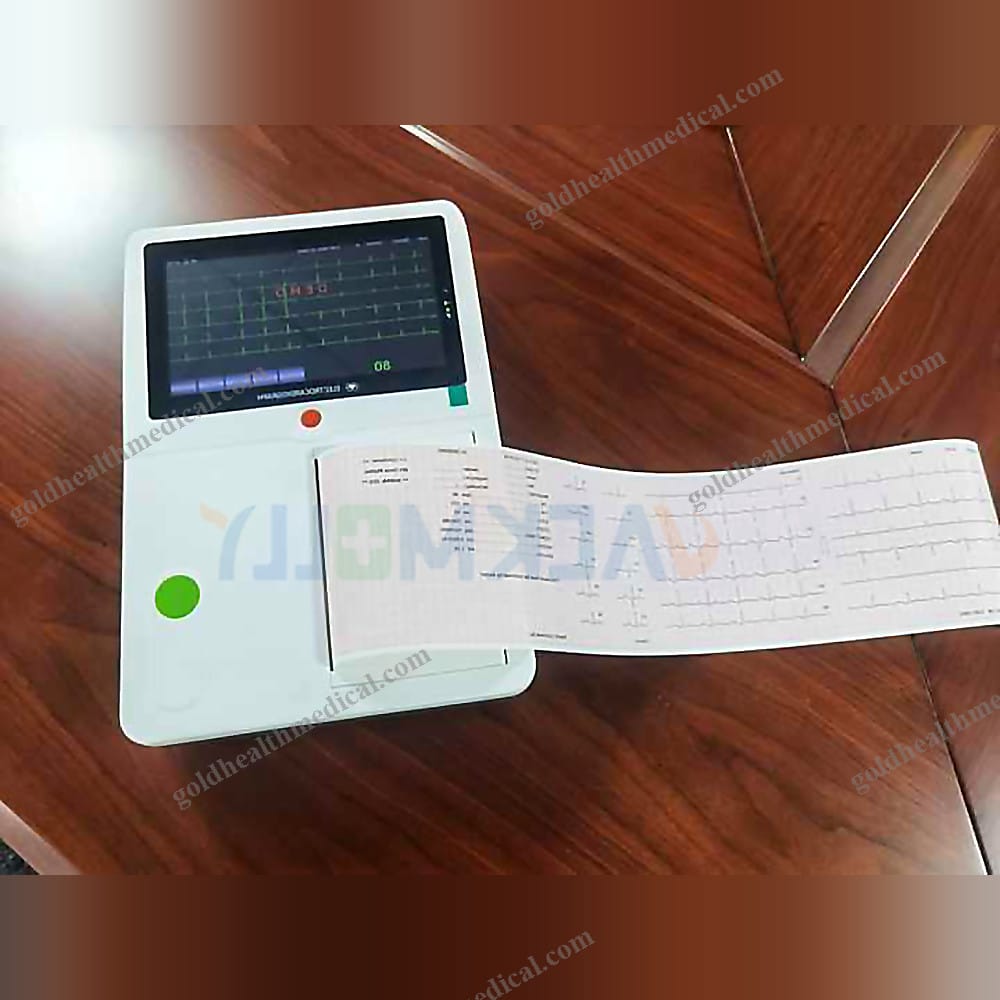

- High-Resolution Thermal Printer: Equipped with 112mm thermal paper, ensuring clear and detailed waveform outputs.
- 7-inch Color Touch-Screen Interface: Combines intuitive touch and push-button controls for seamless operation.
- Smart Automation: Automatic measurement, calculation, analysis, and waveform freezing to streamline workflows.
- Flexible Data Management: Supports USB flash drives and SD memory for easy data storage and transfer to PCs via USB.
- Patient Information Input: Allows entry of patient details, with historical data review and printing capabilities.
- Built-In Rechargeable Battery: Powered by a long-lasting lithium-ion battery with AC/DC power conversion for uninterrupted performance.
- Energy-Saving Sleep Mode: Extends the life of the TFT screen while conserving energy.
- Portable Design: Compact and lightweight with a hidden handle for effortless transportation.
- Intelligent Detection: Alerts for lead disconnection and paper shortages, with 7 adjustable print thickness levels.
- Universal Power Compatibility: Adapts to 110-230V, 50/60Hz AC power supplies for global usability.
Technical Specifications
- CMRR: ≥100dB with AC Filter
- Input Circuit: Floating design with defibrillator protection
- Input Circuit Current: ≤ 0.1μA
- Resolution: 12-bit/1000Hz
- Operation Modes: Manual/Auto
- Filters: AC, ECG, Drift, and Anti-Drift Systems
- Input Impedance: >50MΩ
- Patient Current Leakage: <10μA
- Rated Voltage: 100V-230V, 50Hz/60Hz
- Recording Paper: High-quality thermal paper
- Calibrating Voltage: 1mV ±3%
- Voltage Tolerance: +500mV
- Time Constant: >3.2s
- Frequency Response: 0.05Hz–150Hz
- Noise Level: ≤15 μVp-p
- Threshold: ≤20μV
- Paper Speed: 12.5mm/s, 25mm/s, 50mm/s (±3%)
- Sensitivity: 5, 10, 20mm/mV
- Recorder: High-resolution thermal printer
- Battery: Lithium-ion (11.1V, 2200mAh)
- Dimensions: 295mm x 205mm x 73mm
Why Choose GoldHealth Medical?
GoldHealth Medical is committed to delivering cutting-edge veterinary diagnostic tools that combine precision, portability, and ease of use. Our ECG instrument is engineered to meet the demands of modern veterinary practices, ensuring reliable performance and exceptional diagnostic accuracy.
Recommended Products
- Portable Veterinary Ultrasound Machine: Ideal for animal pregnancy scanning, offering high-resolution imaging and user-friendly functionality.
Packing & Delivery
- Packaging: Double carton boxes for maximum protection.
- Delivery Time: 3-5 working days after payment confirmation.
- Payment Options: Flexible terms including T/T, MoneyGram, Western Union, and more.
GoldHealth Medical is your trusted partner in veterinary diagnostics, providing innovative solutions tailored to the needs of professionals and caregivers worldwide.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Name: CE ECG by GoldHealth Medical
Key Features:
- Precision and Performance: Equipped with a 12-bit resolution and a sampling rate of 1000Hz, this ECG delivers highly accurate and detailed cardiac readings.
- Advanced Filtering System: Integrated AC, ECG, drift, and anti-drift filters ensure clear and noise-free signals, even in challenging environments.
- Versatile Recording Options: Supports thermal recording paper with adjustable paper speeds of 12.5mm/s, 25mm/s, and 50mm/s (±3%) for precise documentation.
- Adjustable Sensitivity: Offers sensitivity settings of 5mm/mV, 10mm/mV, and 20mm/mV to meet diverse diagnostic needs.
- Portable and Reliable: Powered by a rechargeable Li-ion battery (11.1V, 2200mAh) and compatible with a wide voltage range of 100V-230V at 50Hz/60Hz.
Technical Specifications:
- Frequency Response: 0.05Hz to 150Hz for comprehensive signal capture.
- Instrument Classification: Class II medical device, ensuring safety and reliability.
- Materials: Durable metal and high-quality plastic construction for long-lasting use.
- Recording Paper: Compatible with standard thermal recording paper.
Packaging Details:
- Package Dimensions: 30cm x 21cm x 8cm
- Gross Weight: 3.000 kg
Warranty and Support:
- Warranty Period: 1 year, providing peace of mind and assurance of quality.
- After-Sales Service: Access to online technical support for seamless operation and troubleshooting.
Certifications and Compliance:
- Quality Certification: CE-certified, meeting international standards for safety and performance.
Place of Origin: Shanghai, China
Unique Selling Points:
- Designed for accuracy, durability, and ease of use, the CE ECG by GoldHealth Medical is ideal for hospitals, clinics, research labs, and home healthcare settings. Its advanced filtering technology and versatile features make it a reliable choice for professionals seeking precision in cardiac diagnostics.
