HE301601 Digital Portable ECG Machine
Reference: 60560748028
Pathological Analysis Equipments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

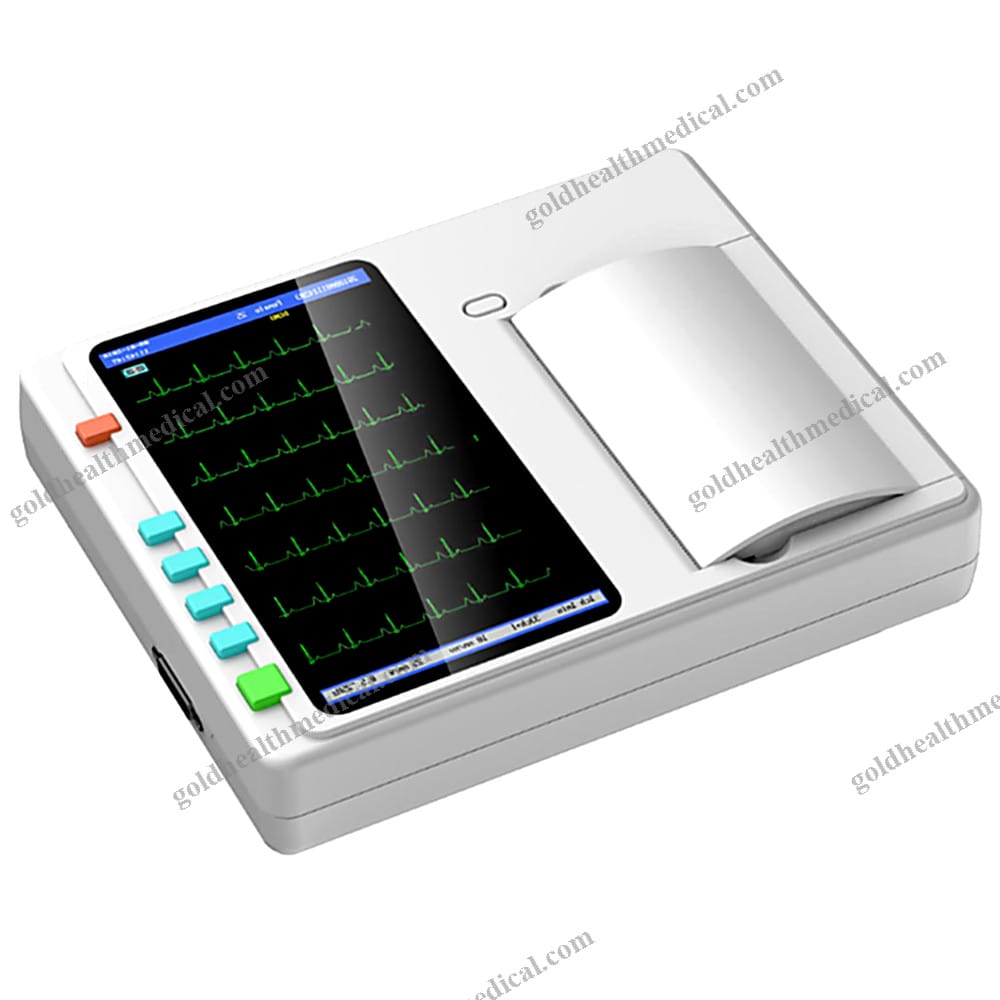

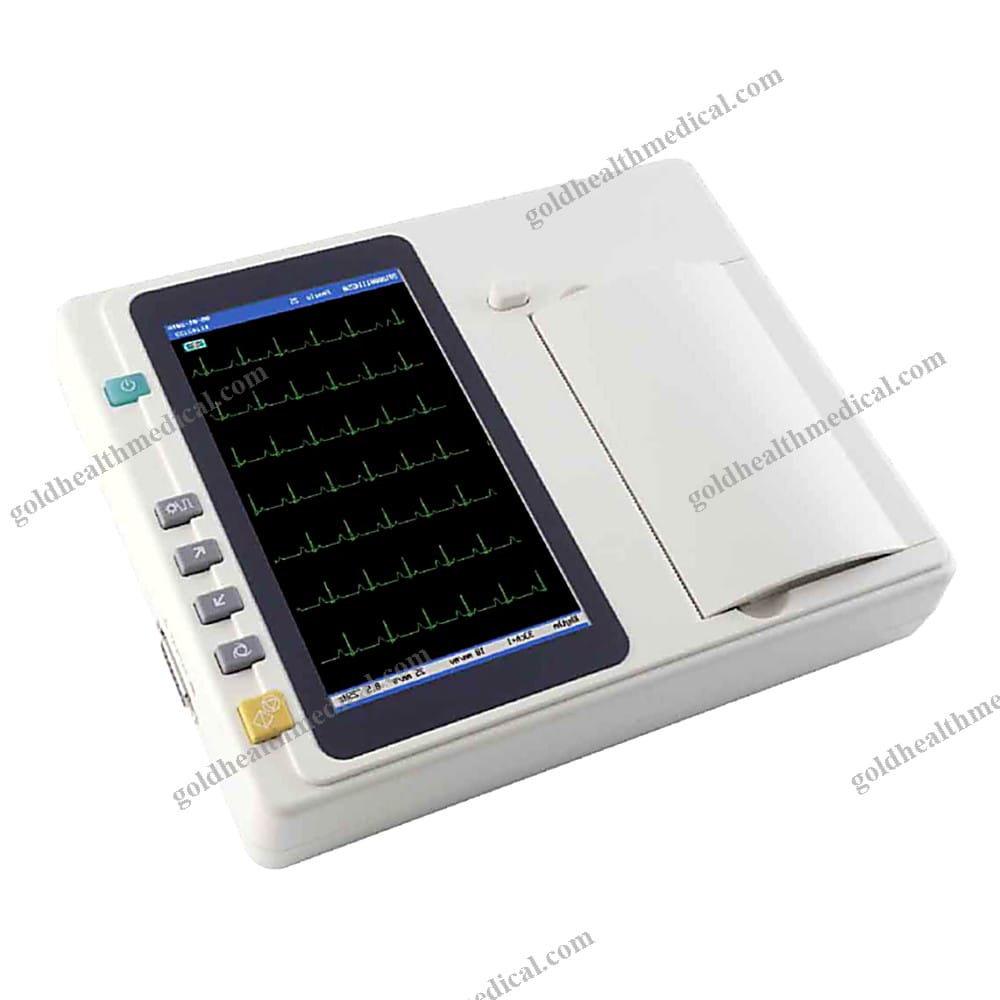

Introducing GoldHealth Medical's Portable Touch Screen ECG Machine, a revolutionary device designed to redefine cardiac diagnostics. Engineered with precision and crafted for versatility, this ECG machine is tailored for both professional and personal use.
Features:

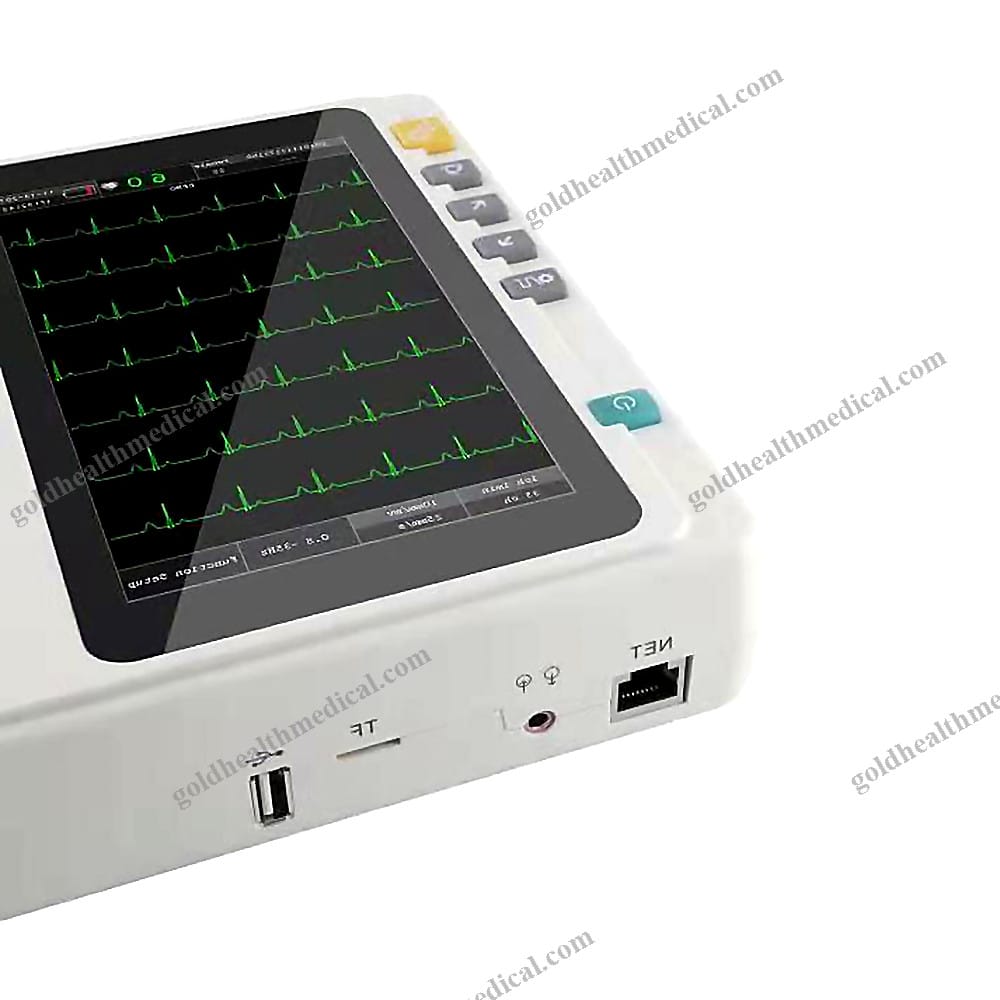

- 7-inch High-Resolution Color Touch Screen: Experience crystal-clear visuals and intuitive control at your fingertips.
- 12-Lead Simultaneous Acquisition and Display: Capture comprehensive heart data in real-time for accurate diagnostics.
- ECG Automatic Measurement and Interpretation: Simplify analysis with advanced algorithms that deliver precise readings.
- Complete Digital Filters: Eliminate baseline drift, AC, and EMG interference for unparalleled signal clarity.
- Compact and Lightweight Design: Effortlessly portable, making it ideal for various medical environments.
- Expandable Memory: Supports USB flash disks and micro SD cards to store extensive patient data.
- Software Upgrade Capability: Stay updated with the latest features via USB/SD card upgrades.
- Built-in Rechargeable Li-ion Battery: Ensures uninterrupted performance with reliable power.
Technical Specifications:
- Lead: Standard 12 leads
- Acquisition Mode: Simultaneous 12 leads acquisition
- Measurement Range: ±5mVpp
- Input Impedance: ≥50MΩ
- Input Circuit Current: <0.05µA
- CMRR: >100dB
- Patient Leak Current: <10µA (220V-240V)
- Frequency Response: 0.05Hz~150Hz (-3dB)

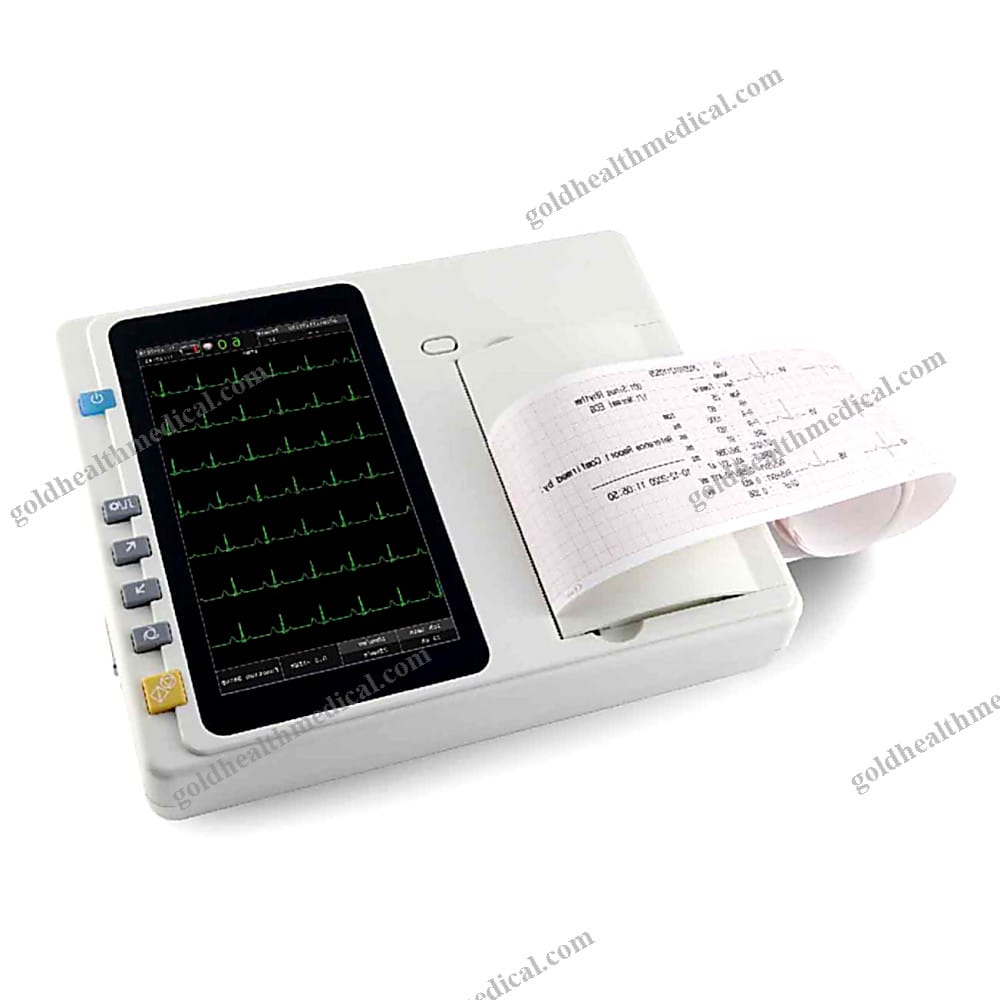

- Paper Specification: Roll 80mmx20M, Roll 110mmx20M
- Safety Standard: IEC I/CF
- Sample Rate: Normal: 1000sps/channel
- Power Supply:
- AC: 100~240V, 50/60Hz, 30VA~100VA
- DC: 14.8V/2200mAh, built-in lithium battery
Standard Configuration:
- Main Machine: 1 PC

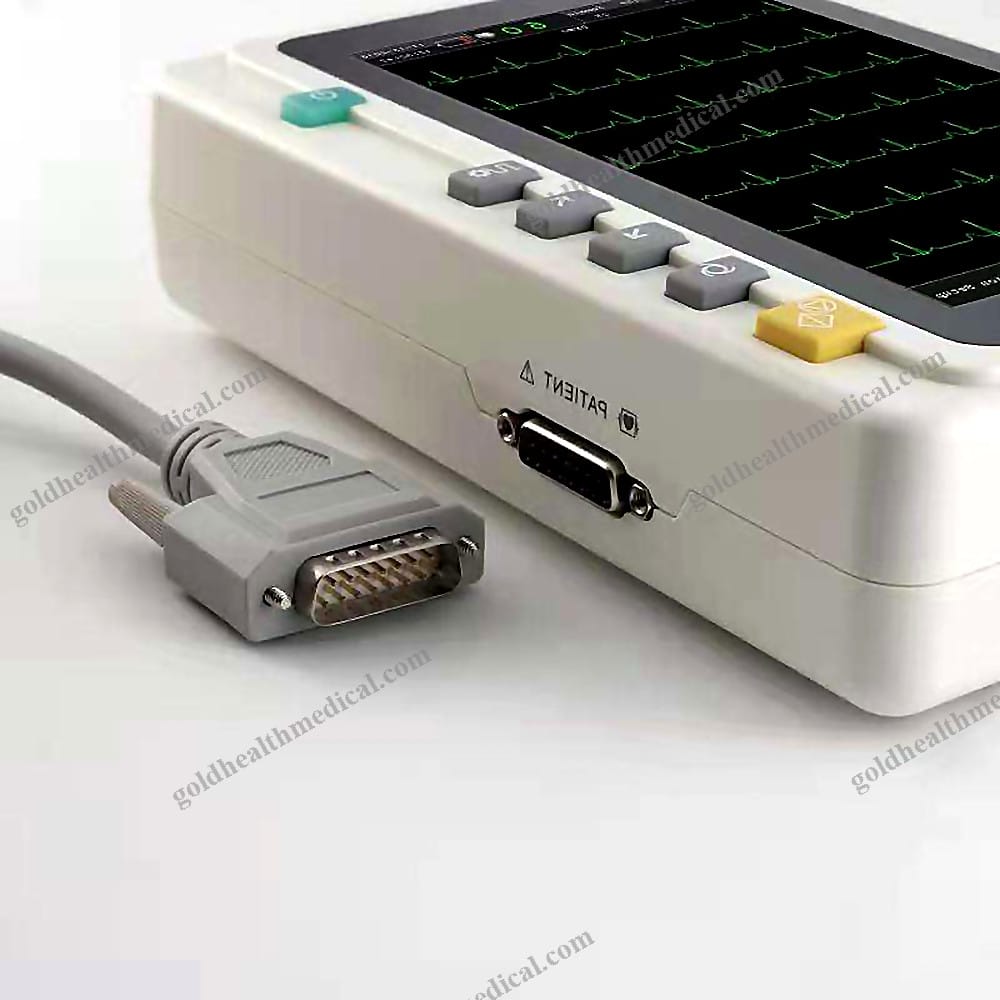

- Patient Cable: 1 PC
- Limb Electrode: 1 set (4pcs)
- Chest Electrode: 1 set (6pcs)
- Power Cable: 1 PC
- 80mm*20M Recording Paper: 1 PC
- Paper Axis: 1 PC
- Power Cord: 1 PC
Packing Details:
- Single Package Size: 322517cm
- Single Gross Weight: 2.8 KG
- Carton Details: 8 units per carton, package size: 543375cm, total gross weight: 22 KG
GoldHealth Medical's ECG Machine stands out with its seamless integration of advanced technology and user-centric design. Whether you're in a bustling hospital or conducting remote diagnostics, this device ensures accuracy, reliability, and ease of use. Elevate your cardiac care with a machine that delivers exceptional performance and peace of mind.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Name: ECG Machine by GoldHealth Medical
Overview:
The ECG Machine by GoldHealth Medical is a cutting-edge diagnostic tool designed to deliver precision and reliability in cardiac monitoring. Engineered for both clinical and home use, this device combines advanced technology with user-friendly functionality, making it an indispensable asset for healthcare professionals and caregivers alike.
Key Features and Specifications:
- Instrument Classification: Class I medical device, ensuring high safety and performance standards.
- Power Source: Electrically powered for consistent and uninterrupted operation.
- Materials: Constructed with premium metal and durable plastic components, ensuring longevity and resilience in demanding environments.
- Shelf Life: 2 years, providing extended usability and reliability.
- Quality Certification: CE-certified, guaranteeing compliance with international safety and quality standards.
Performance and Design Highlights:
- Delivers accurate 3-channel ECG readings, enabling detailed cardiac analysis.
- Compact and ergonomic design, allowing seamless integration into various healthcare settings.
- Lightweight yet robust construction ensures portability without compromising durability.
Packaging Details:
- Each unit is securely packaged in a protective carton.
- Single package dimensions: 99 x 99 x 99 cm.
- Single package gross weight: 99.000 kg.
Supply and Delivery:
- Monthly supply capacity: 1000 units, ensuring timely availability for bulk orders.
- Ships from Shanghai, offering efficient global delivery options.
After-Sales Support:
- Comprehensive 1-year warranty for peace of mind.
- Access to online technical support, ensuring prompt resolution of any operational queries.
Applications:
- Ideal for hospitals, clinics, research institutions, and rehabilitation centers.
- Suitable for home healthcare, providing professional-grade diagnostics in a domestic setting.
GoldHealth Medical’s ECG Machine is more than just a diagnostic tool—it’s a commitment to precision, reliability, and patient care. Elevate your cardiac monitoring capabilities with a device that sets a new standard in the industry.
