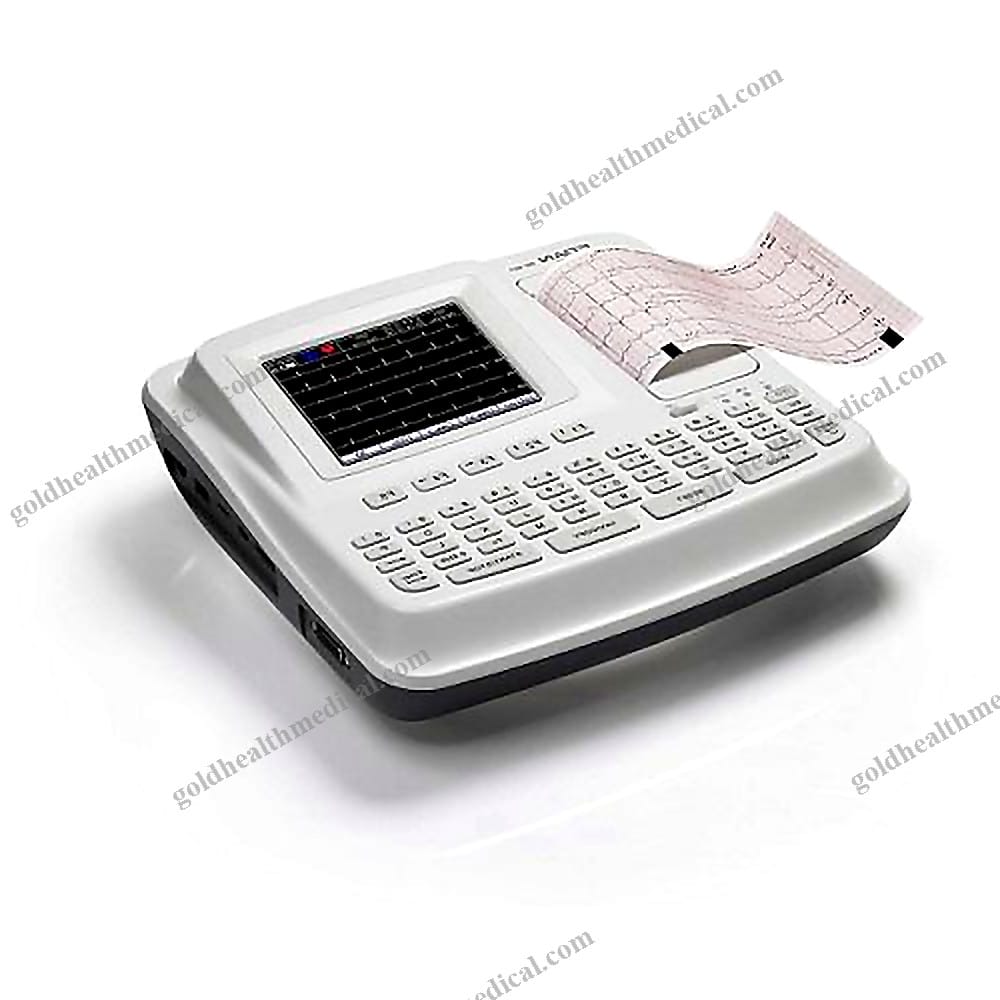

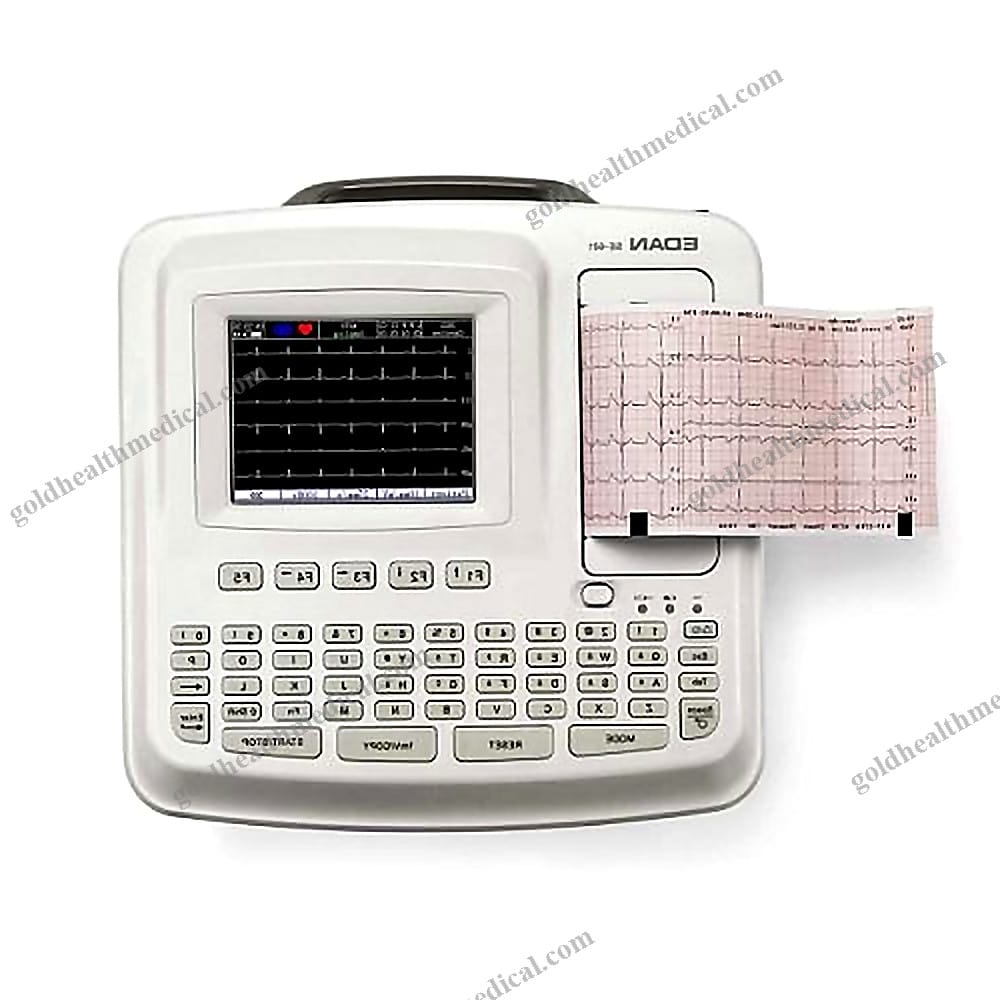

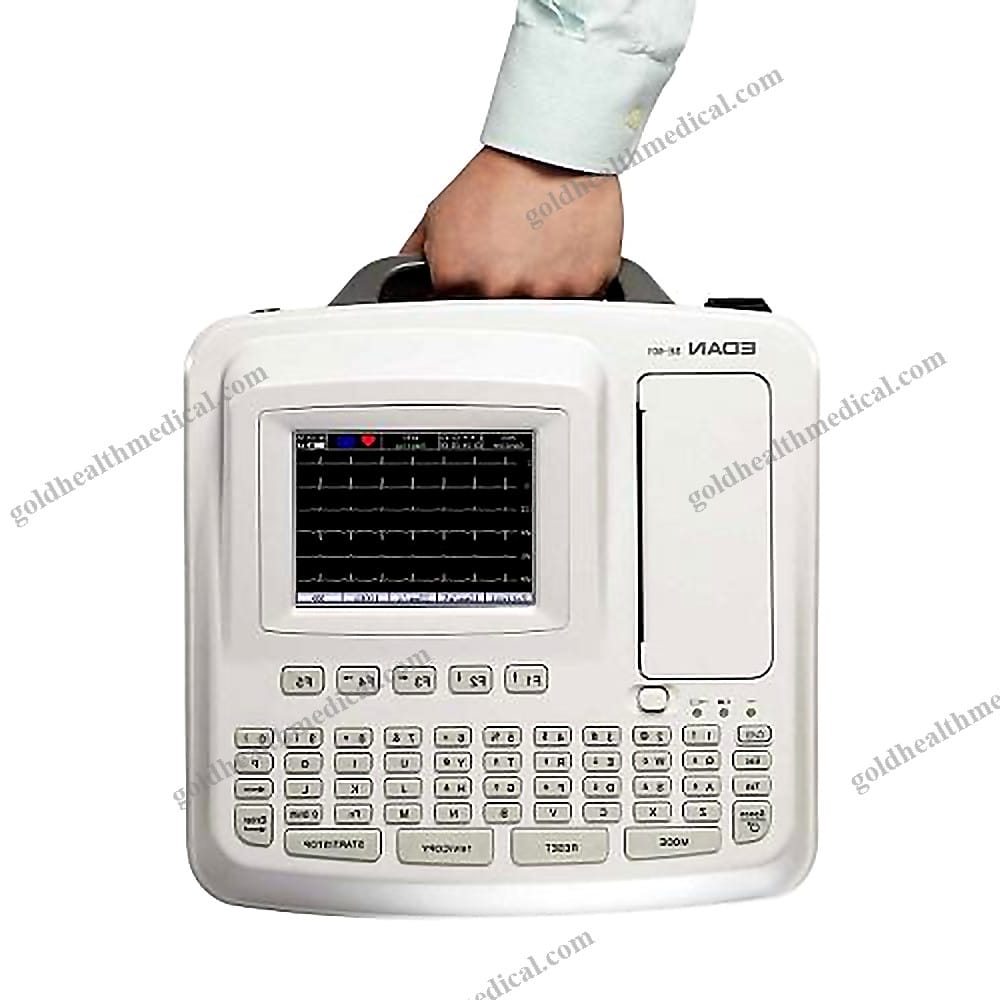

Edan SE601 12Lead ECG Machine
Reference: 1600957664674
Pathological Analysis Equipments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical 6-Channel ECG Machine
Product Overview
The GoldHealth Medical 6-Channel ECG Machine is designed to deliver exceptional precision and reliability for healthcare professionals. Combining advanced signal processing with an intuitive interface, this device ensures accurate diagnostics in a compact and lightweight form. Whether in a hospital, clinic, or home care setting, its cutting-edge technology makes it the ideal choice for modern cardiac monitoring.
Key Features
- High-Resolution Display: Optional color touch screen for seamless navigation and clear visualization of ECG waveforms.
- One-Touch Operation: Simplifies workflow with effortless control and quick access to essential functions.
- 12-Lead Simultaneous Acquisition: Ensures comprehensive and precise data capture for detailed cardiac analysis.
- Enhanced Signal Detection: Advanced algorithms improve the clarity of weak signals, even in challenging environments.
- Comprehensive Filtering Technology: Includes DFT, EMG, and low-pass filters to minimize noise and ensure clean readings.
- Advanced SEMIP Algorithm: Delivers automatic measurements and interpretations, empowering faster and more accurate diagnostics.
- Built-In Thermal Printer: High-resolution 6-channel report printing for immediate documentation.
- Expandable Memory: Large internal storage with the option to extend capacity using a USB flash disk.
- Data Management System: Built-in review functionality and bi-directional communication for streamlined workflows.
- Connectivity Options: LAN/Wi-Fi support (optional) and multi-format report export for enhanced versatility.
- Optional External USB Printer: Enables 12-channel report printing for more detailed outputs.
Specifications
- Display: Monochrome or color LCD screen with optional touch functionality.
- Measurement:
- Frequency Range: 0.05Hz ~ 150Hz (-3dB).
- Sampling Rate: 1000 Hz.
- Memory: Stores up to 100 ECGs, expandable via USB flash disk.
- Filters:
- DFT Filter: 0.05Hz / 0.15Hz / 0.25Hz / 0.32Hz / 0.5Hz / 0.67Hz.
- EMG Filter: 25Hz / 35Hz / 45Hz / OFF.
- LOWPASS Filter: 150Hz / 100Hz / 75Hz.
- Power Supply:
- Mains or internal Li-ion battery.
- Battery Life: Up to 300 uses per charge.
- Environmental Specifications:
- Operating Temperature: +5ºC (+41ºF) ~ +40ºC (+104ºF).
- Storage Temperature: -20ºC (-4ºF) ~ +55ºC (+131ºF).
- Operating Humidity: 25%~80% non-condensing.
- Storage Humidity: 25%~93% non-condensing.
- Dimensions: 12.2" L x 12.7" W x 3.98" H.
- Weight: 5.7 lbs (excluding recorder paper and battery).
- Connectivity: PC-compatible with built-in printer.
- Warranty: 2 years.
What’s Included
- Main Unit.
- 1 ECG Cable (4mm, banana connector, AHA).
- 100 Bio ProTech Resting Tab Electrodes.
- 10 Unomedical 10-Lead Universal Clips.
- 1 Recording Paper (Z-fold, 110mm x 140mm x 144P).
- 1 Power Cord.
- 1 Rechargeable Lithium Battery (2200mAH).
- 2 Fuse (T400mA).
- User Manual.
- Quick Reference Card.
GoldHealth Medical’s 6-Channel ECG Machine redefines cardiac diagnostics with its blend of innovation, precision, and user-friendly design. Elevate your practice with a device that meets the highest standards of performance and reliability.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Name: 6-Channel ECG Machine by GoldHealth Medical
Key Features:
- Advanced ECG Acquisition: Equipped with 12-lead simultaneous acquisition for precise and comprehensive cardiac diagnostics.
- Versatile Display Options: Choose from Monochrome, Color, or Touch Screen displays to suit your clinical needs.
- Ample Memory Capacity: Store up to 100 ECGs, ensuring efficient data management and easy access to patient records.
- Flexible Connectivity: Supports LAN and optional Wi-Fi for seamless integration into modern healthcare systems.
- Long-Lasting Battery: Delivers up to 300 ECG tests on a single charge, making it ideal for both stationary and mobile use.
Technical Specifications:
- Instrument Classification: Class II medical device for reliable performance and safety.
- Weight: Lightweight at just 3KG, ensuring portability and ease of use.
- Battery Life: Up to 300 ECG tests per charge, offering extended usability without frequent recharging.
- Material: Constructed with high-quality acrylic, metal, and durable plastic for long-term reliability.
- ECG Storage: Internal memory capable of storing up to 100 ECG records for efficient workflow management.
Quality Assurance:
- Certifications: CE-certified to meet international safety and performance standards.
- Warranty: Backed by a 2-year warranty for peace of mind and long-term reliability.
- Shelf Life: Designed with a 2-year shelf life, ensuring consistent performance over time.
After-Sale Support:
- Dedicated Online Technical Support: Access expert assistance whenever you need it, ensuring uninterrupted operation.
Applications:
- Perfect for hospitals, clinics, research institutions, laboratories, rehabilitation centers, and home healthcare settings.
Why Choose GoldHealth Medical?
GoldHealth Medical’s 6-Channel ECG Machine combines cutting-edge technology with user-centric design, delivering unparalleled precision, portability, and reliability. Designed to meet the demands of modern healthcare professionals, this device is your trusted partner in cardiac diagnostics.
Packaging and Delivery:
- Packaging: Ships in a secure, original carton box to ensure product safety during transit.
- Port of Origin: Shenzhen, China.
- Supply Ability: Capable of delivering 10,000 units per month to meet high-volume demands.
