ECG600G Advanced 12Lead ECG
Reference: 1600844799420
Pathological Analysis Equipments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

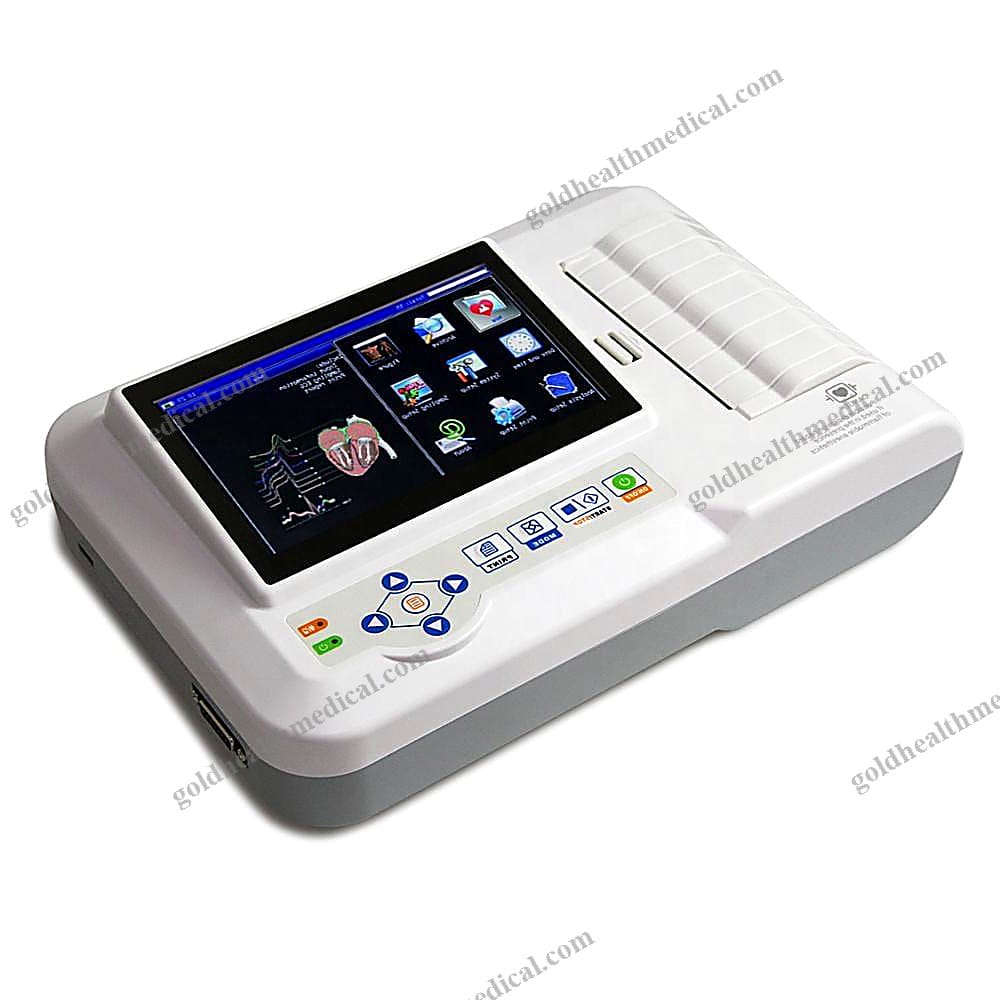

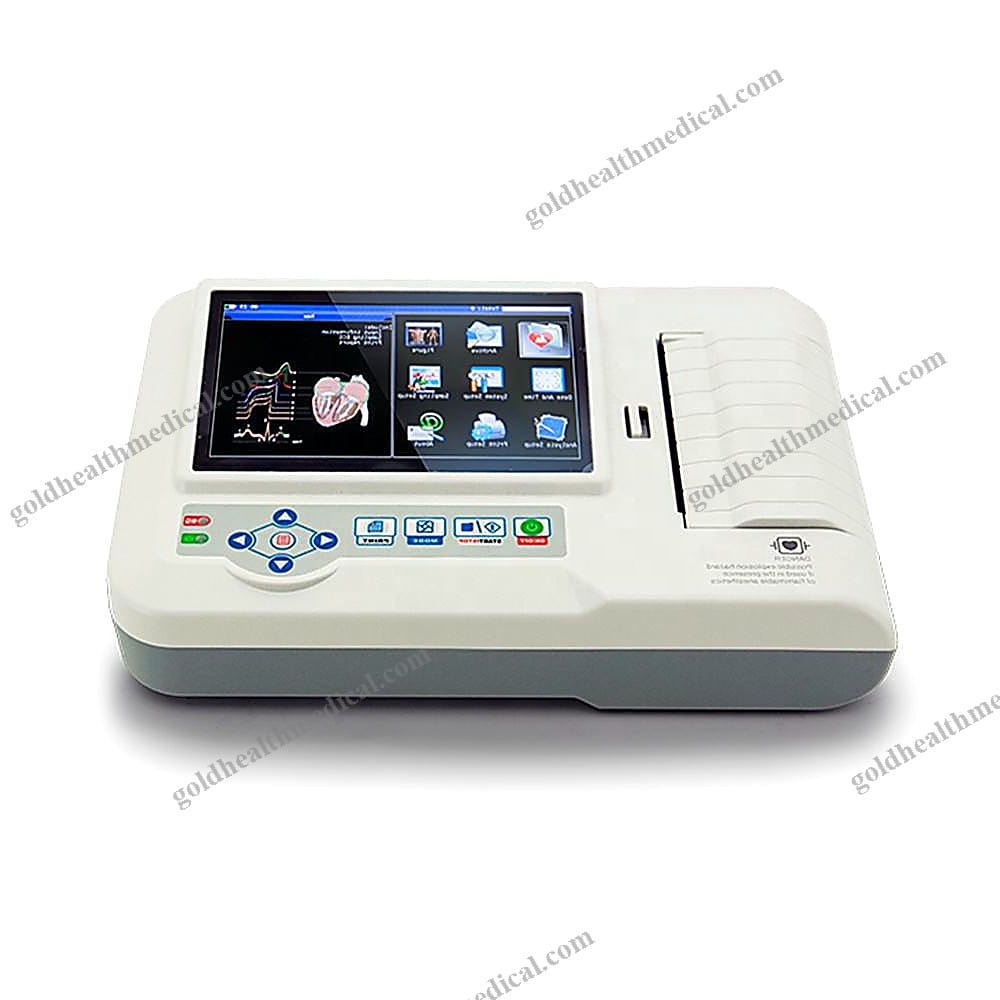

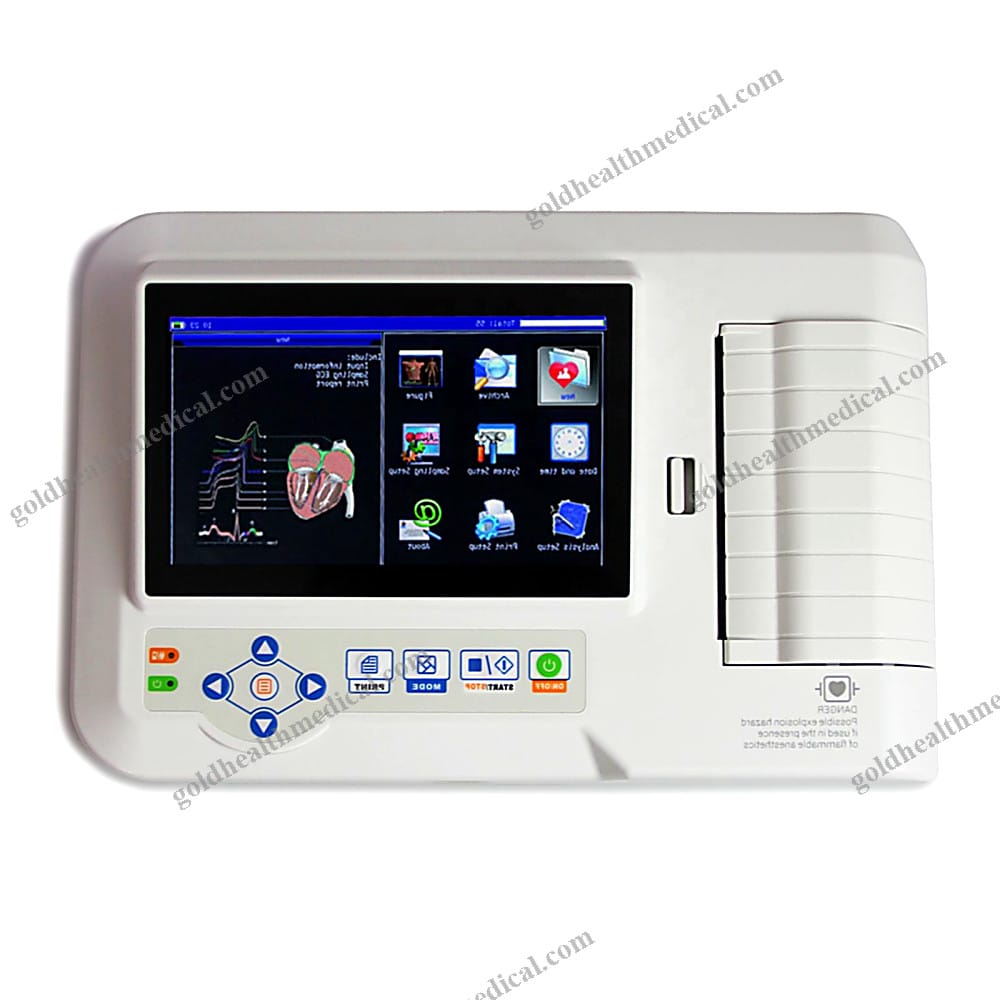

GoldHealth Medical: Handheld EKG Machine
Product Overview
GoldHealth Medical presents a revolutionary six-channel handheld EKG machine designed for precision and convenience. This advanced electrocardiograph captures 12-lead ECG signals simultaneously, delivering high-quality waveforms through a thermal printing system. Engineered for versatility, it caters to a wide range of medical environments, from hospitals to home care.
Key Features
- Crystal-Clear Display: An 800x480 TFT color LCD with touch screen and soft keyboard control ensures effortless operation and real-time visualization of ECG waveforms.
- Simultaneous Acquisition: Captures all 12 leads at once, utilizing a digital signal processor to refine waveforms with AC, baseline, and EMG filters.
- Flexible Display Options: Simultaneously view 3, 6, or 12 leads alongside key parameters such as sensitivity, speed, and filter status for seamless interpretation.
- Advanced Recording Modes: Supports multiple recording formats, including 2×6+1, 3×4+1, and 6×2+1 rhythm leads, ensuring comprehensive diagnostic capabilities.

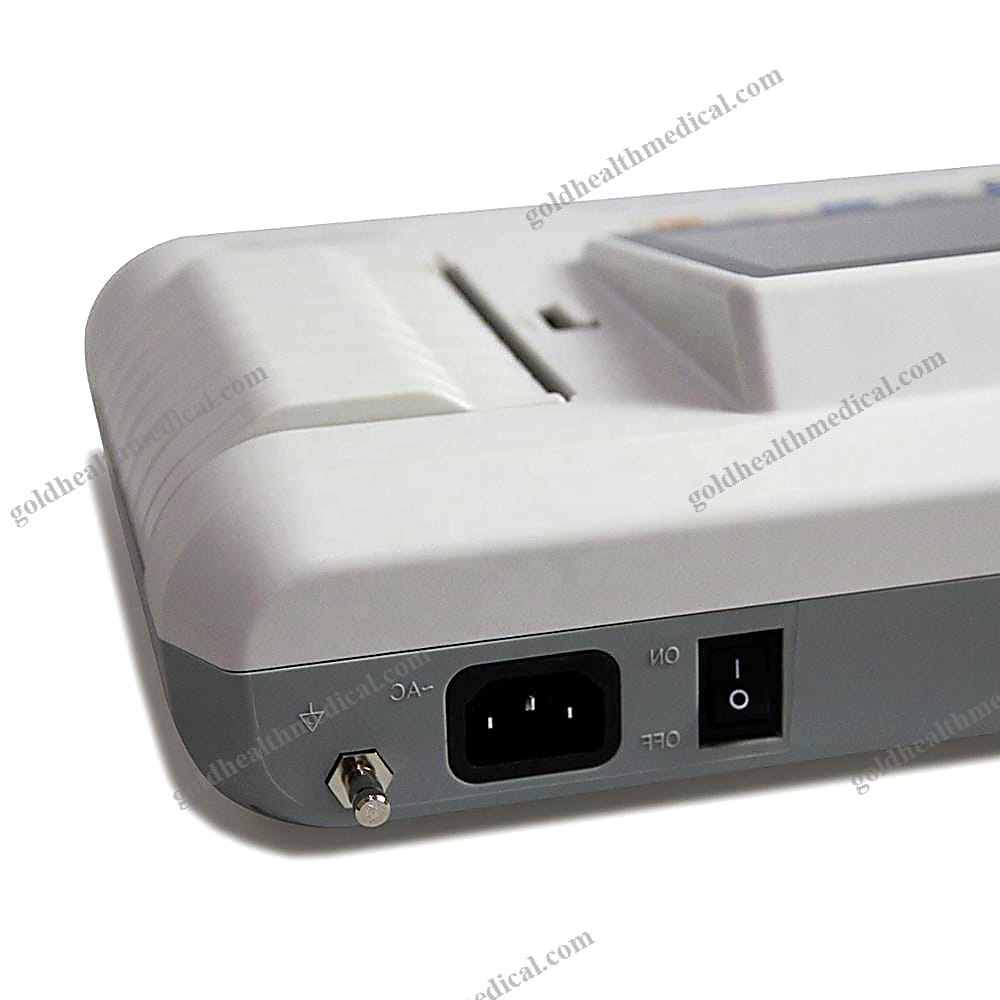

- Dual Power Supply: Operates on both AC (100V-240V) and DC (7.4V, 3700mAh rechargeable lithium battery), offering up to 4 hours of standby time and continuous printing for 90 minutes.
- Large Storage Capacity: Stores over 1,000 cases, enabling easy review and statistical analysis by medical professionals.
- Multilingual Support: Offers Chinese, English, Italian, and Turkish interfaces, with the ability to print reports in these languages.
Technical Specifications
- Input Mode: Floating with defibrillation protection
- Frequency Response: 0.05Hz ~ 150Hz (-3dB ~ +0.4dB)
- CMRR: >60dB (>100dB with filter)
- Time Constant: ≥ 3.2s
- Patient Leak Current: <10µA
- Calibration Voltage: 1mV
- Sensitivity: 2.5, 5, 10, 20, 40 mm/mV ±5% (Standard: 10mm/mV ±2%)
- Noise Level: <15µVp-p
- Input Circuit Current: ≤50nA
- Input Impedance: ≥50MΩ
- Sampling Accuracy: 12-bit
- Safety Classification: Class I, Type CF, defibrillation-proof applied part
- Recording Modes:
- Auto: Automatically switches leads, measures, and analyzes based on preset formats.
- Rhythm: Records rhythm data with automatic analysis.
- Manual: Customizable recording with manual lead switching.
- Measurement Parameters: HR, P-R interval, P Duration, QRS Duration, T Duration, Q-T interval, Q-Tc, P Axis, QRS Axis, T Axis, R(V5), S(V1), R(V5)+S(V1)
- Paper Size: 80mm(W) × 20m(L)
- Power Frequency Filter: AC 50Hz/60Hz (-20dB)
- Sampling Frequency: 1000Hz
- EMG Interference Filter: 25Hz/35Hz (-3dB)
- Paper Speed:
- Auto: 5, 6.25, 10, 12.5, 25, 50, 100mm/s (±5%)
- Rhythm: 5, 6.25, 10, 12.5, 25, 50, 100mm/s (±5%)
- Manual: 5, 6.25, 10, 12.5, 25, 50, 100mm/s (±5%)
Unique Selling Points
- Precision and Reliability: Delivers high-fidelity ECG waveforms with advanced filtering and defibrillation protection.
- Portability and Durability: Compact design with a long-lasting rechargeable battery, ideal for mobile healthcare.
- User-Friendly Interface: Intuitive controls and multilingual support enhance accessibility for global users.
- Comprehensive Data Management: Built-in storage and auto-analysis features streamline workflows for medical professionals.
Why Choose GoldHealth Medical?
GoldHealth Medical is committed to delivering cutting-edge medical solutions tailored to meet the needs of healthcare providers worldwide. Our products are designed with
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Name: Electrocardiograph ECG Machine by GoldHealth Medical
Key Features:
- Advanced 6-Channel ECG Technology: Delivers precise and reliable cardiac diagnostics with exceptional clarity.
- High-Resolution Display: Equipped with an 800x480 TFT Color LCD for sharp, detailed visualization of ECG waveforms.
- Multi-Language Support: Designed for global usability, ensuring accessibility for diverse medical professionals.
- Dual Power Supply: Operates seamlessly on both AC and DC power sources, offering flexibility in various clinical settings.
- Defibrillation-Protected Input Mode: Ensures safety and durability during critical procedures.
Technical Specifications:
- Sampling Accuracy: 12-bit for enhanced precision in capturing cardiac signals.
- Recording System: Advanced thermal printing system for clear, long-lasting ECG records.
- Safety Classification: Class I, Type CF, with defibrillation-proof applied parts, meeting rigorous safety standards.
- Instrument Classification: Class II medical device, ensuring compliance with industry regulations.
Design and Usability:
- Compact and Portable: Single package size of 41x33x30 cm and a lightweight design at just 5.000 kg, making it ideal for transport and storage.
- Intuitive Interface: Simplifies operation for healthcare providers, reducing training time and enhancing efficiency.
Quality Assurance:
- Certifications: CE-certified, guaranteeing adherence to international quality and safety standards.
- Warranty: Backed by a 1-year warranty for peace of mind.
- After-Sale Support: Access to online technical support ensures uninterrupted performance and quick resolution of queries.
Applications:
Perfectly suited for hospitals, clinics, research institutions, laboratories, rehabilitation centers, and home healthcare environments.
Why Choose GoldHealth Medical?
GoldHealth Medical combines cutting-edge technology with user-centric design to deliver medical devices that empower healthcare professionals and improve patient outcomes. Our Electrocardiograph ECG Machine is a testament to precision, reliability, and innovation in cardiac care.
