ECG1200G Portable 12Lead ECG
Reference: 1600584408861
Pathological Analysis Equipments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical ECG Machine
GoldHealth Medical proudly introduces an advanced electrocardiograph designed to elevate diagnostic precision and operational efficiency. This state-of-the-art device captures 12-lead ECG signals simultaneously and utilizes a thermal printing system to deliver high-resolution ECG waveforms. Engineered for versatility, it supports both AUTO and Manual modes, provides automatic measurement and diagnosis of ECG parameters, and features intuitive alerts for "Lead off" and "Lack of paper." With a multi-language interface and AC/DC power options, this device is tailored for global use.
Key Features
- Simultaneous 12-Lead ECG Collection: Employs advanced digital signal processing technology with power frequency, baseline, and EMG filters to deliver exceptional ECG waveform quality.
- Comprehensive Display: Presents 3/6/12-lead ECG waveforms alongside print mode, sensitivity, paper speed, and filter status on a single screen for efficient comparative diagnostics.
- Flexible Printing Options: Offers multiple modes and formats, including auto 12x1, auto 6x2+1, rhythm modes, and more. Capable of printing trend charts, histograms of P-R intervals, and adjustable waveform lengths with time-stamping functionality.
- Adjustable Paper Speeds: Supports speeds of 5mm/s, 6.25mm/s, 10mm/s, 12.5mm/s, 25mm/s, and 50mm/s to meet diverse clinical needs.
- Automated Analysis and Diagnosis: Provides precise measurements and diagnostic conclusions for HR, P-R interval, QRS duration, QT interval, and more, significantly reducing the workload for medical professionals.
- Extensive Memory Capacity: Stores up to 1000 cases for convenient review and statistical analysis.
- Multi-Language Support: Offers a user-friendly interface and reports in Turkish, French, Chinese, English, German, Kazakh, Polish, Portuguese, Russian, Slovenian, Spanish, and Ukrainian.
- Extended Battery Life: Delivers up to 10 hours of standby time and over 3 hours of continuous printing in optimal DC conditions, enabling reliable use during home visits and physical examinations.
Technical Specifications
- Input Mode: Floating with defibrillation protection
- Frequency Response: 0.05Hz ~ 150Hz (-3dB ~ +0.4dB)
- CMRR: >60dB (>100dB with filter)
- Time Constant: β₯ 3.2s
- Patient Leak Current: <10Β΅A
- Calibration Voltage: 1mV
- Sensitivity: 5, 10, 20 mm/mV Β±5% (Standard: 10mm/mV Β±2%)
- Noise Level: β€15Β΅Vp-p
- Input Circuit Current: β€50nA
- Input Impedance: β₯50MΞ©
- Sampling Accuracy: 12-bit
- Safety Classification: Class I, Type CF, defibrillation-proof applied part
- Recording Mode: Thermal printing system
- Paper Size: 210mm(W) Γ 20m(L)
- Sampling Frequency: 1000Hz
- EMG Interference Filter: 35Hz (-3dB)
- Power Frequency Filter: AC 50Hz/60Hz (-20dB)
- Paper Speed Options:
- Auto: 25, 50mm/s (Β±5%)
- Rhythm: 25, 50mm/s (Β±5%)
- Manual: 5, 6.25, 10, 12.5, 25, 50mm/s (Β±5%)
- Power Supply:
- AC: 100V~240V (50/60Hz)
- DC: 14.8V/3500mAh rechargeable lithium battery
- Fuse Specification: Two AC time-lag fuses (Ο5Γ20mm), T1.6AL250V
- Waterproof Degree: IPX0
- Working Mode: Continuous operation
- Physical Characteristics:
- Dimensions: 340mm(L) Γ 320mm(W) Γ 85mm(H)
- Weight: 3.2Kg
Package Includes
- ECG Machine
- Lead Wire
- Limb Electrodes (Set of 4)
- Chest Electrodes (Set of 6)
- Data Transmission Line
- Thermal
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Name: ECG Machine by GoldHealth Medical
Input Mode: Floating with Defibrillation Protection
Key Features and Specifications
- Frequency Response: 0.05Hz ~ 150Hz (-3dB ~ +0.4dB), ensuring precise signal capture for accurate diagnostics.
- Common Mode Rejection Ratio (CMRR): >60dB, >100dB with filter, minimizing interference for reliable readings.
- Time Constant: β₯ 3.2s, delivering consistent performance during prolonged use.
- Calibration Voltage: 1mV, providing standardized measurements for clinical precision.
- Sensitivity Options: 2.5, 5, 10, 20, 40 mm/mV Β±5%, with a standard sensitivity of 10mm/mV Β±2%, offering flexibility for diverse diagnostic needs.
- Sampling Accuracy: 12-bit resolution, capturing even the smallest variations in cardiac signals.
Instrument Classification and Safety
- Classification: Class II medical device, designed for professional and home healthcare environments.
- Power Source: Electric, engineered for stable and uninterrupted operation.
Materials and Build Quality
- Construction: Durable metal and high-grade plastic, ensuring longevity and resistance to wear in demanding medical settings.
Warranty and After-Sales Support
- Warranty: Comprehensive 1-year coverage, reflecting our confidence in product reliability.
- After-Sale Service: Access to online technical support, ensuring seamless assistance whenever needed.
Packaging Details

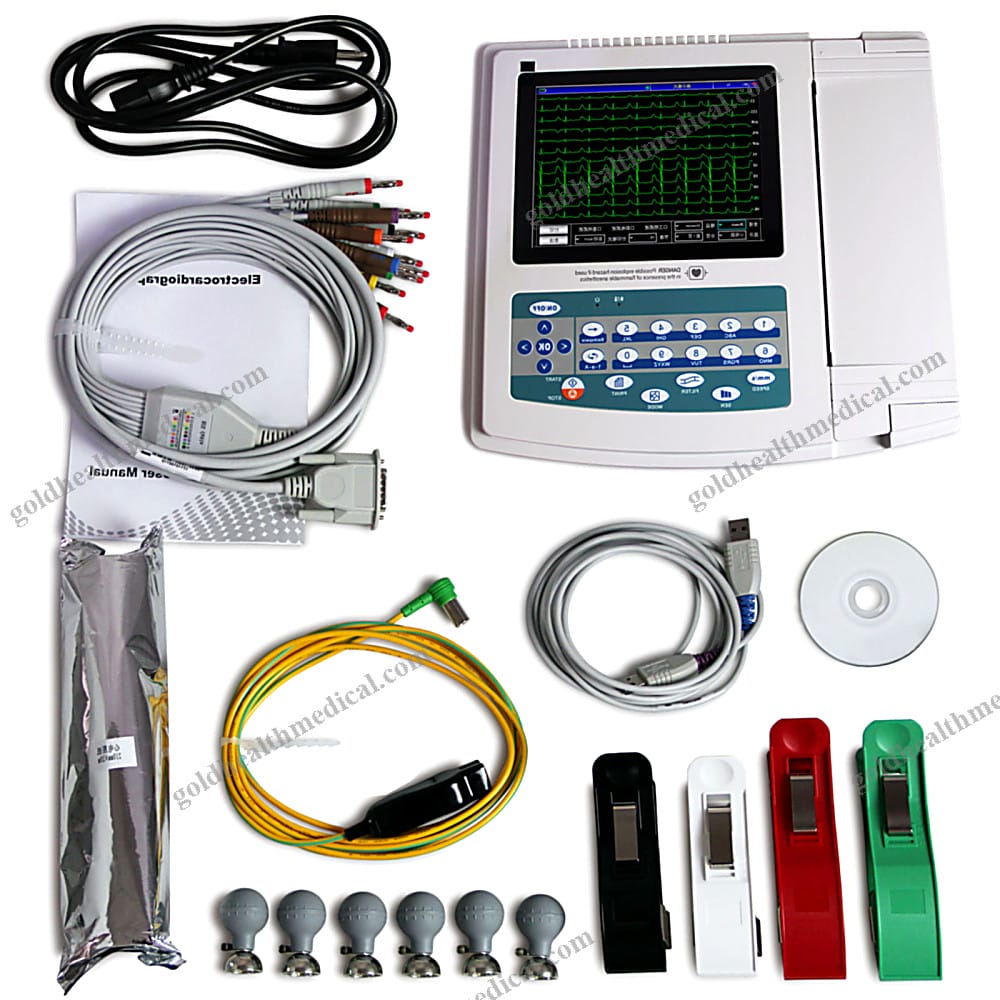

- Included Components:
- 1x ECG Machine (ECG1200G)
- 1x Lead Wire
- 1 Set Limb Electrodes (4 pieces)
- 1 Set Chest Electrodes (6 pieces)
- 1x Data Transmission Line
- 1x Thermal Recording Paper
- 1x Power Cord
- 1x Earth Wire
- 1x User Manual
Logistics Information
- Single Package Size: 36 x 25 x 10 cm
- Single Gross Weight: 3.000 kg
- Ports: Shanghai, Shantou, Tianjin, Shenzhen, Guangzhou
Supply Capability
- Monthly Supply Capacity: 1000 sets, ensuring timely delivery for bulk orders.
Certifications
- Quality Certification: CE, guaranteeing compliance with international safety and performance standards.
GoldHealth Medicalβs ECG Machine is meticulously engineered to deliver unparalleled accuracy, durability, and ease of use, making it an indispensable tool for modern healthcare providers. Whether in hospitals, clinics, or home care settings, this device sets a new benchmark for cardiac diagnostics.
