ECG 1200G Digital 12Lead E
Reference: 1601292792232
Pathological Analysis Equipments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical: Revolutionizing Cardiac Diagnostics with Advanced ECG Technology
Product Overview

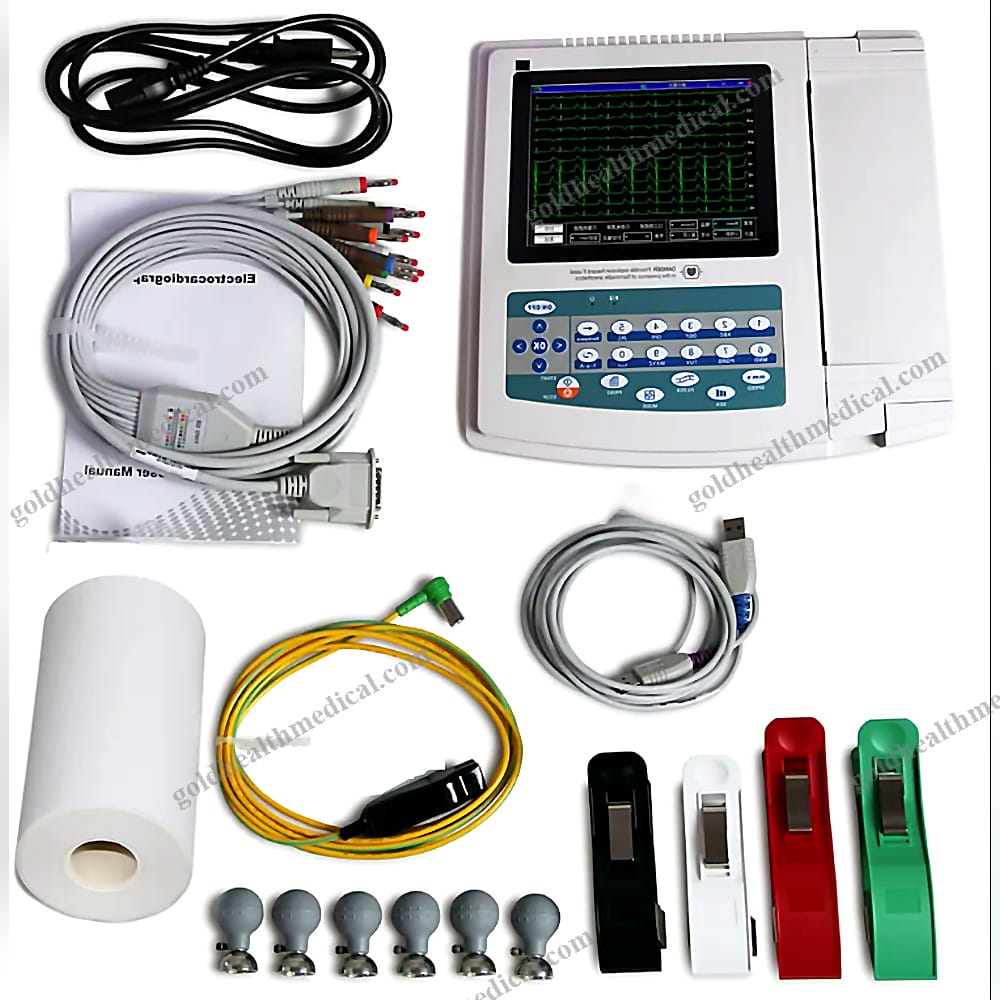

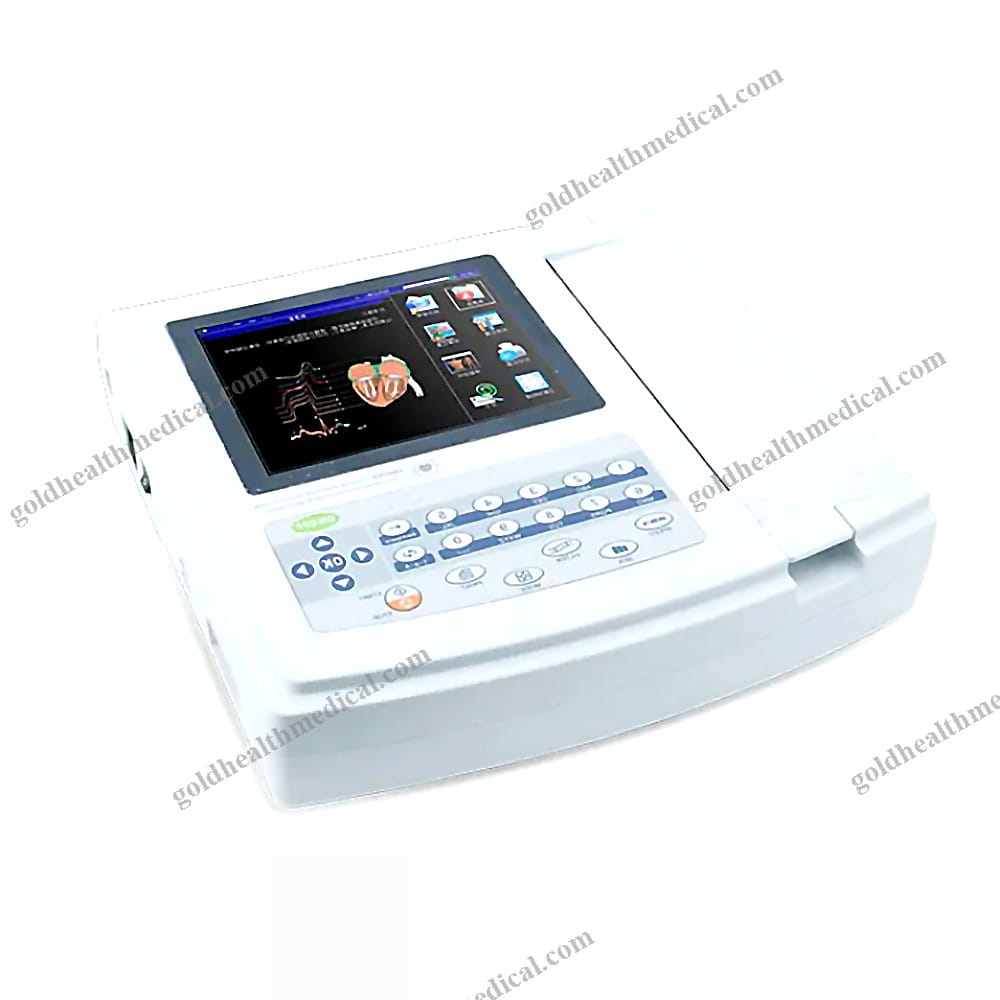

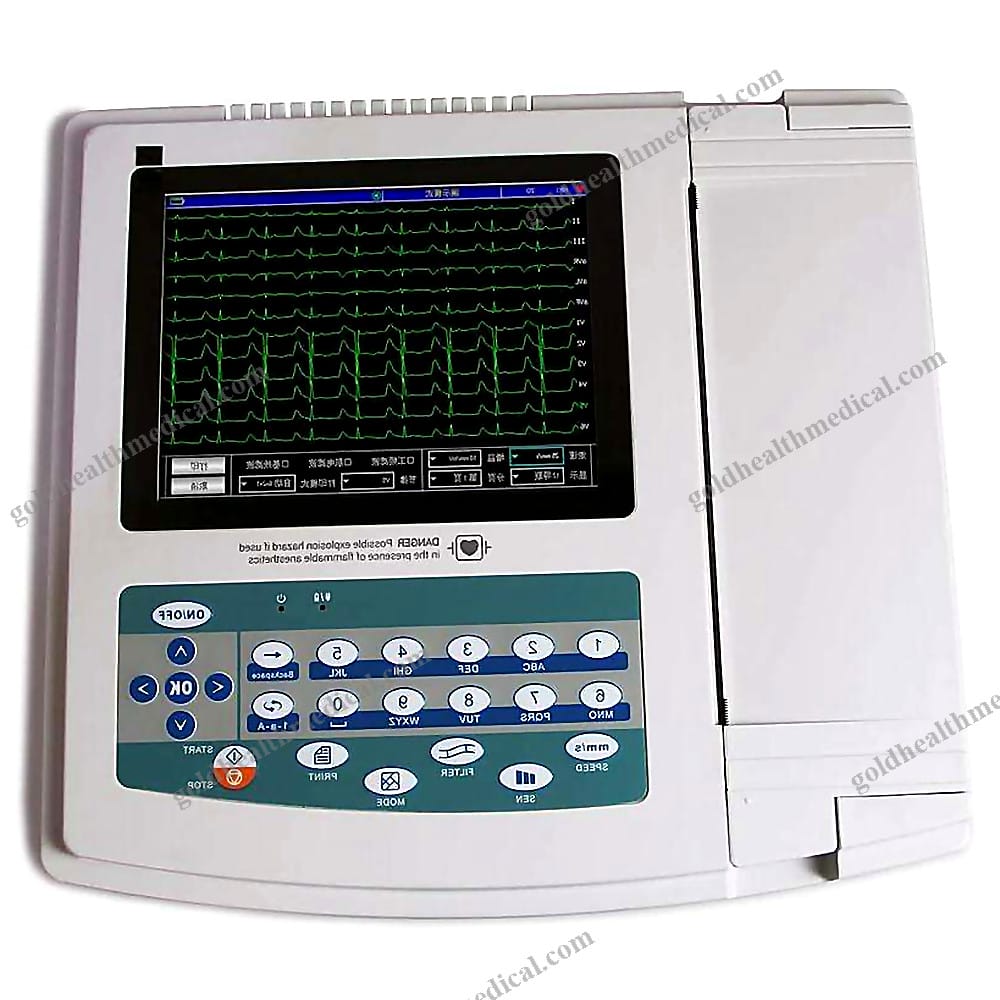

GoldHealth Medical presents a cutting-edge 12-channel ECG machine designed to redefine precision and usability in cardiac diagnostics. Featuring an intuitive 8.4” color TFT full-touch screen, this device combines advanced anti-defibrillation and pacemaker detection capabilities with automated measurement and diagnostic functions. Engineered for seamless operation, it supports simultaneous acquisition, amplification, and recording of all 12 leads, ensuring unparalleled accuracy and efficiency.
Key Features
- Intuitive Interface: An 8.4” high-resolution color TFT touch screen with a resolution of 800×600 pixels or higher for effortless navigation.
- Advanced Detection: Equipped with anti-defibrillation and pacemaker detection to ensure patient safety during critical procedures.
- Automated Intelligence: Auto measurement and auto diagnosis functions streamline workflows, delivering precise results with minimal manual intervention.
- Comprehensive Lead Monitoring: Simultaneous acquisition, amplification, and recording of all 12 leads, complemented by a lead state map that visually indicates connectivity status.
- Versatile Display and Print Options: Multiple display and print modes tailored to meet diverse clinical needs.
- Robust Memory: Built-in storage capable of saving over 1000 patient cases, ensuring data accessibility and continuity of care.
- Digital Signal Processing: Advanced filtering options, including AC, EMC, and drift filters, for superior signal clarity.
Technical Specifications
- Dimensions: 340mm(L) x 320mm(W) x 85mm(H)
- Weight: 3.2kg
- Power Supply: Dual DC and AC power options with Category I, CF-type safety classification.
- Battery Life: A 3700mA rechargeable lithium battery provides over 120 minutes of continuous operation on a full charge.
- Leads: Standard 12-lead configuration.
- Noise Level: <15µVp-p for exceptional signal fidelity.
- Frequency Response: 0.05Hz–150Hz (-3dB) for accurate waveform representation.
- Input Impedance: 50MΩ for minimal signal distortion.
- Patient Leak Current: <10µA, ensuring patient safety during operation.

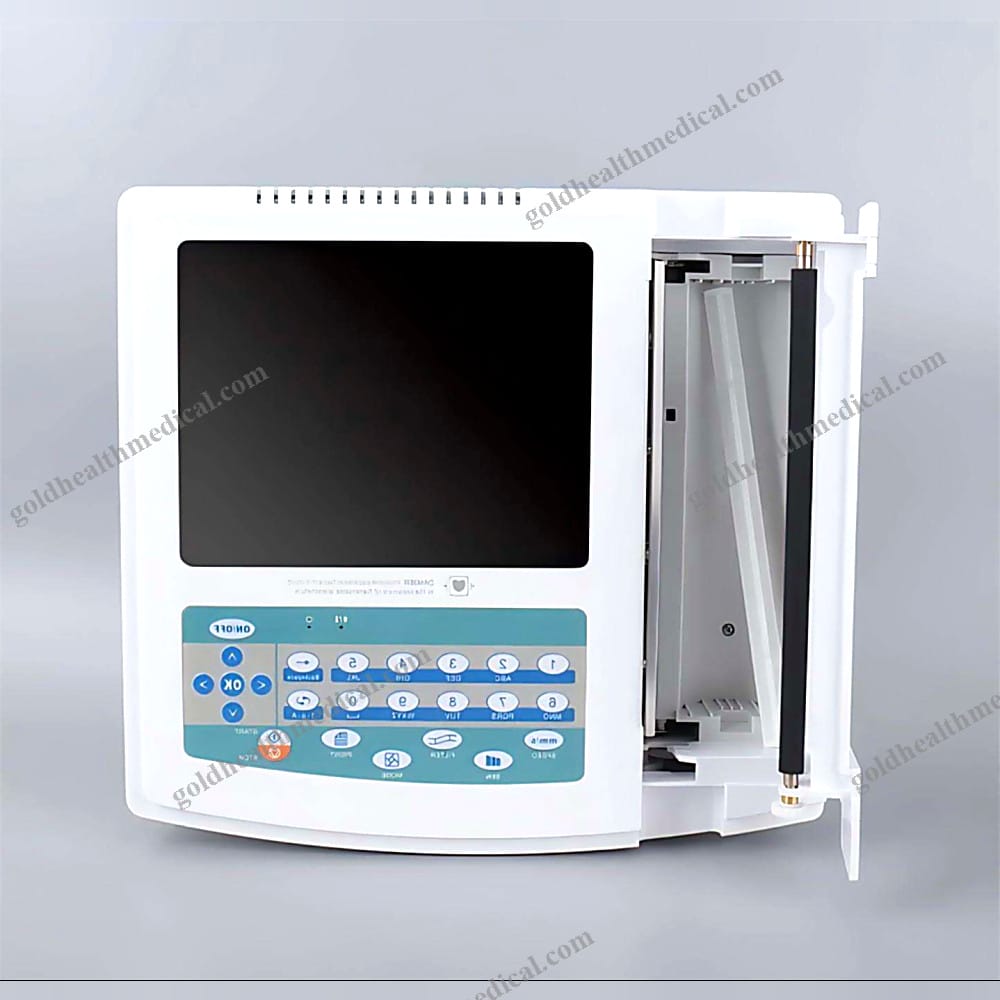

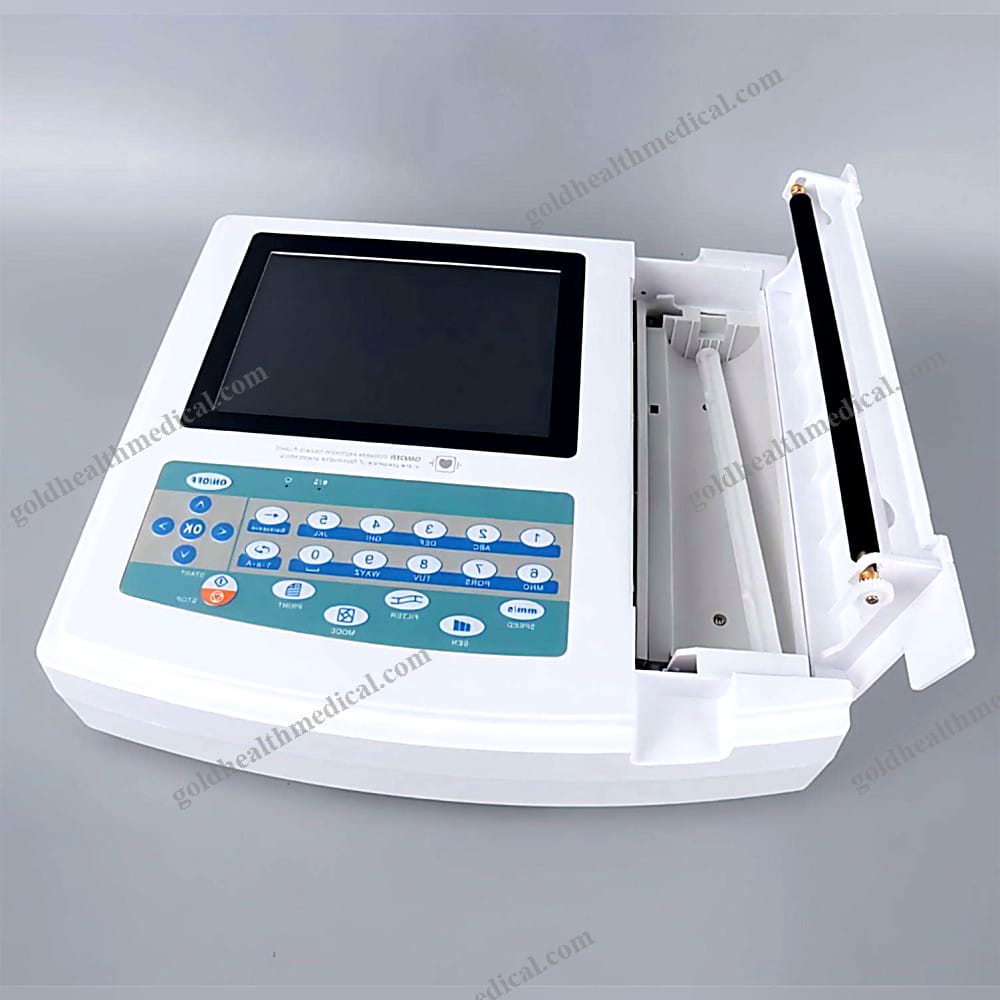

- Recording System: High-speed thermal printing system compatible with 210mm(W) x 20m(L) thermal paper.
- Recording Speeds: Auto record (25mm/s, 50mm/s), rhythm record (25mm/s, 50mm/s), and manual record (5mm/s to 50mm/s) with ±5% accuracy.
- Sensitivity Options: Adjustable settings (2.5mm/mV to 40mm/mV) with ±5% error tolerance.
- Communication Interfaces: Ethernet, RS232, and USB for seamless data transfer and integration.
Unique Selling Points
- Precision Redefined: The combination of simultaneous 12-lead acquisition and advanced digital signal processing ensures unmatched diagnostic accuracy.
- User-Centric Design: The full-touch interface and intuitive lead state map simplify operation, even in high-pressure environments.
- Uninterrupted Performance: With a robust battery life and dual power supply options, the device is designed for reliability in any setting.
- Data Security and Accessibility: Built-in memory and multiple communication interfaces ensure secure data storage and easy sharing.
Applications
This state-of-the-art ECG machine is ideal for hospitals, clinics, research institutions, rehabilitation centers, and home healthcare settings. Its versatility and precision make it an indispensable tool for medical professionals seeking to deliver exceptional patient care.
GoldHealth Medical is committed to advancing healthcare through innovation, offering products that combine cutting-edge technology with user-friendly design. Elevate your cardiac diagnostics with a device that sets new standards in performance and reliability.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Name: Digital 12-Channel ECG Machine by GoldHealth Medical
Key Features and Benefits:
- Precision Redefined: Equipped with a 24-bit sampling precision, this ECG machine delivers unparalleled accuracy for reliable diagnostics.
- Ultra-Low Noise Performance: Noise level ≤12 μVp-p ensures clear and interference-free ECG signal acquisition, even in demanding environments.
- High-Fidelity Signal Processing: A 32 kHz ECG signal input sampling frequency captures every detail, while an amplitude quantization of ≤5μV/LSB guarantees exceptional signal clarity.
- Consistent and Reliable Output: Standard sensitivity of 10 mm/mV ±0.2 mm/mV ensures precise and repeatable results.
- Advanced Timing Accuracy: Interchannel time deviation <100 μs and a time constant ≥3.2s provide synchronized and stable readings across all channels.
Technical Specifications:
- Instrument Classification: Class II medical device
- Power Source: Electricity
- Time Base Selection (Paper Speed): 12.5 mm/s, 25 mm/s, 50 mm/s
- Shelf Life: 1 year
- Quality Certification: CE
Packaging Details:
- Single Package Size: 43 x 43 x 26 cm
- Single Gross Weight: 6.000 kg
Warranty and Support:
- Warranty Period: 1 year
- After-Sale Service: Comprehensive online technical support to ensure seamless operation and address any queries.
Why Choose GoldHealth Medical?
GoldHealth Medical’s Digital 12-Channel ECG Machine is engineered to meet the rigorous demands of modern healthcare. Designed for hospitals, clinics, research institutions, and home care, this device combines cutting-edge technology with user-friendly functionality. Its robust build, precision engineering, and advanced features make it an indispensable tool for accurate cardiac diagnostics.
Applications:
- Hospitals and clinics
- Diagnostic laboratories
- Research institutions
- Rehabilitation centers
- Home healthcare
Experience the next generation of cardiac care with GoldHealth Medical’s Digital 12-Channel ECG Machine – where precision meets reliability.
