Digital 6Channel ECG Machine with Full Keyboard 5
Reference: 1600113440710
Pathological Analysis Equipments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

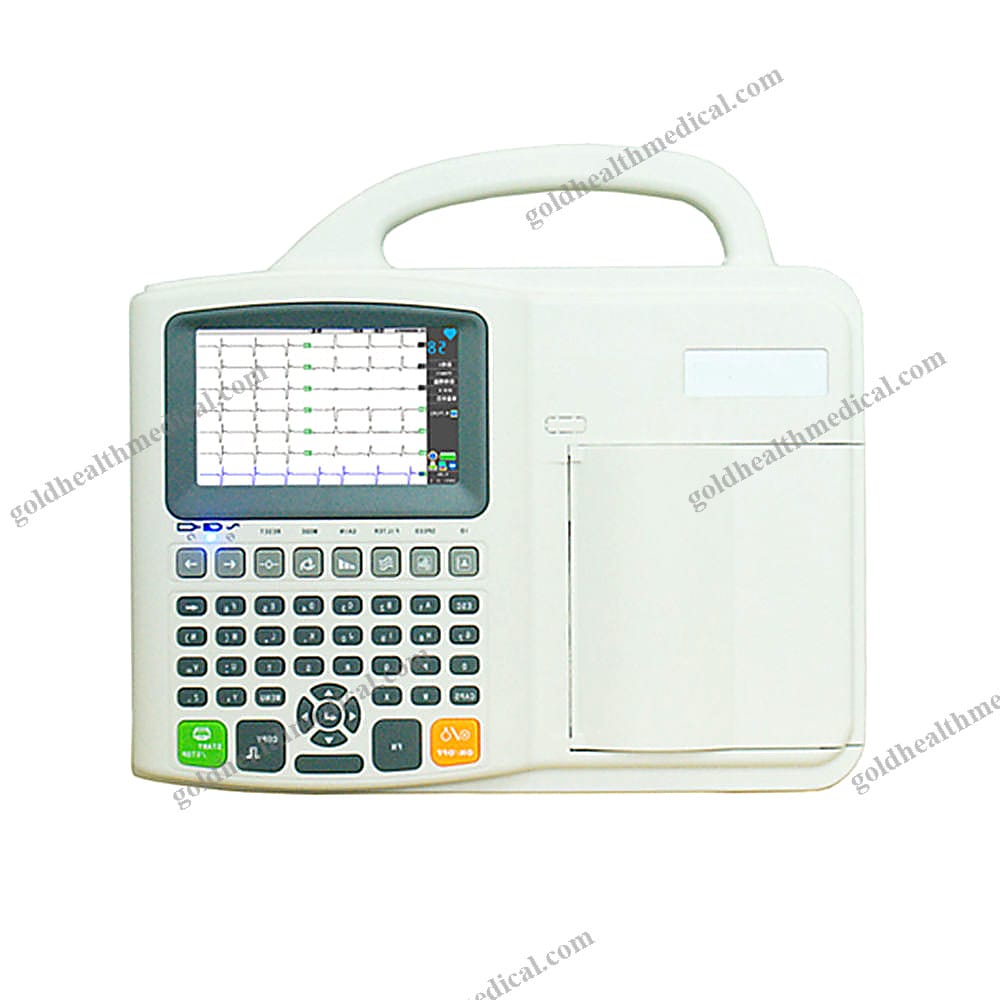

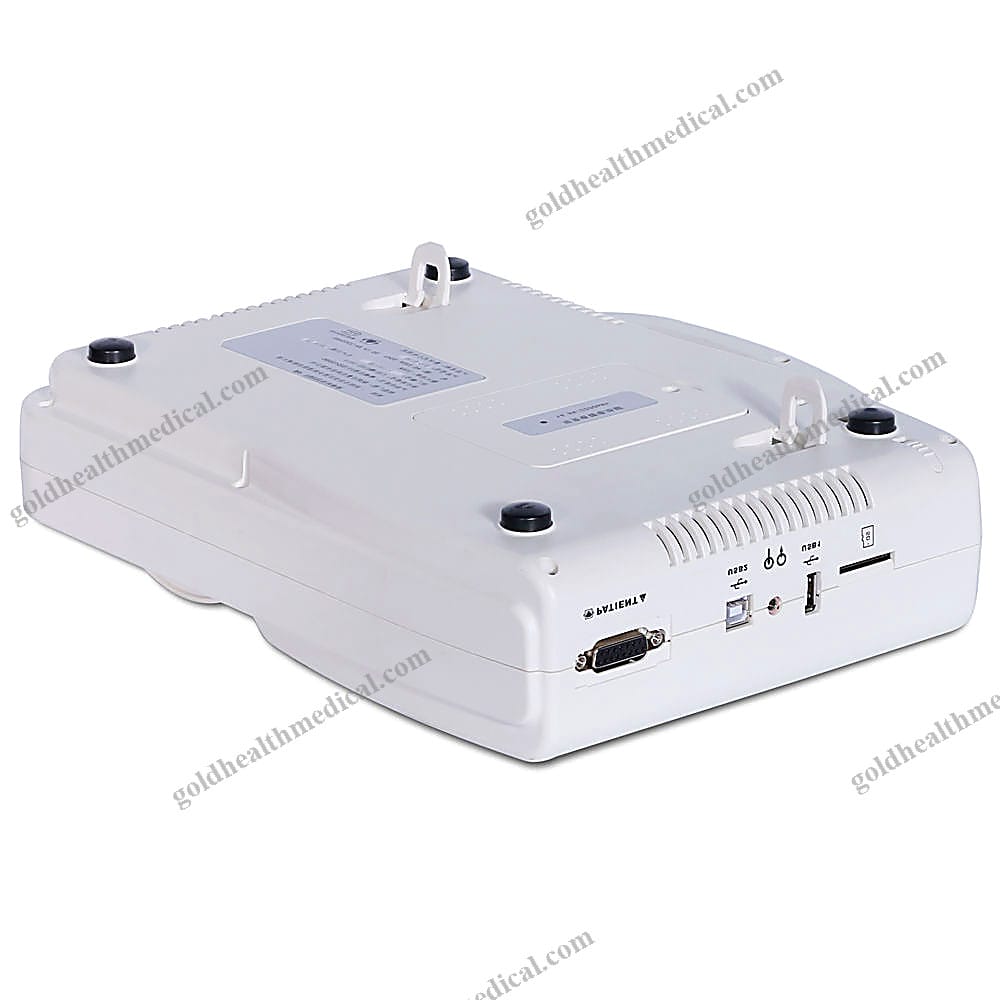

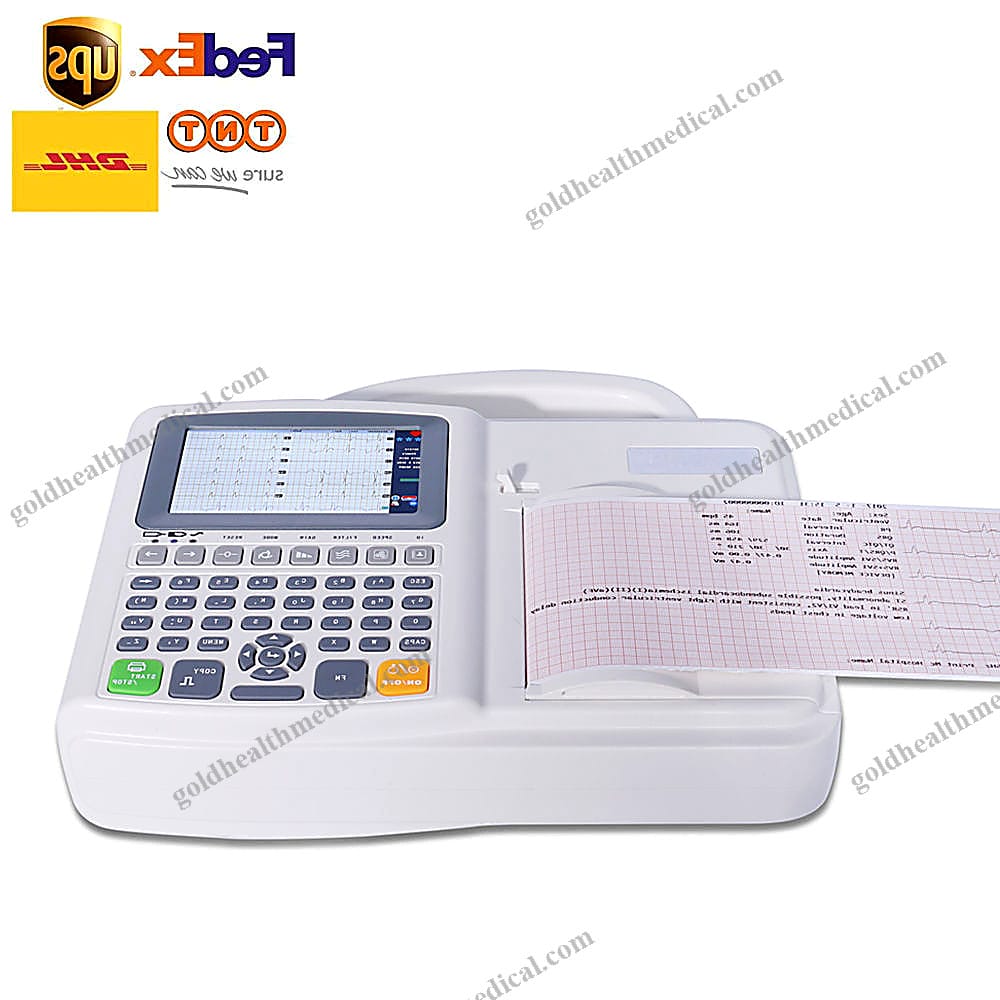

GoldHealth Medical presents a cutting-edge 6-channel ECG machine designed for precision and reliability in cardiac diagnostics.
Features:
- Advanced 6-channel ECG with Interpretation: Delivers comprehensive cardiac analysis with automated interpretation.
- 5.0" High-Resolution Color TFT LCD Display: Ensures clear visualization of ECG waveforms and data.
- Simultaneous 12-Lead Acquisition: Captures all 12 leads at once, with flexible recording options (1, 1+1, 3, and 6 channels) via a high-resolution thermal printer.
- Dual Manual/Auto Modes: Offers flexibility in operation to suit various clinical needs.
- Digital Signal Processing and Isolation Technology: Minimizes interference and ensures accurate signal acquisition.
- Baseline Stabilization: Provides consistent readings even during patient movement.

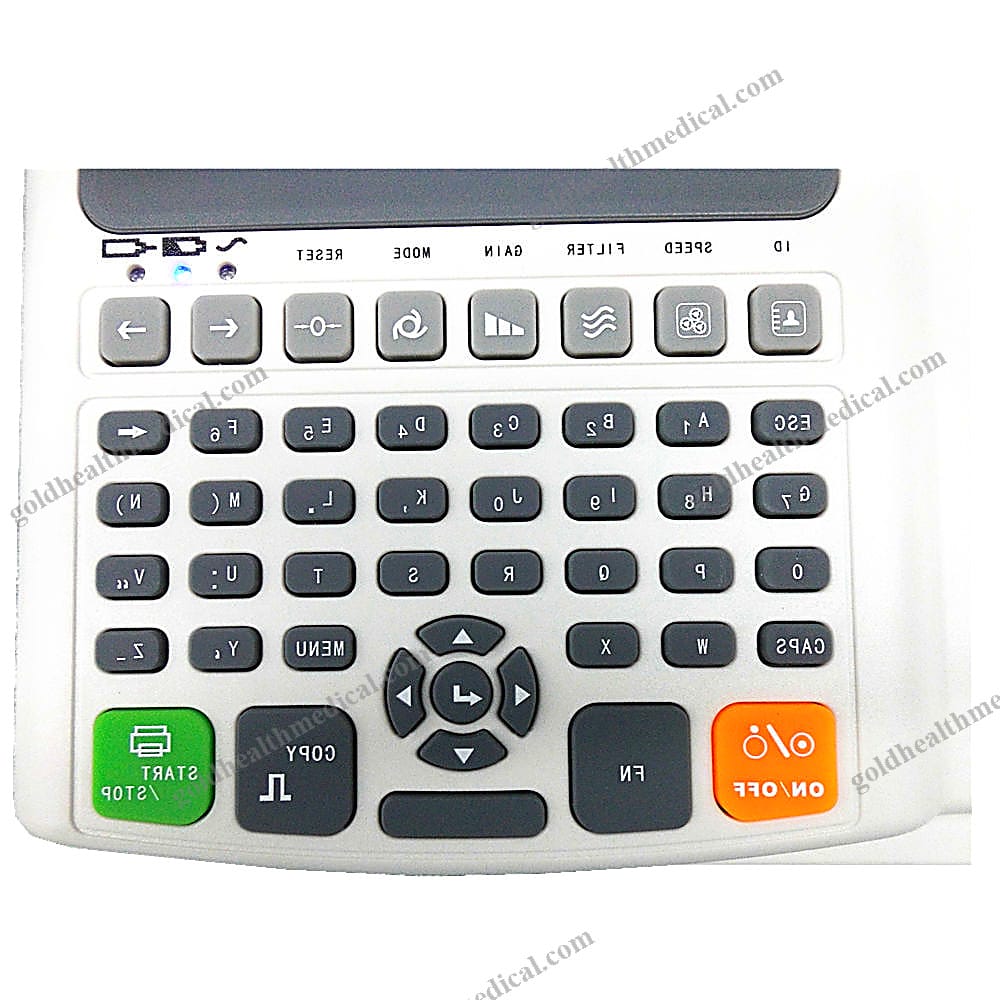

- Full Alphanumeric Silicon Keyboard: Simplifies data entry and navigation.
- USB Storage Support: Enables convenient data transfer and storage.
Technical Specifications:
- Leads: Standard 12 leads with simultaneous acquisition.
- A/D Converter: 14-bit resolution for precise signal conversion.
- Sampling Rate: 1000Hz for highly detailed waveform capture.
- Interference Filters: AC and EMG filters to reduce noise.
- Common Mode Rejection Ratio (CMRR): ≥100dB with AC filter for superior noise rejection.
- Input Circuit: Floating design with defibrillator protection.
- Input Impedance: ≥50MΩ for minimal signal loss.
- Patient Current Leakage: <10μA, ensuring patient safety.
- Calibrating Voltage: 1mV±2% for accurate calibration.
- Frequency Response: 0.05Hz–250Hz, capturing both low and high-frequency signals.
- Noise Level: <15μVp-p for clean signal acquisition.

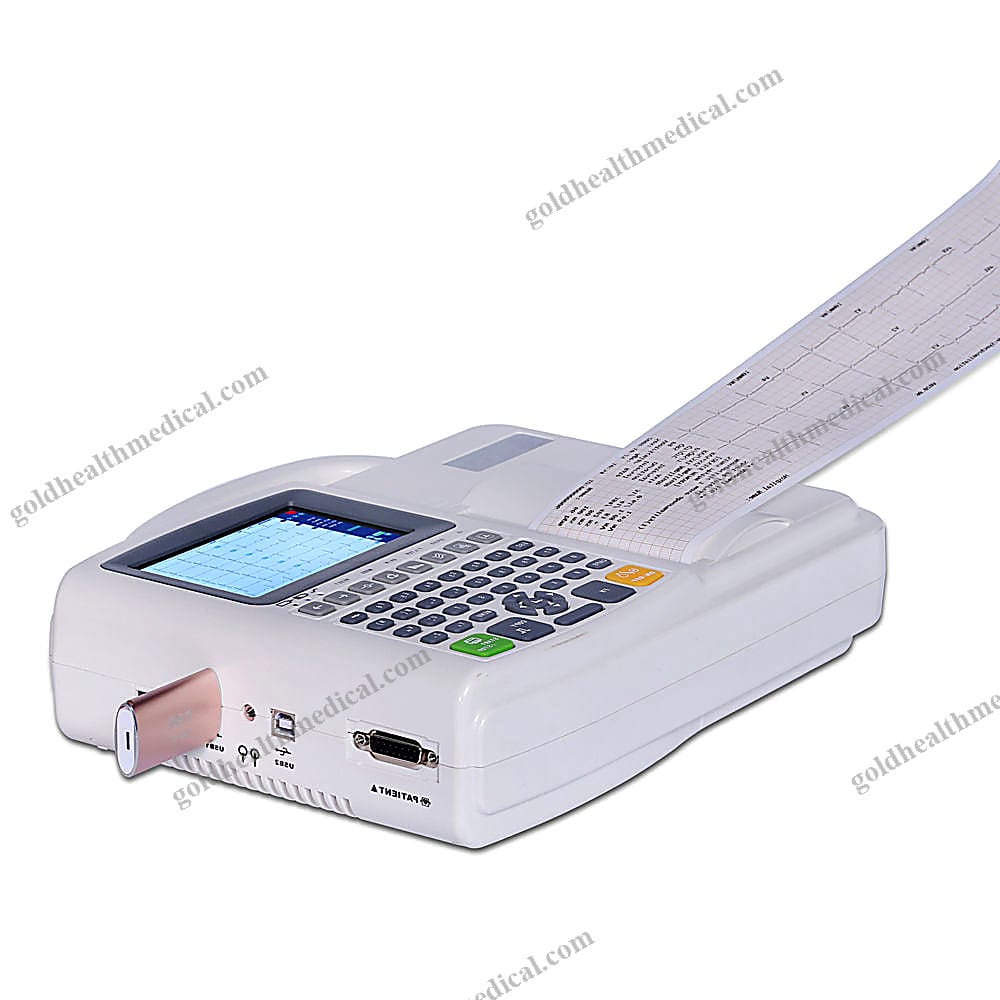

- Printer: High-speed thermal printer with adjustable page speeds (6.25, 12.5, 25, 50mm/s).
- Paper: 112mm x 20m roll for extended use.
- Sensitivity Settings: 10mm/mV (AUTO), 2.5, 5, 10, 20mm/mV.
- CPU: 32-bit processor for fast and reliable performance.
- Safety Standards: Compliant with GB9706.1, Class I, Type CF.
- Power Supply: AC 85–265V, 50/60Hz, with a rechargeable Li-ion battery (DC14.8V, 2200mAh).
- Dimensions: Compact design at 310mm x 270mm x 73mm.
- Weight: Lightweight at 1.75kg (including battery).
What’s Included:
- Main ECG machine unit.

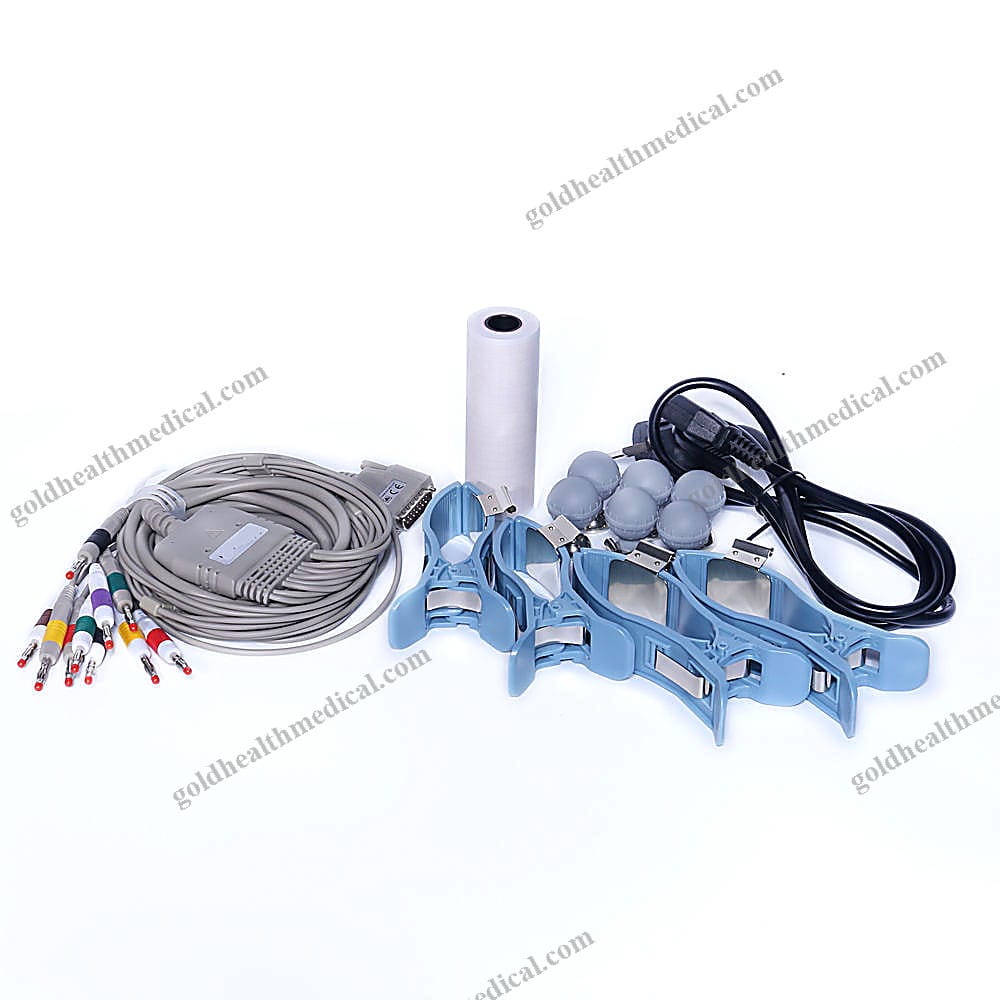

- Comprehensive set of accessories: suction ball, electrode holder, printing paper, and power cord.
- User manual and quality assurance documentation.
Why Choose GoldHealth Medical?
GoldHealth Medical is committed to delivering innovative, high-quality medical devices that meet the evolving needs of healthcare professionals worldwide. Our ECG machine combines advanced technology with user-friendly features, making it an ideal choice for hospitals, clinics, research labs, and home care settings. With a focus on precision, safety, and ease of use, this device sets a new standard in cardiac diagnostics.
Experience the GoldHealth Medical difference—where innovation meets reliability.
