Digital 12Channel ECG Machine with Touch Screen
Reference: 1601377575737
Pathological Analysis Equipments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

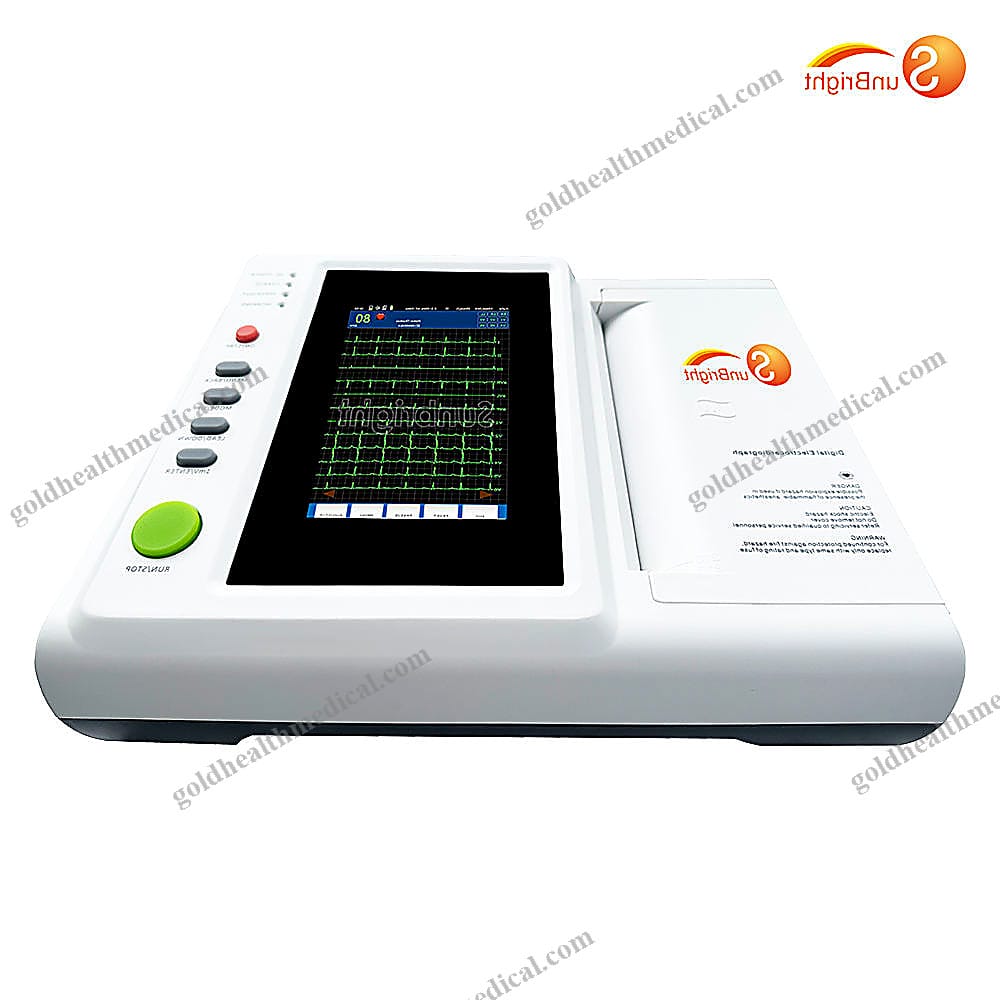

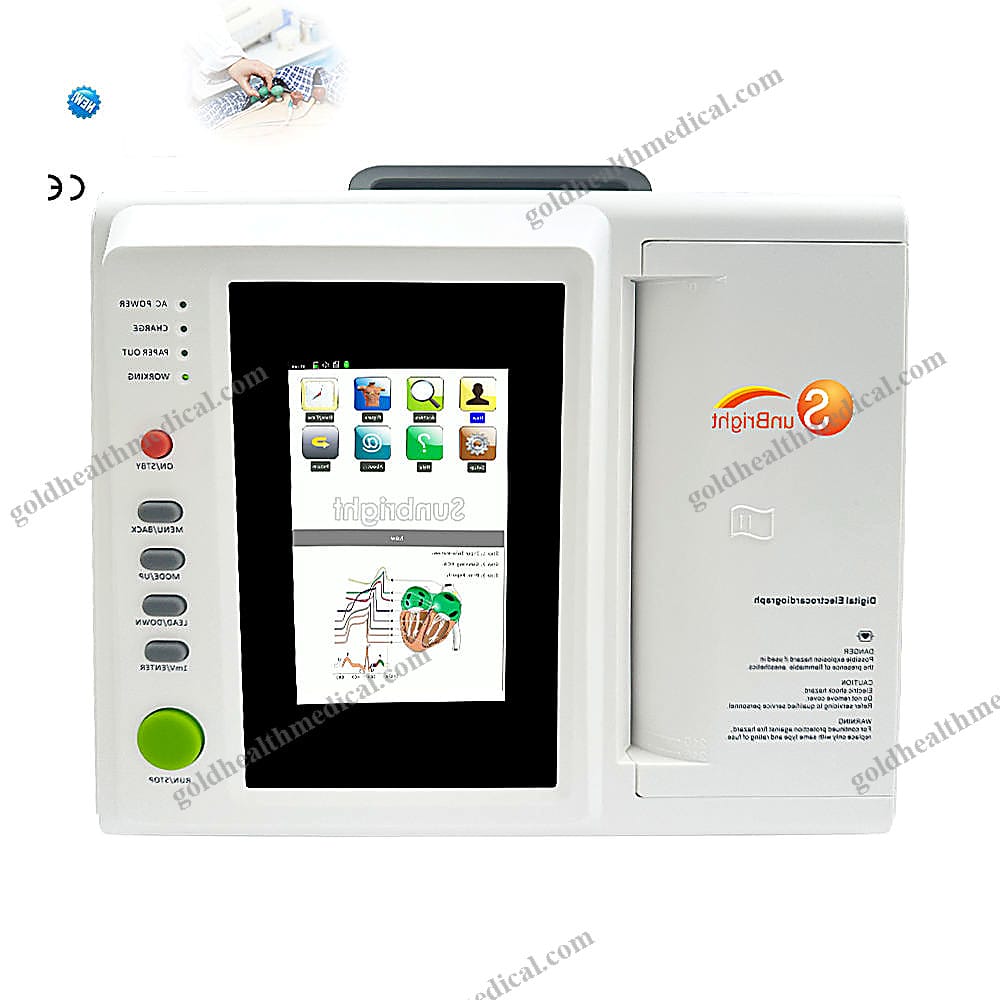

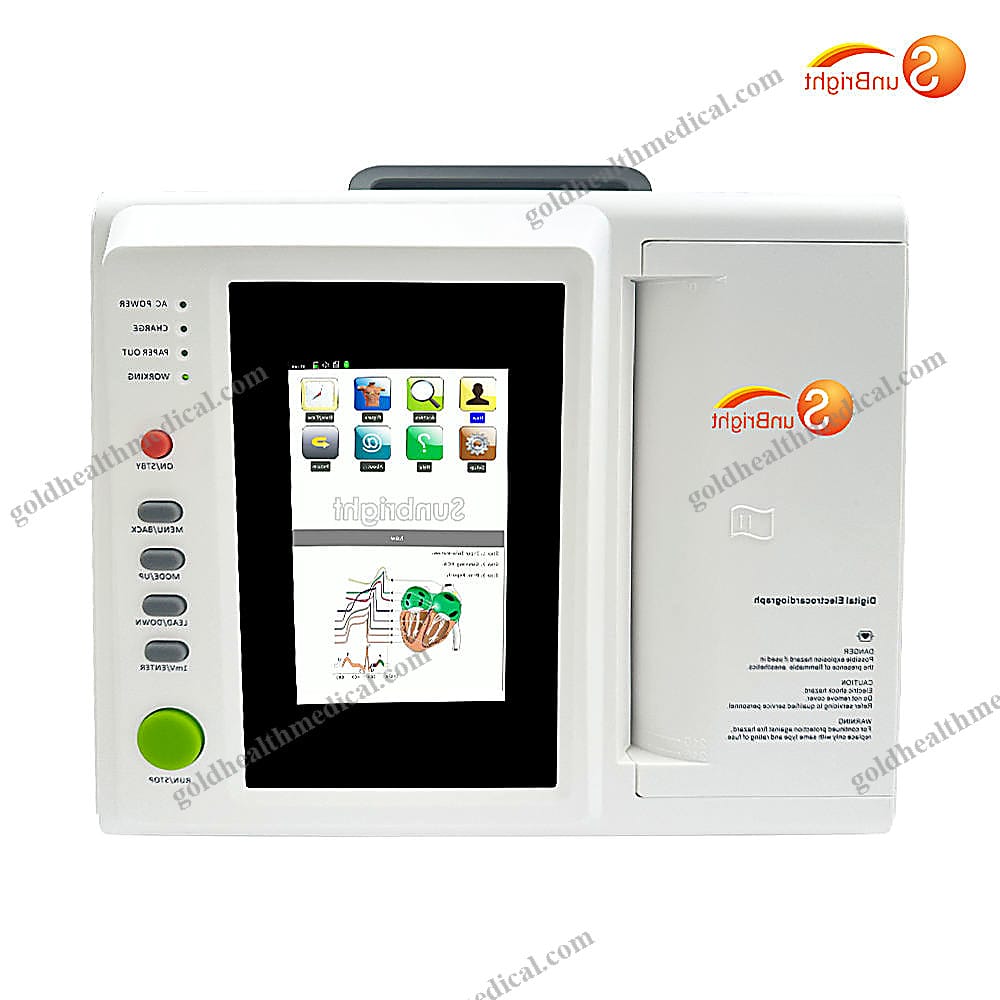

GoldHealth Medical: Advanced 12-Channel ECG Machine
Product Overview
GoldHealth Medical presents a cutting-edge 12-channel ECG machine designed to deliver precision, efficiency, and ease of use. This state-of-the-art device is engineered for healthcare professionals who demand accuracy and reliability in cardiac diagnostics. Its sleek, modern design combines portability with advanced functionality, making it ideal for hospitals, clinics, research labs, and home care environments.
Key Features and Benefits
- Simultaneous 12-Lead Acquisition: Capture all 12 leads at once for comprehensive and accurate ECG waveforms.
- 10.2" High-Resolution Touchscreen: Intuitive interface with both touch and push-button controls for seamless operation.
- Advanced Filtering Technology: Equipped with ADS, HUM, and EMG filters to ensure clear and noise-free signals.
- Automated Analysis and Diagnostics: Reduces physician workload by providing automatic measurements, calculations, and waveform freezing.
- Smart Baseline Adjustment: Ensures optimal recording quality by automatically correcting baseline drift.
- High-Speed Thermal Printer: Delivers high-resolution prints (8 dots/mm) with synchronization for precise documentation.
- Extended Frequency Response: Up to 150Hz for detailed waveform analysis.
- Intelligent Alerts: Detects lead disconnections and paper shortages to prevent interruptions during use.
- Long-Lasting Battery: Built-in rechargeable lithium-ion battery (14.8V/4400mAh) ensures uninterrupted performance, even in remote settings.
- Universal Power Compatibility: Adapts to 100-240V, 50/60Hz AC power supply for global usability.
Technical Specifications
- CMRR: β₯ 100dB with AC filter
- Calibrating Voltage: 1mV Β± 3%
- Input Circuit: Floating design with β€ 0.1Β΅A current
- Voltage Tolerance: Β± 500mV
- Time Constant: > 3.2s
- Resolution: 12-bit/1000Hz
- Frequency Response: 0.05Hz ~ 150Hz
- Operation Modes: Manual and Auto
- Noise Level: β€ 15Β΅Vp-p
- Filters: AC, EMG, Anti-Drift System
- Paper Speed: 12.5, 25, 50mm/s (Β± 3%)
- Input Impedance: > 50MΞ©
- Sensitivity: 5, 10, 20mm/mV
- Patient Current Leakage: < 10Β΅A
- Recorder: High-resolution thermal printer
- Battery: Rechargeable Li-ion, 14.8V (4000mAh)
- Recording Paper: Thermal-sensitive paper
Why Choose GoldHealth Medical?
Our 12-channel ECG machine stands out with its combination of advanced technology, user-friendly design, and robust performance. It is engineered to enhance diagnostic accuracy while streamlining workflows for medical professionals. Whether you're conducting routine check-ups or managing complex cardiac cases, this device ensures reliable results every time.
Additional Highlights
- Compact and lightweight design for easy portability.
- Historical data review and printing capabilities for comprehensive patient management.

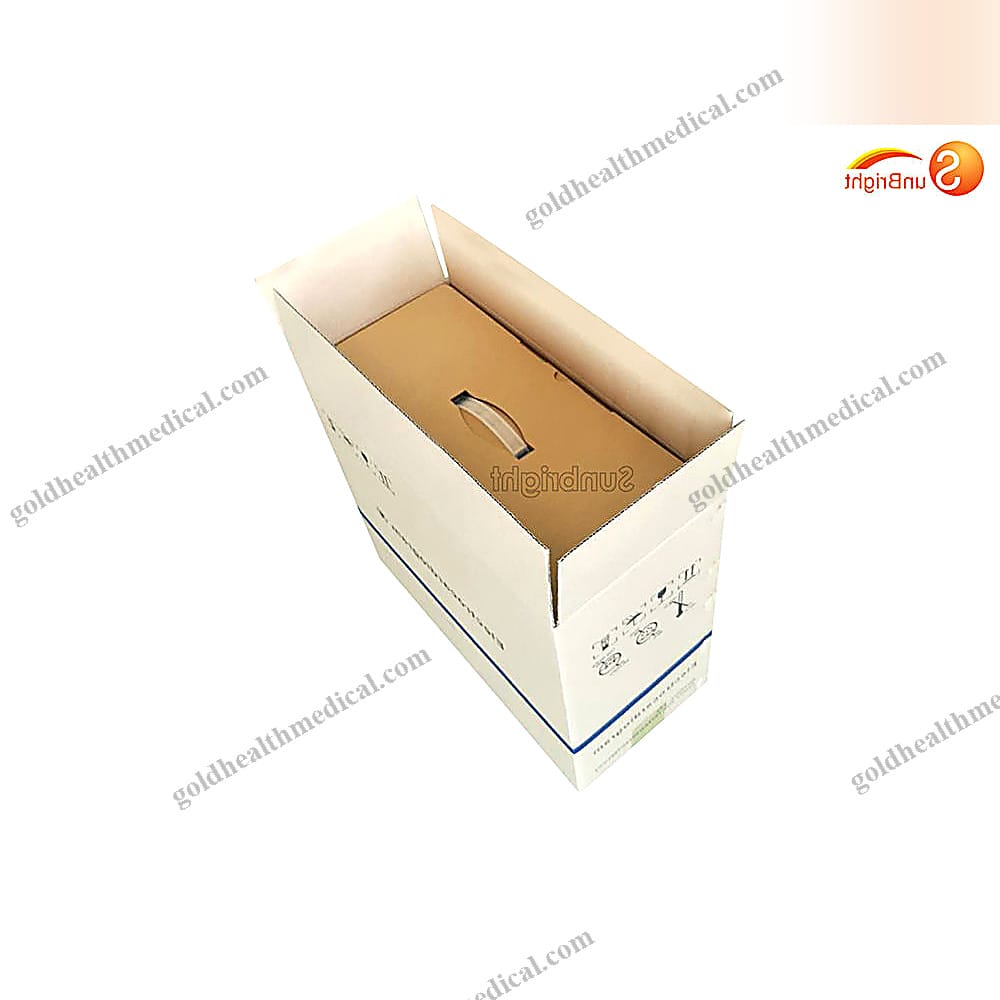

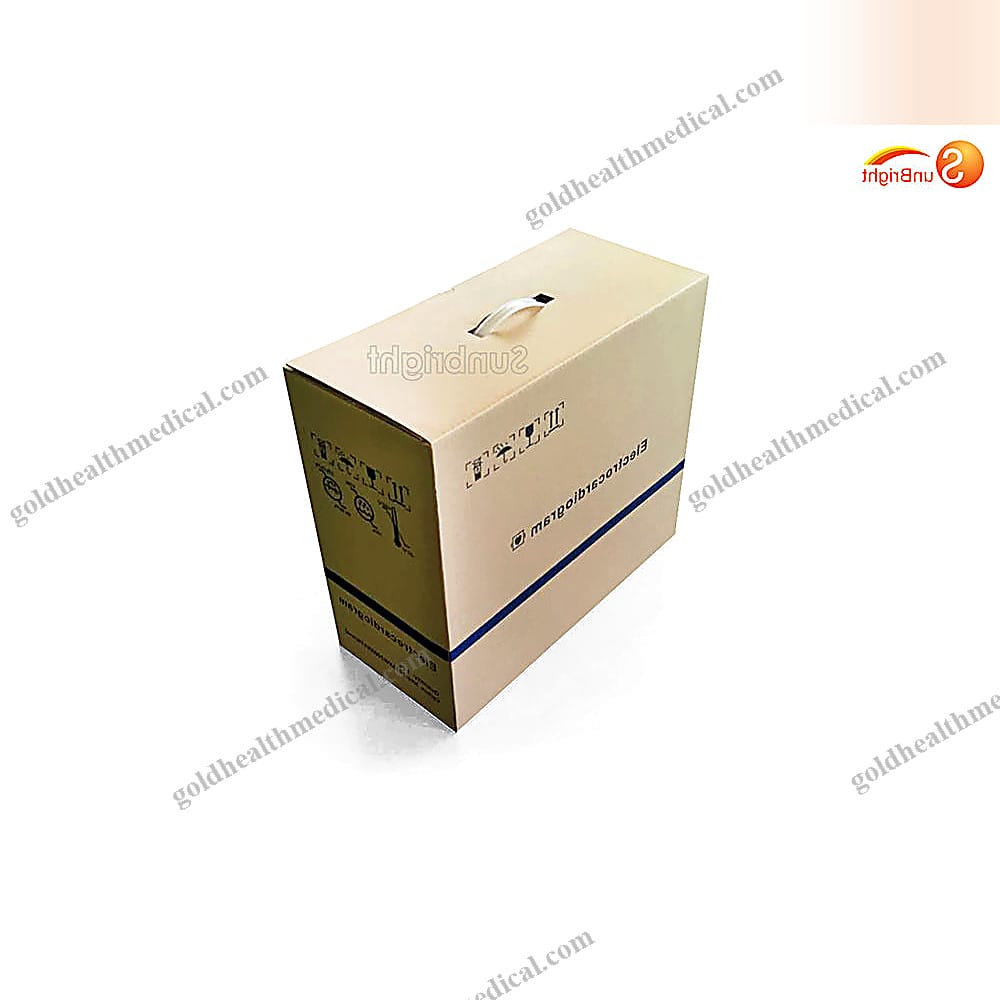

- Durable construction with double carton packaging for secure transport.
GoldHealth Medical is committed to delivering innovative solutions that empower healthcare providers to deliver exceptional care. Experience the future of cardiac diagnostics with our advanced ECG machine.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Name: Digital 12-Channel ECG/EKG by GoldHealth Medical
Key Features and Benefits:
- Precision Redefined: Equipped with a 12-bit resolution and a sampling rate of 1000Hz, this ECG/EKG delivers unparalleled accuracy for reliable cardiac diagnostics.
- Advanced Filtering Technology: Integrated AC, EMG, and Drift filters, along with an Anti-Drift System, ensure clear and noise-free readings even in challenging environments.
- Flexible Operation Modes: Choose between Manual and Auto modes to suit the specific needs of your medical practice or research.
- Floating Input Circuit: Provides enhanced safety and signal integrity, ensuring stable performance during critical procedures.
Technical Specifications:
- Instrument Classification: Class II medical device
- Voltage Tolerance: Β±500mV for consistent performance under varying conditions
- Time Constant: >3.2 seconds, ensuring accurate waveform representation
- Power Source: Electricity-driven for reliable and uninterrupted operation
- Shelf Life: 1 year from the date of manufacture
Design and Usability:
- Compact and Portable Design: Dimensions of 442mm x 207mm x 388mm make it easy to transport and store.
- Lightweight Build: Weighing just 4kg, it is highly portable without compromising durability.
- Packaging Details:
- Single package size: 45cm x 21cm x 39cm
- Single gross weight: 4.000kg
Quality Assurance:
- Certifications: CE-certified, ensuring compliance with international safety and performance standards.
- Warranty: Backed by a 1-year warranty for peace of mind.
- After-Sale Support: Access to online technical support for seamless troubleshooting and assistance.
Applications:
Ideal for hospitals, clinics, research institutions, laboratories, rehabilitation centers, and home healthcare settings. Designed to meet the needs of medical professionals and caregivers alike, this ECG/EKG system combines cutting-edge technology with user-friendly functionality.
Why Choose GoldHealth Medical?
GoldHealth Medical is committed to delivering innovative, high-quality medical devices that empower healthcare providers to deliver exceptional patient care. Our Digital 12-Channel ECG/EKG is a testament to our dedication to precision, reliability, and excellence in medical technology.
