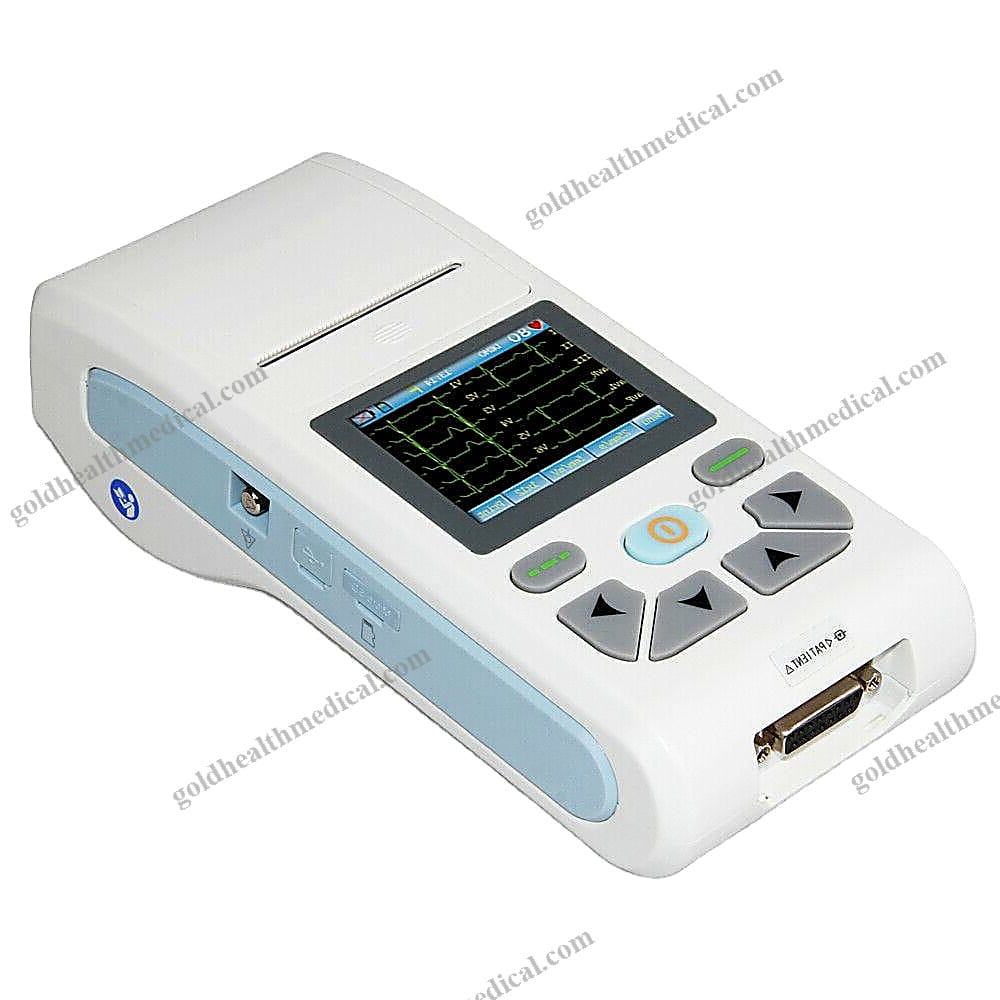

CONTEC ECG90A Portable ECGEKG Handheld
Reference: 1600990439645
Pathological Analysis Equipments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical: Revolutionizing Cardiac Monitoring
Introducing the Ultimate Portable ECG Solution
GoldHealth Medical presents a cutting-edge 24-hour digital handheld portable 12-lead Holter ECG machine, designed to deliver precision, portability, and reliability for cardiac monitoring. Whether in clinical settings or remote environments, this device redefines how healthcare professionals capture and analyze ECG data.
Key Features
1. Intuitive Operation
- Crystal-clear Display: A vibrant 2.83" TFT-LCD screen ensures sharp ECG waveforms and real-time status updates.
- Touchscreen & Function Keys: Effortless navigation with responsive touch controls and intuitive function keys.
- Compact & Portable Design: Lightweight and ergonomic, it fits seamlessly into any workflow, making it ideal for on-the-go use.
Technical Specifications
Working Environment
- Temperature: 5°C to 40°C
- Relative Humidity: 25% to 80% (non-condensing)
- Atmospheric Pressure: 700hPa to 1060hPa
Transport & Storage Conditions
- Temperature: -40°C to +55°C
- Relative Humidity: ≤95%
- Atmospheric Pressure: 500hPa to 1060hPa
Performance Parameters
- Input Mode: Floating input with defibrillation protection
- Frequency Response: 0.05Hz to 150Hz (-3dB to +0.4dB)
- Common Mode Rejection Ratio (CMRR): >60dB (>100dB with filter)
- Time Constant: ≥3.2 seconds
- Patient Leak Current: <10µA
- Calibration Voltage: 1mV
- Sensitivity: 5, 10, 20 mm/mV ±5%; Standard Sensitivity: 10mm/mV ±2%
- Noise Level: ≤15µVp-p
- Input Circuit Current: ≤50nA
- Input Impedance: ≥50MΩ
- Sampling Accuracy: 12-bit
- Safety Classification: Class I, Type CF, defibrillation-proof applied part
Recording System
- Recording Mode: Thermal printing system
- Paper Size: 50mm (W) × 20m (L)
- Measurement Parameters: HR, P-R Interval, P Duration, QRS Duration, T Duration, Q-T Interval, Q-Tc, P Axis, QRS Axis, T Axis, R(V5), S(V1), R(V5)+S(V1)
- Sampling Frequency: 1000Hz
- Polarizing Voltage: ±500mV
- Filters:
- EMG Interference Filter: 25Hz/35Hz (-3dB)
- AC Filter: 50Hz/60Hz (-20dB)
- Paper Speed:
- Auto: 6.25, 12.5, 25, 50mm/s (±5%)
- Manual: 6.25, 12.5, 25, 50mm/s (±5%)
Power Supply
- DC 12V adapter
- 7.4V/2000mAh rechargeable lithium battery
Additional Details
- Waterproof Rating: IPX0
- Working Mode: Continuous operation
- Dimensions: 207mm (L) × 96mm (W) × 62mm (H)
- Weight: 0.5Kg
Included Accessories
- Lead cable
- Limb electrode
- Chest electrode
- Thermal recording paper
- Power cord
- Earth wire
- User manual
- Power adapter
Optional Add-ons
- ECG-Sync software with USB cable
- Disposable ECG electrodes
- Protective bag
- Conductive gel
- SD card
Why Choose GoldHealth Medical?
GoldHealth Medical is a global leader in medical device innovation, trusted by healthcare professionals worldwide. With over 100 patents and certifications, our products are engineered to meet the highest standards of quality and reliability. Backed by a robust global service network spanning 130 countries, we ensure seamless support for every device we create.
Experience the future of cardiac monitoring with GoldHealth Medical—where precision meets portability.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Overview
GoldHealth Medical proudly presents the ECG Machine, a state-of-the-art handheld device designed for precision, convenience, and reliability in professional testing and daily health monitoring. Engineered to meet the needs of hospitals, clinics, research institutions, and home users, this Class II medical instrument is your ultimate solution for accurate diagnostics.
Key Features
- Advanced Diagnostics: Equipped with cutting-edge technology to deliver precise ECG readings, ensuring reliable results for both professional and personal use.
- Compact and Portable: Handheld design for maximum convenience, making it ideal for use in hospitals, clinics, or at home.
- Durable Construction: Crafted with high-quality plastic materials, ensuring longevity and consistent performance.
- Versatile Application: Suitable for daily health checks, professional testing, and monitoring in clinical or home environments.
Technical Specifications
- Instrument Classification: Class II medical device
- Power Source: Electricity
- Shelf Life: 1 year
- Quality Certifications: CE, ISO
- Place of Origin: China
Unique Selling Points
- User-Centric Design: Lightweight and easy-to-use interface ensures seamless operation for medical professionals and individuals alike.
- Customization Options: OEM and ODM services available to tailor the product to your specific requirements.
- Wide Application Scope: Perfect for hospitals, rehabilitation centers, laboratories, and home healthcare.
After-Sales Support
- Comprehensive Warranty: 1-year warranty for peace of mind.
- Repair and Replacement Services: Ensuring uninterrupted performance and reliability.
Supply and Delivery
- Packaging: Securely packed in durable cartons for safe transportation.
- Supply Capacity: Up to 50,000 pieces per day to meet high-volume demands.
GoldHealth Medical is committed to delivering innovative, high-quality medical solutions that empower healthcare providers and enhance patient outcomes. Choose the ECG Machine for unmatched precision and convenience in cardiac diagnostics.
