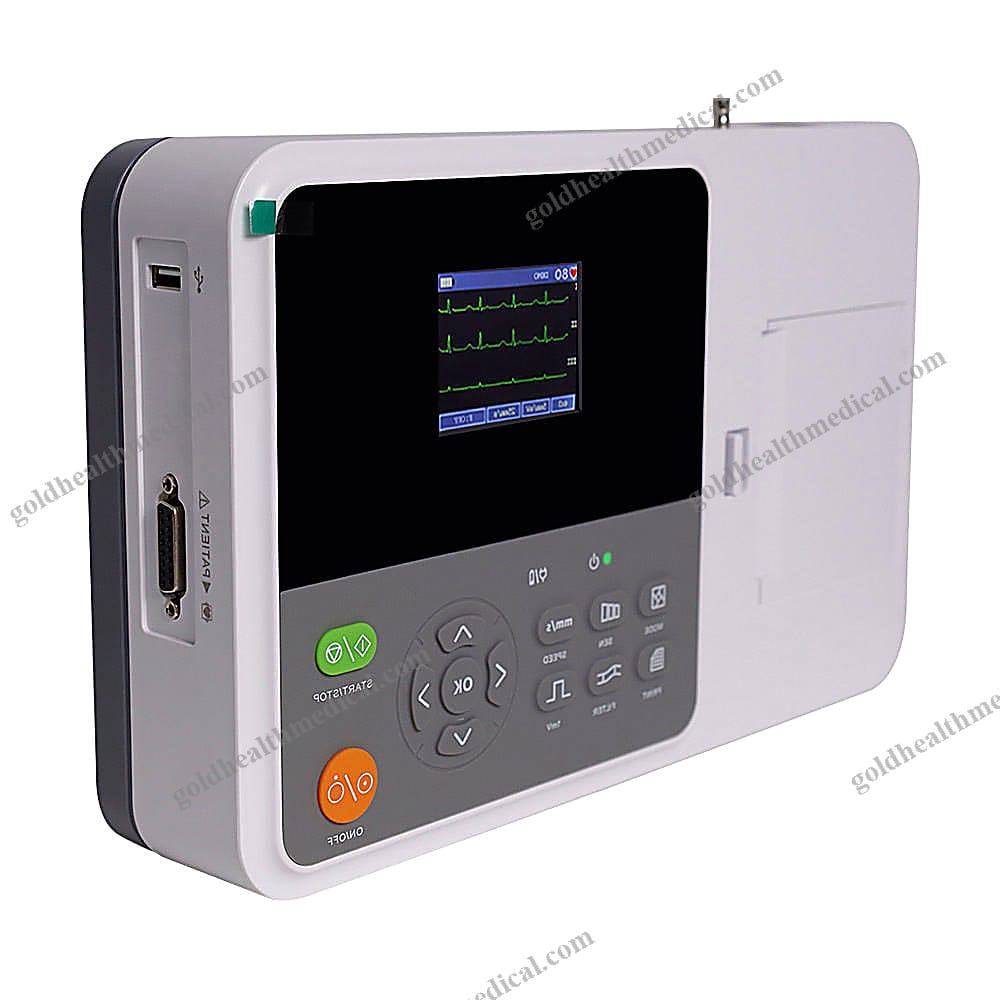

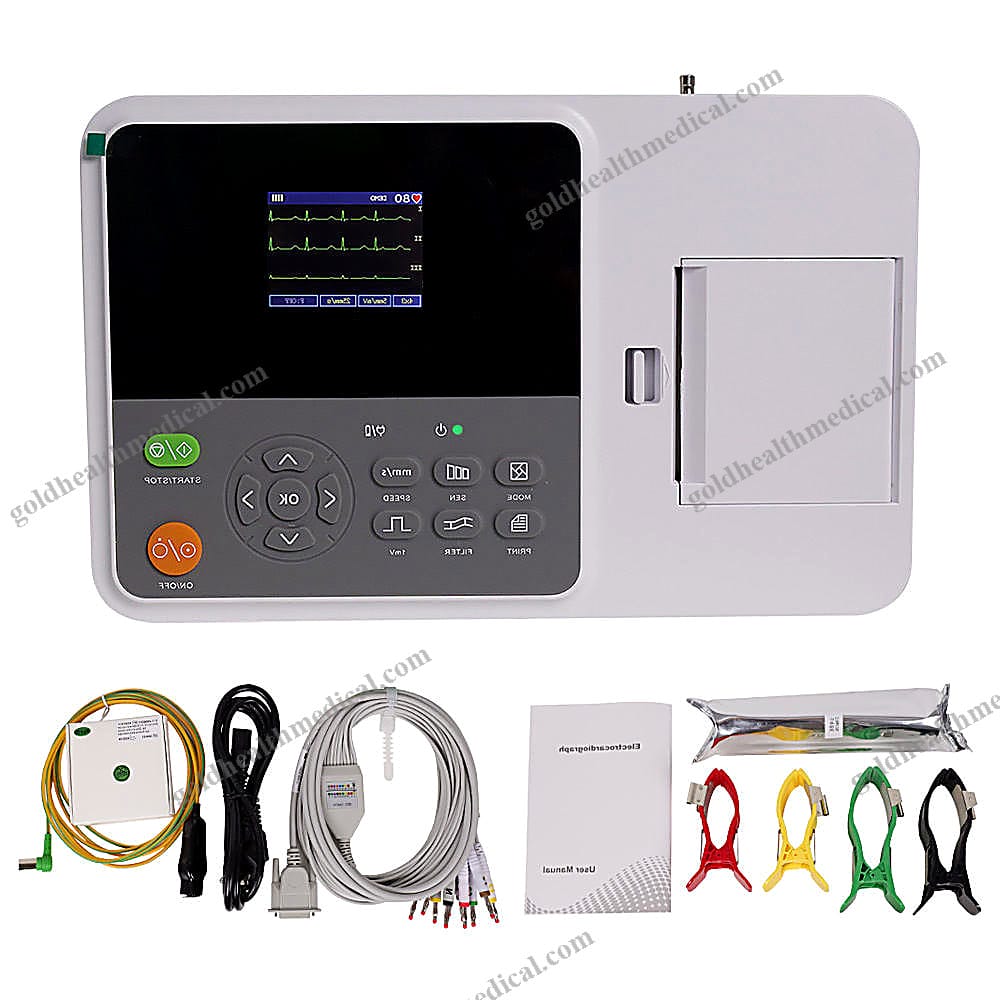

CONTEC E3M ECG Machine Electrocardiograph
Reference: 1601036007534
Pathological Analysis Equipments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical ECG Main Unit and Processing System
GoldHealth Medical introduces a cutting-edge ECG system designed to deliver unparalleled precision and reliability for healthcare professionals. This advanced device is engineered to meet the needs of hospitals, clinics, research institutions, and home users alike.
Key Features and Technical Specifications:
- Lead Configuration:
-
12-lead (standard) for comprehensive cardiac analysis.
-
Channel Configuration:
-
8-channel simultaneous acquisition for detailed monitoring.
-
Sampling Technology:
- ECG analysis sampling rate: 1 kHz.
- Digital sampling rate: 32 kHz.
-
Acquisition mode: Simultaneous 12-lead sampling for accurate data capture.
-
Signal Precision:
- Dynamic range: ≤±5 mV pp.
- Resolution: 24 bits for exceptional clarity.
-
Frequency response: 0.01 Hz ~ 300 Hz (-3dB), ensuring accurate signal reproduction.
-
Advanced Filtering Options:
- Baseline drift filter: Multiple settings including [0.01Hz], [0.05Hz], [0.50Hz], [1.00Hz], [0.15Hz], [0.25Hz], [0.32Hz], and [0.67Hz].
- EMG filter: Adjustable to 25Hz, 35Hz, or OFF.
- AC filter: Configurable to 50Hz, 60Hz, or OFF.
-
Low-pass filter: Options of 150Hz, 100Hz, 75Hz, or OFF.
-
Performance Metrics:
- Common Mode Rejection Ratio (CMRR): >123dB for superior noise rejection.
- Time constant: ≥3.2s for stable baseline performance.
- AD conversion: 24 bits for high-fidelity signal processing.
- Input impedance: ≥100MΩ (1Hz), ensuring minimal signal loss.
- Polarization voltage: ±950 mV ±5%, maintaining consistent performance.
-
Internal noise: ≤12 μVp-p for clean signal output.
-
Patient Safety:
-
Leakage current:
- Normal condition (NC): <10μA (AC) / <10μA (DC).
- Single fault condition (SFC): <50μA (AC) / <50μA (DC).
-
Connectivity:
- USB port available for seamless data transfer.
- Designed for compatibility with modern systems while maintaining focus on essential functionality.
GoldHealth Medical’s ECG system stands out with its precision engineering, advanced filtering capabilities, and commitment to patient safety. It is the ideal choice for professionals seeking reliable, high-performance cardiac monitoring solutions.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Overview
GoldHealth Medical proudly presents the 3-Lead ECG 12-Channel, a cutting-edge solution designed for precision, portability, and ease of use in diverse medical environments. Whether in hospitals, clinics, research labs, or home care settings, this advanced electrocardiograph delivers reliable diagnostic data with exceptional clarity.
Key Features
- Compact and Lightweight Design: Weighing just 1.6 kg with dimensions of 315mm (L) x 215mm (W) x 77mm (H), it is highly portable and ideal for both stationary and on-the-go applications.
- High-Resolution Display: Equipped with a 3.5" TFT Color LCD, the device ensures sharp, detailed visualization of ECG waveforms and data.
- Extensive Memory Capacity: Built-in memory stores up to 1000 cases, enabling efficient data management for extended use.
- Multi-Language Support: Offers a versatile interface and reporting system adaptable to various languages, catering to global users.
- Data Transfer Capability: Optional software allows seamless transfer of data to a PC for further analysis and record-keeping.
Technical Specifications
- Power Source: Electric
- Instrument Classification: Class II
- Material: Durable, high-quality plastic
- Shelf Life: 3 years
- Quality Certification: CE
Packaging Details
- Single Package Size: 40cm x 40cm x 30cm
- Single Gross Weight: 8.000 kg
After-Sales Support
- Warranty: 1 year
- Service: Online technical support provided
Applications
This device is tailored for a wide range of users, including hospitals, clinics, research institutions, rehabilitation centers, and home healthcare providers. Its advanced features and user-friendly design make it an indispensable tool for accurate pathological analysis.
Why Choose GoldHealth Medical?
GoldHealth Medical is committed to delivering innovative, high-quality medical equipment that meets the demands of modern healthcare. The 3-Lead ECG 12-Channel exemplifies our dedication to precision engineering, reliability, and user-centric design. Elevate your diagnostic capabilities with a device that combines performance, portability, and versatility.
