Advanced 12Lead ECG Machine CostEffective EKG
Reference: 1601224151847
Pathological Analysis Equipments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical: Revolutionizing Healthcare with Precision and Innovation

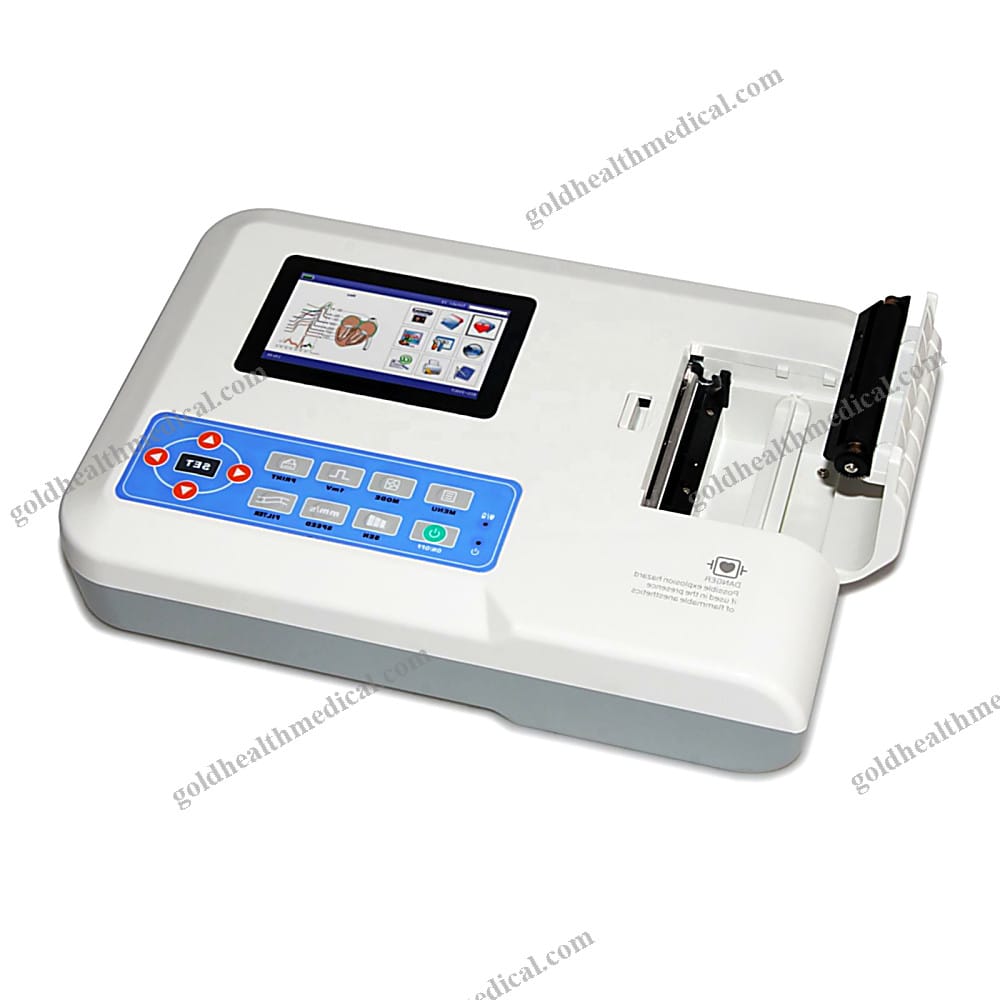

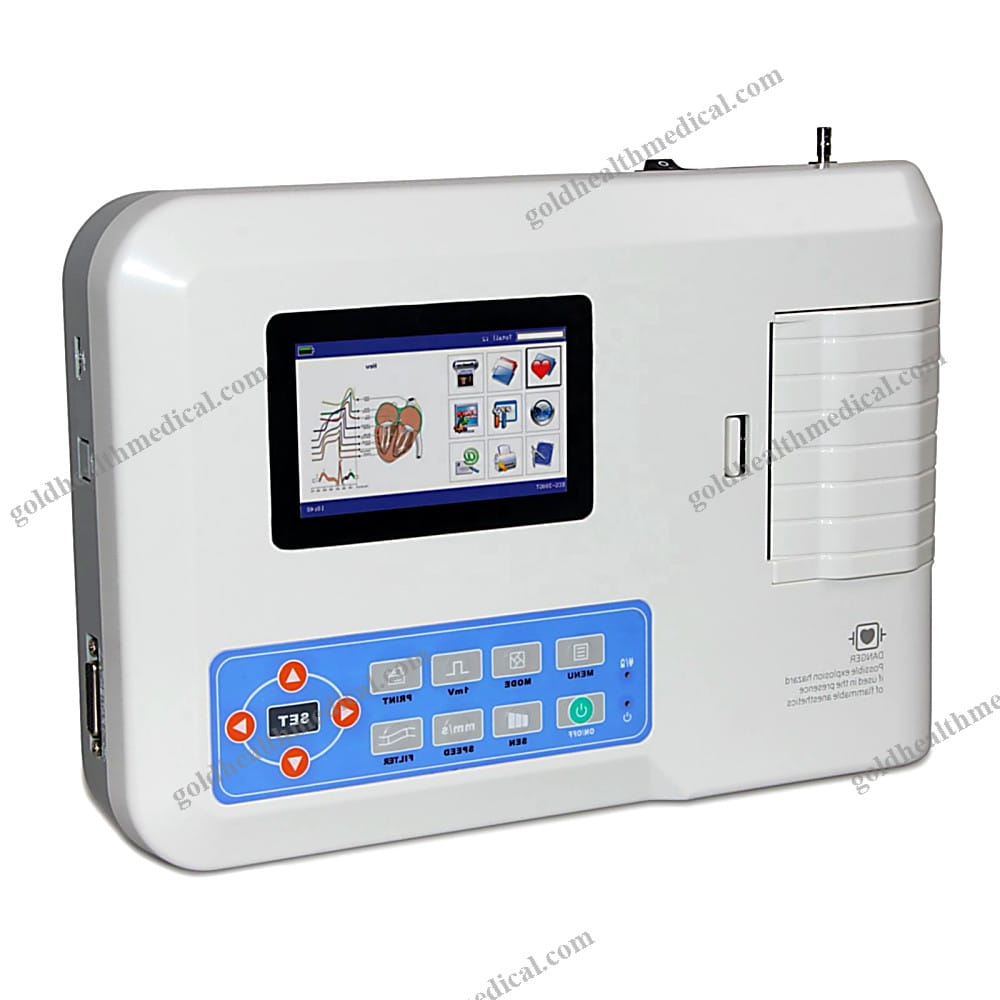

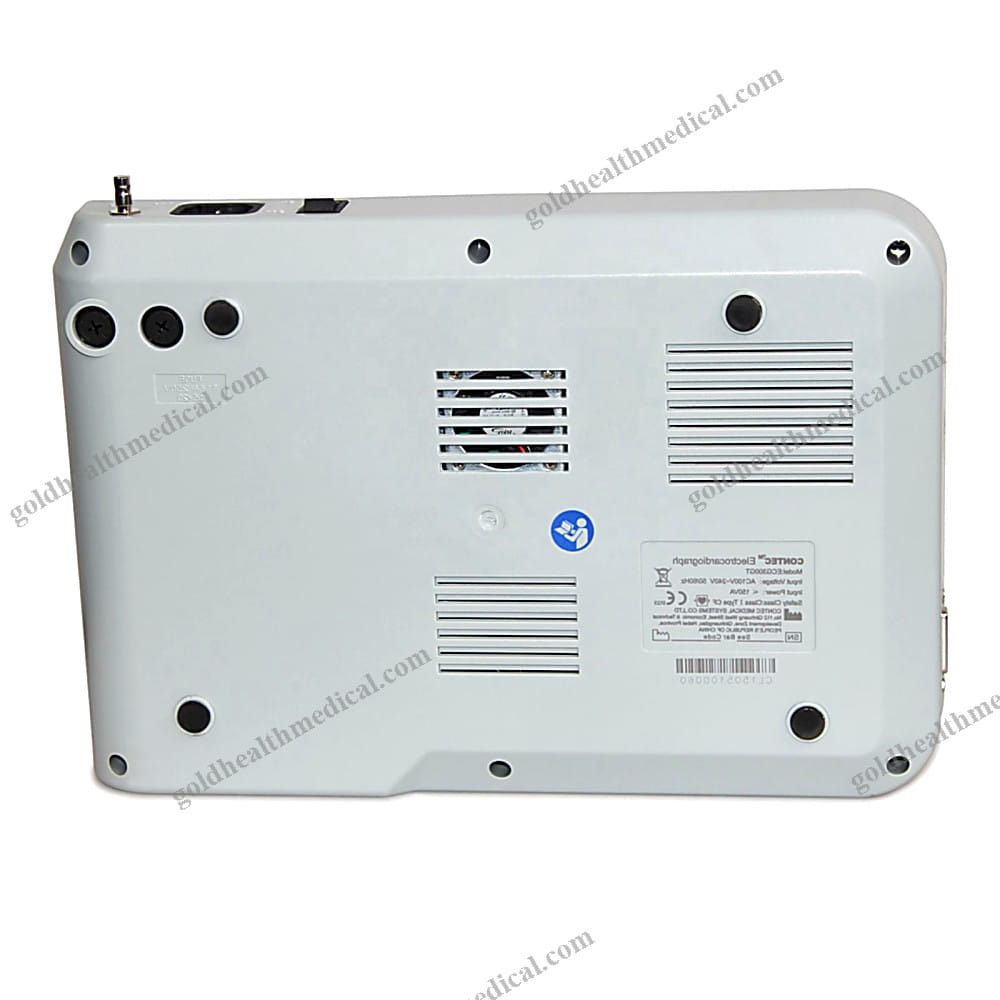

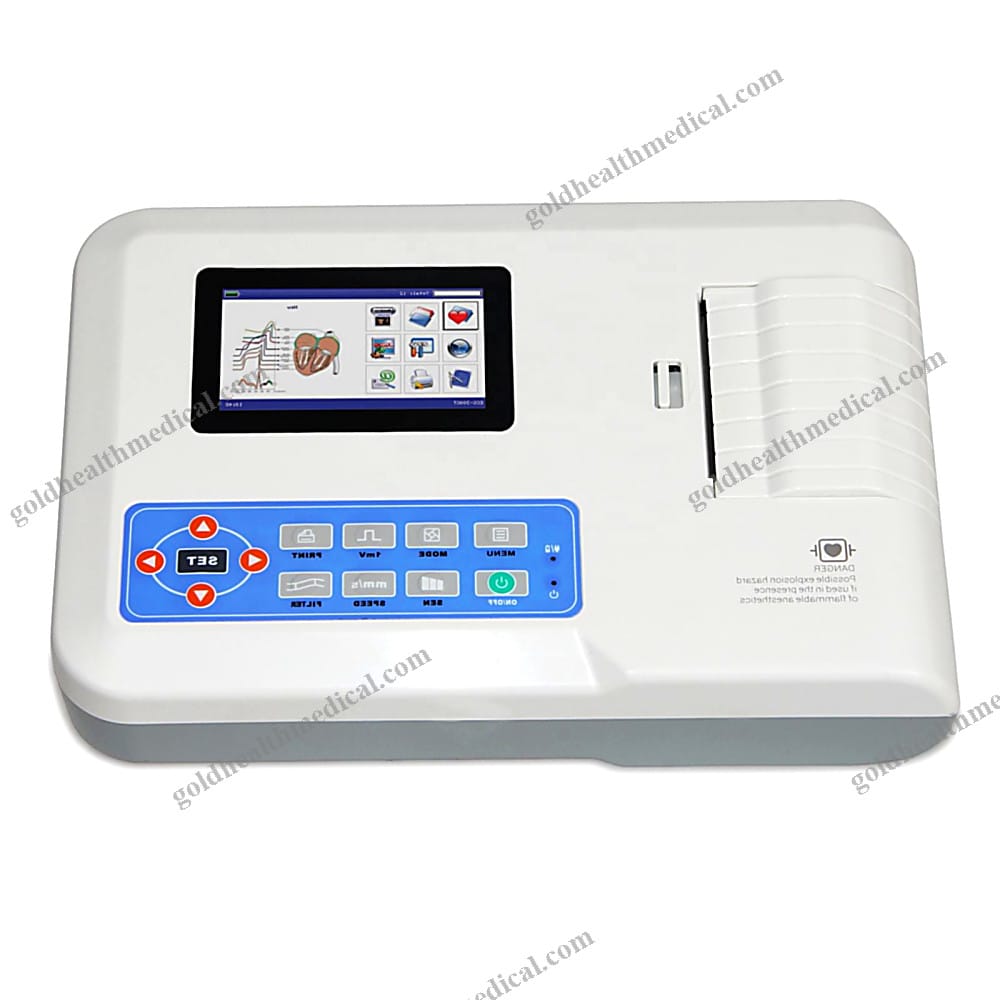

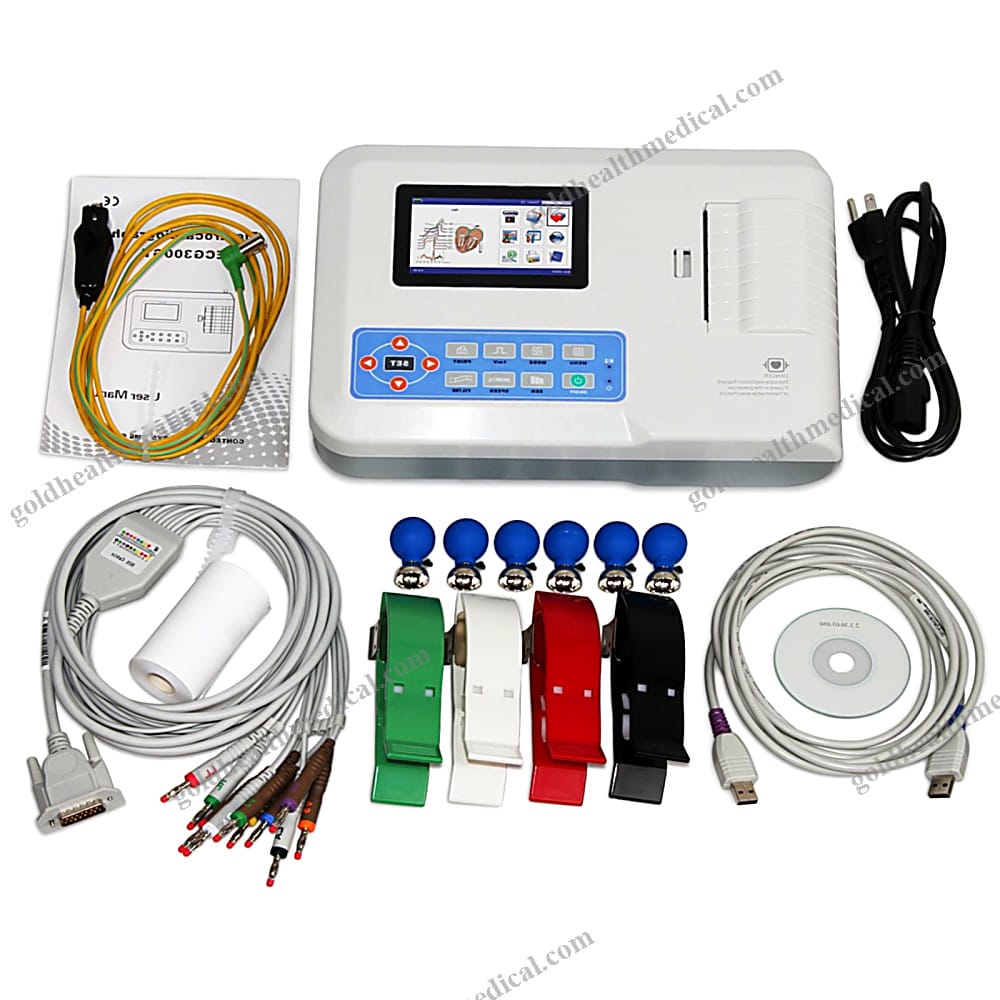

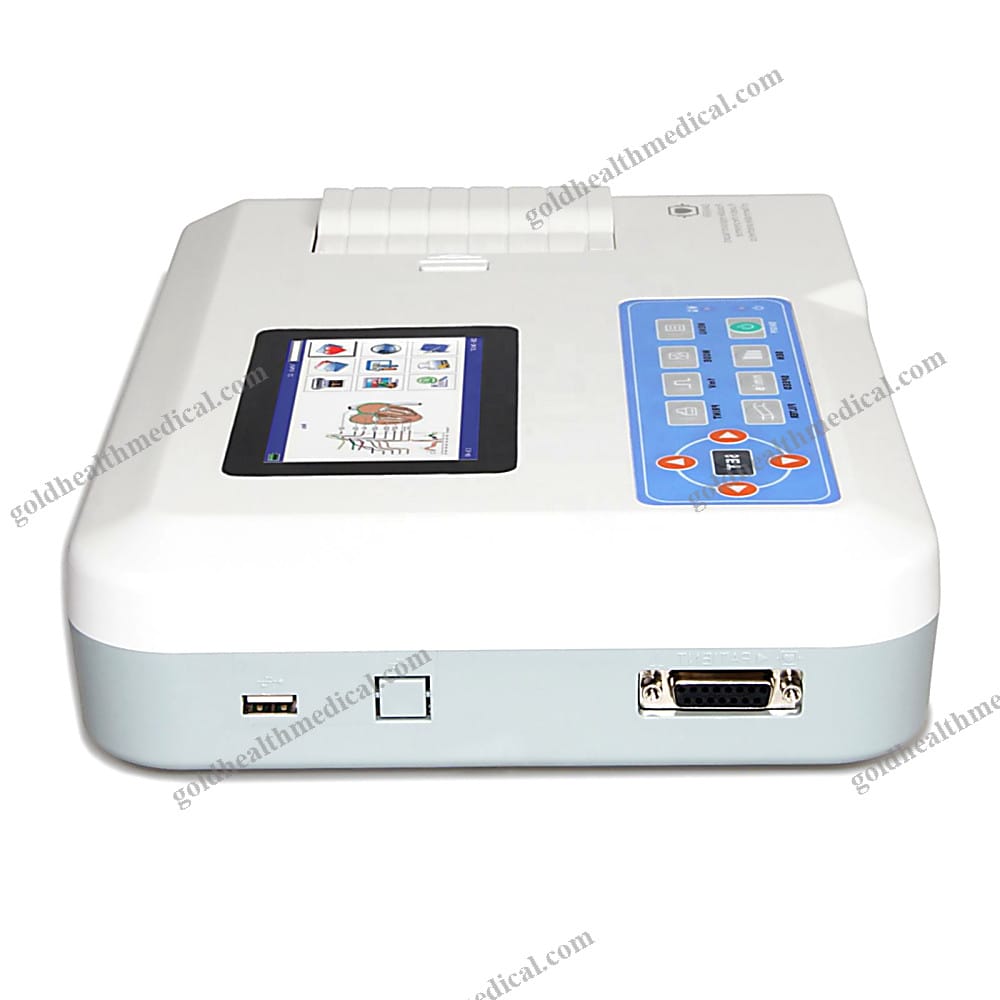

Portable Digital 12-Lead ECG Monitor
GoldHealth Medical presents a cutting-edge portable ECG monitor designed to deliver unparalleled precision and versatility in cardiac diagnostics. This device captures 12-lead ECG signals simultaneously, utilizing an advanced thermal printing system to produce high-quality waveforms. Engineered for both clinical and mobile use, it is the ideal solution for hospitals, clinics, and home healthcare.
Key Features:
- Crystal-Clear Display: A vibrant color TFT screen showcases 3/6/12-lead ECG waveforms and operational status, enabling seamless comparative diagnostics.
- Advanced Signal Processing: Equipped with a robust digital filter system, including baseline, AC, and EMG filters, it eliminates interference to deliver pristine ECG signals.
- Flexible Printing Options: Choose from multiple auto-print modes or customize with manual settings. Adjustable waveform lengths and time-stamped prints cater to diverse clinical needs.
- Automated Diagnostics: Provides precise measurements and analysis of critical ECG parameters, including HR, P-R interval, QRS duration, QTc, and axis deviations, simplifying interpretation.
- Extended Battery Life: Operates on AC or DC power, with a rechargeable lithium battery offering up to 10 hours of continuous use and 3 hours of printing, ensuring reliability during home visits or fieldwork.
- Comprehensive Data Management: Stores up to 1,000 cases, enabling efficient case review and statistical analysis.
- Multilingual Support: Offers 13 interface languages, including English, Spanish, French, and Russian, to meet global requirements.
Technical Specifications:
- Input Mode: Floating, defibrillation protection, pacemaker pulse rejection circuit
- Frequency Response: 0.05Hz ~ 150Hz (-3dB ~ +0.4dB)
- CMRR: >60dB (>100dB with filter)
- Time Constant: ≥ 3.2s
- Patient Leak Current: <10µA
- Calibration Voltage: 1mV
- Sensitivity: 2.5, 5, 10, 20, 40 mm/mV ±5% (standard: 10mm/mV ±2%)
- Noise Level: <15µVp-p
- Input Impedance: ≥50MΩ
- Sampling Accuracy: 12-bit
- Safety Classification: Class I, Type CF, defibrillation-proof applied part
- Recording Modes: Auto, rhythm, and manual modes with customizable formats
- Paper Size: 80mm(W) × 20m(L)
- Power Frequency Filter: AC 50Hz/60Hz (-20dB)
- Sampling Frequency: 1000Hz
- EMG Interference Filter: 25Hz/35Hz (-3dB)
- Paper Speed: Auto (25mm/s, 50mm/s ±5%), Rhythm (25mm/s, 50mm/s ±5%), Manual (5mm/s to 50mm/s ±5%)
Wall-Mounted Shadowless LED Surgical Light
Illuminate precision with our state-of-the-art LED surgical light, designed for dental clinics and medical procedures. Engineered for durability and performance, it ensures shadow-free illumination with a 1-year warranty for peace of mind.
CE-Certified Medical Infusion Pump
Our electric infusion pump combines reliability and accuracy, making it a trusted choice for medical professionals. Designed for seamless integration into clinical workflows, it delivers consistent performance for various infusion therapies.
Negative Pressure Wound Therapy System
Accelerate healing with our advanced wound therapy system. Engineered for efficiency, it provides optimal negative pressure to promote faster recovery and improved patient outcomes.
Why Choose GoldHealth Medical?
GoldHealth Medical is dedicated to advancing healthcare through innovative, high-quality medical devices. Our products are rigorously tested and certified to meet international standards, ensuring safety and reliability. With a commitment to excellence, we empower healthcare providers worldwide to deliver exceptional care.
Our Strengths:
- Over a decade of expertise in medical device manufacturing
- ISO 9001 and ISO 13485 compliance
- Global presence with a network spanning over 100 countries
- Customizable solutions and OEM services
- Fast, reliable delivery and exceptional customer support
Transform your practice with GoldHealth Medical’s innovative solutions. Experience precision, reliability, and excellence in every product.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Overview
GoldHealth Medical proudly presents the ECG300G, a state-of-the-art 12-lead ECG machine designed to deliver precision, portability, and reliability for modern healthcare environments. Engineered with cutting-edge technology, this device is tailored for hospitals, clinics, research institutions, rehabilitation centers, and home healthcare. Its compact design and advanced analytical capabilities make it an indispensable tool for medical professionals seeking accurate and efficient cardiac diagnostics.
Key Features
- Advanced 12-Lead ECG Analysis: Provides comprehensive pathological insights with 3/6/12-lead display options.
- Compact and Lightweight Design: Dimensions of 315mm(L) x 215mm(W) x 77mm(H) and a net weight of just 1.6kg ensure portability without compromising performance.
- Intuitive Display and Print Modes: Customize sensitivity, paper speed, and filter states for precise readings and clear printouts.
- Class II Medical Instrument Certification: Ensures safety and reliability in clinical applications.
- CE and ISO Quality Assurance: Meets international standards for medical devices, guaranteeing exceptional quality and performance.
Technical Specifications
- Power Source: Electric
- Application: Medical healthcare, including hospitals, clinics, and home use
- Shelf Life: 1 year
- Dimension: 315mm(L) x 215mm(W) x 77mm(H)
- Net Weight: 1.6kg
- Display Options: 3/6/12-lead ECG
- Print Mode: Customizable sensitivity, paper speed, and filter settings
- Packaging Details:
- Single package size: 45cm x 40cm x 30cm
- Single gross weight: 4.5kg
After-Sale Support
- 1-Year Warranty: Ensures peace of mind with comprehensive coverage.
- Online Technical Support: Access expert assistance anytime, ensuring uninterrupted operation.
Why Choose GoldHealth Medical?
GoldHealth Medical is committed to redefining healthcare with innovative solutions. The ECG300G stands out with its portable design, advanced diagnostic capabilities, and user-friendly interface, making it the ideal choice for professionals and institutions seeking excellence in cardiac care. Elevate your practice with a device that combines precision, durability, and versatility.
Applications
- Hospitals and clinics
- Research laboratories
- Rehabilitation centers
- Home healthcare settings
GoldHealth Medical’s ECG300G is more than just a device—it’s a commitment to better healthcare outcomes.
