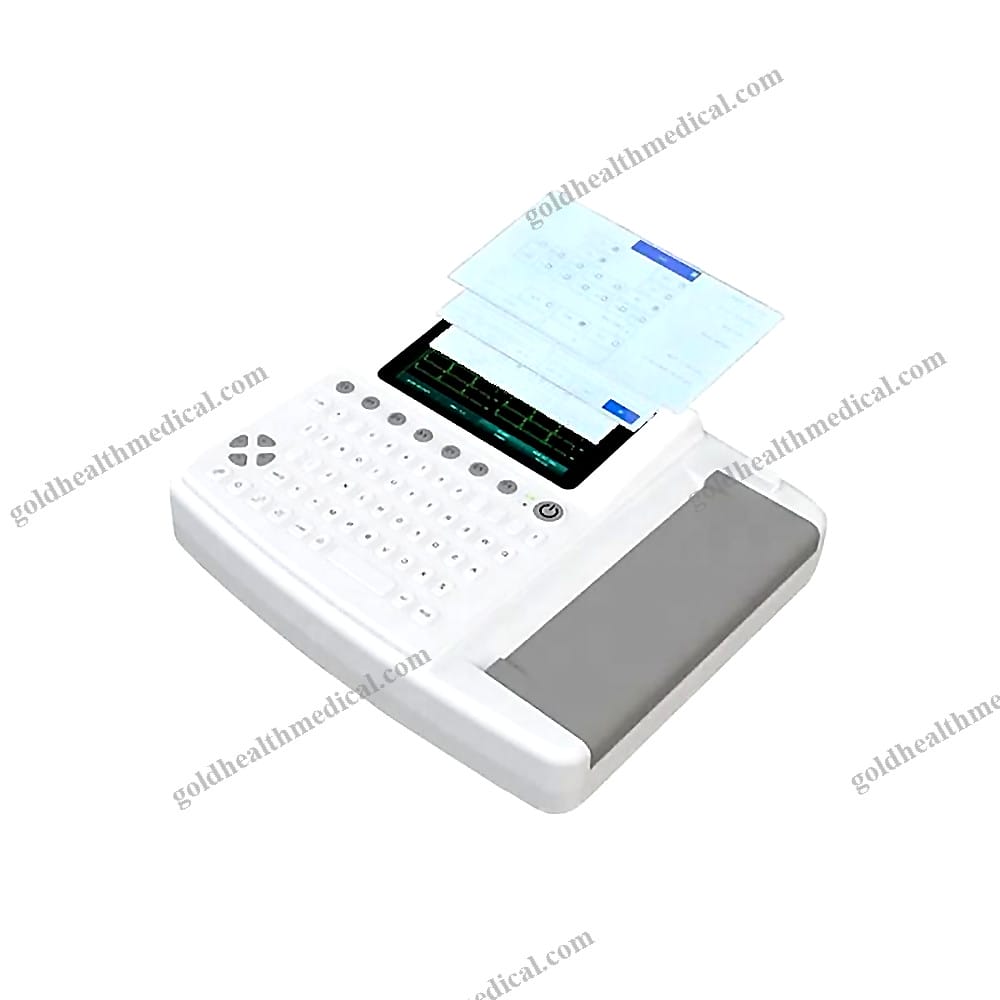

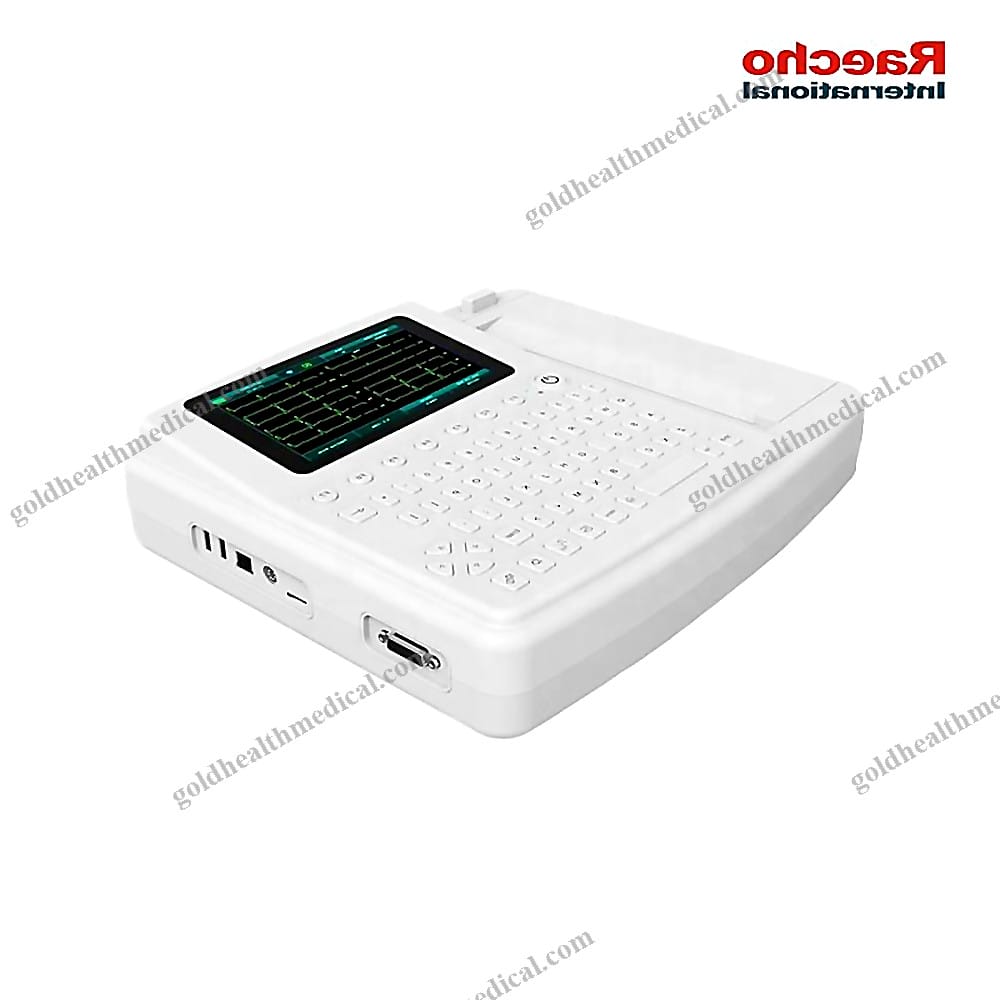

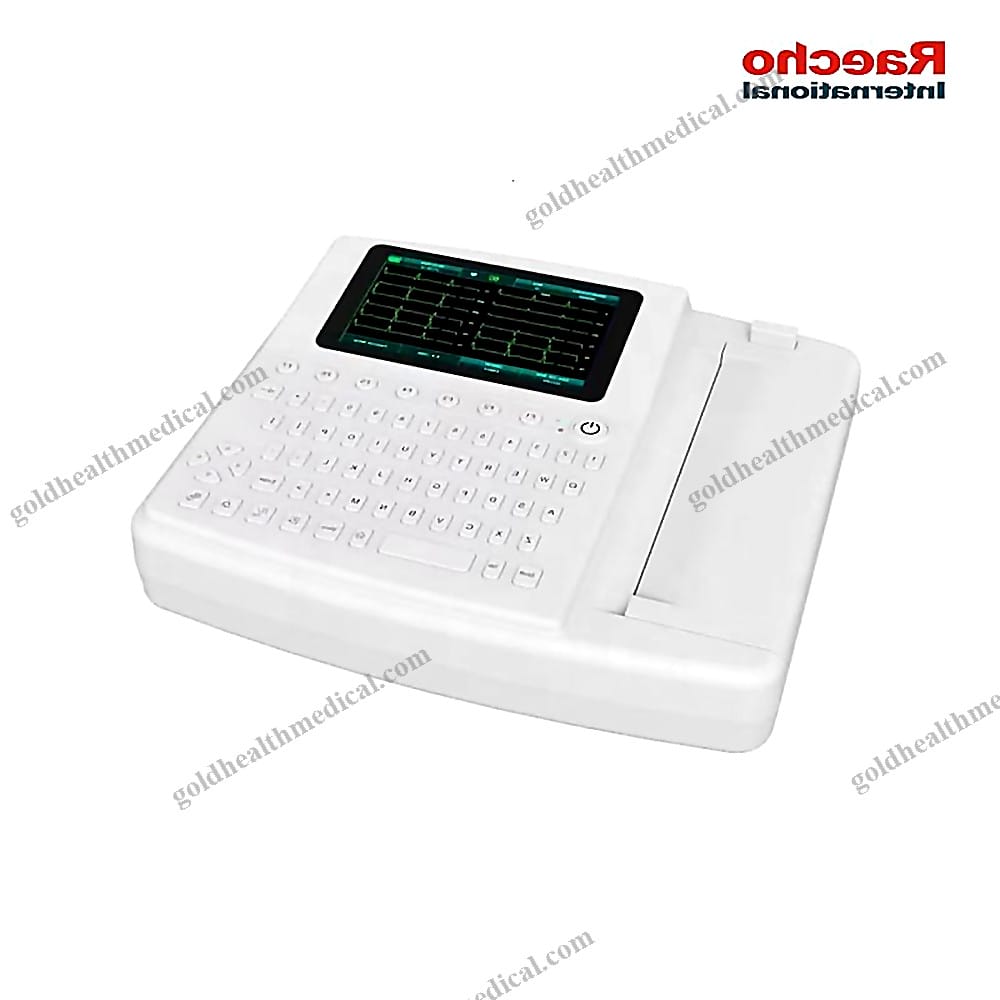

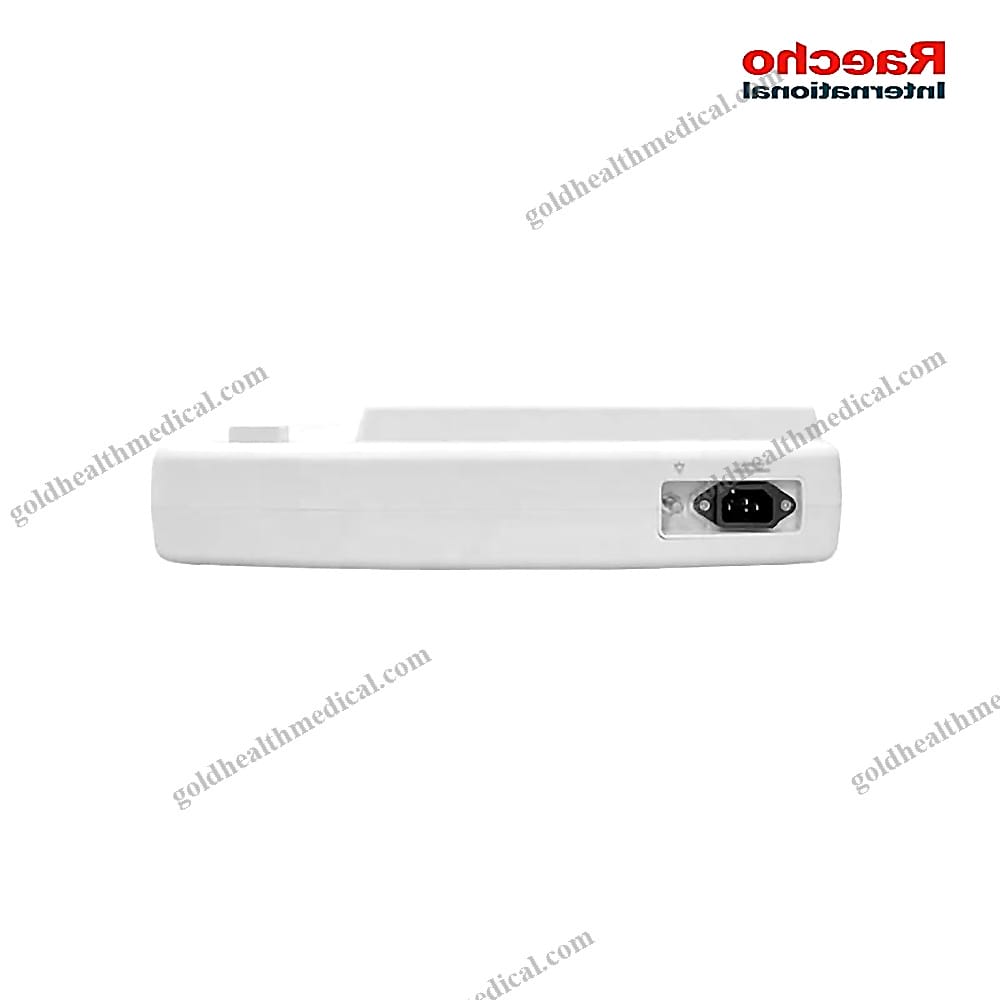

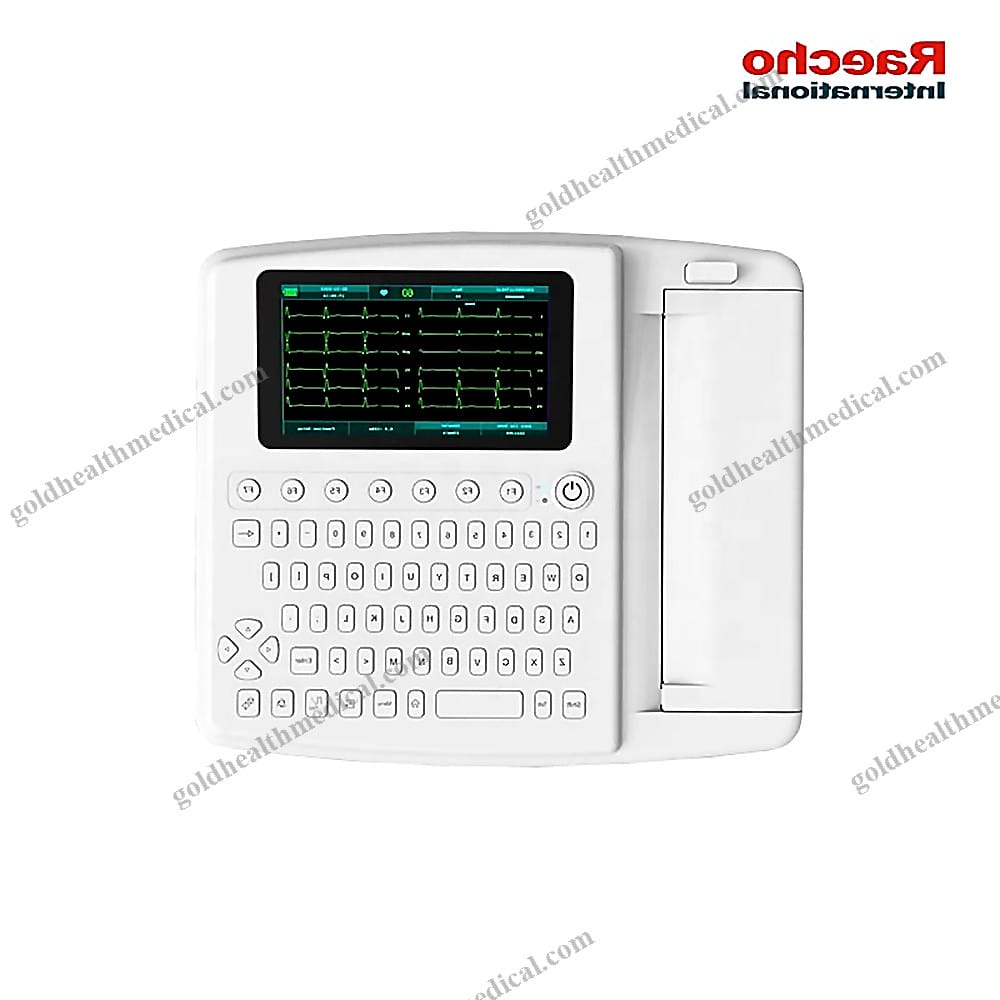

12Channel Portable ECG Machine with CE Certification
Reference: 1601041007904
Pathological Analysis Equipments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical: Revolutionizing Cardiac Care with Advanced ECG Technology
Experience precision and reliability with our state-of-the-art electrocardiogram system, designed to meet the needs of modern healthcare environments. Engineered for accuracy, efficiency, and ease of use, this device is a cornerstone for cardiac diagnostics.
Key Features
- Crystal-Clear Display: A 1.7-inch high-resolution color touch screen ensures effortless navigation and clear visualization of ECG waveforms.
- Efficient Operation: Equipped with a full alphanumeric keyboard and shortcut keys, enabling swift data entry and streamlined workflows.
- Comprehensive ECG Acquisition: Simultaneous acquisition and display of all 12 leads for accurate and real-time cardiac assessments.
- Intelligent Analysis: Automatic ECG measurements and interpretations provide actionable insights, empowering clinicians with reliable diagnostic support.
- Extensive Storage: Internal memory capable of storing up to 1000 cases, facilitating convenient case review and statistical analysis.
- Long-Lasting Power: Built-in rechargeable lithium battery with high capacity ensures uninterrupted operation during critical procedures.
- Seamless Connectivity: ECG data can be transmitted to a PC via USB, allowing reports to be saved, reviewed, and managed using dedicated ECG playback software.
Technical Specifications
- Leads: Standard 12-lead configuration
- Acquisition Mode: Simultaneous 12-lead acquisition
- Sampling Rate: 1000Hz for precise waveform capture
- A/D Converter: 24-bit resolution for exceptional signal clarity
- Frequency Response: 0.05Hz - 160Hz (-3dB)
- Operation Modes: Manual, Auto, Rhythm (1 channel for 1 minute)
- Filters:
- AC Filter: 50Hz/60Hz
- EMG Filter: 25Hz/35Hz/45Hz/75Hz/100Hz/150Hz
- DFT Filter: 0.05Hz/0.5Hz
- CMRR: ≥100dB (with AC filter enabled)
- Input Mode: Floating with defibrillation protection
- Input Impedance: ≥50MΩ (at 10Hz)
- Input Circuit Current: ≤0.05μA
- Input Dynamic Range: +10mVp-p
- Patient Leak Current: <10μA
- Calibration Voltage: 1mV ±2%
- Polarizing Voltage: ≥±300mV
- Time Constant: ≥3.2s
- Paper Specification: 210mm(W) x 30m(L)
- Recording Mode: Thermal printing system
- Noise Level: <15μVp-p
- Memory: Stores up to 1000 cases
- Threshold: ≤20μV
- Wave Gain/Sensitivity: 2.5mm/mV, 5mm/mV, 10mm/mV, 20mm/mV (standard sensitivity: 10mm/mV)
- Wave/Paper Speed: 12.5mm/s, 25mm/s, 50mm/s (±3%)
- Power Supply:
- AC: 100-240V, 50/60Hz
- DC: 14.4V, 2500mAh, 36.00Wh (built-in lithium battery)
Standard Configuration
- Main machine
- Patient cable
- Limb electrodes (set of 4)
- Chest electrodes (set of 6)
- Power cable
- Recording paper (210mm x 30m)
- Paper axis
GoldHealth Medical’s ECG system is designed to deliver unparalleled performance, combining cutting-edge technology with user-centric features. Whether in hospitals, clinics, or home care settings, this device ensures accurate diagnostics and enhances patient care. Choose GoldHealth Medical for innovation you can trust.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Overview
GoldHealth Medical presents a cutting-edge Class II medical instrument designed for precision and reliability in electrocardiography. Engineered with advanced technology, this device delivers exceptional performance for hospitals, clinics, research institutions, and home healthcare environments.
Key Features and Specifications
- Power Source: Electricity-driven for consistent and reliable operation.
- Shelf Life: 1 year, ensuring long-term usability.
- Quality Certification: CE-certified, guaranteeing compliance with international safety and performance standards.
- Warranty: Comprehensive 1-year warranty for peace of mind.
- After-Sale Service: Access to online technical support for seamless assistance.
Technical Highlights
- Lead Configuration: Standard 12 leads for comprehensive cardiac analysis.
- Acquisition Mode: Simultaneous 12-lead acquisition for accurate and synchronized data capture.
- Sampling Rate: 1000Hz, enabling high-resolution signal processing.
- A/D Converter: 24-bit resolution for exceptional signal clarity and precision.
- Frequency Response: 0.05-160Hz (-3dB), ensuring accurate waveform representation.
Operational Modes
- Manual, Auto, and Rhythm modes for versatile functionality.
- 1-channel, 1-minute rhythm recording for detailed analysis.
Advanced Safety and Performance
- CMRR: ≥100dB (with AC filter), minimizing interference for clean signals.
- Input Mode: Floating design with defibrillation protection for enhanced safety.
- Input Impedance: ≥50MΩ (at 10Hz), ensuring minimal signal loss.
- Input Circuit Current: ≤0.05μA, reducing the risk of electrical interference.
Why Choose GoldHealth Medical?
Our electrocardiography solution combines precision engineering, user-friendly design, and robust safety features. Whether for clinical diagnostics, research, or personal health monitoring, this device sets a new benchmark for reliability and performance.
Applications
Ideal for hospitals, clinics, laboratories, rehabilitation centers, and home healthcare settings, this product is designed to meet the diverse needs of medical professionals and patients alike.
Experience the future of cardiac monitoring with GoldHealth Medical.
