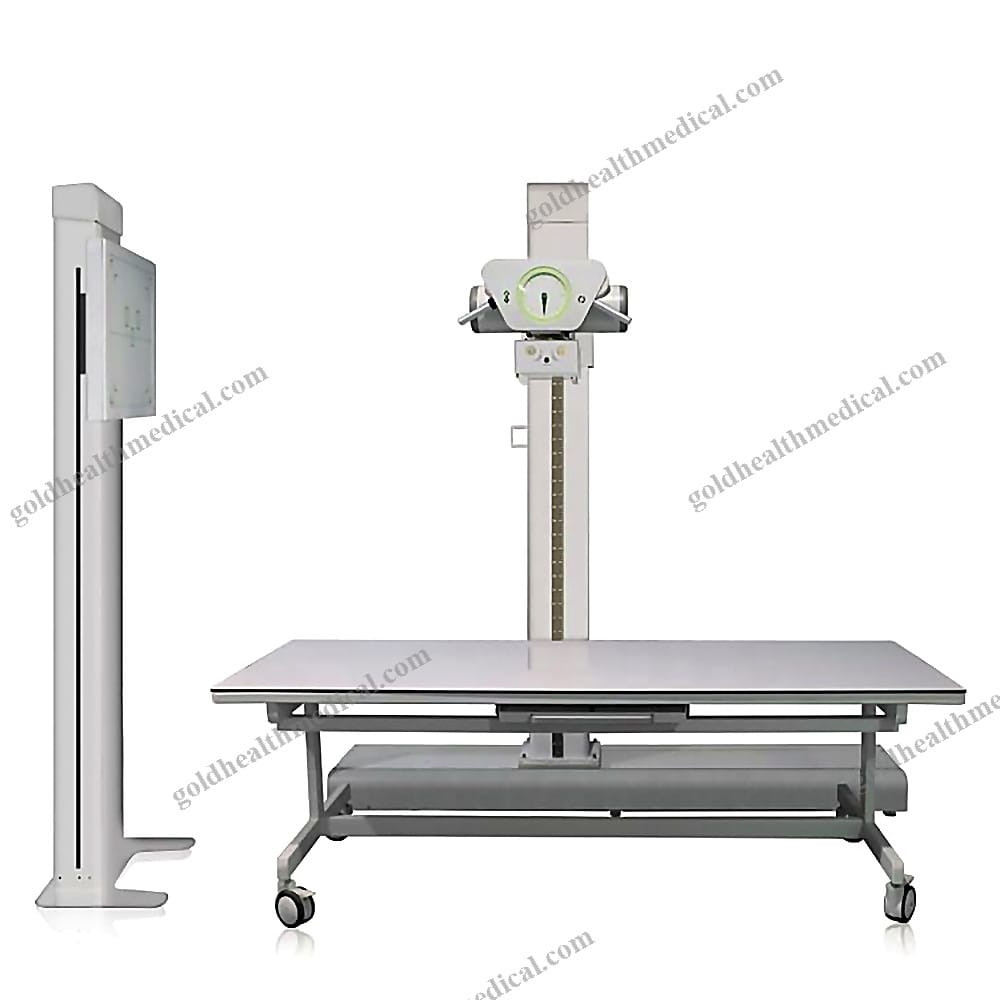

YSX500B1 HighFrequency Analog Xray System
Reference: 1600790082040
High-Energy-Ray Medical Equipments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical X-ray System
GoldHealth Medical presents an advanced X-ray system designed for superior performance and reliability in medical imaging. Engineered with precision, this system is tailored to meet the needs of hospitals, clinics, research institutions, and more.
Key Features
- High-Frequency Generator
- Power Voltage: Single-phase 220VAC Β±10%, 50Hz, 16A; Three-phase 380VAC Β±10%
- Maximum Working Frequency: β₯30KHz
- Nominal Electric Power: 50kW (@100kV, 630mA, 100ms)
- KV Range: 40β125kV
- mA Range: 10β630mA
- mAs Range: 1β500mAs
-
Photo Timer: 3msβ6300ms
-
X-ray Tube Specifications
- Working Voltage: 40kVβ125kV
- Maximum Power (0.1s): Small Focus 20β30kW, Large Focus 50β74kW
- Nominal Focal Spot Size: Large Focus 1.2, Small Focus 0.6
- Maximum Heating Filament Current: 5.3A
- Anode Speed: 2800rpm (50Hz), Min. 8400rpm (150Hz)
- Anode Angle: 12Β°
- Inherent Filtration: 1.0mm Al/75kV
- Anode Heat Capacity: 110kJ (150KHU)
- Tube Component Heat Capacity: 900kJ (1300KHU)
Unique Selling Points
- Cost-Effective Solution: Delivers exceptional value without compromising on quality or performance.
- User-Friendly Design: Intuitive software ensures effortless operation, while modular components simplify installation and maintenance.
- Advanced Technology: Equipped with a high-frequency, high-voltage generator for stable and reliable performance.
- Safety First: Reduces radiation hazards by 60% compared to traditional power frequency X-ray machines.
- Versatile Configurations: Available in mobile stands, horizontal sliding beds, and dual-axis sliding beds to suit diverse clinical needs.
Technical Advantages
- Suitable for patients of all weight categories.
- 12 pre-set shooting modes, fully customizable and savable for specific applications.
- Dual-loop control system (analog and digital) ensures consistent X-ray output, even under unstable power conditions.
- Built-in self-diagnosis and protection mechanisms provide traceable fault codes for efficient troubleshooting and maintenance.
Operational Modes
- Remote Control
- Touch Screen
- Hand Switch
Why Choose GoldHealth Medical?
GoldHealth Medical is dedicated to delivering cutting-edge medical equipment that combines innovation, reliability, and affordability. Our X-ray systems are designed to enhance diagnostic accuracy while prioritizing user convenience and patient safety. Whether for radiology departments, research labs, or mobile clinics, our solutions adapt seamlessly to your requirements.
For inquiries or further details, connect with GoldHealth Medical today.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Overview
GoldHealth Medical proudly presents a cutting-edge X-ray solution designed to redefine precision and reliability in medical imaging. Engineered for versatility and performance, this state-of-the-art X-ray system is ideal for hospitals, clinics, research institutions, and rehabilitation centers. With advanced features and robust construction, it ensures exceptional image quality and operational efficiency.
Key Features and Specifications
- Application: Optimized for X-ray rooms, delivering high-quality imaging for diagnostic purposes.
- Power Source: Electric, ensuring consistent and reliable performance.
- Voltage: Operates on 220V/380V Β±10%, single-phase, with a frequency of 50Hz Β±0.5Hz.
- X-ray Generator: High-frequency DC technology for enhanced precision and reduced noise.
- Capacity: Two-phase 30KVA, supporting demanding imaging requirements.
- Focus: Small focus of 1.8mm and big focus of 4.3mm for detailed imaging.
- Internal Resistance:
- 380V: 2Ξ©
- 220V: 0.6Ξ© (2Ξ© at 80V; 0.6Ξ© at 220V)
- X-ray Output: 50KW/630mA, ensuring powerful and consistent performance.
- Instrument Classification: Class II medical device, meeting stringent industry standards.
- Material: Durable metal and high-quality plastic construction for longevity and reliability.
- Quality Certification: CE-certified, guaranteeing compliance with international safety and quality standards.
Warranty and Support
- Warranty: Comprehensive 1-year warranty for peace of mind.
- After-Sales Service: Access to online technical support, ensuring seamless operation and quick resolution of queries.
Packaging and Delivery
- Packaging: Standard export packaging designed to protect the radiology machine during transit.
- Port: Ships from Guangzhou, ensuring efficient global delivery.
- Supply Ability: Monthly supply capacity of 100 units, catering to bulk and individual orders.
Why Choose GoldHealth Medical?
GoldHealth Medical combines innovation, precision, and reliability to deliver medical imaging solutions that empower healthcare professionals. Our X-ray system is designed to meet the diverse needs of modern medical facilities, offering unparalleled performance and durability. Whether for diagnostic imaging, research, or rehabilitation, this product sets a new benchmark in the industry.
Ordering Details
- Minimum Order Quantity (MOQ): 1 unit, making it accessible for facilities of all sizes.
Experience the future of medical imaging with GoldHealth Medical β where precision meets performance.
