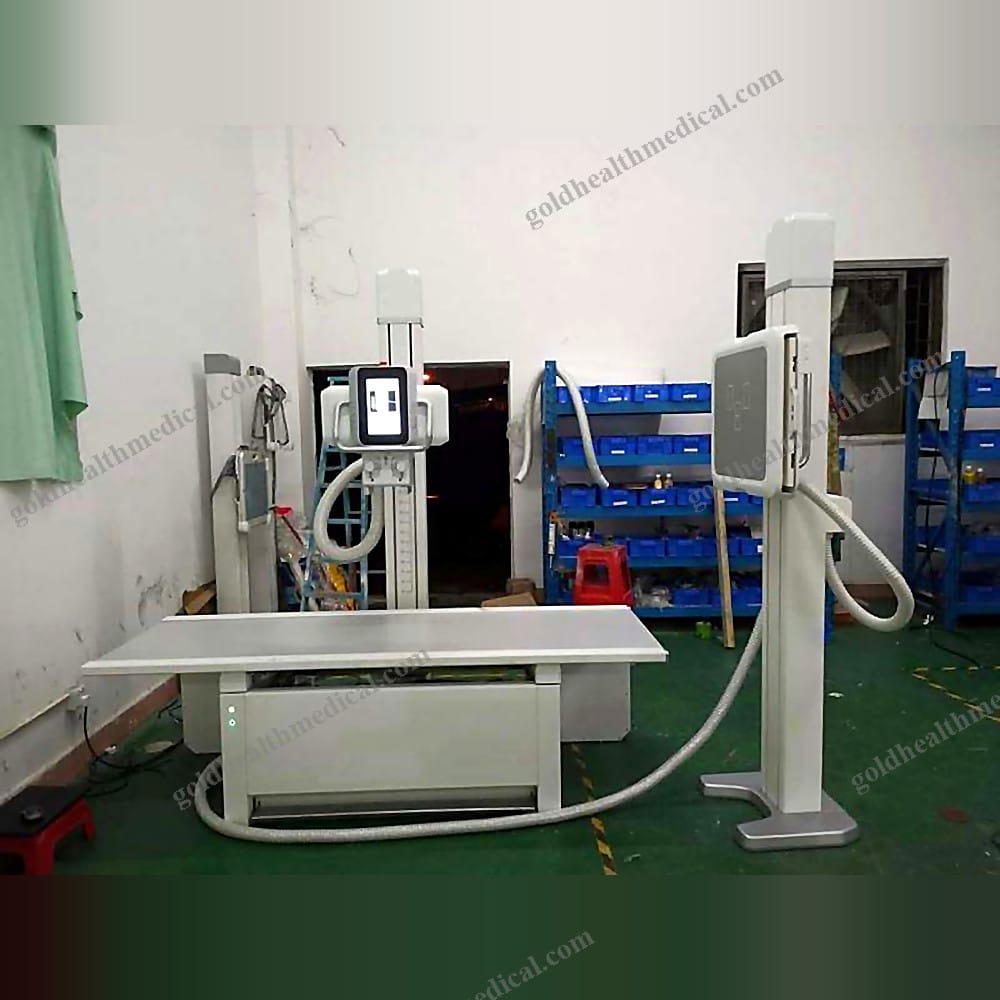

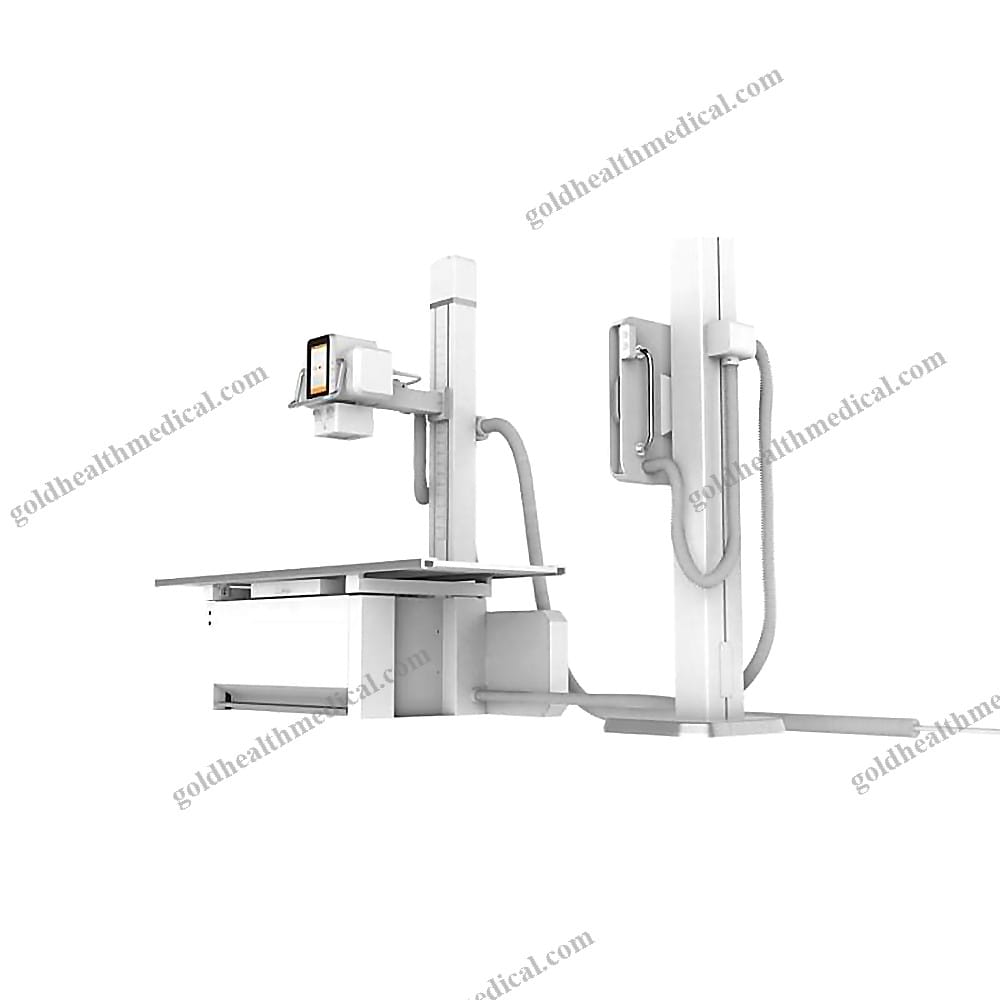

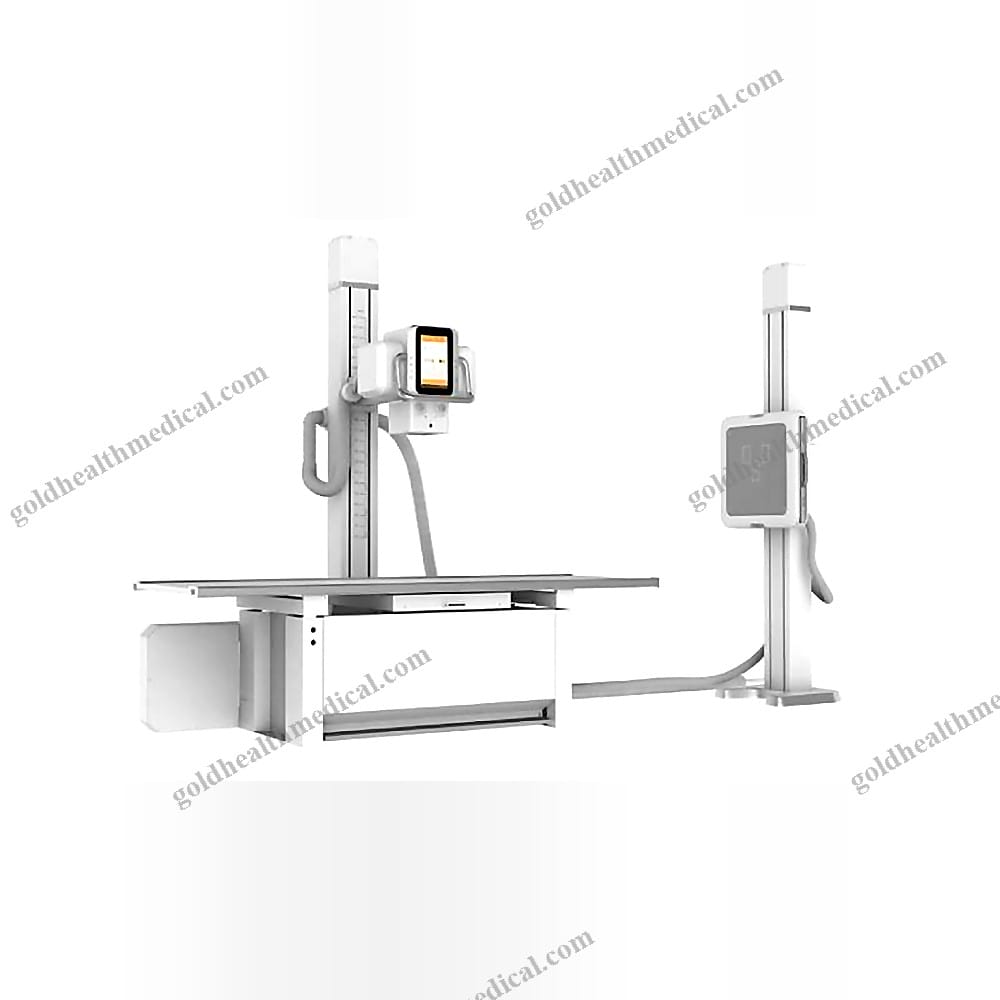

Dual Column DR Digital XRay System XRay Machine Equipo De
Reference: 1601288620887High-Energy-Ray Medical Equipments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical Digital X-ray System
Product Overview
GoldHealth Medical presents a cutting-edge digital X-ray system designed to meet the diverse needs of clinical departments. This electric double-column DR system is meticulously engineered with a high-level design philosophy, professional manufacturing processes, and rigorous testing protocols. It delivers unparalleled flexibility, reliability, and precision, making it an ideal choice for hospitals, clinics, research institutions, and home healthcare environments.
Key Features

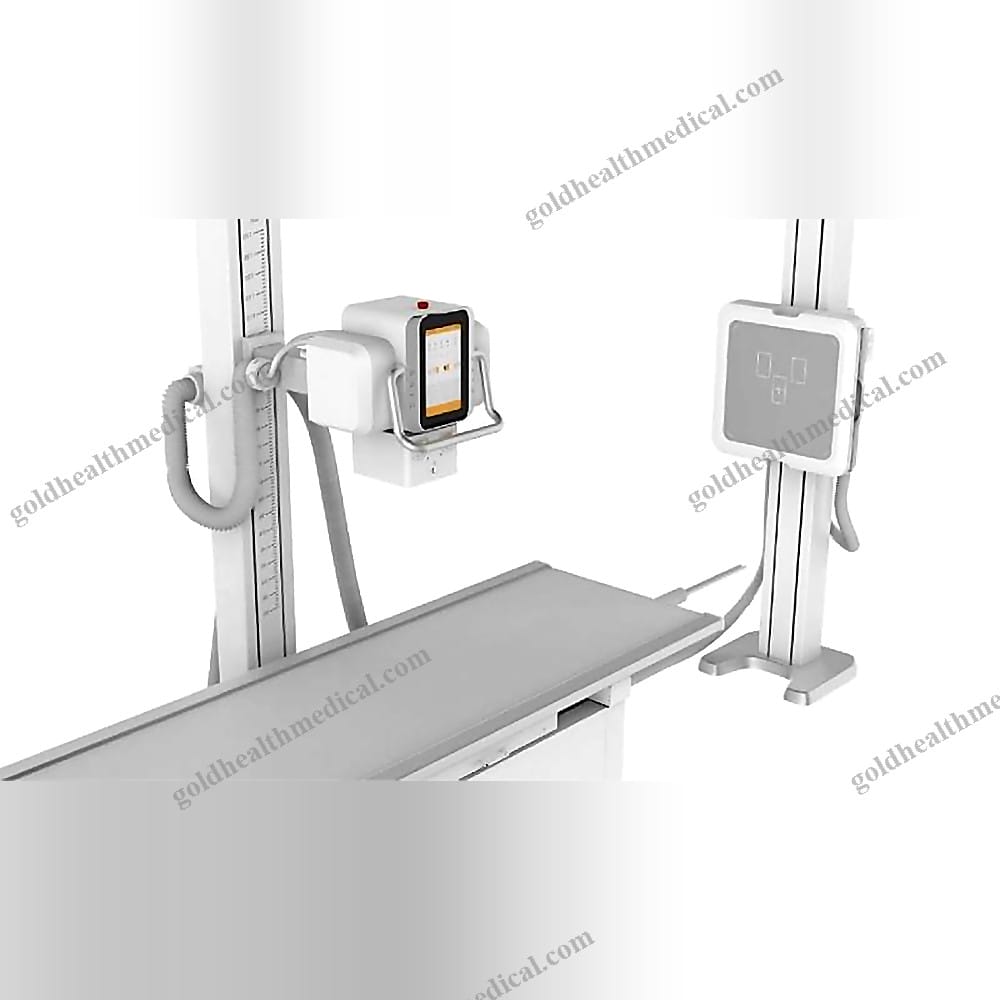

- Flexible and Robust Rack Design
- Reliable inline rail system ensures smooth and precise movement.
- One-piece construction for seamless operation and enhanced durability.
- Power-assisted controls allow effortless one-handed adjustments.
- Rugged components extend equipment lifespan and reduce maintenance needs.
Configurable options include single or dual detectors to suit various clinical requirements.

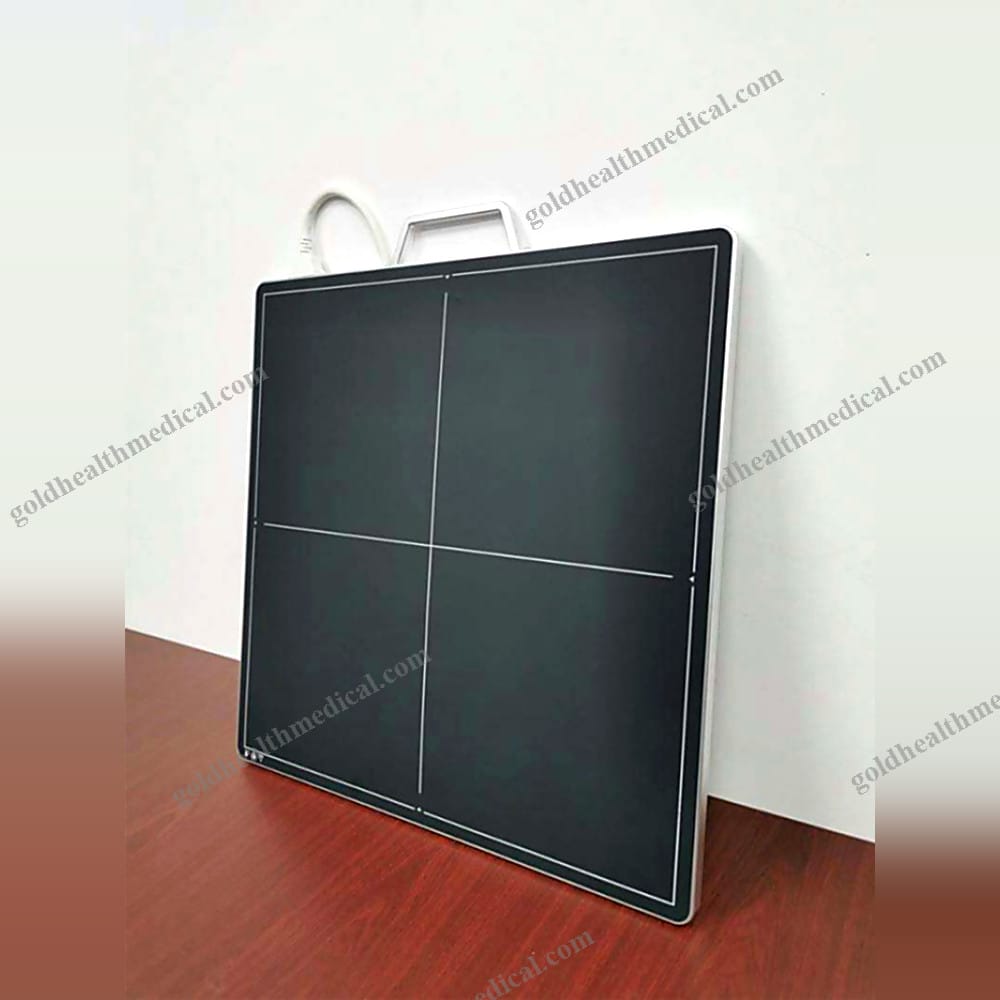

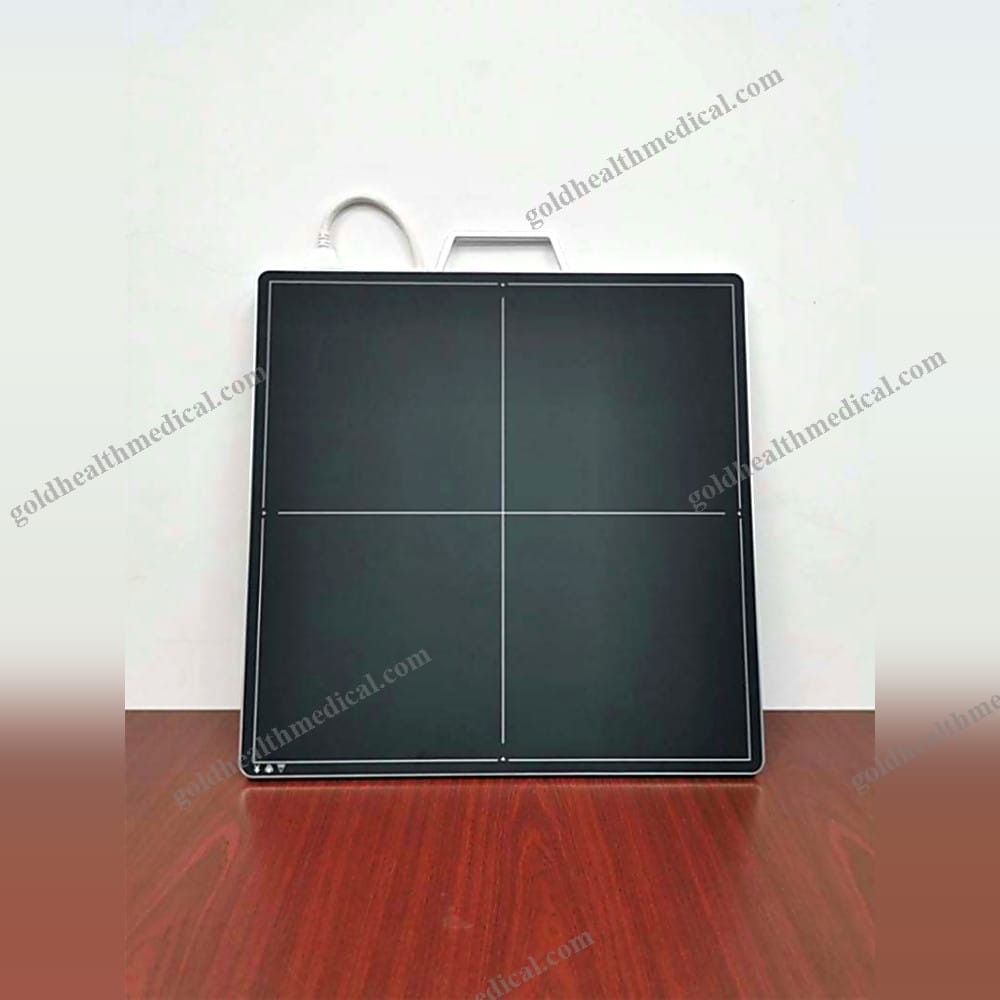

High-Definition Large Detector
- Amorphous silicon technology provides ultimate image resolution.
Captures every detail with exceptional clarity for accurate diagnostics.
Advanced High-Voltage Generator
- 500kHz ultra-high-frequency inverter ensures rapid KV rise times (<500 microseconds) and minimal ripple (<1%).
- Stable performance even with voltage fluctuations up to +30%.
Optional AEC (Automatic Exposure Control) simplifies operations and ensures consistent image quality across all film sections.
High-Efficiency X-Ray Tube
- Dual focus (0.6/1.2mm) for comprehensive tissue detail and sharp imaging.
- High heat capacity supports extended use without overheating concerns.
Technical Specifications
- Power Requirements
- Voltage: AC380V/400V ±10%
- Frequency: 50Hz
- Resistance: ≤0.1Ω
Capacity: ≥63kVA
Mechanical Parameters
- Column vertical movement: 1160mm (±5%)
- Column lateral movement: 1730mm (±5%)
- Chest film frame lifting distance: ≥1200mm
- Tube assembly rotation: -90° to +90° (manual)
- Column rotation: -180° to +180° (manual)
- Patient table X-axis movement: 900mm (±5%)
- Patient table Y-axis movement: 260mm (±5%)
- Patient table dimensions: 2110mm × 822mm × 656mm (±5%)
Maximum patient weight: 150kg
High-Voltage Generator
- Input power voltage: AC 380V/400V ±10%
- Output nominal power: 50kW (500mA, 100kV, 0.1s)
- Tube voltage range: 40kV–150kV (adjustable in 1kV increments)
- Tube current range: 10mA–630mA (multilevel digital adjustment)
- Loading time: 1ms–6300ms (multilevel digital adjustment)
Shortest irradiation time (AEC): 1.6ms
X-Ray Tube
- Anode input power: Large focus: 50kW; Intermediate focus: 20kW
- Focal spot: 0.6/1.2mm
- Anode speed: 2700 RPM
- Nominal tube voltage: 150kV
Heat capacity: 163kJ (230kHU)
Detector Options
- CareView1500L: 35cm × 43cm, ≥14-bit resolution, ≥3.4lp/mm limiting resolution
CareView1800L: 43cm × 43cm, ≥14-bit resolution, ≥3.6lp/mm limiting resolution
Image Workstation
- Hard-disk capacity: ≥500GB
- Memory: ≥4GB
Processor: ≥3.2GHz
Environmental Conditions
- Working environment:
- Relative humidity: 30%–75%
- Atmospheric pressure: 70kPa–106kPa
- Temperature: 10°C–40°C
- Storage/transport environment:
- Relative humidity: 10%–95%
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Name: Digital X-ray System by GoldHealth Medical
Key Features and Benefits:
- Advanced Imaging Technology: Designed for precision and clarity, this digital X-ray system delivers exceptional diagnostic quality, making it ideal for hospitals, clinics, and research institutions.
- High-Energy-Ray Medical Equipment: Engineered to meet the demands of modern medical imaging with reliable performance and consistent results.
- Class II Medical Instrument Classification: Ensures compliance with stringent safety and efficacy standards for professional healthcare environments.
Technical Specifications:
- Power Source: Electric
- Voltage: AC380V/400V ±10%
- Frequency: 50Hz
- Output Nominal Electric Power: 50kW (500mA, 100kV, 0.1s)
- Tube Voltage: 40kV–150kV
- Tube Current: 10mA–630mA
- Loading Time: 1ms–6300ms, adhering to the R'10 number system in ISO 497
- Current-Time Product: 0.1mAs–630mAs
- Column Lateral Movement Distance: 1730mm (Error: ±5%)
Material and Build Quality:
- Constructed with premium-grade metal for enhanced durability and stability, ensuring long-term reliability in demanding medical settings.
Safety and Compliance:
- Meets GB15979-2002 Safety Standards and holds CE Certification, guaranteeing adherence to global quality benchmarks.
Shelf Life and Warranty:
- Shelf Life: 1 year
- Warranty: Comprehensive 1-year warranty for peace of mind.
After-Sale Support:
- Online Technical Support: Access to expert assistance ensures seamless operation and troubleshooting.
Packaging Details:
- Selling Unit: Single item
- Package Size: XX cm
- Gross Weight: XX kg
Unique Selling Points:
- Precision and Versatility: From routine diagnostics to specialized imaging, this system adapts to diverse clinical needs.
- User-Centric Design: Intuitive controls and ergonomic features enhance workflow efficiency for medical professionals.
- Trusted by Experts: Backed by GoldHealth Medical’s commitment to innovation and excellence in healthcare technology.
Applications:
Perfect for hospitals, clinics, laboratories, rehabilitation centers, and home healthcare setups, offering unmatched performance and reliability.
Place of Origin: Guangdong, China
Note: Designed to empower healthcare providers with cutting-edge tools for accurate diagnosis and improved patient outcomes.
