Dual Column DR Xray System Pro Plus
Reference: 1601268388505
High-Energy-Ray Medical Equipments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

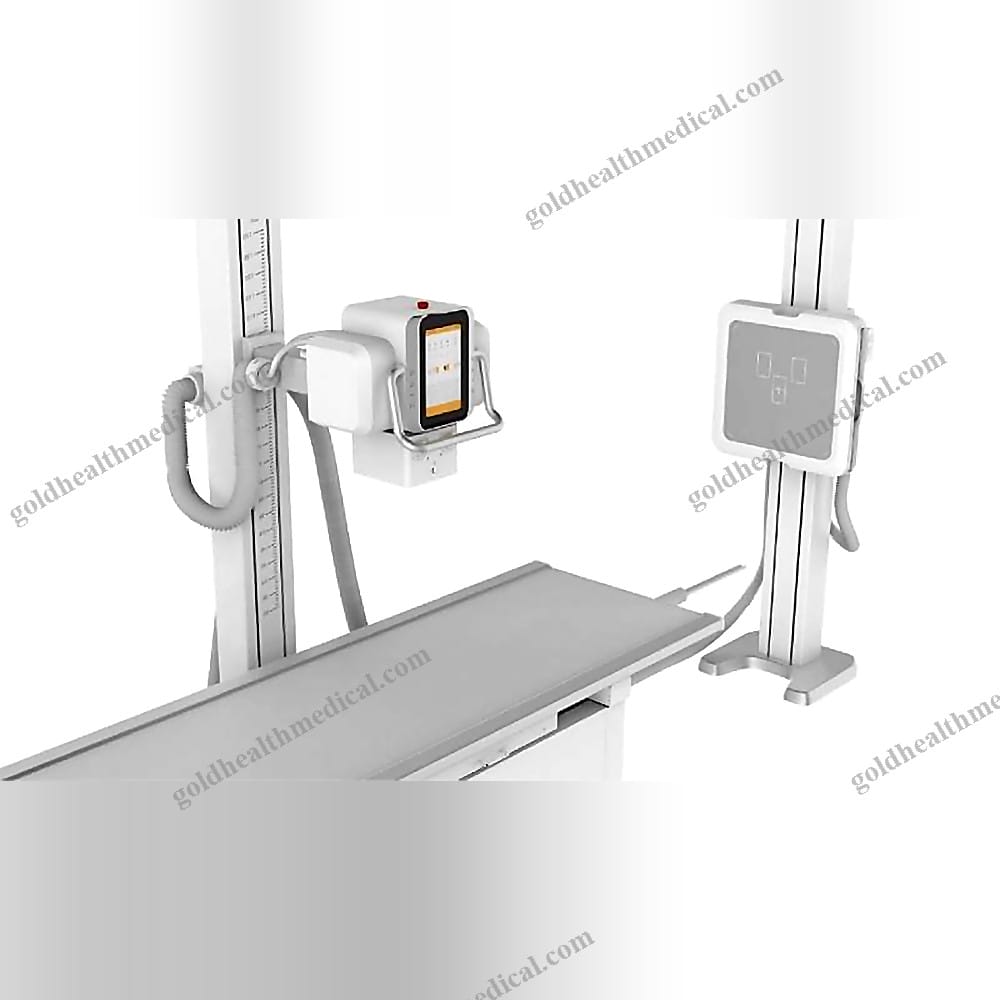

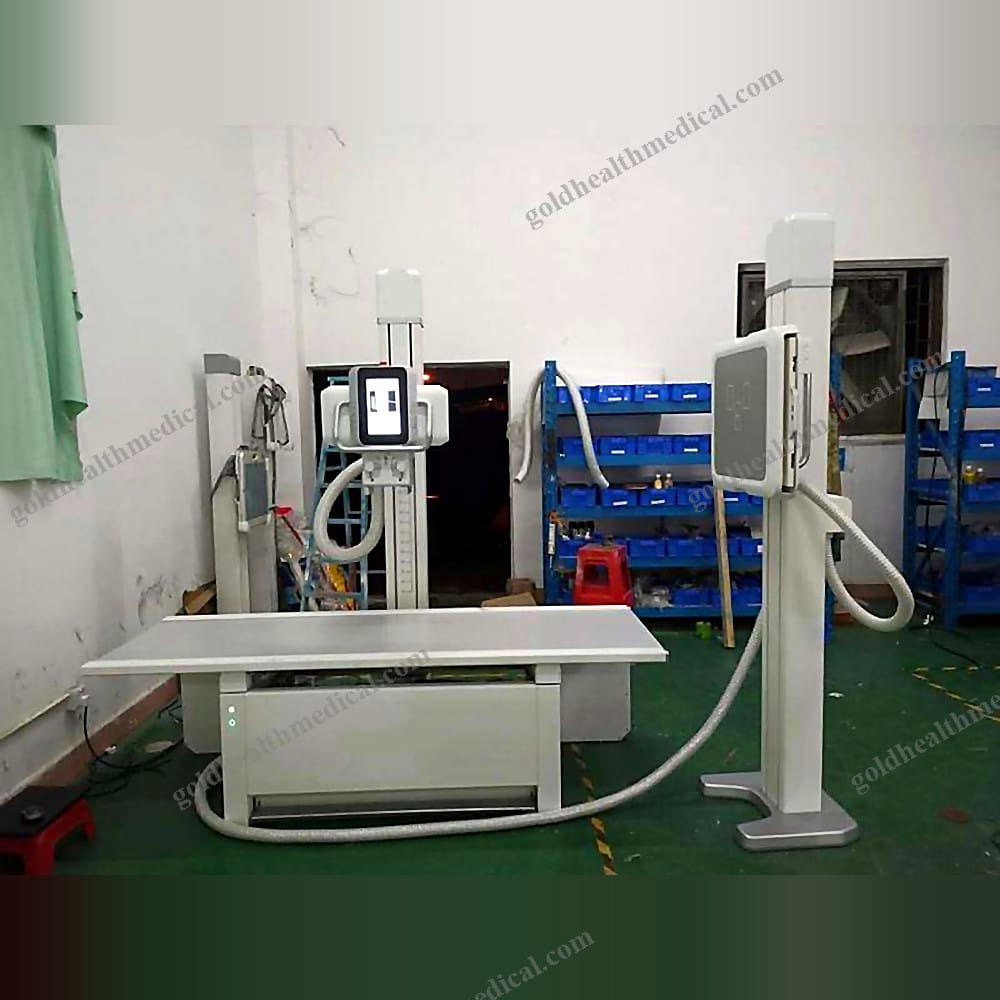

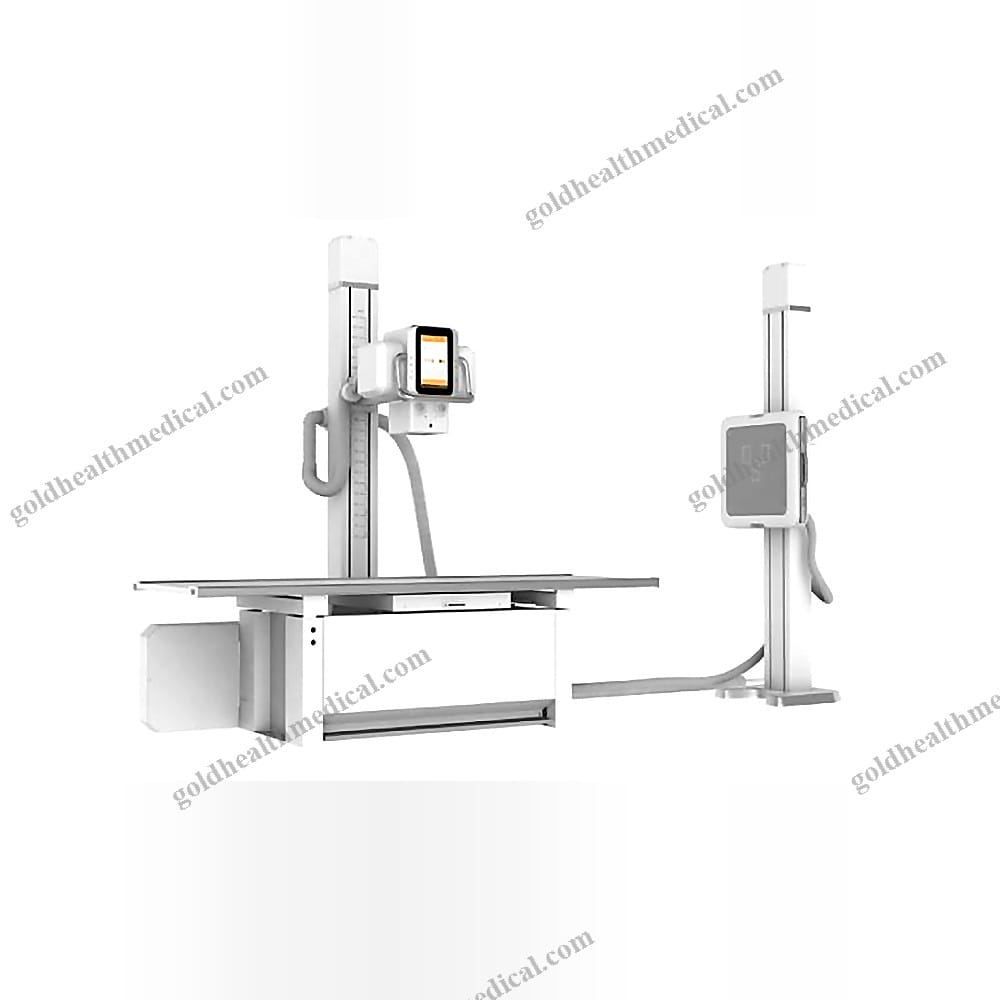

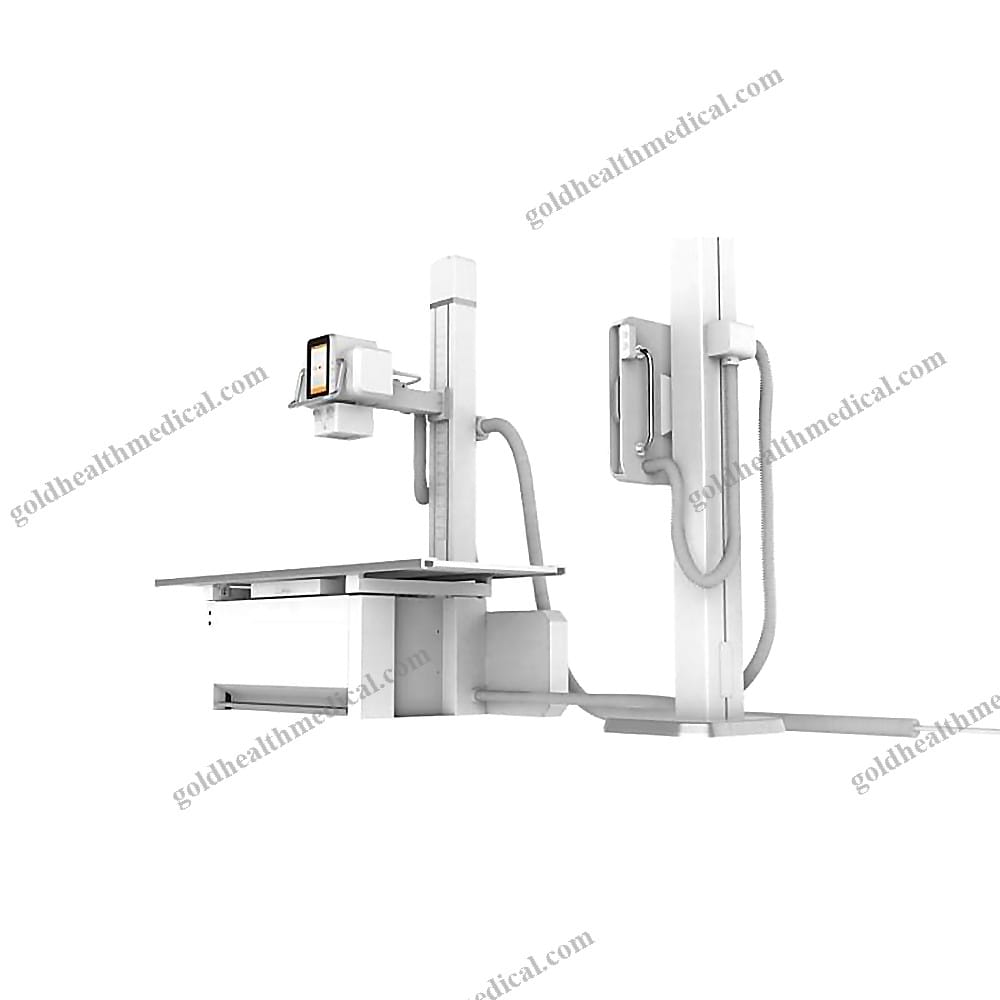

GoldHealth Medical Digital X-ray System
Product Overview
The GoldHealth Medical Digital X-ray System is a cutting-edge, self-developed electric double-column DR system designed to meet the diverse needs of clinical departments. Engineered with a high-level design philosophy, meticulous manufacturing processes, and rigorous testing protocols, this system delivers unparalleled performance and reliability. Its innovative features and adaptability make it an ideal choice for hospitals, clinics, research institutions, and rehabilitation centers.
Key Features
- Flexible and Robust Rack Design
- Reliable inline rail system ensures smooth and precise movements.
- One-piece construction for seamless operation and enhanced flexibility.
- Power-assisted controls allow effortless one-hand adjustments.
- Durable components ensure extended mechanical life and consistent performance.
-
Configurable options include single or dual detectors to suit various clinical requirements.
-

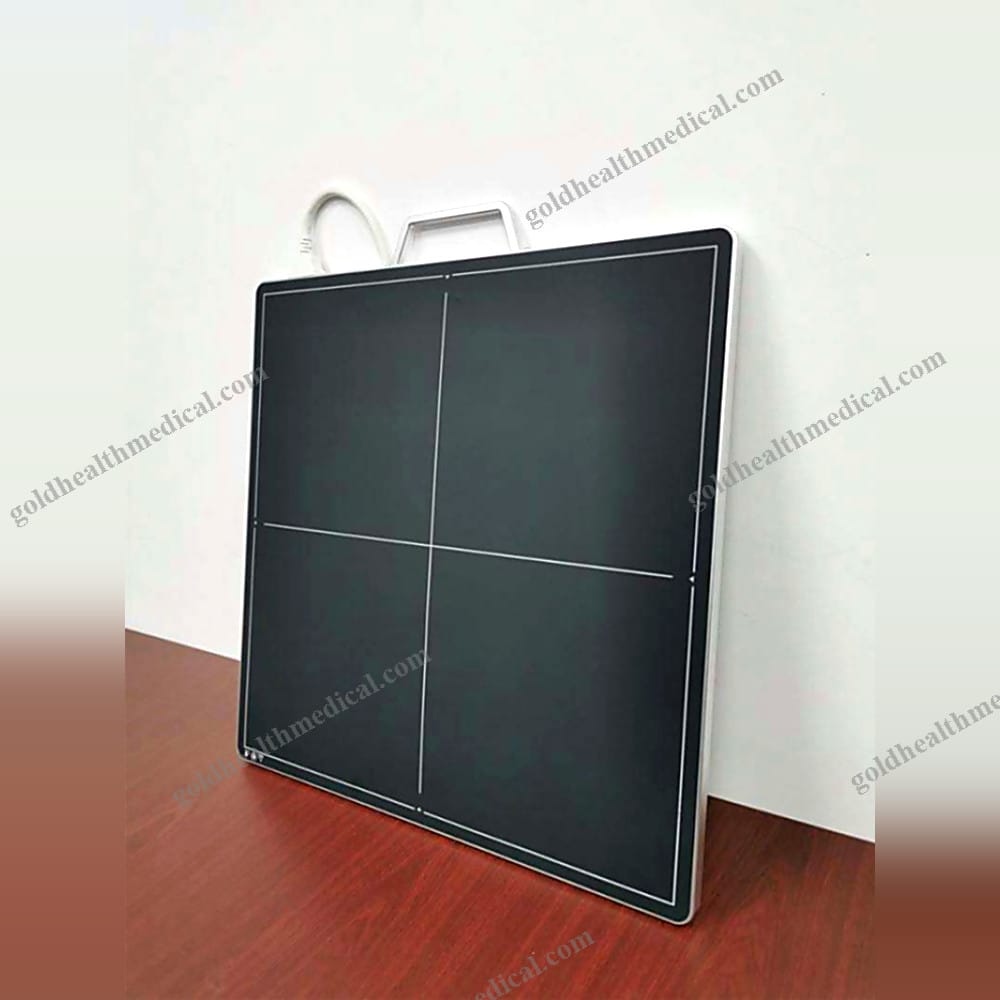

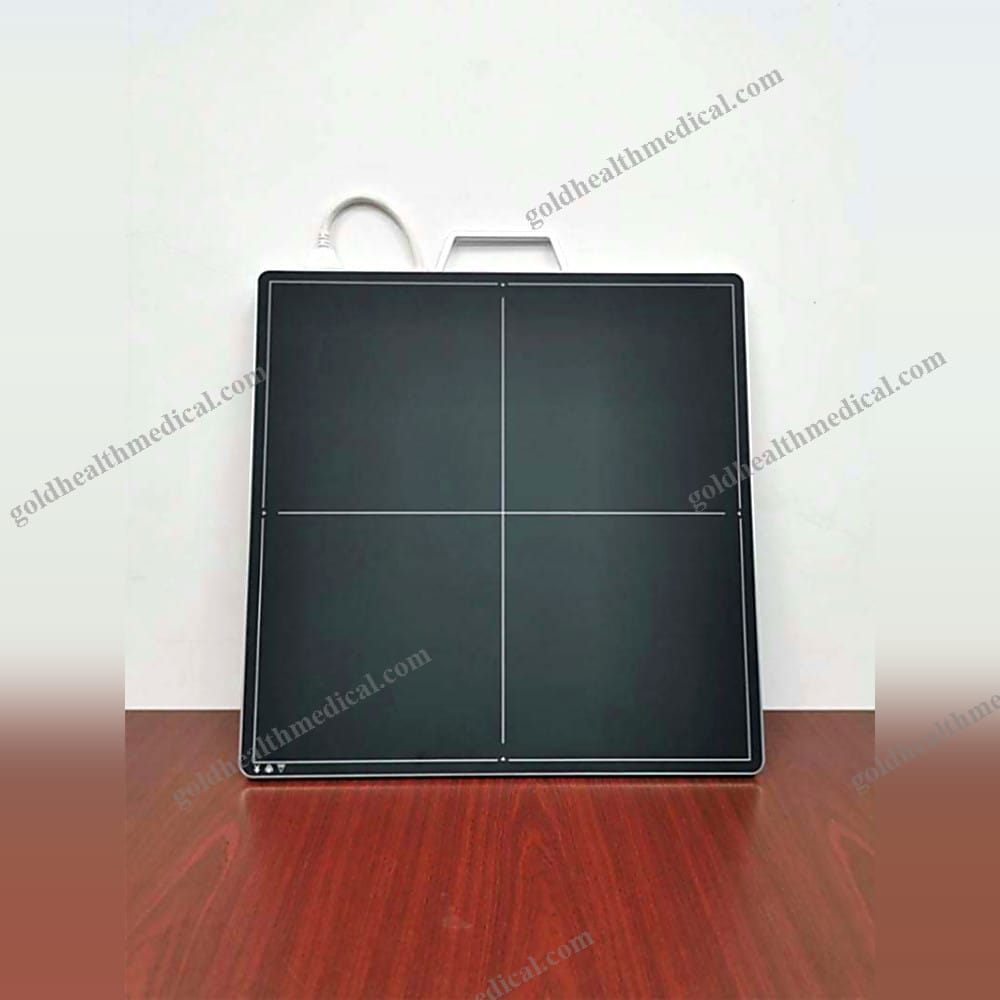

HD Digital Large Detector
- Amorphous silicon large detector provides ultimate resolution, capturing every detail with precision.
-
Ensures no critical image information is missed, enabling accurate diagnoses.
-
High-Performance High Voltage Generator
- 500kHz ultra-high-frequency inverter technology with a KV rise time of <500 microseconds and a ripple factor of <1%.
- Stable operation even with network voltage fluctuations of up to +30%.
-
Optional AEC (Automatic Exposure Control) function ensures uniform and stable images, simplifying workflows for medical professionals.
-
High-Efficiency X-ray Tube
- Dual focus (0.6/1.2mm) for exceptional tissue detail and clear imaging.
- High heat capacity tube assembly supports continuous operation without overheating concerns, accommodating a high patient throughput.
Technical Specifications
- Power Requirements
- Voltage: AC380V/400V±10%
- Frequency: 50Hz
- Resistance: ≤0.1Ω
-
Capacity: ≥63kVA
-
Mechanical Parameters
- Column vertical movement distance: 1160mm (±5%)
- Column lateral movement distance: 1730mm (±5%)
- Chest film frame lifting distance: ≥1200mm
- Tube assembly rotation angle: -90°~+90° (manual)
- Column rotation angle: -180°~+180° (manual)
- Patient table dimensions (L×W×H): 2110mm×822mm×656mm (±5%)
-
Maximum patient weight: 150kg
-
High Voltage Generator
- Input power voltage: AC 380V/400V±10%
- Output nominal electric power: 50kW (500mA, 100kV, 0.1s)
- Tube voltage range: 40kV~150kV (adjustable in 1kV increments)
-
Tube current range: 10mA~630mA
-
X-ray Tube
- Anode input power: Large focal spot: 50kW; Intermediate focal spot: 20kW
- Focal spot: 0.6/1.2mm
- Anode speed: 2700RPM
- Nominal tube voltage: 150kV
-
Heat content: 163kJ (230kHU)
-
Detector Options
- CareView1500L:
- Dimensions: 35cm×43cm
- Effective number of bits: ≥14bit
- Limiting resolution: ≥3.4lp/mm
-
CareView1800L:
- Dimensions: 43cm×43cm
- Effective number of bits: ≥14bit
- Limiting resolution: ≥3.6lp/mm
-
Image Workstation
- Hard-disk capacity: ≥500GB
- Memory: ≥4GB
-
Processor: ≥3.2GHz
-
Environmental Conditions
- Working environment:
- Relative humidity: 30%~75%
- Atmospheric pressure: 70kPa~106kPa
- Temperature: 10℃~40℃
- Storage and transport environment:
- Relative humidity: 10%~95%
- Atmospheric pressure: 70kPa~106k
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Name: Digital X-ray System by GoldHealth Medical
Key Features and Benefits:
- Advanced Imaging Technology: Delivers high-resolution digital X-ray images, ensuring precision and clarity for accurate diagnostics.
- Versatile Performance: Suitable for a wide range of medical applications, including radiology, orthopedics, and emergency care.
- User-Centric Design: Engineered for ease of use, with intuitive controls and seamless integration into existing workflows.
Technical Specifications:
- Power Source: Electric
- Voltage: AC380V/400V ±10%
- Frequency: 50Hz
- Output Nominal Electric Power: 50kW (500mA, 100kV, 0.1s)
- Tube Voltage (kV): 40kV to 150kV
- Tube Current (mA): 10mA to 630mA
- Loading Time: 1ms to 6300ms, adhering to the R'10 number system in ISO 497
- Current-Time Product (mAs): 0.1mAs to 630mAs
- Column Lateral Movement Distance: 1730mm (Error: ±5%)
Material and Build Quality:
- Constructed with premium-grade metal for durability and stability, ensuring long-term reliability in demanding medical environments.
Safety and Compliance:
- Instrument Classification: Class II
- Safety Standard: Compliant with GB15979-2002
- Quality Certifications: CE-certified for safety and performance
Warranty and Support:
- Warranty Period: 1 Year
- After-Sales Service: Comprehensive online technical support to ensure uninterrupted operation and address any concerns promptly.
Packaging Details:
- Selling Unit: Single item
- Package Size: XX cm
- Gross Weight: XX kg
Applications:
Ideal for hospitals, clinics, research institutions, laboratories, rehabilitation centers, and home healthcare settings. Designed to meet the needs of medical professionals and enhance patient care through cutting-edge technology.
Why Choose GoldHealth Medical?
GoldHealth Medical is committed to delivering innovative, reliable, and high-performance medical equipment. Our digital X-ray system combines advanced engineering with user-focused design, empowering healthcare providers to achieve superior diagnostic outcomes.
Shelf Life: 1 Year
Place of Origin: Guangdong, China
Unique Selling Points:
- High-energy-ray medical equipment designed for precision and efficiency.
- Exceptional build quality and compliance with international safety standards.
- Tailored to meet the diverse needs of modern healthcare facilities.
