Portable 5KW Digital XRay for Pets HighEnergy Medical Equipment Pet
Reference: 1601297542782
High-Energy-Ray Medical Equipments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

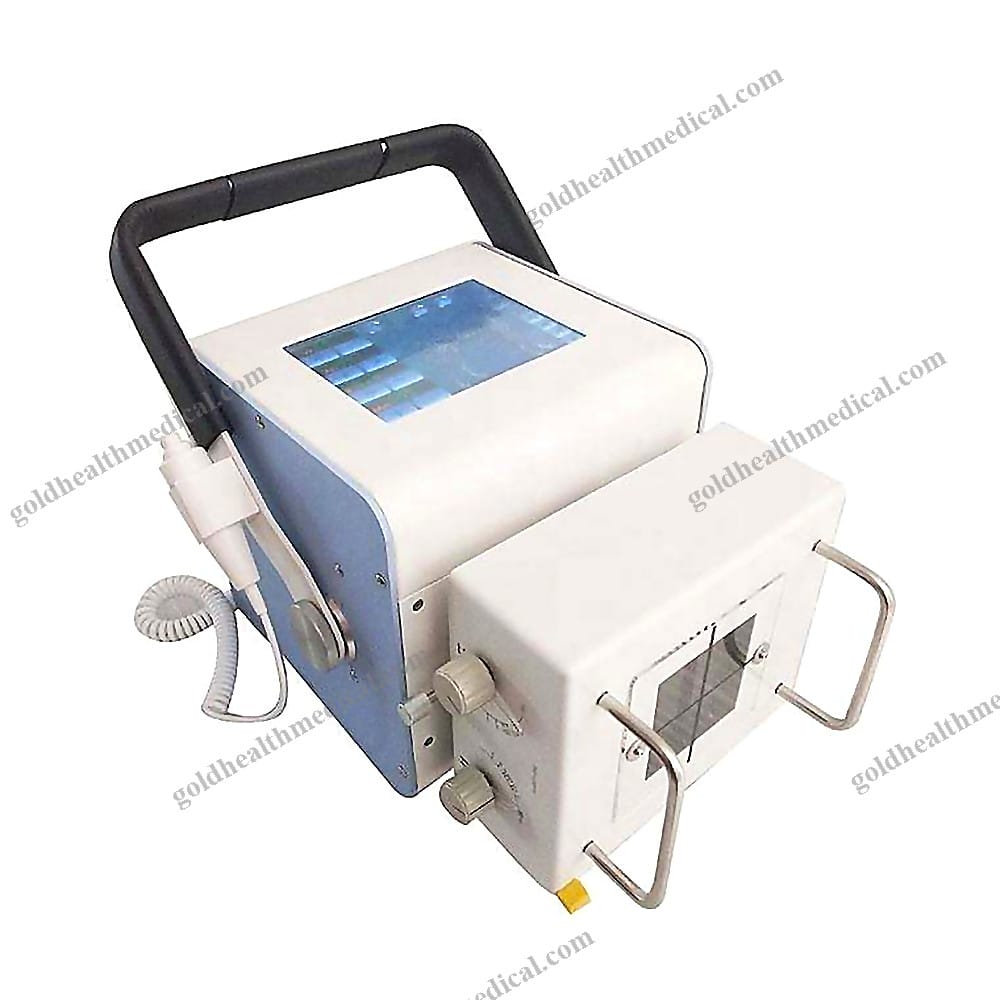

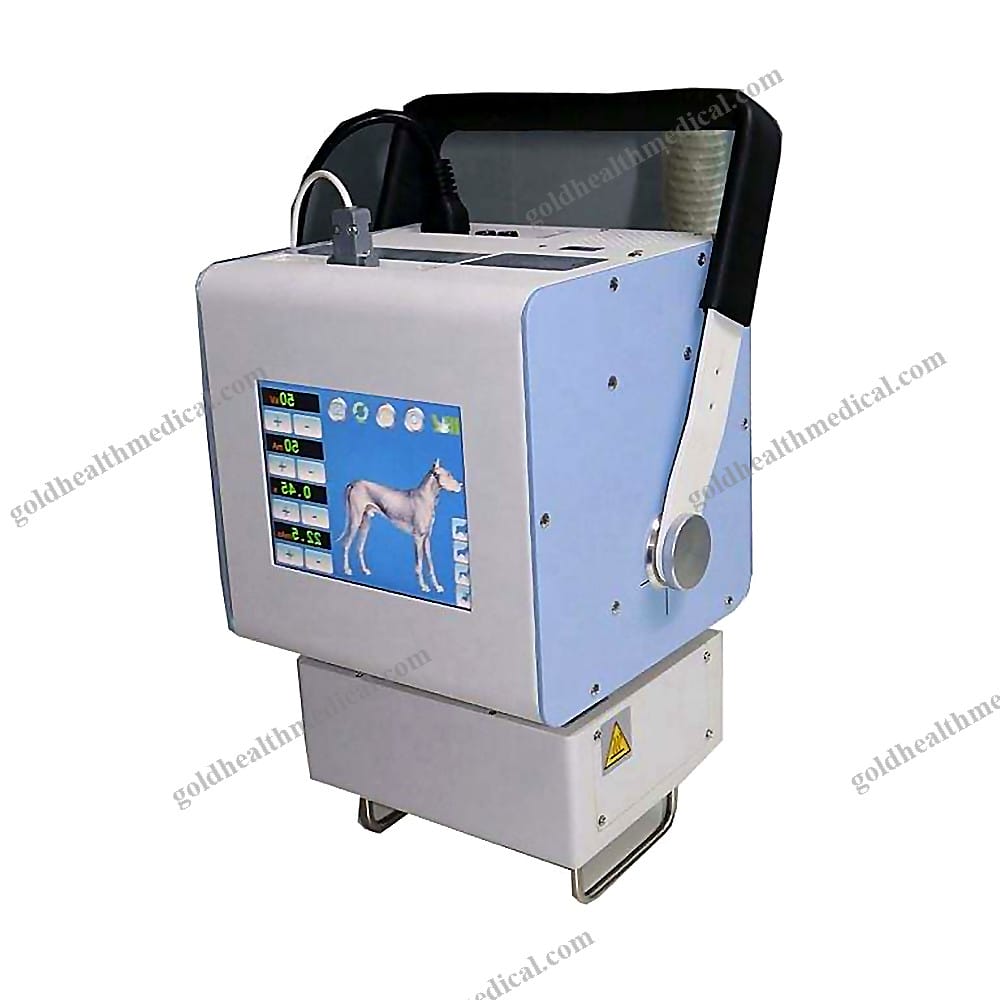

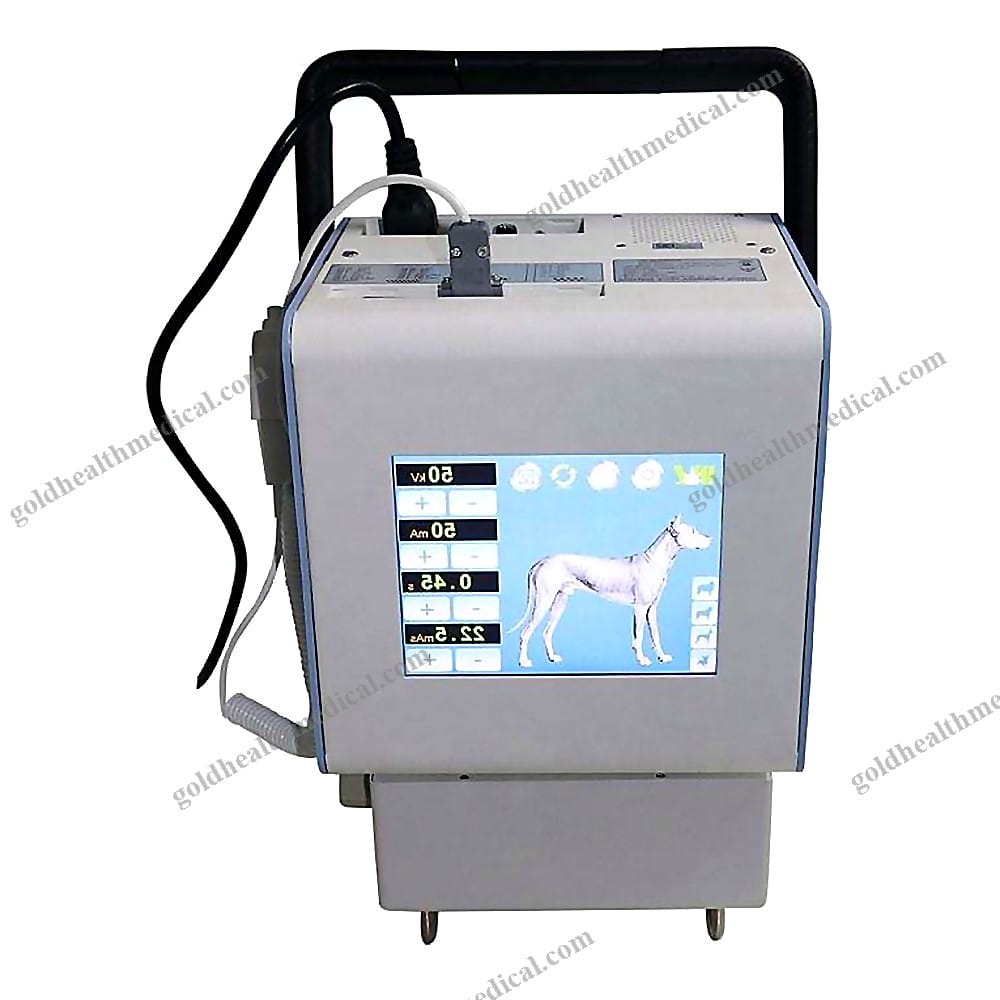

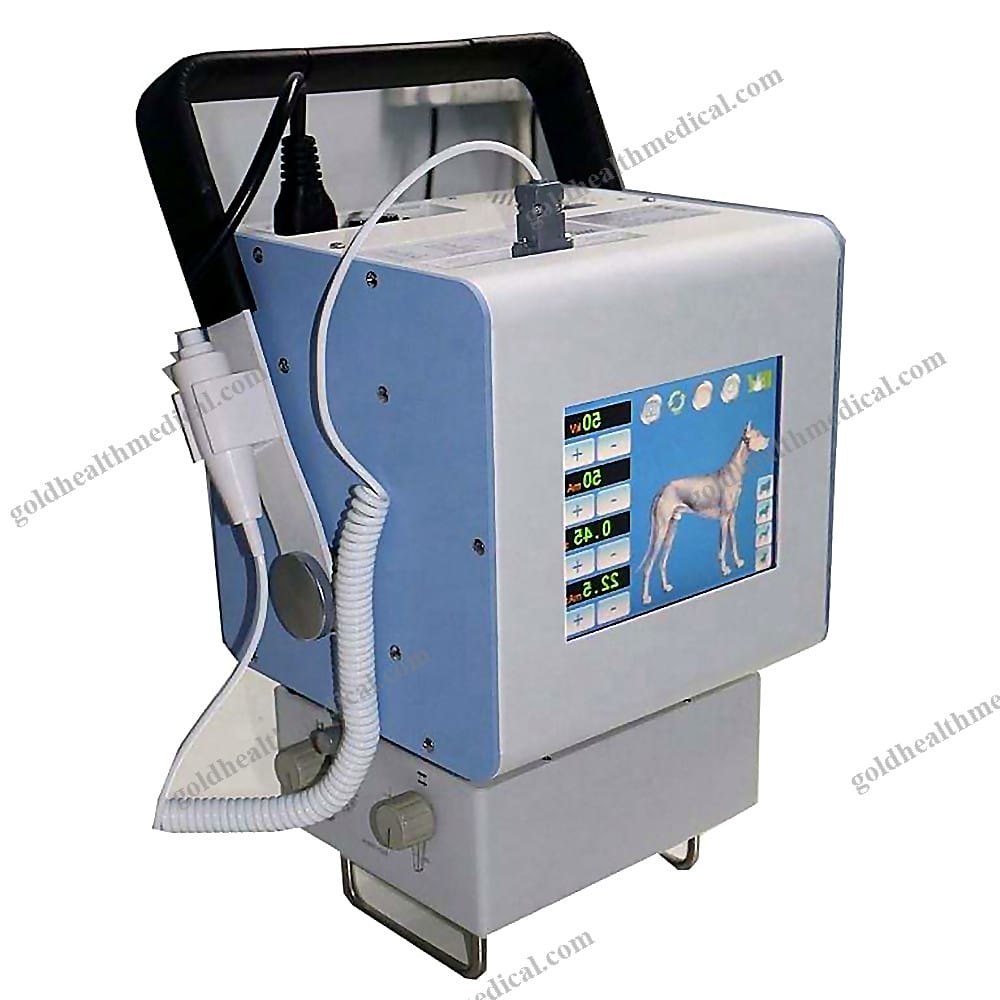

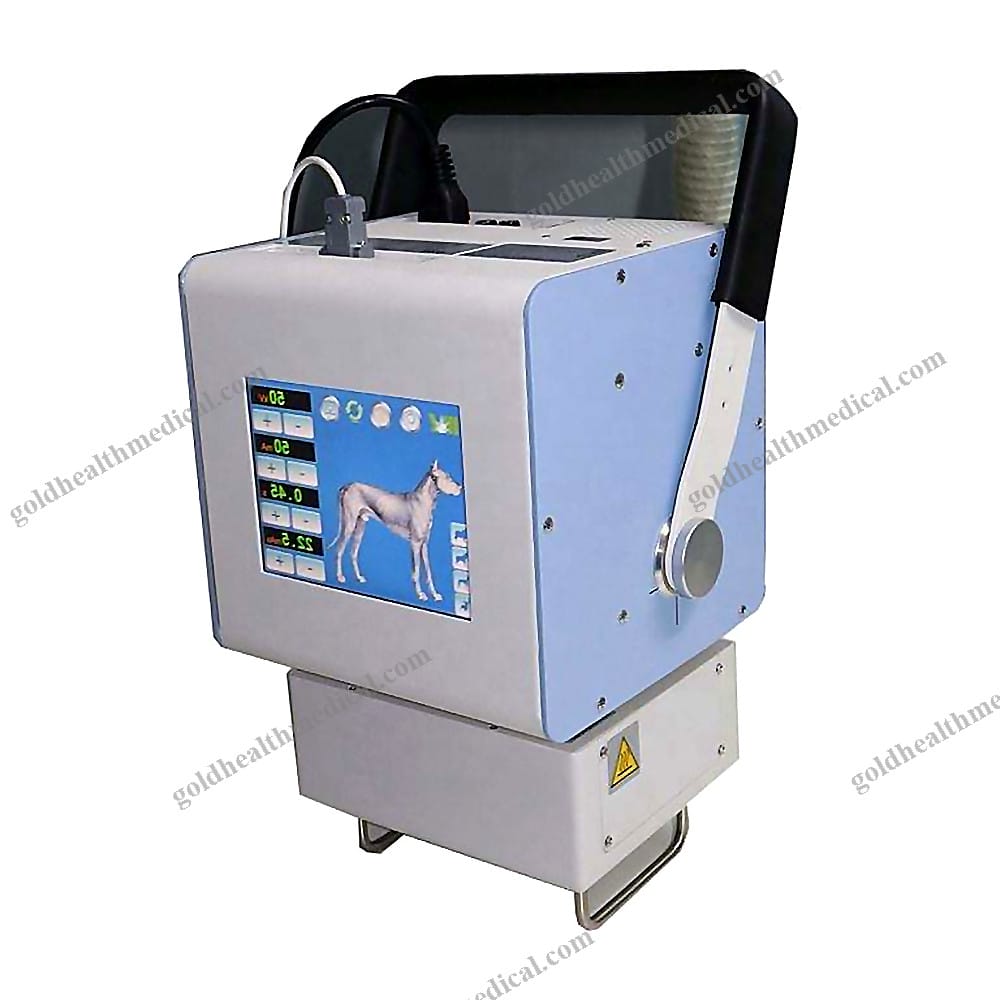

GoldHealth Medical Portable Digital X-Ray Machine for Veterinary Clinics
GoldHealth Medical introduces a cutting-edge portable digital X-ray machine designed specifically for veterinary clinics. This advanced system combines precision, portability, and ease of use to deliver exceptional diagnostic capabilities.
Key Features and Benefits
- Compact and Portable Design: Engineered for effortless mobility, making it ideal for various clinical environments.
- High Power Output: Delivers a maximum output power of 5.0kW, ensuring clear and detailed imaging.
- Versatile Imaging Parameters: Offers multiple kV and mA ranges to accommodate diverse diagnostic needs.
- Advanced Inverter Technology: Operates at a frequency of ≥ 30kHz with PWM (Pulse Width Modulation) for consistent performance.
- User-Friendly Controls: Intuitive interface simplifies operation, reducing the need for extensive training.
- Exceptional Image Quality: Compatible with optional flat panel detectors for upgrading to a fully digital radiography system.
Technical Specifications
- Maximum Output Power: 5.0kW
- Power Capacity: 100kV @ 50mA
- Photography kV Range:
- 40-50kV
- 40-60kV
- 40-80kV
- 40-100kV
- 40-110kV
- Photography mA Range:
- 100mA
- 80mA
- 63mA
- 50mA
- 40mA
- 32mA
- mAs Range: 0.32-315mAs
- Exposure Time Range: 0.01-6.3s
- Input Power Type: 220V ±10%, 50Hz/60Hz
- Host Size: 370mm × 260mm × 230mm
- Weight: 21kgs
- Inverter Mode: PWM (Pulse Width Modulation)
Optional Upgrades
- Flat Panel Detectors: Transform your X-ray machine into a fully digital radiography system with our 17x17 inch wired or Wi-Fi-enabled detectors. These detectors are easy to use and provide high-quality images, enhancing diagnostic accuracy.
GoldHealth Medical's portable digital X-ray machine is the perfect solution for veterinary clinics seeking reliable, high-quality imaging equipment. Its innovative design and advanced features ensure superior performance and ease of use, making it an indispensable tool for modern veterinary practices.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Company: GoldHealth Medical
Product Introduction:
Experience precision and reliability with our advanced pet digital X-ray machine. Designed for veterinary professionals, this state-of-the-art imaging solution delivers exceptional clarity and accuracy, empowering you to provide the highest standard of care for your animal patients. With its cutting-edge technology and user-friendly design, this machine is ideal for hospitals, clinics, research institutions, and rehabilitation centers.
Key Features and Specifications:
- Instrument Classification: Class I medical device, ensuring safety and compliance with global standards.
- Power Source: Manual operation for enhanced control and adaptability.
- Standard Output Power: 5.0kW, delivering consistent performance for high-quality imaging.
- mA Range: 50-100mA, offering flexibility for diverse diagnostic needs.
- Tube Voltage Range: 40-105kV, enabling precise adjustments for optimal image quality.
- mAs Range: 0.32-315mAs, providing fine-tuned exposure settings.
- Load Time Range: 0.01-6.3 seconds, ensuring rapid and efficient imaging.
- Inverter Frequency: ≥ 30kHz, supporting stable and reliable operation.
- Inverter Mode: PWM (Pulse Width Modulation), enhancing energy efficiency and performance.
- Maximum Voltage: 100kV, delivering powerful imaging capabilities.
- Net Weight: 21kg, combining portability with robust construction.
Quality Assurance:
- Backed by CE certification, guaranteeing adherence to stringent international quality and safety standards.
- Shelf Life: 1 year, ensuring long-term usability and reliability.
After-Sales Support:
- Comprehensive 1-year warranty for peace of mind.
- Access to online technical support, ensuring seamless operation and quick resolution of any issues.
Packaging Details:
- Selling Units: Single item
- Single Package Size: XX cm
- Single Gross Weight: XX kg
GoldHealth Medical is committed to delivering innovative solutions that elevate veterinary care. Our pet digital X-ray machine is engineered to meet the demands of modern medical practices, combining precision, durability, and ease of use in one exceptional product.
