LTSI24 Portable Digital Syringe Pump for Hospital ICU
Reference: 1600288566816
Infusion, Nursing & Protective Instruments（old）
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

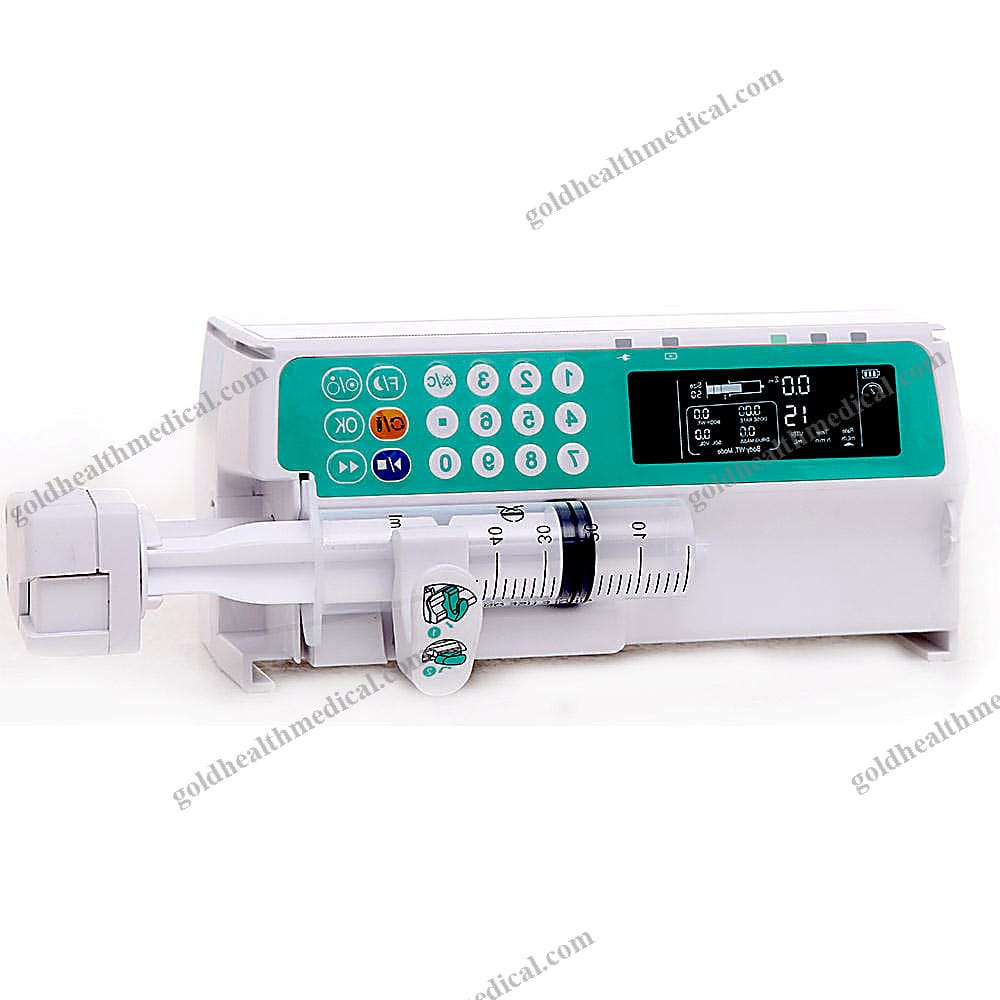

GoldHealth Medical Single Channel Syringe Pump
Features:
- Crystal-Clear Display: Equipped with a 3.5-inch LCD screen, offering exceptional visibility from up to 5 meters away, ensuring precise monitoring in any medical environment.
- Innovative Extension Line Grip: Specially engineered for secure handling and effortless management of infusion lines.
- One-Touch Night Mode: Designed for patient comfort, this feature allows seamless transition to a softer display setting, promoting restful sleep during nighttime use.
- Universal Compatibility: Seamlessly works with a wide range of syringe sizes, including 5ml, 10ml, 20/30ml, and 50/60ml, accommodating diverse clinical needs.

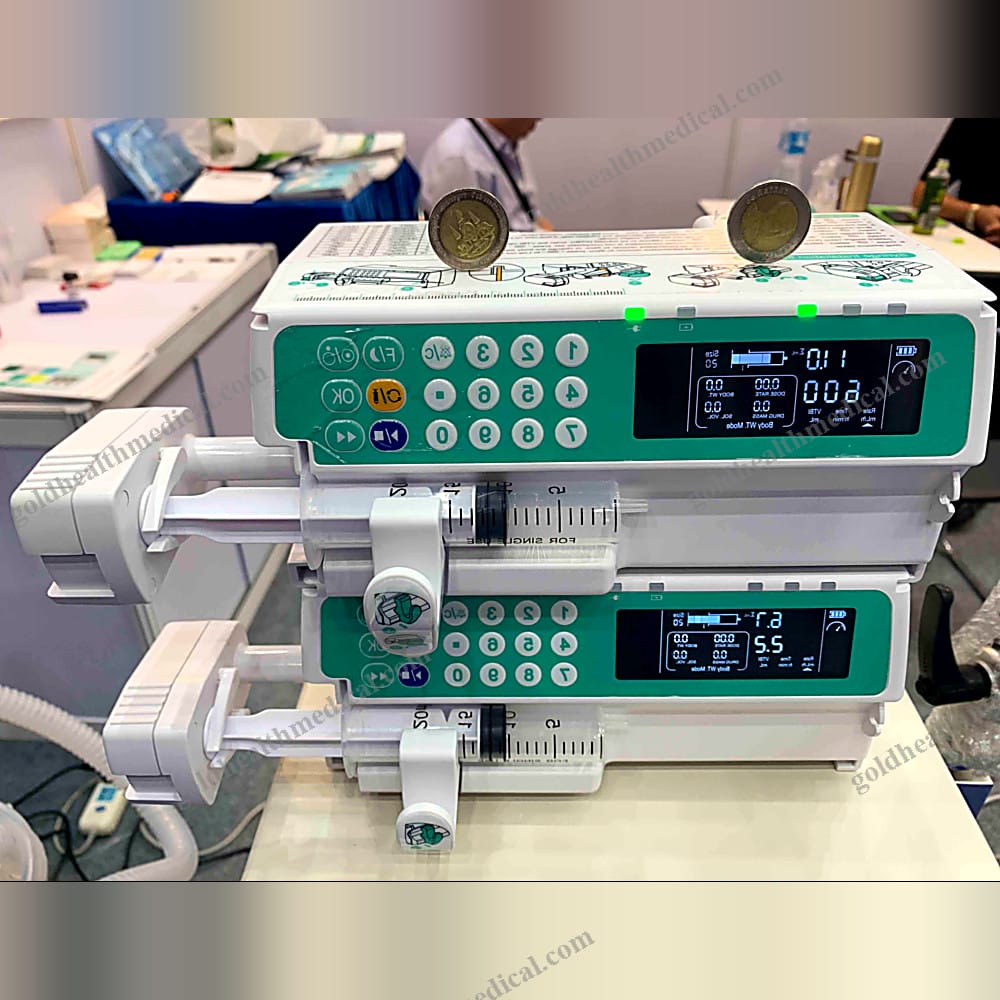

- Space-Saving Design: Effortlessly stackable, these single-channel pumps optimize space utilization in critical care units such as ICU, NICU, and operating theaters.
Key Parameters:
- Infusion Modes: Rate Mode, Rate-Time, Rate-VTBI, Time-VTBI, Body Weight.
- Safety Assurance: Dual CPU system ensures unparalleled infusion accuracy and reliability.
- Comprehensive Drug Library: Features a 20-drug list with drug code display for enhanced precision and safety.
- Exceptional Accuracy: ±2% infusion accuracy for consistent performance.
- Time Preset Range: 00:01 to 99:59 (Hour:Min).
- Volume Range: 0 to 9999.9ml.
- Flow Rate Adjustability:
- 0.1 ml/h when Rate < 100ml/h.
- 1 ml/h when Rate ≥ 100ml/h.
- Flow Rate Range by Syringe Size:
- 5ml Syringe: 0.1ml/h - 150ml/h.
- 10ml Syringe: 0.1ml/h - 300ml/h.
- 20ml Syringe: 0.1ml/h - 600ml/h.
- 30ml Syringe: 0.1ml/h - 900ml/h.
- 50/60ml Syringe: 0.1ml/h - 1200ml/h.
- Purge/Bolus/Top Flow Rate:
- 5ml Syringe: 150ml/h.
- 10ml Syringe: 300ml/h.
- 20ml Syringe: 600ml/h.
- 30ml Syringe: 900ml/h.
- 50/60ml Syringe: 1200ml/h.
- Advanced Alarm System: Audible and visible alerts for auto self-test, syringe dislocation, occlusion, near-end, syringe empty, VTBI completion, low battery, battery exhaustion, motor malfunction, incorrect syringe specification, circuit malfunction, master CPU malfunction, monitoring CPU malfunction, over-limitation parameters, AC disconnection, and AC connection.
- KVO (Keep Vein Open): Adjustable range of 0.1-5.0ml/h.
- Occlusion Pressure Settings:
- High: 40 KPa ± 20KPa.
- Middle: 60 KPa ± 20KPa.
- Low: 100 KPa ± 20KPa.
- Maximum Infusion Pressure: 120 KPa.
- Battery Life: Minimum 8 hours of continuous operation.
- Power Consumption: 30VA.
- Power Supply: AC100-240V, 50Hz/60Hz.
- Battery Type: Lithium battery, 11.1V/2000mAh.
- Classification: Class II, Type CF, IPX4.
- Dimensions: 26×21.5×11cm.
- Weight: 2kg.
- Optional Functionality: Ambulance DC 12V compatibility.
Why Choose GoldHealth Medical:
GoldHealth Medical is a trusted global manufacturer and distributor of premium medical equipment. Our client-focused solutions and expertise span the entire production and sales continuum. With products delivered to over 50 countries worldwide, we are committed to delivering excellence in every aspect of healthcare technology. Your satisfaction is our priority, and it is our honor to serve you.
Services:
- Pre-Sales Support: A dedicated team provides 24/7 online assistance and offers OEM services tailored to your needs.
- After-Sales Commitment: One-year warranty and access to professional engineers with over a decade
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Overview
GoldHealth Medical presents the Portable Syringe Pump, a cutting-edge solution designed for precision and reliability in critical healthcare environments. Engineered to meet the demands of modern medical facilities, this Class II medical device ensures exceptional performance in operating rooms, ICUs, hospitals, and beyond.
Key Features and Specifications
- Brand Name: GoldHealth Medical
- Product Name: Portable Syringe Pump
- Application: Operating Room, ICU, Hospital, and Home Care Settings
- Syringe Size Compatibility: 5ml, 10ml, 20ml, 30ml, 50/60ml
- Power Supply: AC100-240V, 50Hz/60Hz
- Battery Life: Operates continuously for ≥8 hours on a single charge, ensuring uninterrupted performance during critical procedures.
- Safety Classification: Class II, Type CF, IPX4 – Designed for safe and reliable operation in demanding medical environments.
- Portability: Compact and lightweight design for easy transport and use in various clinical settings.
Technical Highlights
- Precision Engineering: Delivers accurate and consistent infusion rates, ensuring optimal patient care.
- User-Friendly Interface: Intuitive controls and clear displays simplify operation, even in high-pressure scenarios.
- Durability: Built with high-quality materials to withstand rigorous daily use.
Packaging Details
- Package Dimensions: 35 x 28 x 22 cm
- Gross Weight: 5.000 kg
- Packaging: Securely packed in a durable carton box for safe transportation.
Certifications
- Compliance: CE, ISO – Ensures adherence to international safety and quality standards.
Warranty and Support
- Warranty: 1-Year comprehensive warranty for peace of mind.
- After-Sales Service: Access to online technical support for seamless assistance and troubleshooting.
Why Choose GoldHealth Medical?
Our Portable Syringe Pump combines advanced technology, portability, and reliability to meet the diverse needs of healthcare professionals. Whether in a hospital, clinic, or home care setting, this device is designed to enhance patient outcomes and streamline workflows. Trust GoldHealth Medical to deliver innovative solutions that redefine medical care.
