NPWT SingleUse Vacuum Pump for Wound Healing
Reference: 1600984145089Infusion, Nursing & Protective Instruments（old）
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

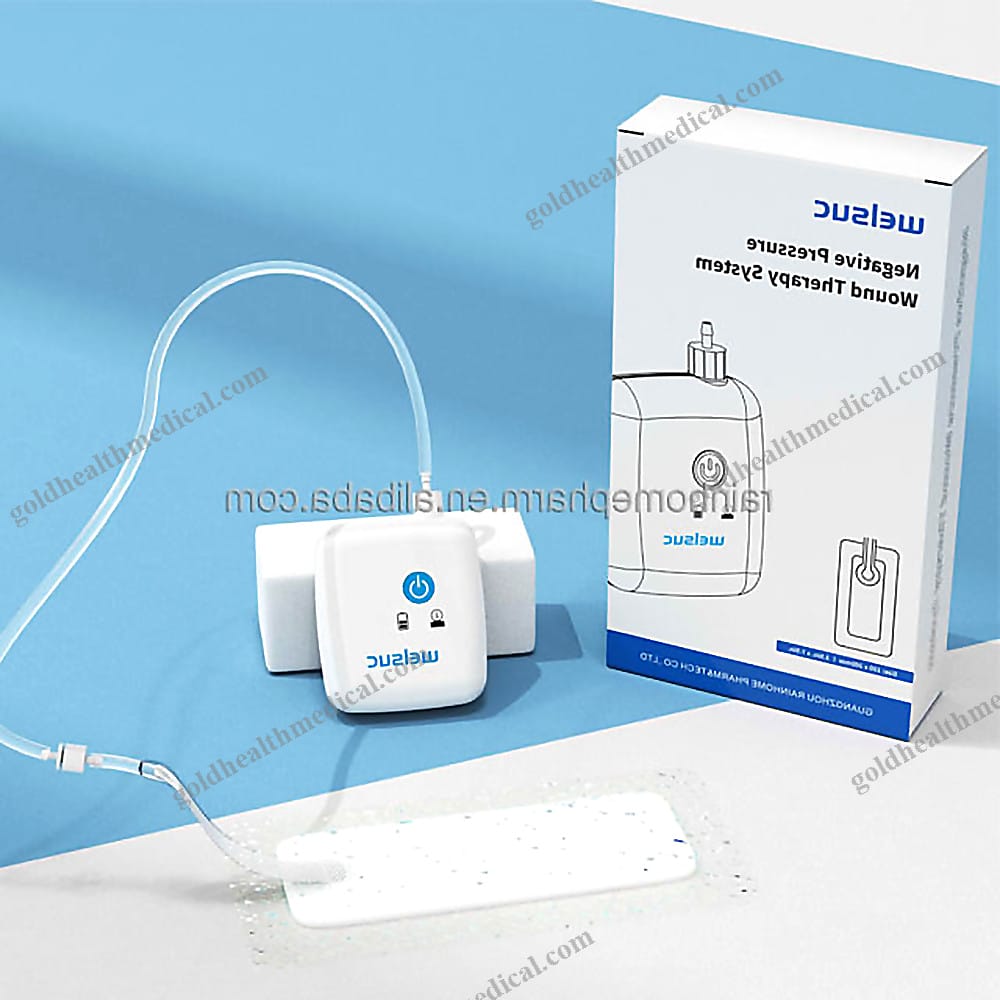

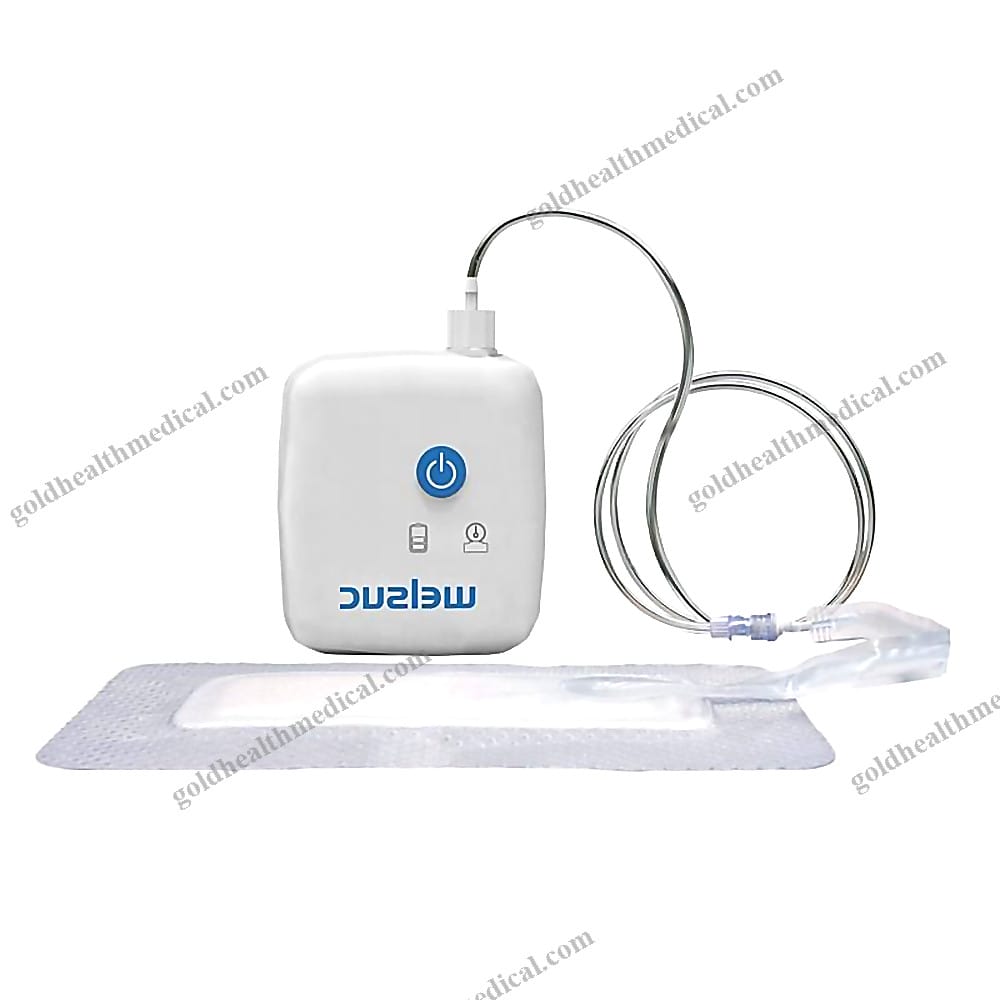

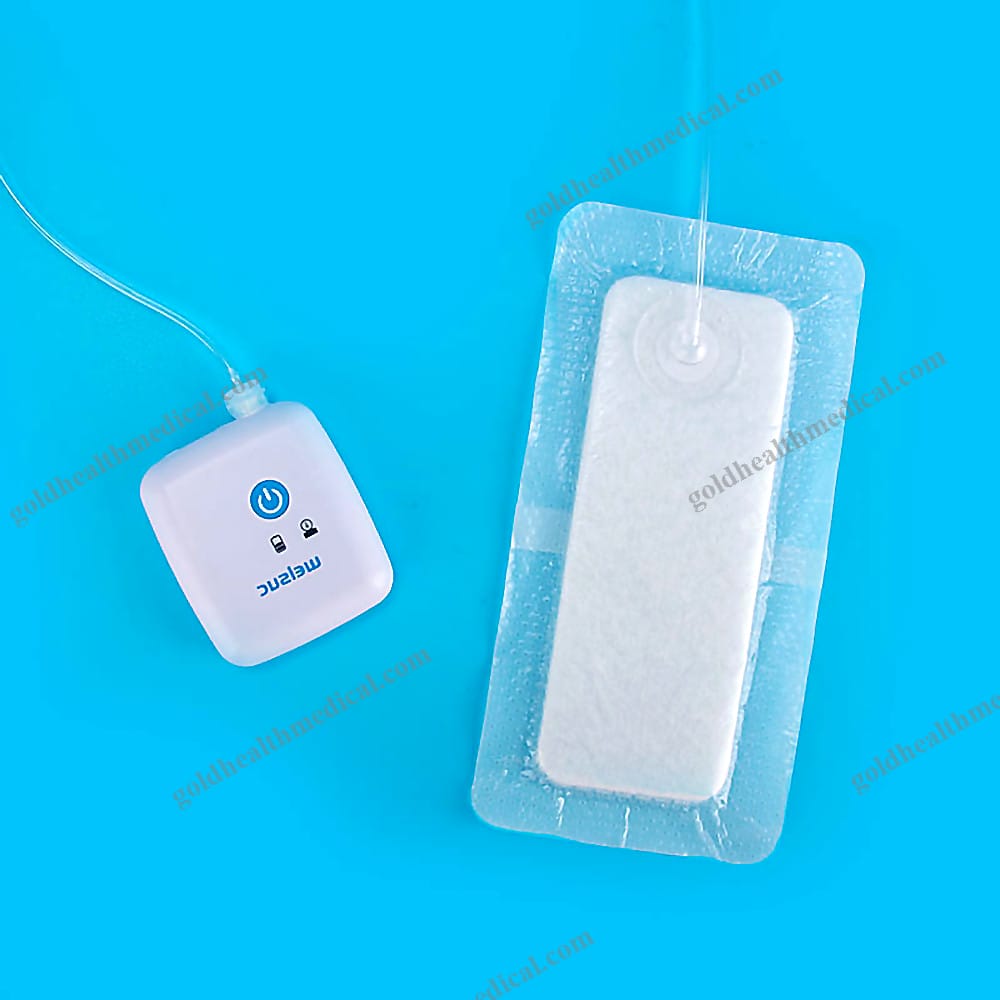

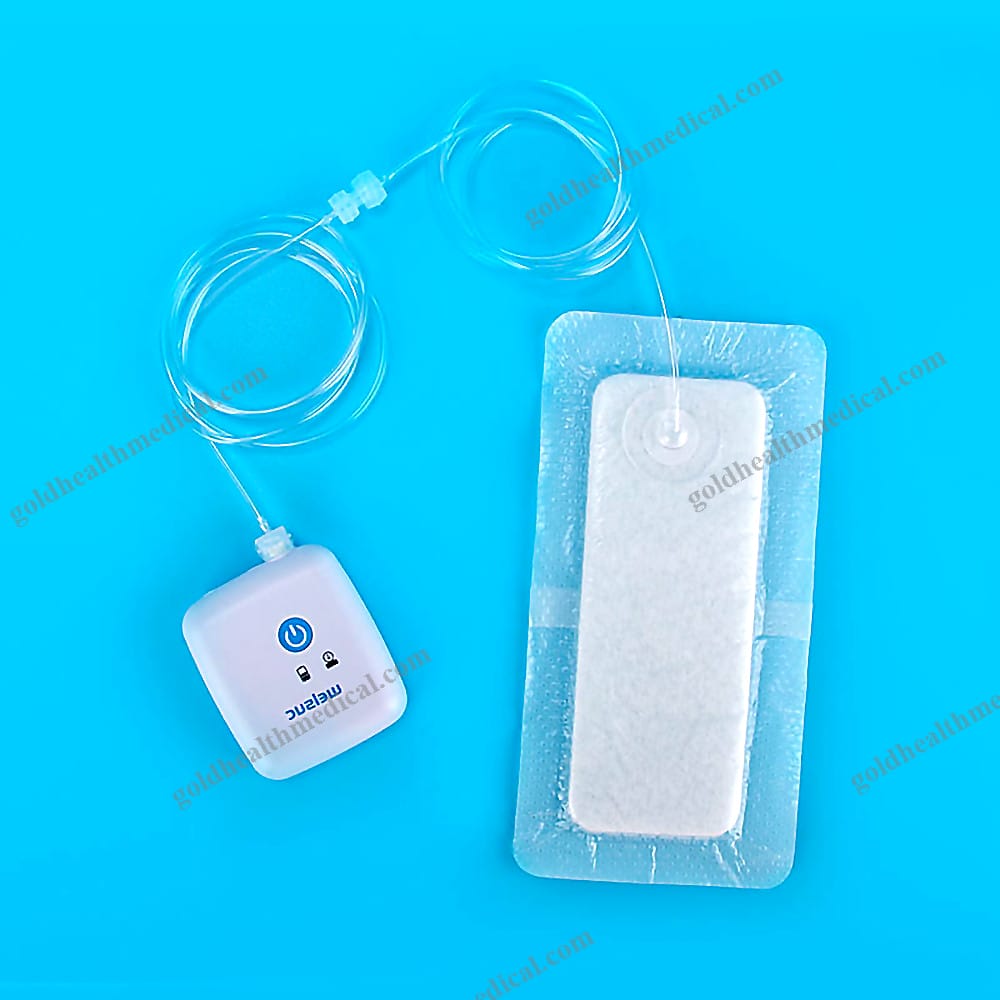

GoldHealth Medical Negative Pressure Wound Therapy System
Product Overview
The GoldHealth Medical Negative Pressure Wound Therapy System is a cutting-edge solution designed to accelerate wound healing through advanced suction technology. This system combines a compact, lightweight pump with a sterile dressing kit to deliver consistent negative pressure at 50–100mmHg, optimized for clinical and home use. By effectively managing exudate through absorption and evaporation, this therapy promotes faster recovery while ensuring patient comfort and hygiene.
Key Features and Specifications
- Compact and Lightweight Design:
- Pump dimensions: 74mm x 61mm x 20cm
Weight: Less than 90g, making it highly portable for in-hospital or home use.
Advanced Pressure Settings:
- Full negative pressure values: -40mmHg, -85mmHg, or -100mmHg.
Airflow rate: Less than 2L/min for precise control.
Battery Life and Mobility:
- Powered by 2xAA 1.5V batteries (LR6/FR6).
Continuous operation for up to 7 days (or 30 days intermittently).
Intelligent Monitoring:
- Visual air leak rate indication to ensure optimal wound sealing.
Multiple alarm functions for blockages, pressure loss, and system errors.
Hygiene and Safety:
- Special disposable drainage bottle with a built-in waste liquid curing function to prevent cross-infection and system blockages.
Three-hole bayonet design for secure assembly and minimal air leakage.
Operating Environment:
- Storage/transport conditions: 5–50°C, 10–95% relative humidity, 700–1060 mbar atmospheric pressure.
Operating conditions: 5–40°C, 10–95% relative humidity, 700–1060 mbar atmospheric pressure.
Compliance:
Meets international standards: IEC60601-1, IEC60601-1-6, and IEC60601-1-11.
Noise Level:
- Operates at less than 45dB, ensuring a quiet and comfortable experience for patients.

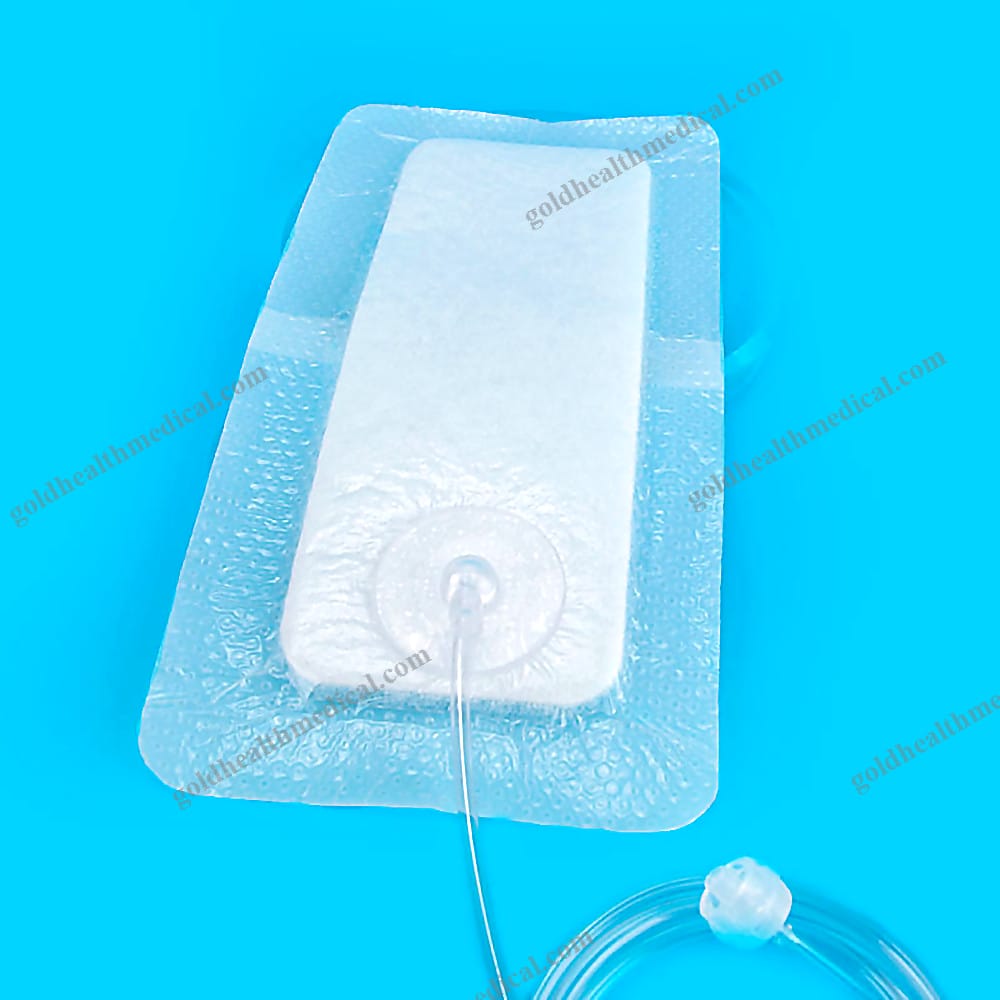

Dressing Options
The system is compatible with soft white dressings in the following sizes:
- 10cm x 20cm
- 10cm x 30cm
- 15cm x 20cm
- 15cm x 30cm
Indications for Use
GoldHealth Medical’s Negative Pressure Wound Therapy System is ideal for patients requiring suction-based wound care. It promotes healing by removing low to moderate levels of exudate and infectious materials. Suitable wound types include:
- Chronic wounds
- Acute wounds
- Traumatic wounds
- Subacute and dehisced wounds
- Partial-thickness burns
- Ulcers (e.g., diabetic or pressure ulcers)
- Flaps and grafts
- Surgically closed incision sites
Unique Selling Points
- Precision and Reliability: The system’s intelligent monitoring features, including air leak detection and blockage alarms, ensure consistent therapy delivery and reduce infection risks.
- Portability and Convenience: With its compact design and long-lasting battery, this system is perfect for both clinical and home environments.
- Hygiene Assurance: The disposable drainage bottle and advanced sealing technology minimize the risk of cross-contamination.
- Versatility: Compatible with a wide range of wound types and dressing sizes, making it adaptable to diverse patient needs.
Clinical Benefits
- Accelerates wound healing by maintaining optimal negative pressure.
- Reduces exudate and infectious materials, promoting a cleaner wound environment.
- Enhances patient comfort with quiet operation and user-friendly design.
GoldHealth Medical is committed to delivering innovative solutions that redefine wound care standards. Our Negative Pressure Wound Therapy System is a testament to our dedication to quality, precision, and patient-centric design.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Overview
GoldHealth Medical presents an advanced Class II medical instrument designed to deliver exceptional performance in a variety of healthcare settings. This negative pressure supply system is meticulously engineered to meet the rigorous demands of modern medical environments, ensuring precision, reliability, and ease of use.
Key Features and Benefits
- Advanced Negative Pressure Technology: Provides consistent and reliable performance, making it ideal for wound care, surgical procedures, and other critical applications.
- Compact and Lightweight Design: With dimensions of just 20x15x10 cm and a weight of 0.5 kg, this system is highly portable and easy to integrate into any workspace.
- Durable Construction: Built to withstand frequent use in demanding environments, ensuring long-term reliability.
- Versatile Applications: Suitable for hospitals, clinics, research labs, rehabilitation centers, and home healthcare.
Technical Specifications
- Instrument Classification: Class II
- Type: Negative Pressure Supply System
- Single Package Size: 20x15x10 cm
- Single Gross Weight: 0.500 kg
- Packaging: Corrugated cardboard box for secure transport
Supply and Delivery
- High Production Capacity: Up to 50,000 units per month to meet bulk orders and urgent demands.
- Global Shipping: Products are shipped from Guangzhou, ensuring efficient delivery worldwide.
Warranty and Support
- Comprehensive warranty to safeguard your investment.
- Dedicated after-sales service team for technical support and maintenance.
- Hassle-free return and replacement policy for added peace of mind.
GoldHealth Medical is committed to delivering innovative solutions that empower healthcare professionals and enhance patient outcomes. This negative pressure supply system exemplifies our dedication to quality, precision, and user-centric design.
