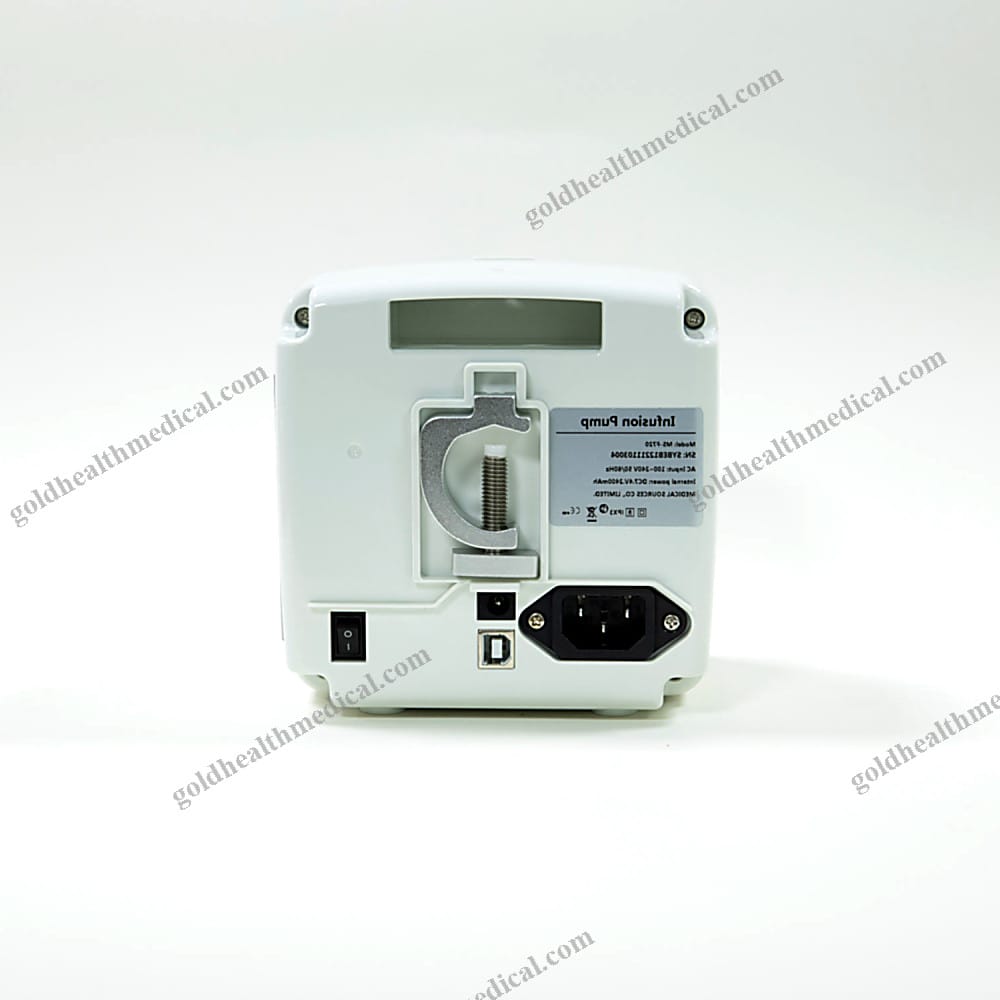

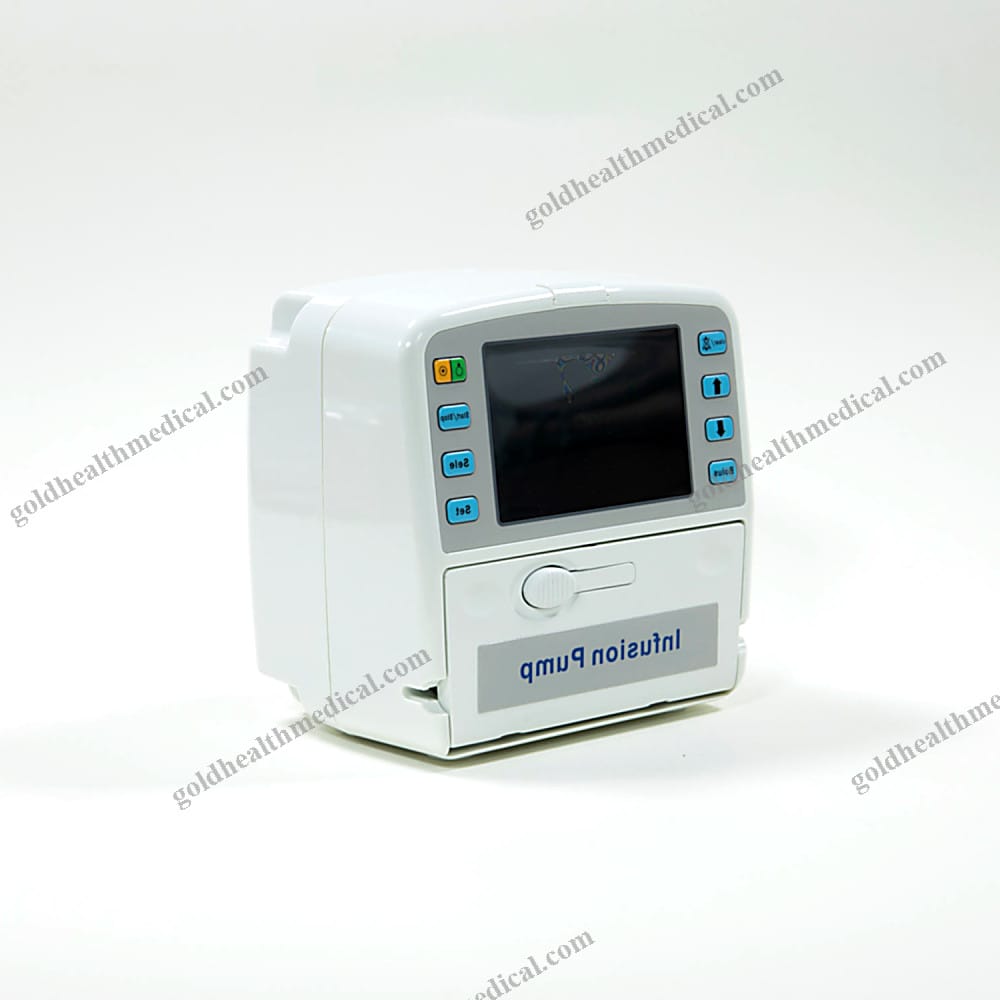

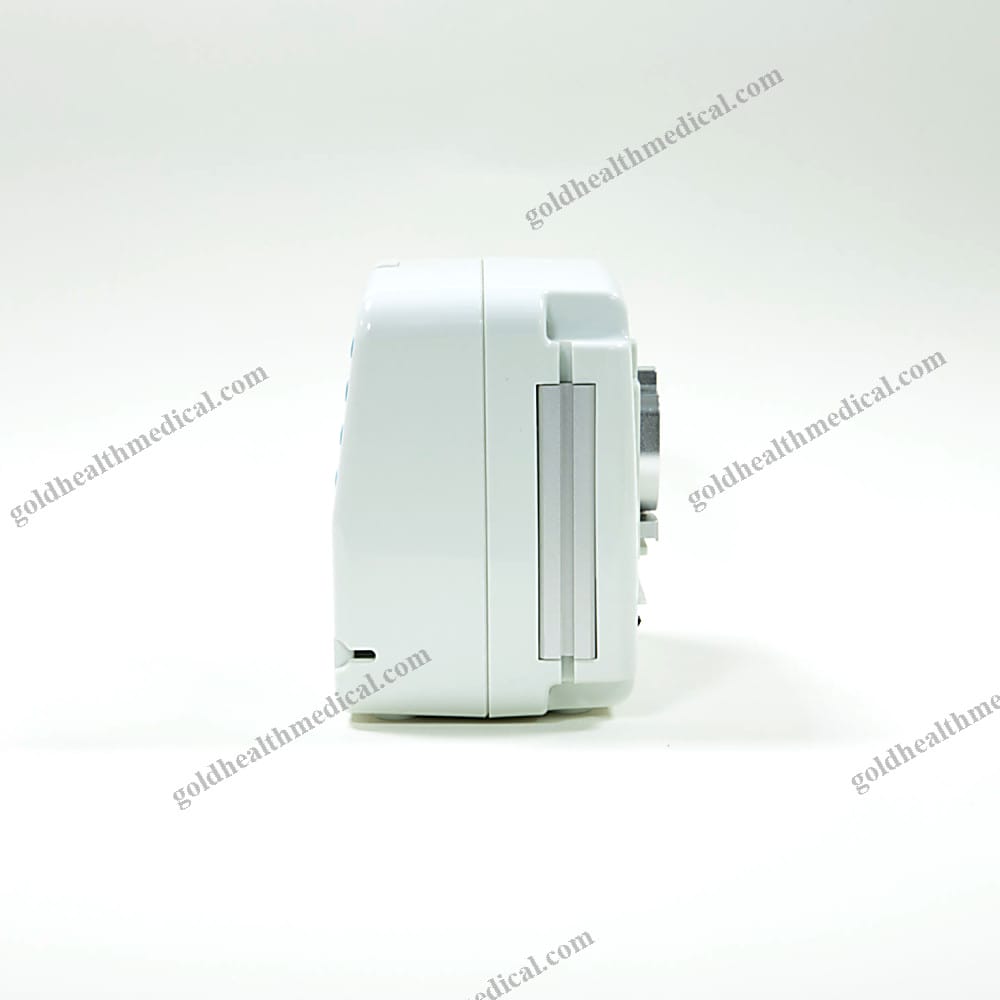

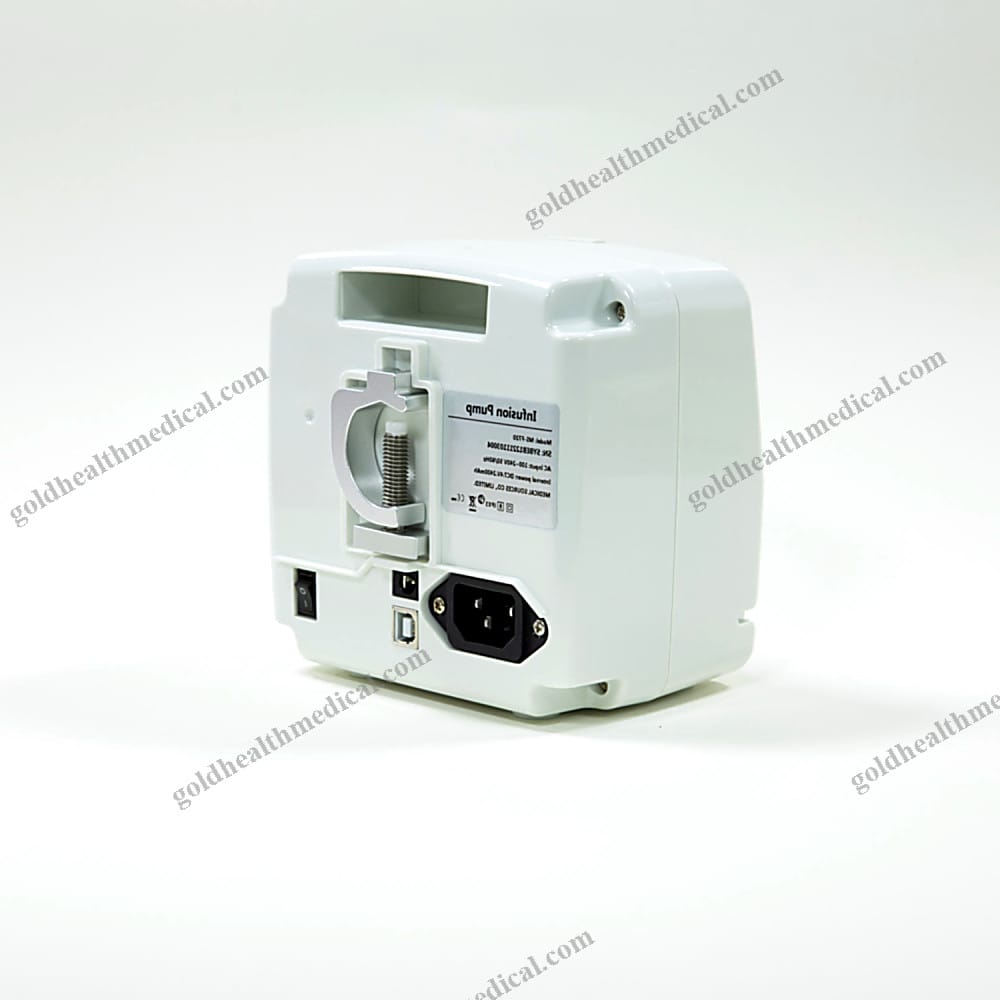

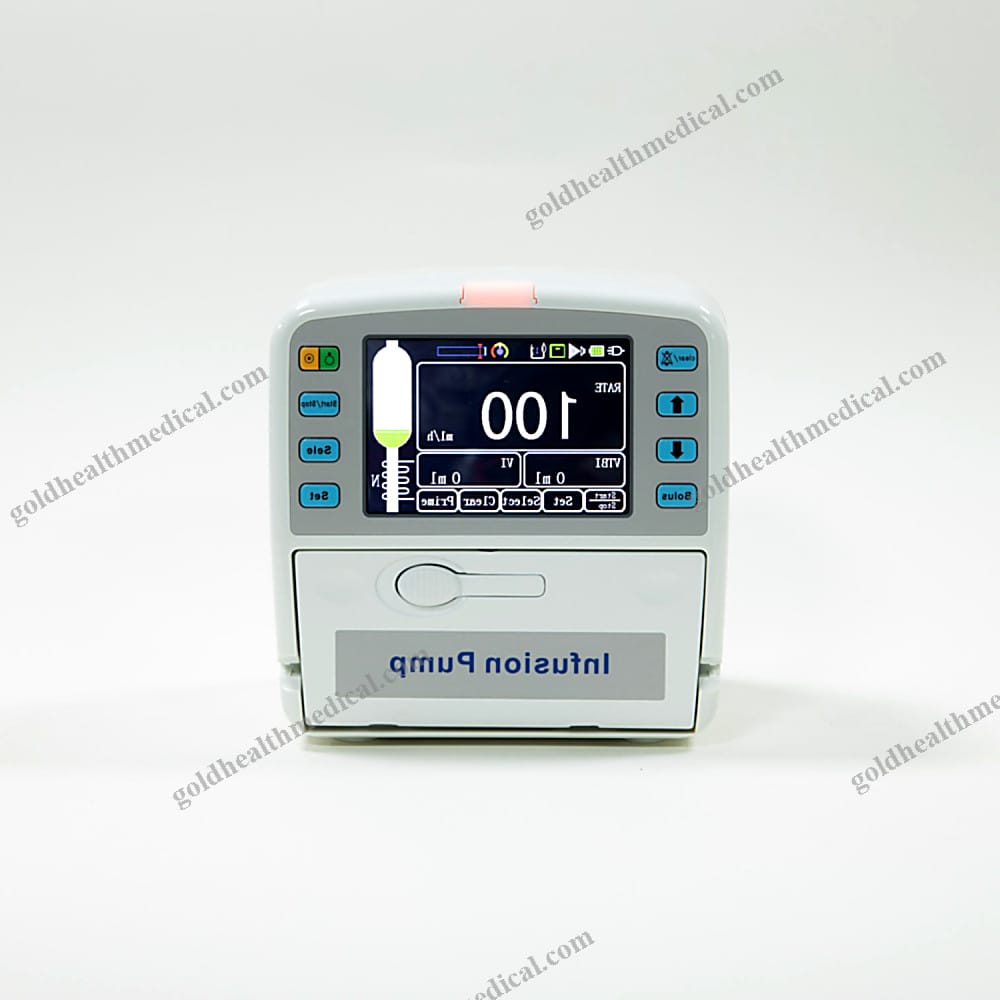

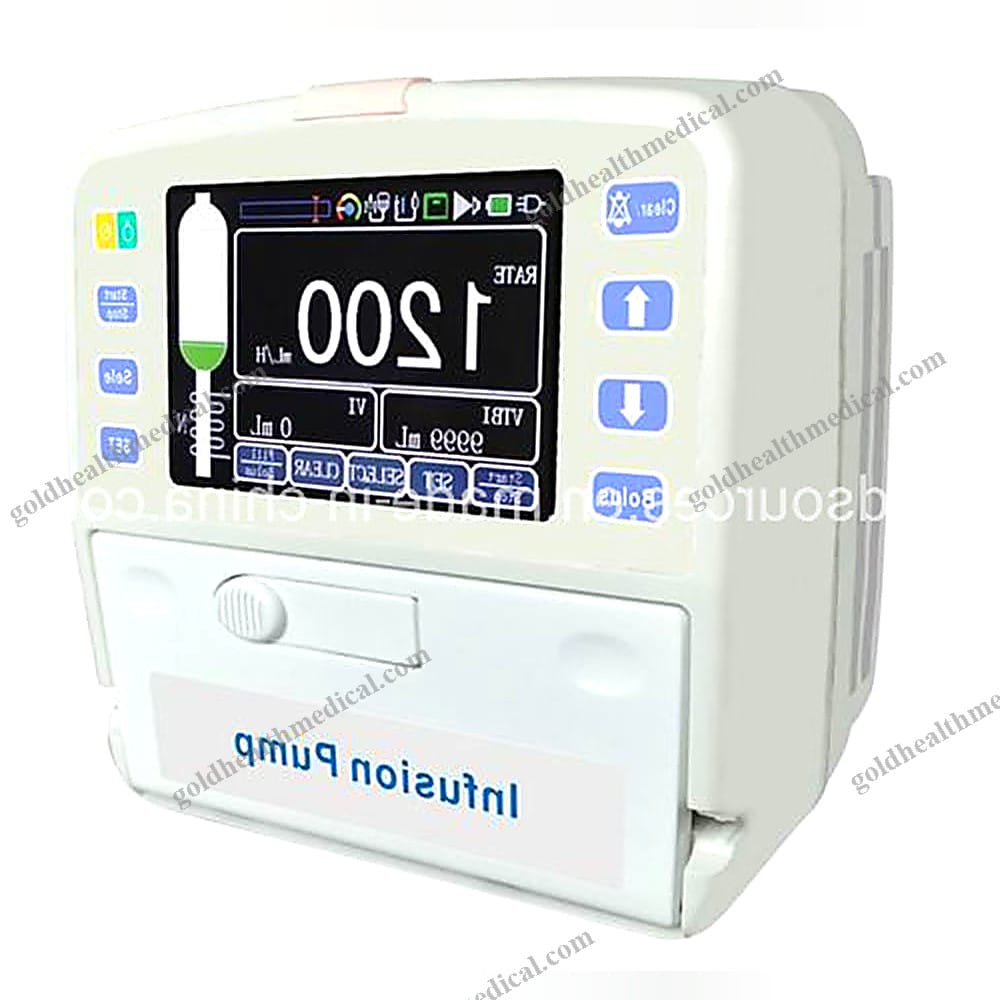

MSF720 ICU Surgical Infusion Pump
Reference: 1601361248327
Infusion, Nursing & Protective Instruments（old）
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical Infusion Pump
Experience precision and versatility with the GoldHealth Medical Infusion Pump, designed to meet the demands of modern healthcare environments. Featuring an intuitive 1.3.5-inch TFT LCD touch screen, this device offers seamless operation and real-time monitoring for enhanced patient care.
Key Features
- Multiple Infusion Modes: Operate in Rate Mode, Drip Mode, Micro Mode, Time Mode, Body Weight Mode, and optional Intermittent Infusion or Drug Library Mode for tailored treatment plans.
- Wide Compatibility: Supports a broad range of infusion sets, ensuring adaptability across various clinical settings.
- Advanced Heating Function: A unique built-in heating system ensures optimal fluid temperature, enhancing patient comfort during infusion.
- High Precision: Achieve infusion accuracy of ±5%, delivering reliable and consistent performance.
- Comprehensive Alarm System: Multi-level visual and audible alarms provide alerts for Door Open, Air-In-Line, Occlusion, Infusion Completion, Low Battery, and more, ensuring maximum safety.
Technical Specifications
- Flow Rate Range:
- Standard: 0.1–1200 ml/h
- Micro Mode: 0.1–99.9 ml/h (in 0.1 ml increments)
- Bolus Rate: 300–1200 ml/h
- KVO Rate: 1–5 ml/h
- Purge Rate: 600 ml/h
- Volume to be Infused: 0–9999 ml
- Volume Infused: 0–36,000 ml
- Air Bubble Detection: Ultrasound sensor with four adjustable sensitivity levels for precise air-in-line monitoring.
- Occlusion Pressure Settings: Three adjustable levels (Low, Middle, High) for customized pressure control.
- History Records: Stores up to 2000 infusion records for comprehensive tracking and analysis.
- Power Supply:
- AC: 100–240V, 50/60Hz
- DC: 12V ±1V
- Battery Recharge Time:
- 10 hours with power on
- 3 hours with power off
- Power Consumption: 25VA
- Dimensions: 145 x 100 x 120 mm (LxWxH)
- Weight: 1.4 kg
Operating and Storage Conditions
- Operating Temperature: 5°C to +60°C
- Storage Temperature: -5°C to +45°C
- Relative Humidity: 10–95%
- Atmospheric Pressure: 50–106 kPa
GoldHealth Medical’s Infusion Pump combines cutting-edge technology with user-centric design, making it an indispensable tool for hospitals, clinics, research labs, and home care settings. Elevate your infusion therapy standards with unmatched precision, safety, and adaptability.
