JPD800B Emergency Patient Monitor with 12
Reference: 1601219515409
Infusion, Nursing & Protective Instruments（old）
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical First-aid Patient Monitor
Experience the future of emergency care with GoldHealth Medical's advanced first-aid patient monitor. Designed for seamless operation in critical situations, this state-of-the-art monitor combines cutting-edge technology with intuitive usability.
Key Features

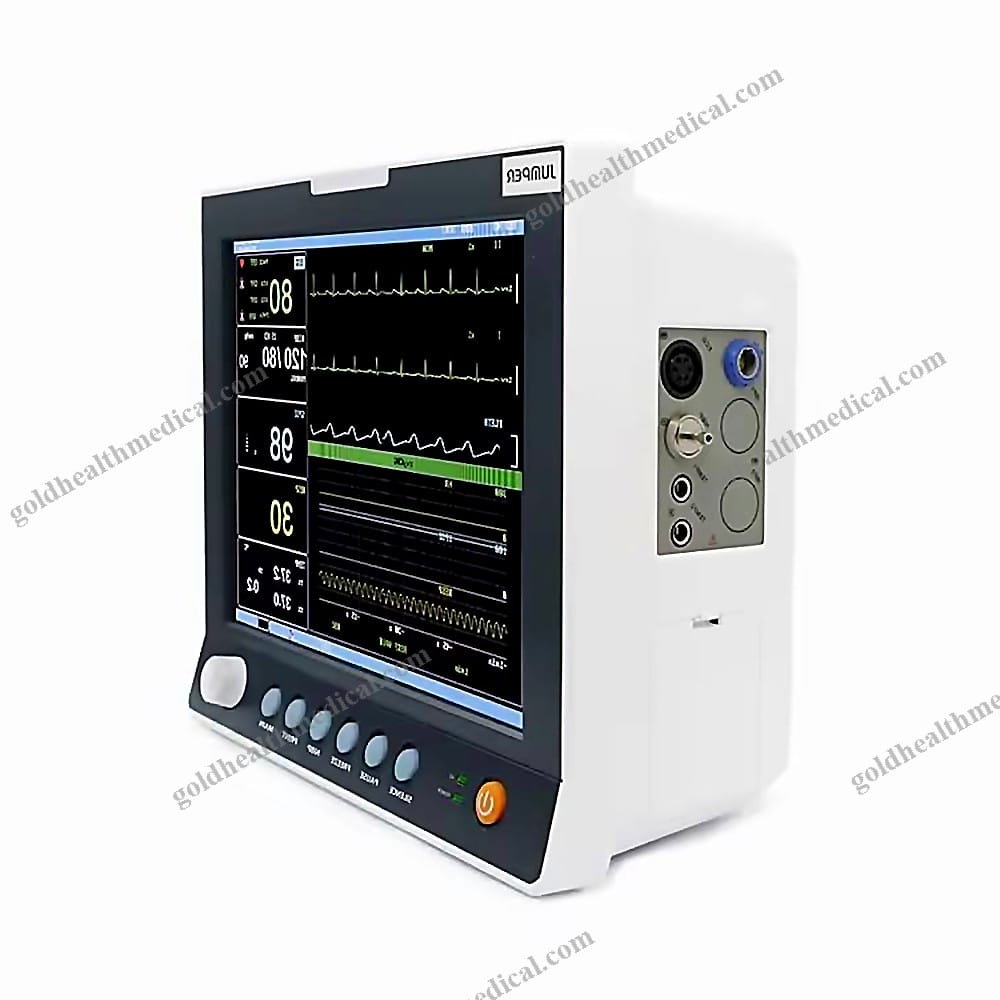

- Crystal-clear Display: Equipped with a 12.1-inch color TFT screen, capable of displaying up to 12 waveforms simultaneously
- User-friendly Interface: Simplified one-level menu system for effortless navigation
- Comprehensive Monitoring: Tracks ECG/RESP, SpO2, NIBP, TEMP, Pulse Rate, and optional IBP parameters
- Extensive Data Storage: Stores up to 720 hours of graphic and tabular trends for all parameters
- Versatile Applications: Suitable for adult, pediatric, and neonatal patients
- Advanced Analysis: Includes arrhythmia analysis, ST calculation, and pace analysis
- Robust Protection: Anti-ESU and anti-defibrillator capabilities
- Network Integration: Standard network interface for connection to central monitoring systems
Technical Specifications
ECG Monitoring
- Lead Modes: 5-Lead (R, L, F, N, C or RA, LA, LL, RL, V) and 3-Lead (R, L, F or RA, LA, LL)
- Waveform Channels: 2-channel for 5-Lead, 1-channel for 3-Lead
- Gain Settings: X2.5mm/mV to X20mm/mV, plus auto-adjust
- Bandwidth Options:
- Surgery: 1-15 Hz
- Monitor: 0.5-35 Hz
- Diagnostic: 0.05-100 Hz
- CMRR: >105 dB (Monitor/Operation), >85 dB (Diagnosis)
Respiration Monitoring
- Method: Impedance between R-F (RA-LL)
- Measuring Range:
- Adult: 0-120 rpm
- Neonatal/Pediatric: 0-150 rpm
- Bandwidth: 0.3-2.5 Hz
Non-Invasive Blood Pressure (NIBP)
- Measurement Modes: Manual, Auto, STAT
- Measuring Intervals in AUTO Mode: 1-480 minutes
- Measuring Period in STAT Mode: 5 minutes
- Overpressure Protection:
- Adult: 297 ± 3 mmHg
- Pediatric: 240 ± 3 mmHg
- Neonatal: 147 ± 3 mmHg
SpO2 Monitoring
- Measuring Range: 0-100%
- Accuracy: ±2% (70%-100% range)
- Actualization Interval: ~1 second
Temperature Monitoring
- Measuring Range: 0-50°C
- Resolution: 0.1°C
- Accuracy: ±0.1°C
Optional Parameters
- Invasive Blood Pressure (IBP)
- Measurement Range:
- ART: 0-300 mmHg
- PA: -6 to 120 mmHg
- CVP/RAP/LAP/ICP: -10 to 40 mmHg
- P1/P2: -10 to 300 mmHg
-
Accuracy: 2% or 1 mmHg (whichever is greater)
-
End-Tidal CO2 (ETCO2)
- Measurement Range: 0%-13%
- Accuracy: ±2 mmHg (<5.0% measurement value)
- Response Time: 180ms
Unique Advantages
- Unparalleled Versatility: Adapts to various clinical settings with its wide parameter range and patient-specific modes
- Enhanced Safety Features: Advanced protection mechanisms ensure reliable performance during critical procedures
- Seamless Integration: Standardized network interface enables effortless connection to existing healthcare infrastructure
- Precision Engineering: High-resolution measurements and rapid response times deliver accurate, real-time patient data
GoldHealth Medical's first-aid patient monitor represents the perfect fusion of innovation and practicality, empowering healthcare professionals with the tools they need to deliver exceptional patient care in emergency situations.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Company Name: GoldHealth Medical
Product Introduction:
The GoldHealth Medical Patient Monitor is a state-of-the-art device designed to deliver precision, reliability, and versatility in patient care. Engineered for both clinical and home environments, this monitor offers seamless integration into any healthcare setting, ensuring accurate monitoring of vital signs for patients of all ages. Its sleek design, intuitive interface, and advanced technology make it an indispensable tool for modern healthcare professionals.
Key Features and Specifications:
- Display: A crystal-clear 12.1-inch LED screen provides sharp, easy-to-read visuals for real-time monitoring.
- Parameters Monitored:
- ECG (Electrocardiogram)
- NIBP (Non-Invasive Blood Pressure)
- SPO2 (Oxygen Saturation)
- RESP (Respiratory Rate)
- TEMP (Body Temperature)
- PR (Pulse Rate)
- Applications: Suitable for adult, pediatric, and neonatal patients, ensuring comprehensive care across diverse demographics.
- Instrument Classification: Class II medical device, ensuring safety and efficacy in critical monitoring scenarios.
Packaging Details:
- Single Package Size: 60 x 50 x 40 cm
- Single Gross Weight: 6.500 kg
Warranty and Support:
- Warranty: Backed by a 1-year warranty, guaranteeing peace of mind and long-term reliability.
- After-Sale Service: Access to online technical support ensures uninterrupted performance and quick resolution of any issues.
Unique Selling Points:
- Designed for versatility, supporting multiple patient types and monitoring needs.
- Compact and lightweight design for easy transport and installation.
- Advanced parameter tracking ensures accurate and actionable insights for better patient outcomes.
GoldHealth Medical’s Patient Monitor is the ultimate solution for healthcare providers seeking cutting-edge technology and uncompromising quality in patient care.
