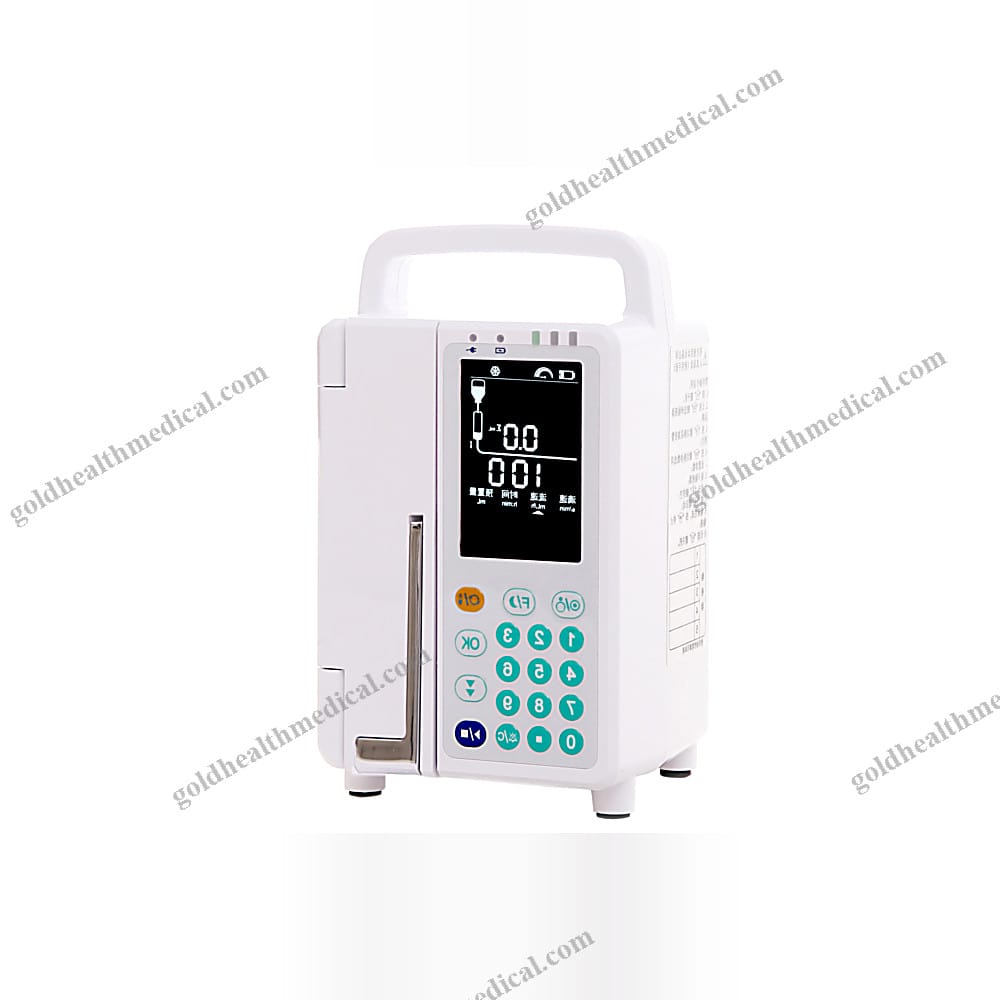

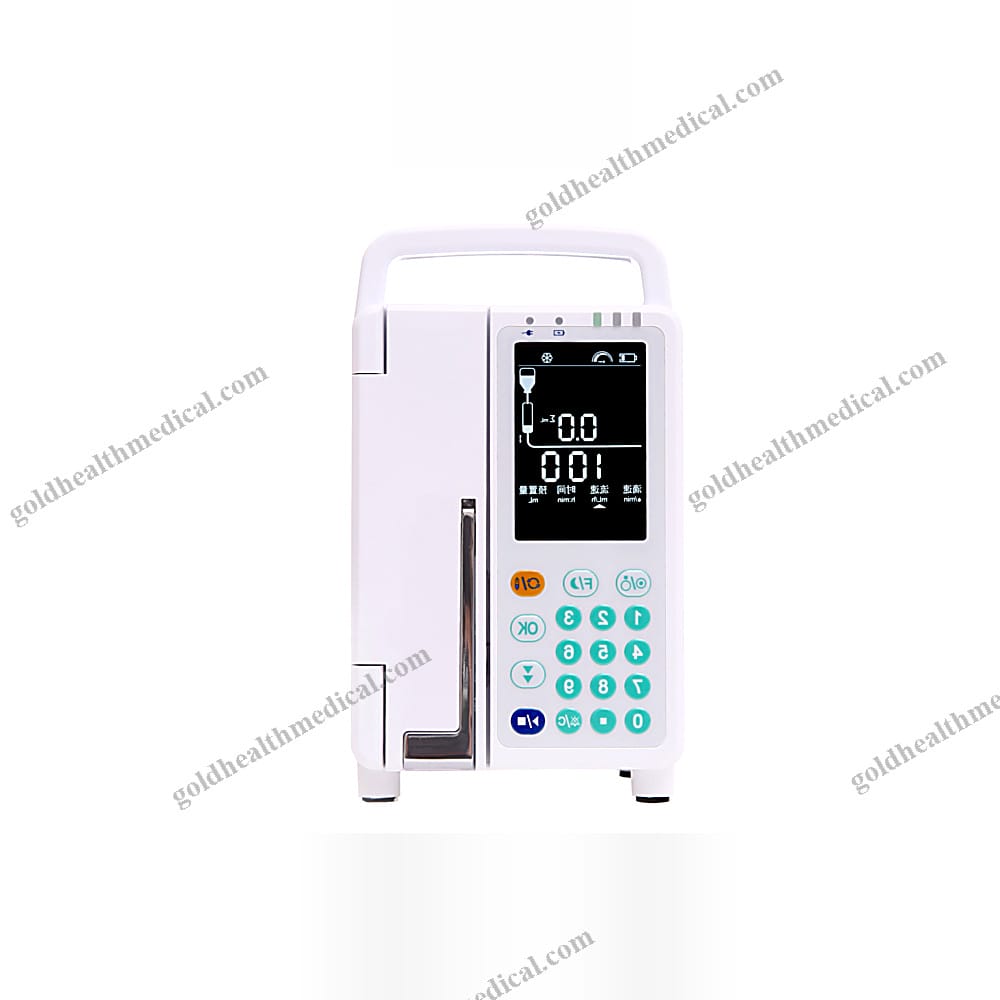

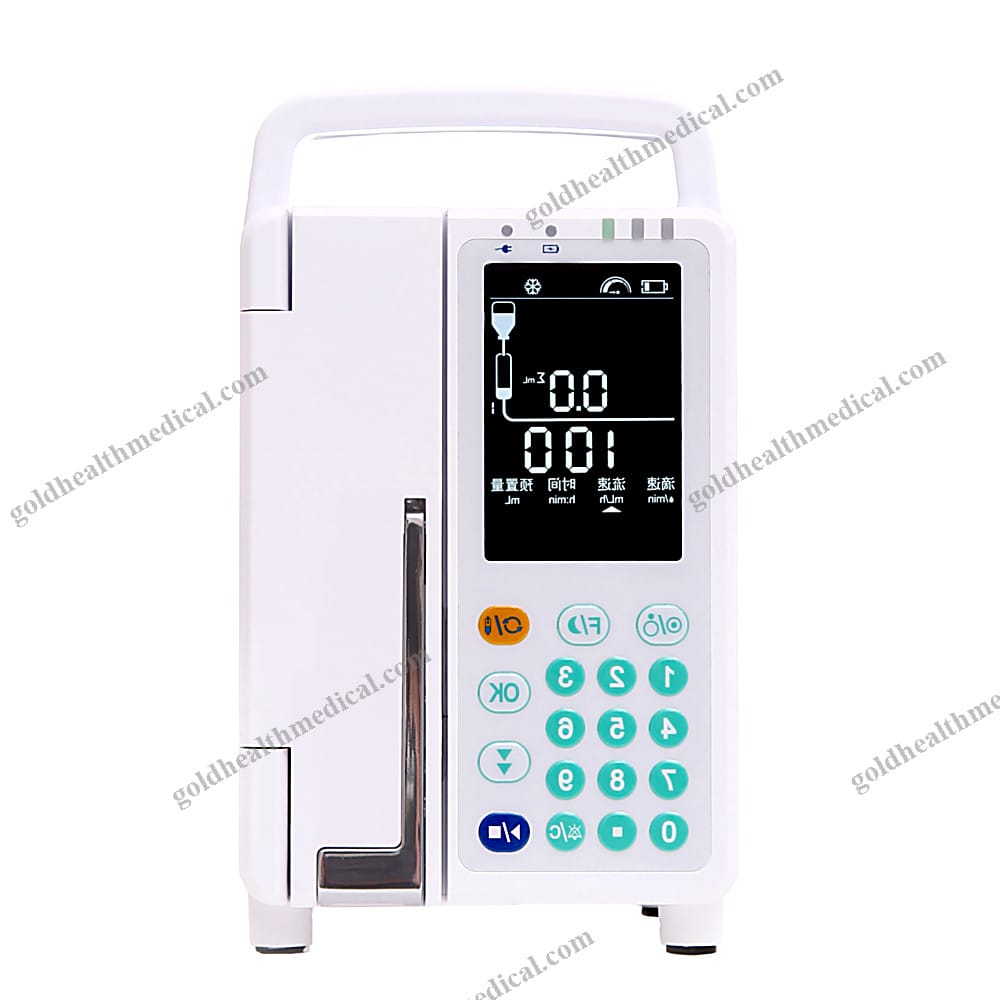

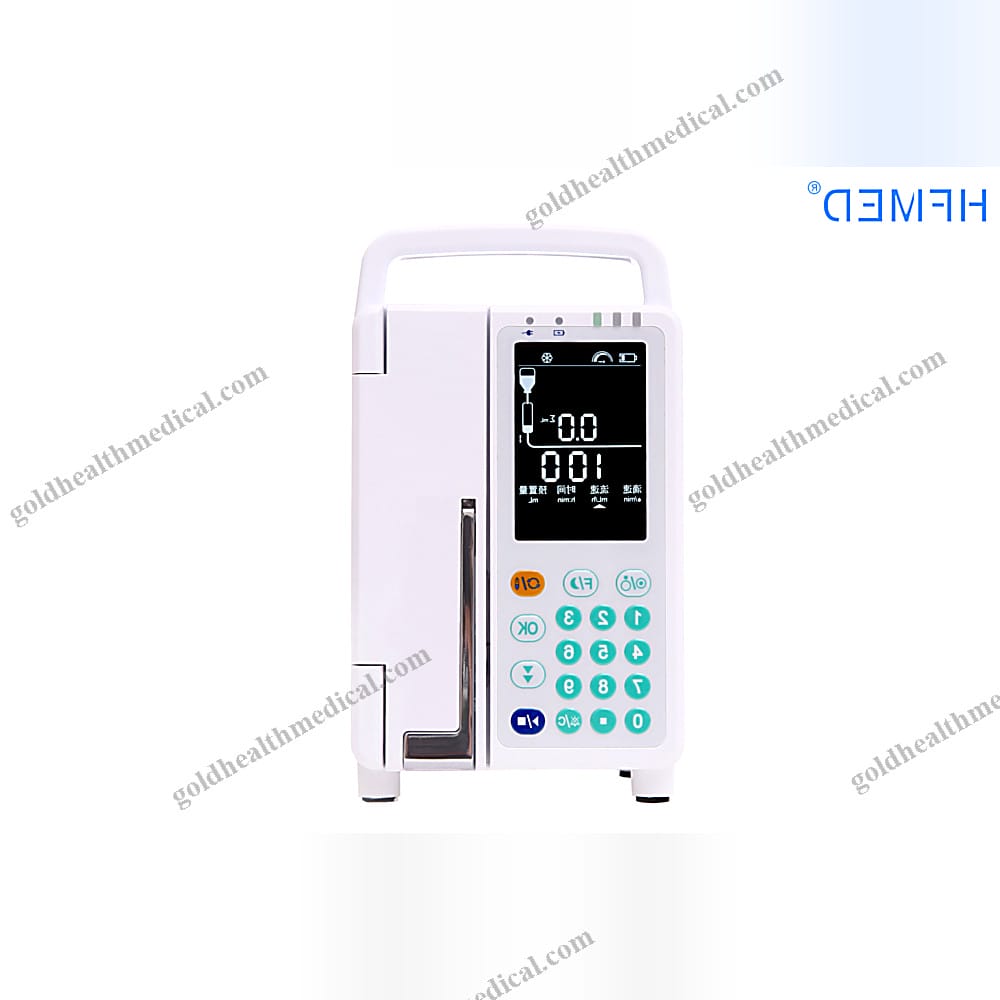

HFSPA112 Portable ICU Infusion Pump
Reference: 1601103416029
Infusion, Nursing & Protective Instruments（old）
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical presents an advanced infusion pump designed to redefine precision and reliability in medical fluid delivery.
- Infusion Principle: Utilizes a state-of-the-art fingertip peristaltic pump mechanism, ensuring consistent and accurate flow.
- Set Compatibility: Seamlessly integrates with an open system, accommodating all brands of qualified PVC and TPE IV sets with an external diameter ranging from 3.8mm to 4.2mm.
- Flow Rate Range: Offers an extensive flow rate range from 0.1ml/h to 1200ml/h, catering to diverse clinical needs.
- Infusion Modes: Multiple modes including Rate, Rate-Time, Rate-Volume, Time-Volume, Drop-Volume, Drop-Time, and Body Weight for versatile application.
- Drug Library: Features a comprehensive drug library with 20 drug entries, each with a unique drug code display for enhanced safety.
- Purge/Bolus Rate: Adjustable purge/bolus rate from 1ml/h to 1200ml/h, with a default setting of 800ml/h and increments of 1ml/h.
- Single Bolus Volume: Customizable single bolus volume from 1.0ml to 10ml, with a default of 3ml.
- Time Preset: Allows time presets from 00:01 to 99:59 (Hour:Minute) for precise scheduling.
- Volume Range: Supports infusion volumes from 1ml to 9999ml.
- Drop Range: Adjustable drop rate from 1 to 400 drops per minute, with step increments of 1 drop.
- Accuracy: Maintains an exceptional accuracy of ±5%, ensuring reliable performance.
- Total Volume Infused: Tracks total infused volume up to 9999ml.
- Pressure Settings: High (40 KPa ± 20KPa), Middle (60 KPa ± 20KPa), and Low (100KPa ± 20KPa) pressure settings for various applications.
- Air in Line Detection: Employs ultrasonic wave technology for detecting air in the line, enhancing patient safety.
- Alarms: Comprehensive visible and audible alarms for multiple scenarios including air in line, downstream occlusion, door open, VTBI completion, near completion, low battery, battery exhausted, low temperature, motor malfunction, AC disconnection, AC connection, IV set dislocation, MPU error, battery charging, battery charging completion, and circuit malfunction.
- KVO Rate: Keep Vein Open (KVO) rate adjustable from 1ml/h to 5ml/h, with a default of 1ml/h and user-programmable increments of 0.1ml/h.
- Internal Battery: Equipped with a long-lasting lithium battery (11.1V/2000mAh), providing over 4 hours of backup power.
- Power Consumption: Efficient power usage at 30VA.
- Power Supply: Operates on AC 100V-240V, 50HZ/60HZ.
- Classification: Class I, Type CF, IPX4 rated for safety and reliability.
- Dimensions & Weight: Compact design measuring 13x17.5x23 cm and weighing 2Kg for portability and ease of use.
- Optional Function: Available with an ambulance DC 12V power option.
GoldHealth Medical is committed to innovation and quality, delivering cutting-edge medical solutions trusted by healthcare professionals worldwide.
- Product Highlights:
- Advanced fingertip peristaltic pump technology
- Versatile compatibility with multiple IV sets
- Comprehensive drug library for enhanced safety
- Multiple infusion modes for tailored treatment
- Reliable ultrasonic air detection and robust alarm system
- Long-lasting internal battery for uninterrupted performance
Experience unparalleled precision and reliability with GoldHealth Medical's infusion solutions.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
GoldHealth Medical presents the PrecisionFlow Infusion Pump
Engineered for accuracy, reliability, and versatility, the PrecisionFlow Infusion Pump is designed to meet the demands of modern healthcare environments. Whether in hospitals, clinics, research labs, or home care settings, this device delivers unparalleled performance with a focus on patient safety and operational efficiency.
Key Features
- Advanced Peristaltic Technology: Utilizes a fingertip peristaltic pump mechanism for precise fluid delivery, ensuring consistent and reliable performance.
- Wide Volume Range: Supports infusion volumes from 1ml to 9999ml, accommodating diverse medical applications.
- Customizable Flow Rates: Purge/Bolus rate adjustable from 1-1200ml/h (default 800ml/h), with step-by-step control in 1ml/h increments for ultimate precision.
- Dual Power Source: Operates on electricity, ensuring uninterrupted functionality in critical scenarios.
- Compact and Portable Design: Lightweight at just 2.000 kg with dimensions of 13x17.5x23 cm, making it easy to transport and store.
Applications
- Hospitals and Clinics
- Research Laboratories
- Rehabilitation Centers
- Home Healthcare Settings
Technical Specifications
- Instrument Classification: Class I Medical Device
- Color Options: Green and White
- Certifications: CE, ISO compliance for global standards of safety and quality
- Volume Range: 1ml to 9999ml
- Purge/Bolus Rate: Adjustable from 1-1200ml/h (default 800ml/h, step by 1ml/h)
Why Choose PrecisionFlow?
- Unmatched Precision: Delivers fluids with exactness, minimizing errors and enhancing patient outcomes.
- User-Friendly Interface: Intuitive controls simplify operation, even in high-pressure environments.
- Durable and Reliable: Built to withstand the rigors of daily use in demanding medical settings.
- Comprehensive Support: Backed by a 1-year warranty and online technical support to ensure seamless integration and operation.
GoldHealth Medical is committed to advancing healthcare through innovative solutions. The PrecisionFlow Infusion Pump exemplifies our dedication to quality, precision, and patient care. Elevate your facility’s capabilities with a device that combines cutting-edge technology with practical design.
Experience the GoldHealth Medical difference today.
