Dual Column DR XRay System Pro Plus
Reference: 1601275843275
High-Energy-Ray Medical Equipments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

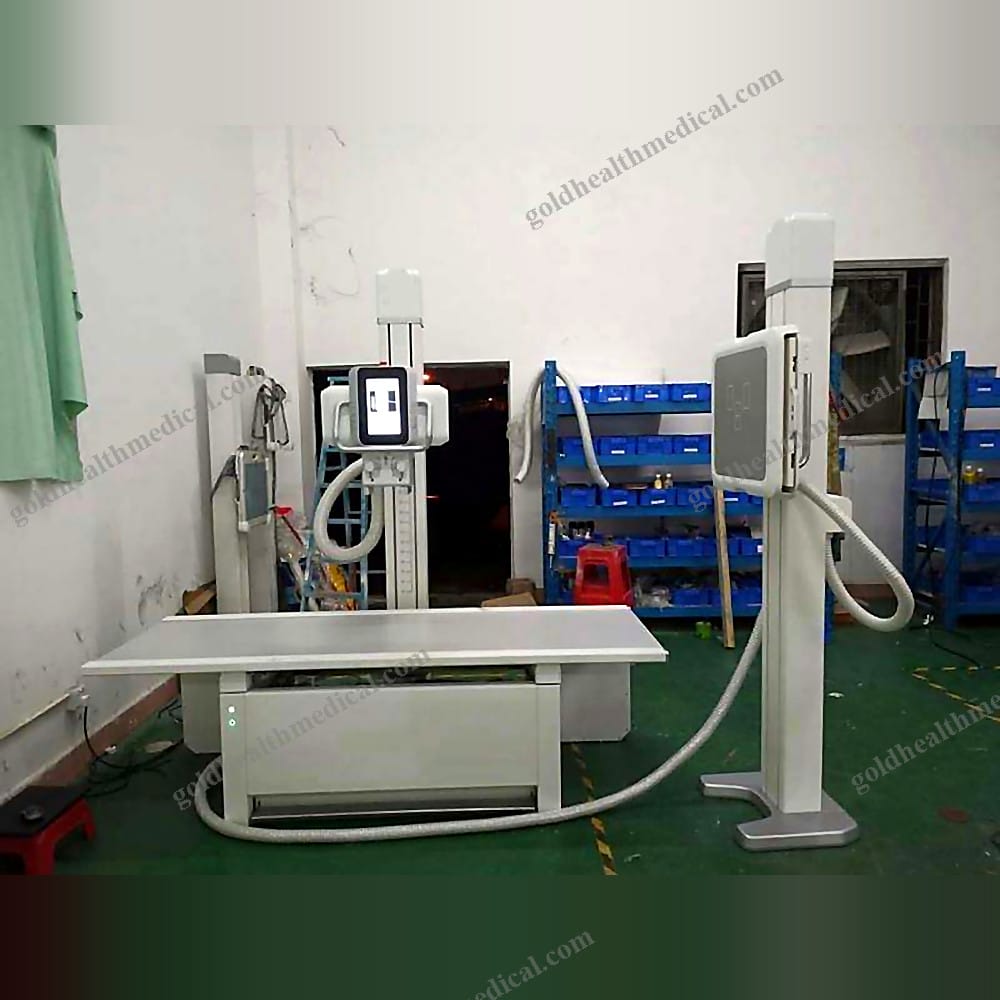

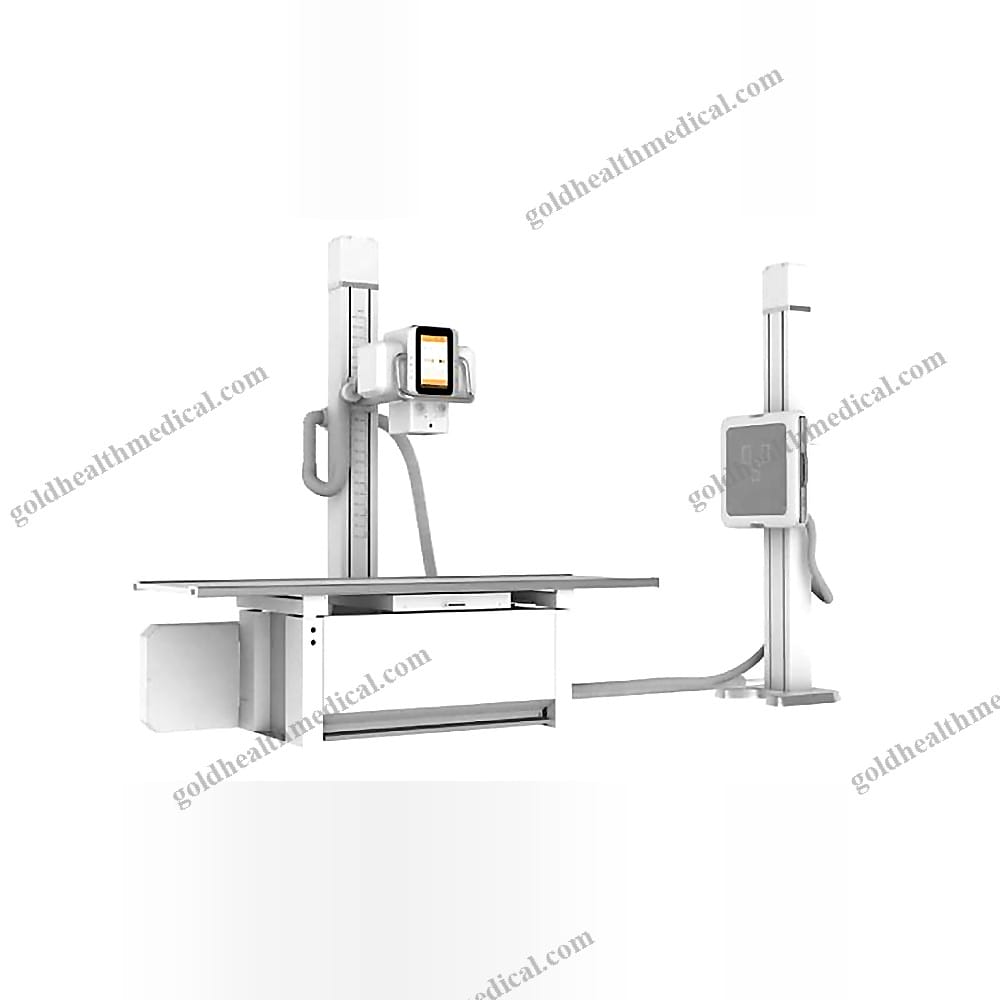

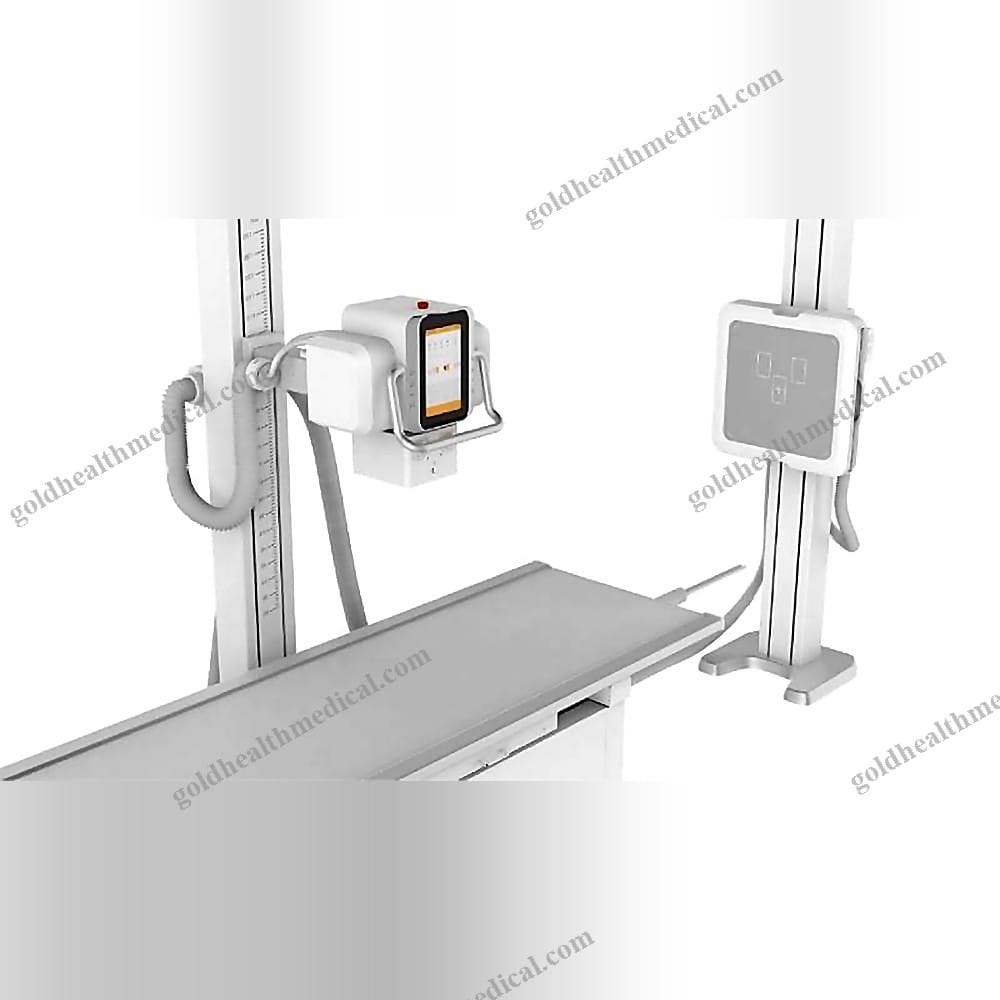

GoldHealth Medical Digital X-ray System
GoldHealth Medical proudly introduces its cutting-edge digital X-ray system, a pinnacle of engineering designed to meet the diverse needs of clinical departments. This electric double-column DR system is meticulously crafted with a high-level design concept, professional manufacturing process, and rigorous testing protocols to deliver unparalleled performance.
Key Features
- Flexible and Reliable Rack Design
- Robust rack profile with in-line rails for seamless operation.
- One-piece design ensures flexibility and ease of use.
- Power-assisted functionality allows effortless one-hand operation.
- Durable construction minimizes wear on consumable parts, ensuring extended mechanical life.
-
Multiple configurations available, including single and dual detector setups, tailored to meet various clinical requirements.
-

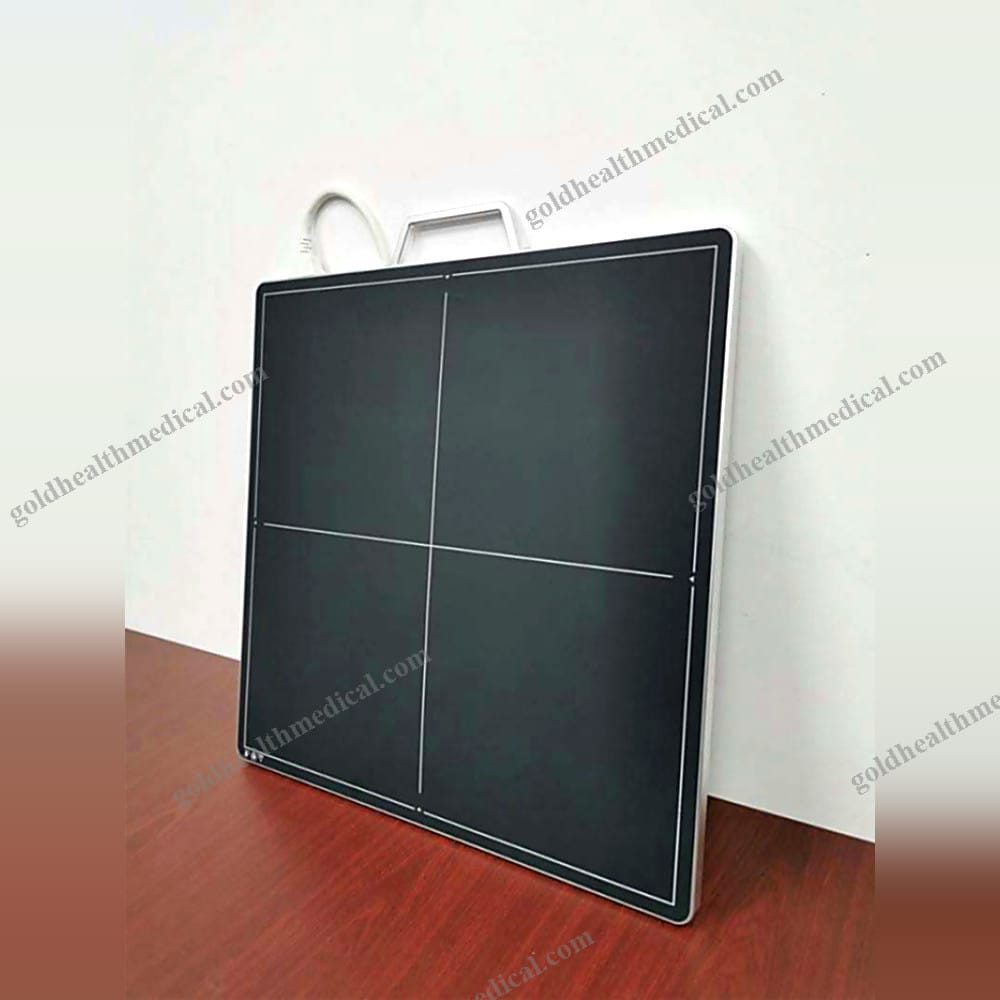

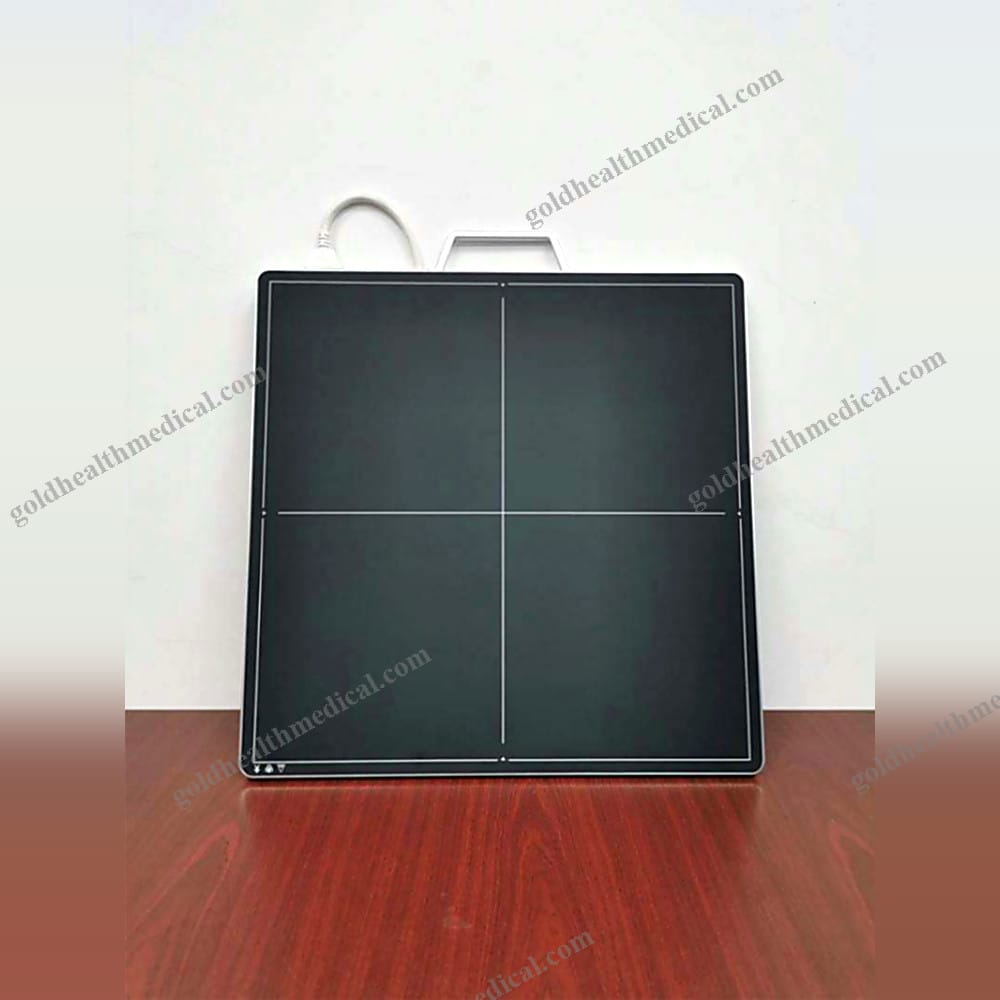

HD Digital Large Detector
-
Amorphous silicon large detector delivers ultimate resolution, capturing every detail with precision.
-
High-Performance High Voltage Generator
- 500kHz UHF inverter frequency with KV rise time <500 microseconds and ripple factor <1% for crystal-clear imaging.
- Stable performance even with network voltage fluctuations up to +30%.
-
Optional AEC function ensures uniform and stable images, simplifying the diagnostic process for medical professionals.
-
High-Efficiency X-ray Tube
- Dual focus (0.6/1.2mm) for comprehensive tissue detail and accurate diagnosis.
- High heat capacity tube assembly supports continuous operation without overheating concerns.
Technical Specifications
- Power Requirements
- Voltage: AC380V/400V±10%
- Frequency: 50Hz
- Resistance: ≤0.1Ω
-
Capacity: ≥63kVA
-
Mechanical Parameters
- Column vertical movement distance: 1160mm (±5%)
- Column lateral movement distance: 1730mm (±5%)
- Chest film frame lifting distance: ≥1200mm
- Tube assembly rotation angle: -90°~+90° (manual)
- Column rotation angle: -180°~+180° (manual)
- Patient table X-axis movement distance: 900mm (±5%)
- Patient table Y-axis movement distance: 260mm (±5%)
- Patient table dimensions (L×W×H): 2110mm×822mm×656mm (±5%)
-
Maximum patient weight: 150kg
-
High Voltage Generator
- Input power voltage: AC 380V/400V±10%
- Frequency: 50Hz
- Output nominal electric power: 50kW (500mA, 100kV, 0.1s)
- Tube voltage: 40kV~150kV (digital button adjustment, 1kV step)
- Tube current: 10mA~630mA (ISO 497 R'10 system compliance)
- Loading time: 1ms~6300ms (ISO 497 R'10 system compliance)
-
Current time product: 0.1mAs~630mAs (ISO 497 R'10 system compliance)
-
X-ray Tube
- Anode input power: Large focal spot: 50kW; Intermediate focal spot: 20kW
- Focal spot: 0.6/1.2mm
- Anode speed: 2700RPM (r/min)
- Nominal tube voltage: 150kV
- Anode heat content: 163kJ (230kHU)
-
Heat capacity of X-ray tube assembly: 900kJ (1250kHU)
-
Beam Limiting Device
- Inherent filtration: 1.5mm Al
- Maximum tube voltage: 150kV
-
Mean exposure intensity: >100Lux at SID100cm
-
Detector Options
- CareView1500L: 35cm×43cm, ≥14bit effective bits, ≥3.4lp/mm resolution
-
CareView1800L: 43cm×43cm, ≥14bit effective bits, ≥3.6lp/mm resolution
-
**Image Workstation
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Name: Digital X-ray System by GoldHealth Medical
Key Features and Benefits:
- Advanced Imaging Technology: Designed for precision and clarity, this digital X-ray system delivers exceptional diagnostic quality, making it ideal for hospitals, clinics, and research institutions.
- High-Energy-Ray Medical Equipment: Engineered to meet the demands of modern medical imaging with reliable performance and safety.
- Versatile Applications: Suitable for a wide range of medical environments, including laboratories, rehabilitation centers, and home healthcare settings.
Technical Specifications:
- Power Source: Electric
- Voltage: AC380V/400V ±10%
- Frequency: 50Hz
- Output Nominal Electric Power: 50kW (500mA, 100kV, 0.1s)
- Tube Voltage: 40kV ~ 150kV
- Tube Current: 10mA ~ 630mA
- Loading Time: 1ms ~ 6300ms, adhering to the R'10 number system in ISO 497
- Current Time Product: 0.1mAs ~ 630mAs
- Column Lateral Movement Distance: 1730mm (Error: ±5%)
Quality and Safety:
- Instrument Classification: Class II
- Safety Standard Compliance: GB15979-2002
- Certifications: CE
- Material: Durable metal construction for long-lasting performance
Warranty and Support:
- Warranty Period: 1 Year
- After-Sales Service: Comprehensive online technical support to ensure seamless operation
Packaging Details:
- Selling Unit: Single item
- Package Size: XX cm
- Gross Weight: XX kg
Shelf Life: 1 Year
Unique Selling Points:
- Precision Engineering: Every component is meticulously designed to deliver consistent and accurate results.
- User-Centric Design: Intuitive controls and ergonomic features enhance usability for medical professionals.
- Reliability You Can Trust: Backed by GoldHealth Medical’s commitment to innovation and excellence in healthcare technology.
Place of Origin: Guangdong, China
Transform your diagnostic capabilities with the Digital X-ray System from GoldHealth Medical – where cutting-edge technology meets uncompromising quality.
