Dual Column DR XRay System
Reference: 1601258617605
High-Energy-Ray Medical Equipments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

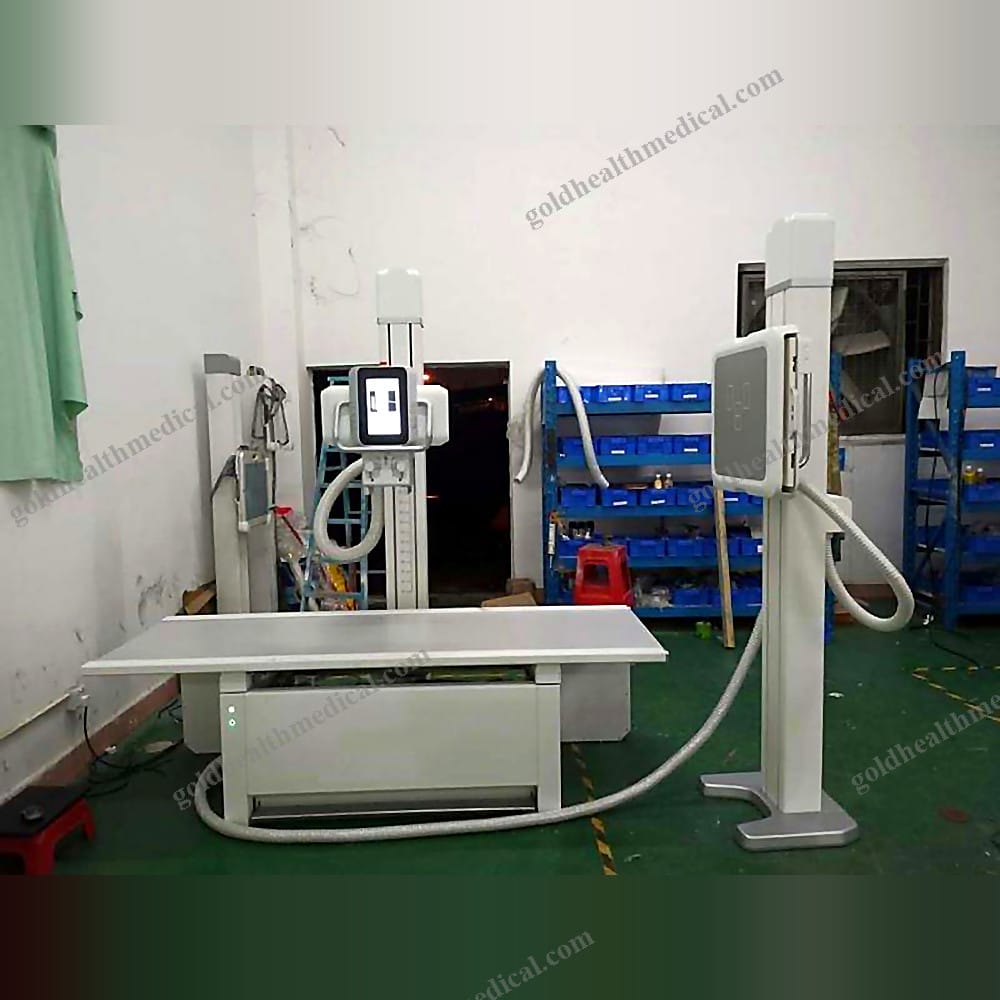

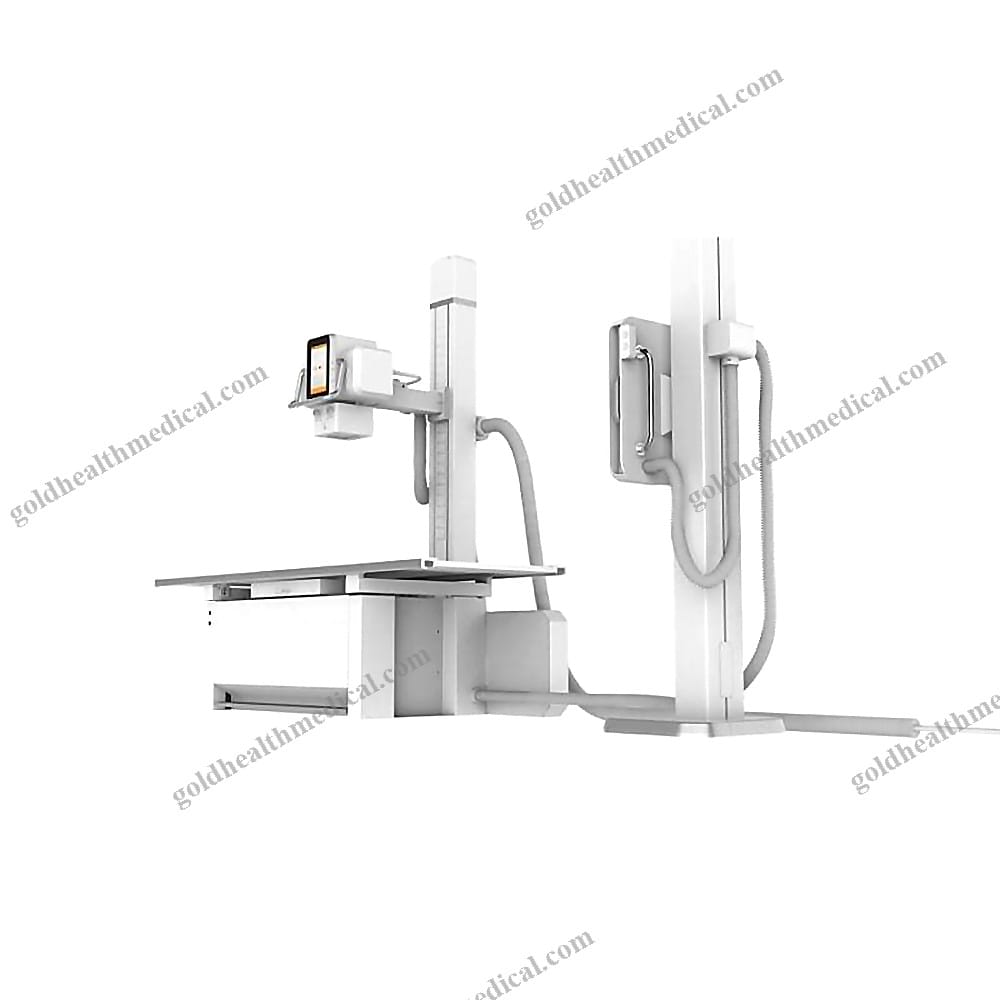

GoldHealth Medical Digital X-ray System
Product Overview
GoldHealth Medical presents a cutting-edge digital X-ray system designed to meet the diverse needs of clinical departments. This electric double-column DR system is meticulously engineered with a high-level design philosophy, professional manufacturing precision, and rigorous testing protocols. It delivers unparalleled flexibility, reliability, and performance, ensuring exceptional diagnostic accuracy and operational efficiency.
Key Features
- Flexible and Robust Rack Design
- Reliable inline rail system for seamless movement.
- One-piece construction for intuitive and effortless operation.
- Power-assisted controls for single-handed adjustments.
- Durable components with extended mechanical life.
-
Configurable options: single or dual detectors to suit various clinical requirements.
-
HD Digital Large Detector
- Amorphous silicon technology for ultimate resolution.
-
Captures every detail without compromise, ensuring precise imaging.
-
High-Performance High Voltage Generator
- 500kHz ultra-high-frequency inverter technology.
- KV rise time <500 microseconds, ripple factor <1%.
- Stable performance even with ±30% voltage fluctuations.
-
Optional AEC (Automatic Exposure Control) for consistent image quality, simplifying workflows for medical professionals.
-
High-Efficiency X-ray Tube
- Dual focus (0.6/1.2mm) for detailed tissue presentation and clear imaging.
- High heat capacity ensures uninterrupted operation, even during high patient volumes.
Technical Specifications
Power Requirements
- Voltage: AC380V/400V±10%
- Frequency: 50Hz
- Resistance: ≤0.1Ω
- Capacity: ≥63kVA
Mechanical Parameters
- Column vertical movement: 1160mm (±5%)
- Column lateral movement: 1730mm (±5%)
- Chest film frame lifting distance: ≥1200mm
- Tube assembly rotation: -90° to +90° (manual)
- Column rotation: -180° to +180° (manual)
- Patient table X-axis movement: 900mm (±5%)
- Patient table Y-axis movement: 260mm (±5%)
- Patient table dimensions: 2110mm × 822mm × 656mm (±5%)
- Maximum patient weight: 150kg
High Voltage Generator
- Input power voltage: AC 380V/400V±10%
- Frequency: 50Hz
- Output nominal power: 50kW (500mA, 100kV, 0.1s)
- Tube voltage: 40kV–150kV (adjustable in 1kV increments)
- Tube current: 10mA–630mA (multilevel digital adjustment)
- Loading time: 1ms–6300ms (multilevel digital adjustment)
- Shortest irradiation time (AEC): 1.6ms
X-ray Tube
- Anode input power: Large focal spot: 50kW; Intermediate focal spot: 20kW
- Focal spot: 0.6/1.2mm
- Anode speed: 2700 RPM
- Nominal tube voltage: 150kV
- Anode heat content: 163kJ (230kHU)
- Heat capacity of tube assembly: 900kJ (1250kHU)
Beam Limiting Device
- Inherent filtration: 1.5mm Al
- Maximum tube voltage: 150kV
- Mean exposure intensity: >100Lux at SID 100cm
- Light field deviation: ≤2%

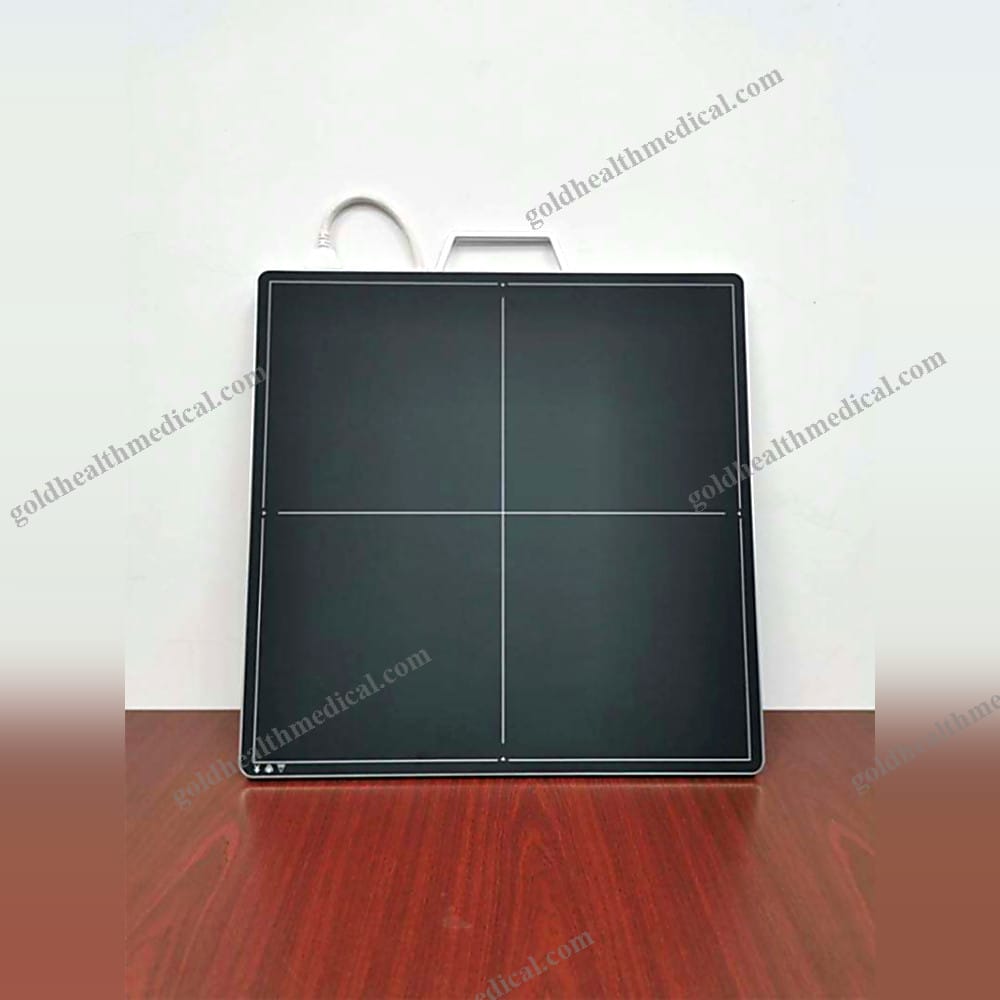

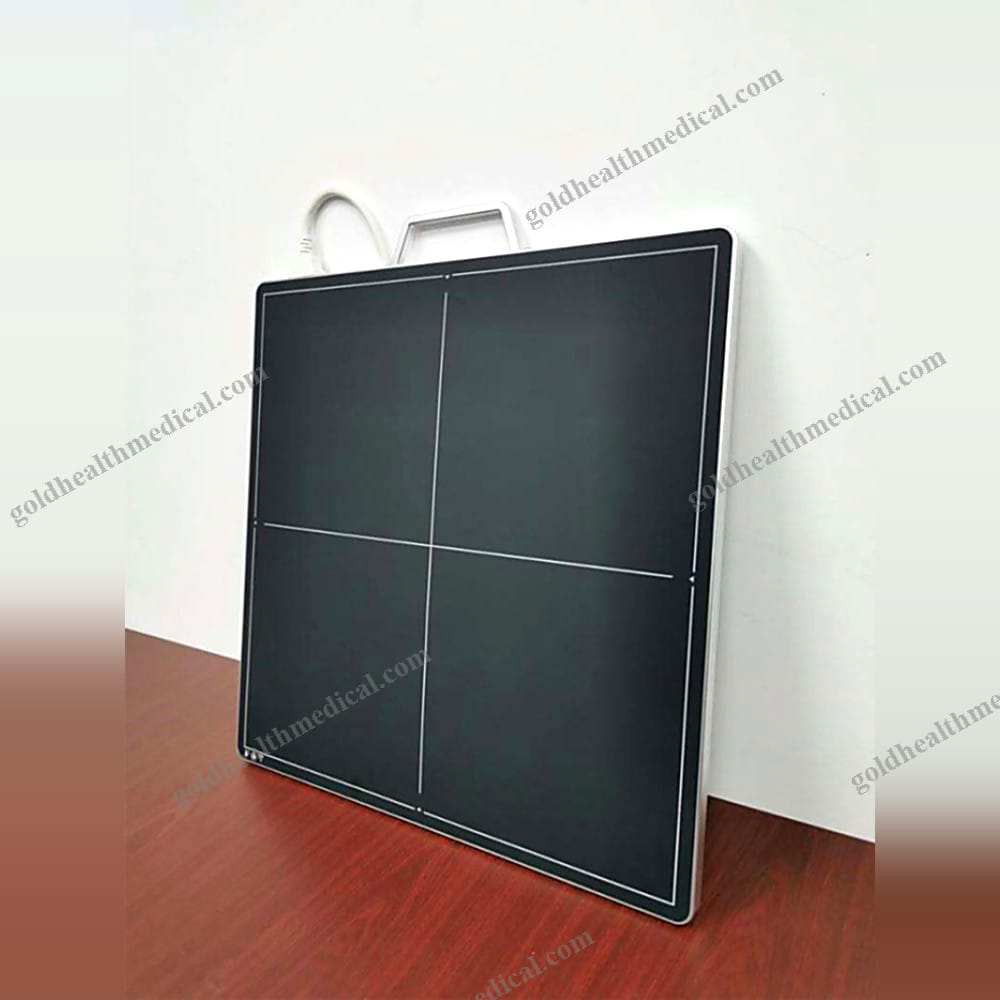

Detectors
- CareView1500L
- Dimensions: 35cm × 43cm
- Effective bits: ≥14bit
- Limiting resolution: ≥3.4lp/mm
- CareView1800L
- Dimensions: 43cm × 43cm
- Effective bits: ≥14bit
- Limiting resolution: ≥3.6lp/mm
Image Workstation
- Hard-disk capacity: ≥500GB
- Memory: ≥4GB
- Processor: ≥3.2GHz
Environmental Conditions
- Working Environment
- Relative
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Name: Digital X-ray System by GoldHealth Medical
Key Features and Benefits:
- Precision and Performance: Engineered for unparalleled accuracy, this digital X-ray system delivers exceptional imaging quality, making it indispensable for modern medical diagnostics.
- Advanced Power Output: With a nominal electric power of 50kW (500mA, 100kV, 0.1s), it ensures consistent performance even under demanding conditions.
- Versatile Imaging Parameters:
- Tube Voltage: 40kV to 150kV, adaptable for a wide range of diagnostic needs.
- Tube Current: 10mA to 630mA, offering flexibility for various patient types and imaging requirements.
- Loading Time: 1ms to 6300ms, meeting the R'10 number system standards in ISO 497 for precision and reliability.
- Current-Time Product: 0.1mAs to 630mAs, ensuring optimal exposure control.
- Enhanced Mobility: Column lateral movement distance of 1730mm (±5% tolerance), providing seamless positioning and adaptability in clinical environments.
Technical Specifications:
- Power Source: Electric, operating at AC380V/400V ±10%, 50Hz.
- Material: Durable metal construction, designed for longevity and stability.
- Instrument Classification: Class II medical device, ensuring safety and reliability.
- Safety Standard Compliance: Meets GB15979-2002 standards, guaranteeing adherence to rigorous safety protocols.
- Shelf Life: 1 year, ensuring consistent performance from the moment of installation.
Quality Assurance:
- Certified with CE marking, reflecting GoldHealth Medical’s commitment to global quality standards.
- Backed by a 1-Year Warranty, providing peace of mind and confidence in your investment.
After-Sale Support:
- Comprehensive online technical support to ensure uninterrupted operation and address any queries or concerns promptly.
Applications:
Designed for hospitals, clinics, research institutions, laboratories, rehabilitation centers, and home healthcare settings, this system is ideal for professionals seeking cutting-edge diagnostic tools.
Packaging Details:
- Selling Units: Single item.
- Single Package Size: XX cm.
- Single Gross Weight: XX kg.
GoldHealth Medical’s digital X-ray system redefines diagnostic excellence with its innovative design, robust performance, and unwavering reliability. Elevate your practice with a solution that combines precision, safety, and versatility.
