Dual Column DR Digital XRay System XRay Machine Equipo De
Reference: 62370559721
High-Energy-Ray Medical Equipments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

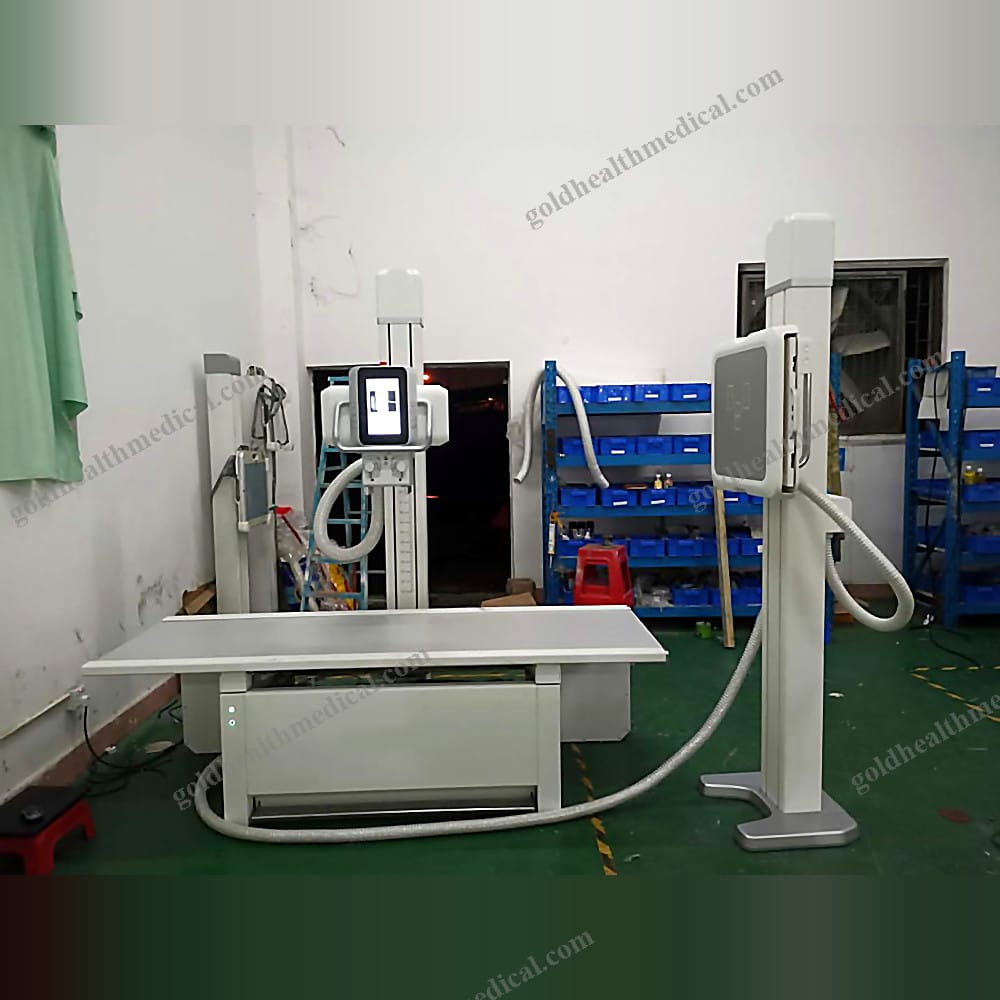

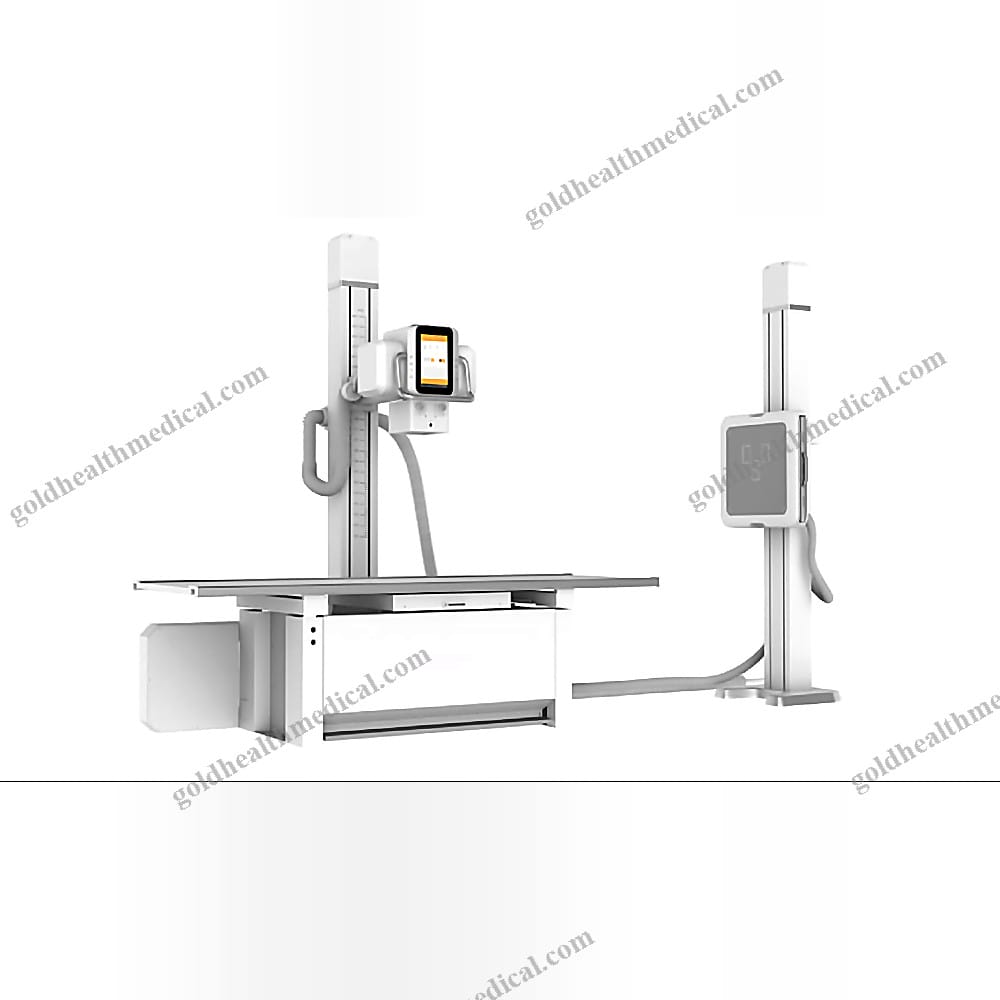

GoldHealth Medical Digital X-ray System
GoldHealth Medical proudly introduces a cutting-edge digital X-ray system designed to elevate medical imaging standards. This electric double-column DR system is meticulously engineered to meet the diverse needs of clinical departments, offering unparalleled precision, flexibility, and reliability.
Key Features
- Flexible and Robust Rack Design
- Reliable in-line rail system for seamless operation
- One-piece construction ensures smooth, intuitive handling
- Power-assisted controls for effortless one-hand operation
- Durable components with extended mechanical life
-
Configurable options: single or dual detectors to match specific clinical requirements
-
High-Resolution Large Detector
- Amorphous silicon technology for ultimate image clarity
-
Captures every detail without compromise
-
Advanced High-Voltage Generator
- 500kHz ultra-high-frequency inverter for superior performance
- KV rise time <500 microseconds, ripple factor <1% for crystal-clear images
- Stable operation even with ±30% voltage fluctuations
-
Optional AEC (Automatic Exposure Control) for consistent image quality
-
High-Efficiency X-ray Tube
- Dual focus (0.6/1.2mm) for precise tissue detail and accurate diagnosis
- High heat capacity ensures uninterrupted operation, even during high patient volumes
Technical Specifications
Power Requirements
- Voltage: AC380V/400V±10%
- Frequency: 50Hz
- Resistance: ≤0.1Ω
- Capacity: ≥63kVA
Mechanical Parameters
- Column vertical movement: 1160mm (±5%)
- Column lateral movement: 1730mm (±5%)
- Chest film frame lifting distance: ≥1200mm
- Tube assembly rotation: -90° to +90° (manual)
- Column rotation: -180° to +180° (manual)
- Patient table X-axis movement: 900mm (±5%)
- Patient table Y-axis movement: 260mm (±5%)
- Patient table dimensions: 2110mm × 822mm × 656mm (±5%)
- Maximum patient weight: 150kg
High-Voltage Generator
- Input power voltage: AC 380V/400V±10%
- Frequency: 50Hz
- Output nominal power: 50kW (500mA, 100kV, 0.1s)
- Tube voltage: 40kV–150kV (adjustable in 1kV increments)
- Tube current: 10mA–630mA (multi-level digital adjustment)
- Loading time: 1ms–6300ms (multi-level digital adjustment)
- Shortest irradiation time (AEC): 1.6ms
X-ray Tube
- Anode input power: Large focus: 50kW; Intermediate focus: 20kW
- Focal spot: 0.6/1.2mm
- Anode speed: 2700RPM
- Nominal tube voltage: 150kV
- Heat content: 163kJ (230kHU)

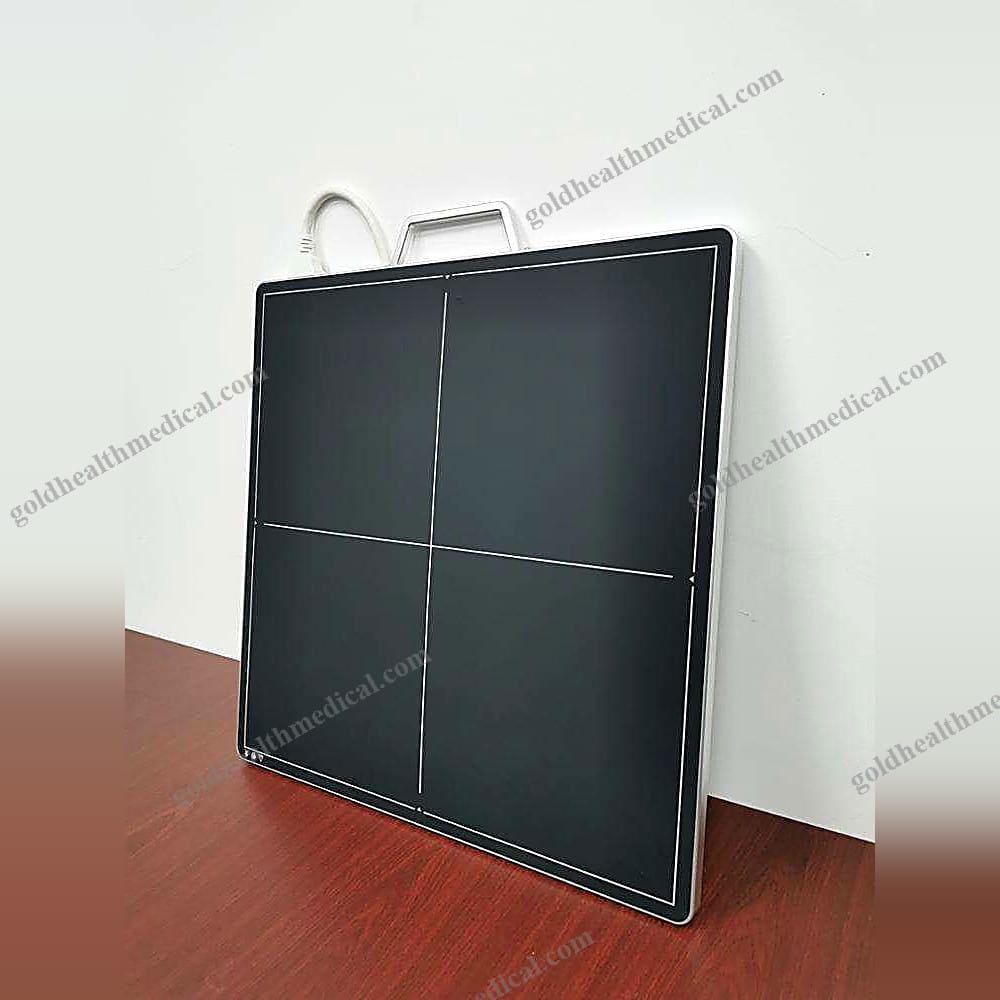

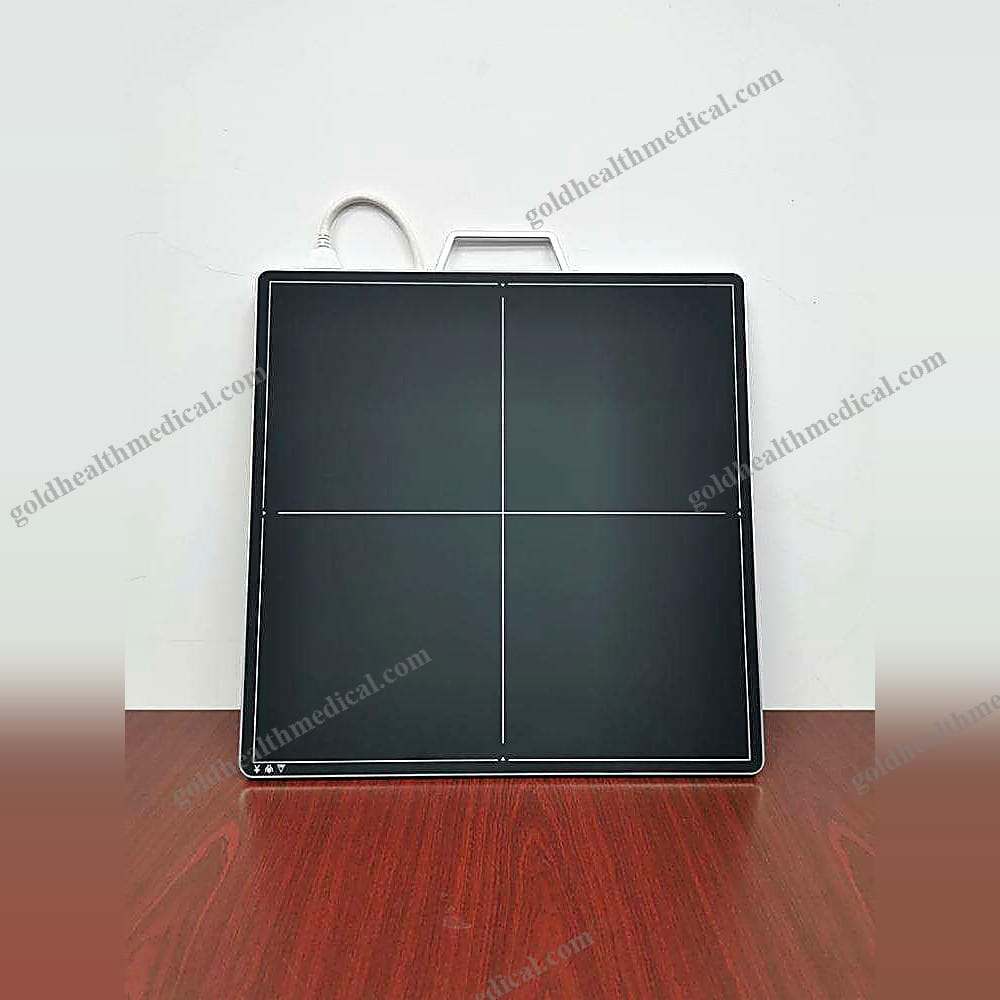

Detector Options
- CareView1500L
- Dimensions: 35cm × 43cm
- Effective bits: ≥14bit
- Limiting resolution: ≥3.4lp/mm
- CareView1800L
- Dimensions: 43cm × 43cm
- Effective bits: ≥14bit
- Limiting resolution: ≥3.6lp/mm
Image Workstation
- Hard-disk capacity: ≥500GB
- Memory: ≥4GB
- Processor: ≥3.2GHz
Environmental Conditions
- Working Environment
- Relative humidity: 30%–75%
- Atmospheric pressure: 70kPa–106kPa
- Temperature: 10°C–40°C
- Storage and Transport
- Relative humidity: 10%–95%
- Atmospheric pressure: 70kPa–106kPa
- Temperature: -10°C–50°C
GoldHealth Medical’s digital X-ray system is designed to empower healthcare professionals with precision, efficiency, and reliability. Whether for
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Name: Digital X-ray System by GoldHealth Medical
Key Features and Benefits:
- Precision and Performance: Designed for high-energy-ray medical applications, this system delivers exceptional imaging quality with advanced digital technology.
- Versatile Imaging Capabilities: Ideal for hospitals, clinics, research labs, and rehabilitation centers, offering reliable performance for diverse diagnostic needs.
- ISO Compliance: Meets the R'10 number system standards in ISO 497, ensuring precision and consistency in operation.
Technical Specifications:
- Power Source: Electric
- Voltage: AC380V/400V ±10%
- Frequency: 50Hz
- Output Nominal Electric Power: 50kW (500mA, 100kV, 0.1s)
- Tube Voltage: 40kV ~ 150kV
- Tube Current: 10mA ~ 630mA
- Loading Time: 1ms ~ 6300ms
- Current Time Product: 0.1mAs ~ 630mAs
- Column Lateral Movement Distance: 1730mm (Error: ±5%)
Quality and Safety:
- Instrument Classification: Class II
- Safety Standard: Compliant with GB15979-2002
- Certifications: CE approved for global reliability and safety
Durability and Support:
- Shelf Life: 1 year
- Warranty: 1 year, ensuring peace of mind for your investment
- After-Sale Service: Comprehensive online technical support to maximize uptime and efficiency
Packaging and Delivery:
- Packaging Details: Standard wooden case export package, designed for secure transportation
- Port of Origin: Guangzhou, China
Supply Capacity:
- Monthly Supply Ability: 3000 sets per month, ensuring timely delivery for bulk orders
Why Choose GoldHealth Medical?
GoldHealth Medical combines cutting-edge technology with robust engineering to deliver medical equipment that meets the highest standards of quality and reliability. Our digital X-ray system is designed to empower healthcare professionals with accurate diagnostics and seamless operation, making it a trusted choice for modern medical facilities worldwide.
