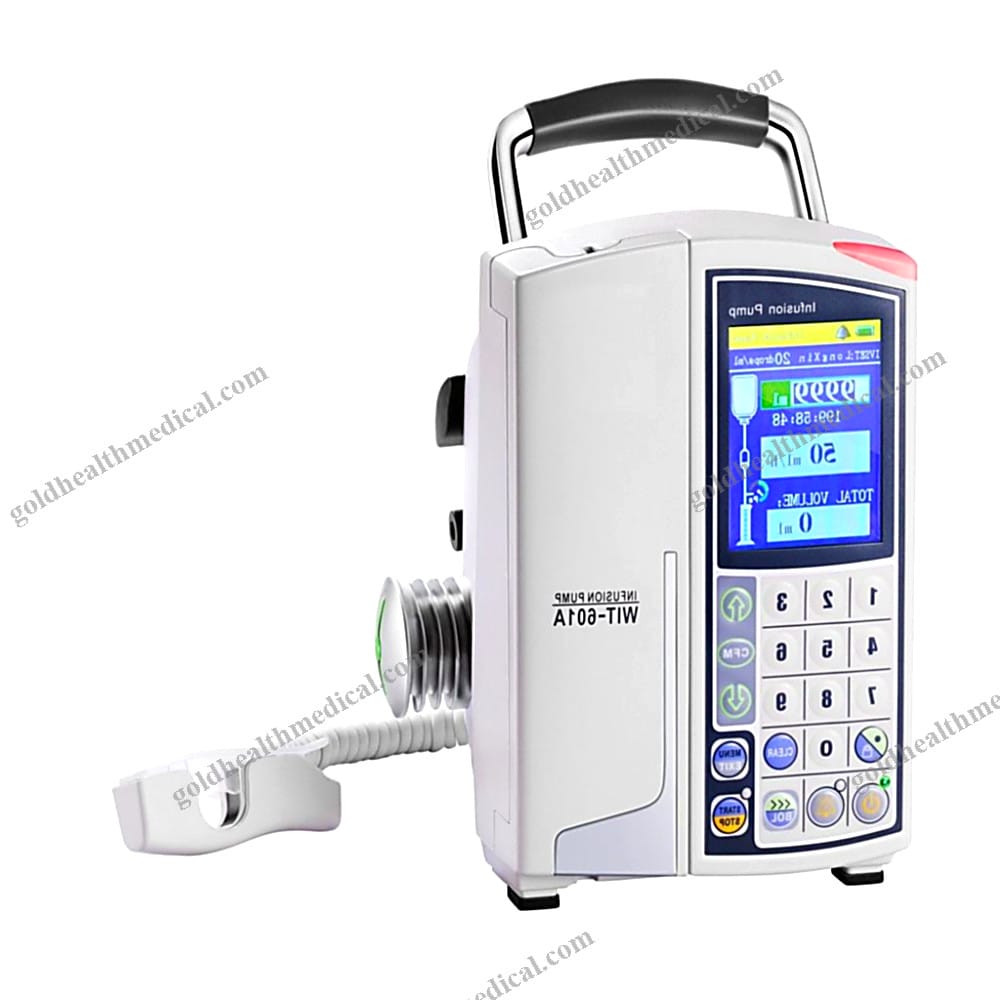

CECertified IV Infusion Pump with Drop Sensor

GoldHealth Medical presents an advanced infusion pump designed to redefine precision, safety, and patient comfort in intravenous therapy. Engineered with cutting-edge technology, this device is tailored for hospitals, clinics, research institutions, and home care environments, ensuring seamless integration into diverse medical workflows.

Key Features and Benefits

• Versatile Operating Modes:
  Offers 12 distinct working modes, including Volume, Drop, Micro, Programmable, DOSE Weight, Drug Lab, and Manual Bolus, to meet a wide range of clinical needs.

• Revolutionary Calibration Technology:
  Equipped with next-generation accuracy calibration, allowing direct input of calibration values for rapid batch adjustments. This innovation significantly reduces installation and maintenance time.

• Comprehensive Drug Library:
  Built-in library of 500 drugs, covering 54 clinical dosage units. The system supports PC connectivity for easy editing, exporting, and importing of drug data.

• Enhanced Patient Comfort:
  Integrated heater ensures optimal infusion temperatures, improving patient experience during low-temperature infusions.

• Dynamic Parameter Adjustment:
  Enables real-time modification of critical parameters such as Rate, Time, Dose, and VTBI during infusion, providing unparalleled flexibility.

• Advanced Pressure Detection:
  Features 20 adjustable pressure levels with dual-unit options (mmHg/kPa) and live pressure display for precise monitoring.

• Intelligent Alarm System:
  Includes unique pre-alarm functions for end-of-infusion and high-pressure blockage, ensuring timely intervention during critical treatments.

• IV Set Management:
  Supports customization of over 40 types of IV tubes, allowing users to add, remove, or edit configurations effortlessly.

• Robust Safety Mechanisms:
  Equipped with real-time self-check functions to ensure consistent and reliable pump performance.

Technical Specifications

• Working Modes:
• Rate/VTBI
• Time/VTBI
• Rate/Time
• Volume
• Drop
• Micro
• Simple Rate
• Programmable
• DOSE Weight
• Drug Lab
• Auto Bolus

• Manual Bolus

• IV Set Compatibility:

• Open system for 10d/ml, 15d/ml, 20d/ml, 60d/ml (3.4mm – 4.5mm)

• Customizable management for over 40 types of IV tubes

• Accuracy:

• Volume Mode: ±3%

• Drop Mode: ±2% (post-calibration)

• Infusion Rate:

• Volume: 0.1ml/h – 1500ml/h
• Purge: 600ml/h

• Drop: 1d/min – 400d/min

• VTBI Range:

• 1ml – 9999ml or OFF

• Total Volume:

• 0ml – 9999.9ml

• Keep Vein Open (KVO):

• Adjustable: 1ml/h – 5ml/h (default: 1ml/h)

• Programmable Infusion:

• Up to 8 steps with customizable rate, time, and VTBI

• Bolus Functionality:

• Manual Bolus: Long press to start, release to stop

• Auto Bolus: Short press to set VTBI and rate

• Pressure Settings:

• Upper Pressure: High, Medium, Low (toggleable via menu)

• Down Pressure: 200mmHg – 1200mmHg (20 adjustable levels)

• Pre-Alarm Features:

• Occlusion: Early warning for rising tube pressure

• Finish: Adjustable 1–30 minutes ahead of VTBI completion

• Parameter Modification:

• Real-time adjustments for Rate, Time, Dose, VTBI, and other critical parameters

• Safety Alarms:

• 30+ monitoring alarms, including bubble detection, door open, occlusion, battery issues, and motor errors

• Visual and Auditory Alerts:

• Three-color light indicators: Green (infusion active), Orange (low-level alerts), Red (high-level alerts)

• Adjustable alarm and key volume with mute functionality

• Display and Interface:

• High-brightness color LCD with adjustable brightness

• Communication:

• RS485 port for PC connectivity to update or download data

• Power Supply:

• AC: 100V – 240
