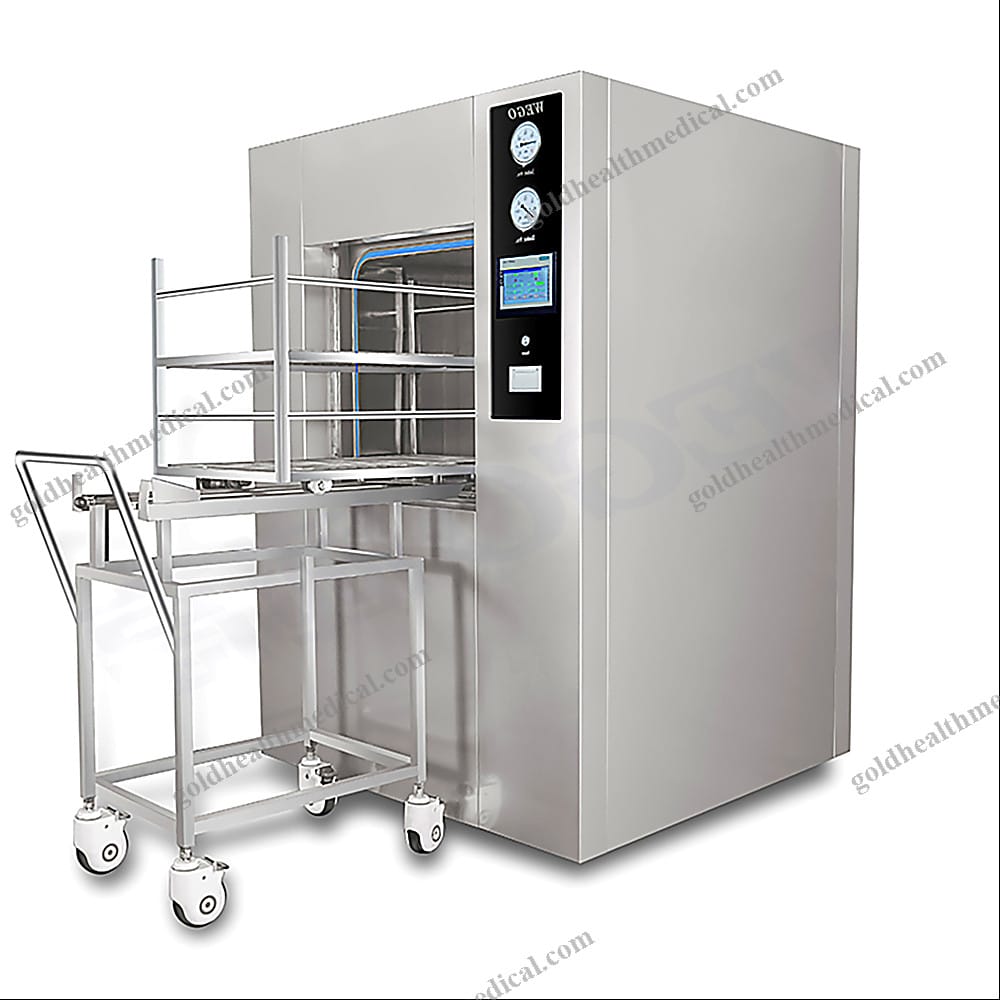

WEGO HighCapacity Horizontal Autoclave Sterilizer
Reference: 1601246455133
Sterilization Equipment
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical: Precision Sterilization Solutions
GoldHealth Medical introduces a range of advanced sterilization chambers designed to meet the rigorous demands of modern healthcare environments. Engineered for reliability, efficiency, and precision, these units are ideal for hospitals, clinics, laboratories, and research facilities.
Key Features:
- Advanced Pressure and Temperature Control: Designed to operate under precise conditions, ensuring optimal sterilization performance.
- Customizable Cycles: Adjustable pulsation, sterilization, and drying times to accommodate diverse medical instruments and materials.
- Safety-First Design: Equipped with multiple safety mechanisms, including safety valve opening pressure and test pressure protocols.
- Energy and Resource Efficiency: Optimized water and power consumption for sustainable operation.
Performance Parameters:
- Chamber Volume Options:
- 120L: Chamber Dimensions 450×450×600 mm, Overall Dimensions 956×1000×1700 mm, Net Weight 350 kg, Water Consumption 100 L, Steam Consumption 10 kg, Power 12 kW
- 150L: Chamber Dimensions 450×450×750 mm, Overall Dimensions 1106×1000×1700 mm, Net Weight 420 kg, Water Consumption 115 L, Steam Consumption 12 kg, Power 15 kW
- 180L: Chamber Dimensions 450×450×900 mm, Overall Dimensions 1256×1000×1700 mm, Net Weight 500 kg, Water Consumption 125 L, Steam Consumption 15 kg, Power 22 kW
- 240L: Chamber Dimensions 550×550×800 mm, Overall Dimensions 1156×1300×1800 mm, Net Weight 720 kg, Water Consumption 140 L, Steam Consumption 17 kg, Power 22 kW
- 300L: Chamber Dimensions 550×550×1000 mm, Overall Dimensions 1356×1300×1800 mm, Net Weight 850 kg, Water Consumption 160 L, Steam Consumption 19 kg, Power 30 kW
- 360L: Chamber Dimensions 610×610×1000 mm, Overall Dimensions 1356×1350×1980 mm, Net Weight 950 kg, Water Consumption 160 L, Steam Consumption 19 kg, Power 30 kW
- 400L: Chamber Dimensions 652×700×900 mm, Overall Dimensions 1356×1350×1980 mm, Net Weight 960 kg, Water Consumption 200 L, Steam Consumption 22 kg, Power 30 kW
- 450L: Chamber Dimensions 652×700×1000 mm, Overall Dimensions 1356×1350×2100 mm, Net Weight 980 kg, Water Consumption 200 L, Steam Consumption 22 kg, Power 30 kW
- 600L: Chamber Dimensions 652×700×1320 mm, Overall Dimensions 1676×1350×2100 mm, Net Weight 1060 kg, Water Consumption 300 L, Steam Consumption 31 kg, Power 60 kW
- 675L: Chamber Dimensions 652×700×1480 mm, Overall Dimensions 1836×1350×2100 mm, Net Weight 1200 kg, Water Consumption 340 L, Steam Consumption 36 kg, Power 60 kW
-
800L: Chamber Dimensions 652×700×1750 mm, Overall Dimensions 2156×1350×2100 mm, Net Weight 1380 kg, Water Consumption 450 L, Steam Consumption 47 kg, Power 60 kW
-
Chamber Specifications:
- Designed Pressure: 0.1~0.3 MPa
- Designed Temperature: 150°C
- Maximum Working Pressure
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
GoldHealth Medical presents the Steam Sterilizer, a cutting-edge solution for reliable and efficient sterilization in medical, laboratory, and research environments. Designed with precision and durability in mind, this device ensures the highest standards of hygiene and safety.
Product Highlights
- Advanced Sterilization Technology: Achieves complete sterilization in just 10 minutes, ensuring rapid turnaround for critical applications.
- Durable Construction: Built with premium SUS304 Stainless Steel, offering exceptional resistance to corrosion and wear.
- Versatile Capacity: Available in multiple sizes ranging from 120L to 800L, catering to diverse needs from small clinics to large hospitals.
- Precision Engineering: Operates at a designed pressure of 0.26MPA, delivering consistent and reliable performance.
- Energy Efficiency: Powered by 100W and compatible with both 110V and 220V, making it adaptable to various electrical systems worldwide.
Key Features
- Function: High-performance sterilization for medical instruments, laboratory equipment, and more.
- Material: Premium SUS304 Stainless Steel for long-lasting durability.
- Power and Voltage: 100W, 110V/220V compatibility.
- Sterilization Time: Rapid 10-minute cycles for enhanced productivity.
- Capacity Options: Flexible configurations from 120L to 800L.
- Designed Pressure: 0.26MPA for optimal sterilization efficiency.
- Certifications: Compliant with CE and ISO standards, ensuring safety and reliability.
Packaging and Delivery
- Selling Units: Single item.
- Package Dimensions: 113 x 131 x 197 cm.
- Gross Weight: 700 kg.
Support and Warranty
- Warranty: Comprehensive 1-year warranty for peace of mind.
- After-Sales Service: Access to online technical support, ensuring uninterrupted performance and assistance when needed.
Applications
Ideal for hospitals, clinics, laboratories, research institutions, rehabilitation centers, and home healthcare settings, the GoldHealth Medical Steam Sterilizer is your trusted partner in maintaining the highest standards of cleanliness and safety.
Experience the perfect blend of innovation, reliability, and precision with GoldHealth Medical – where advanced technology meets uncompromising quality.
