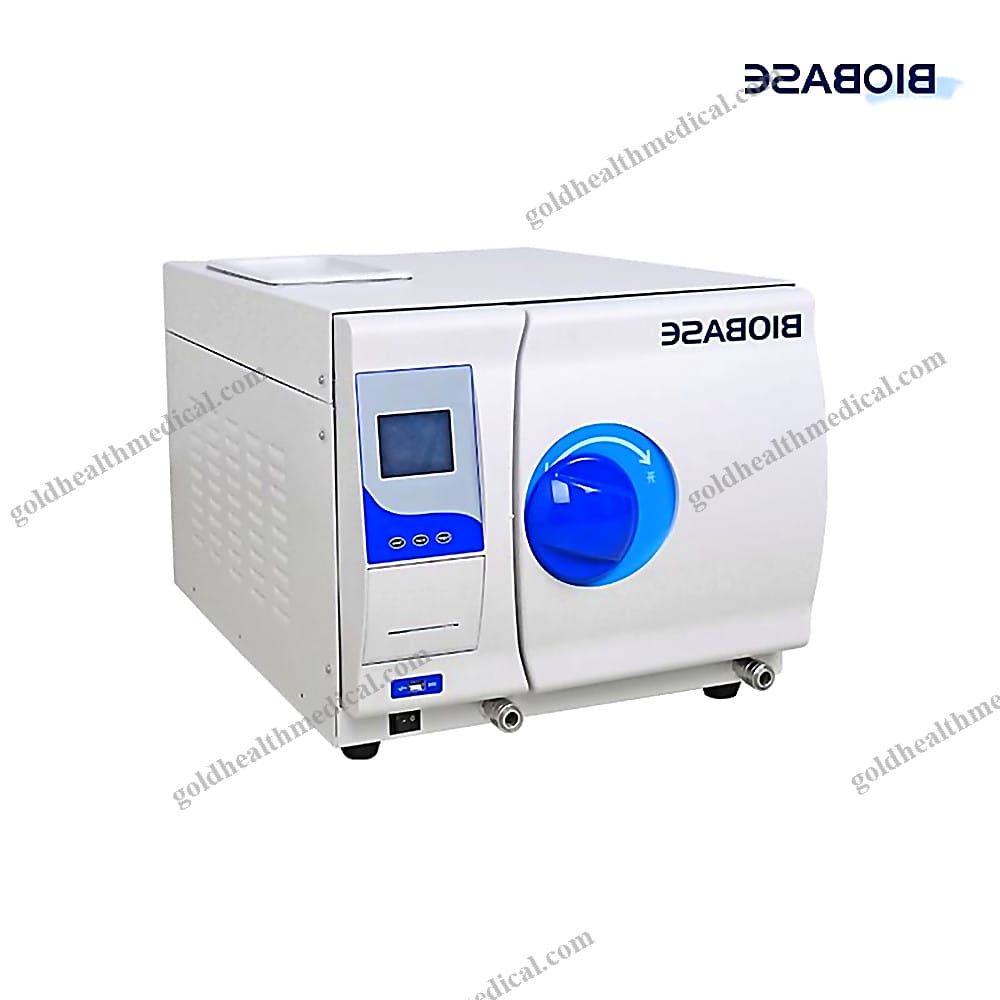

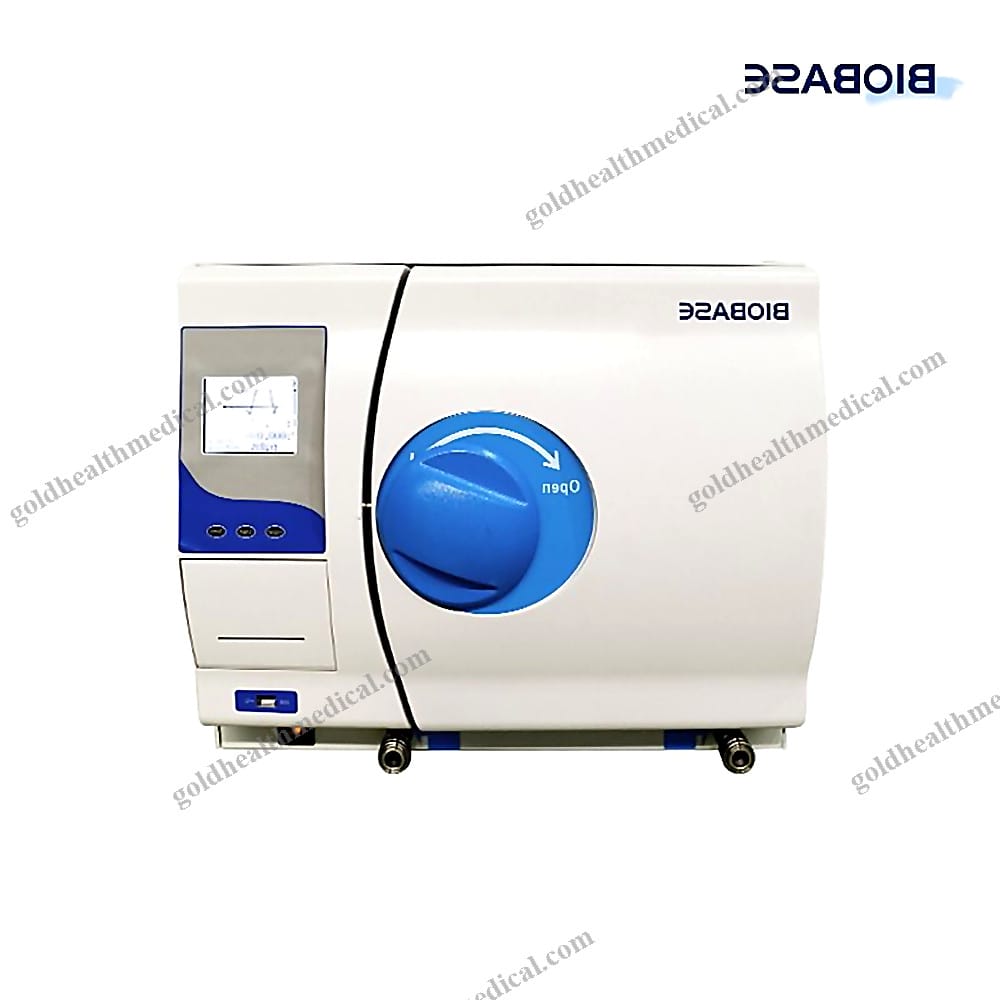

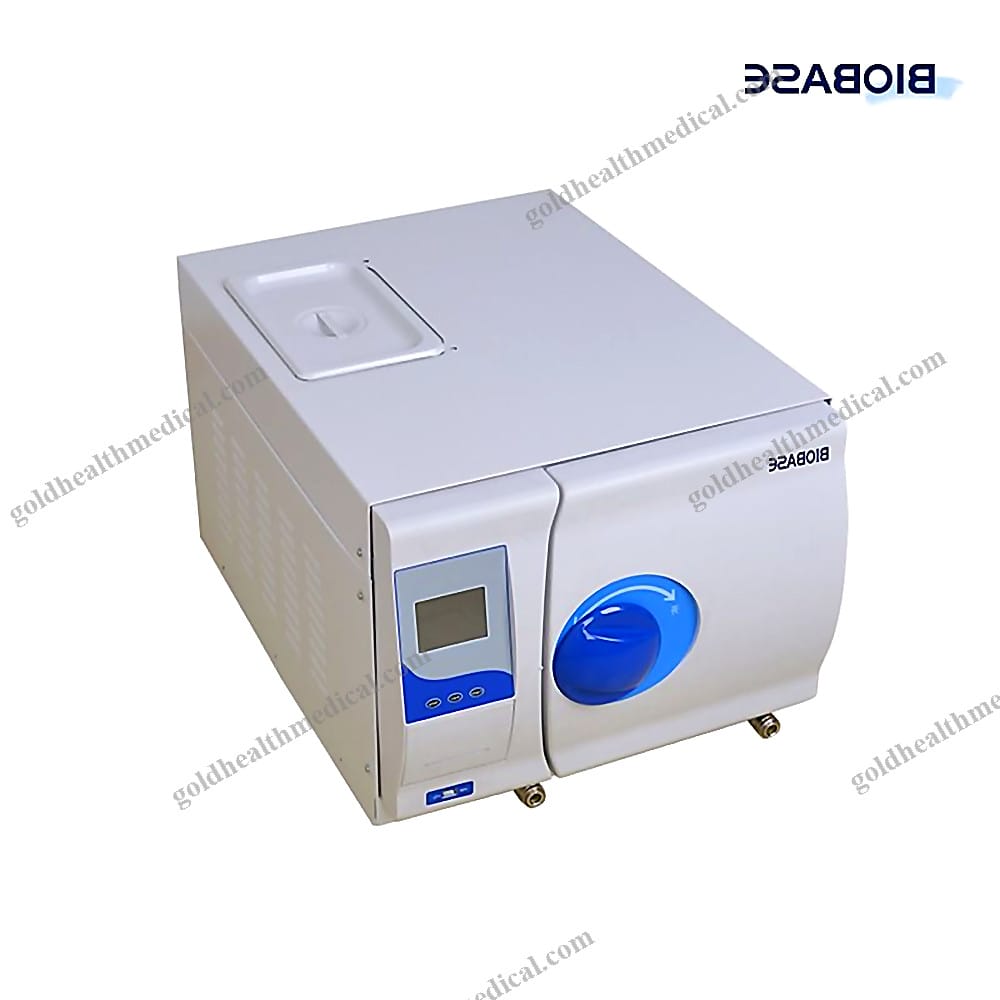

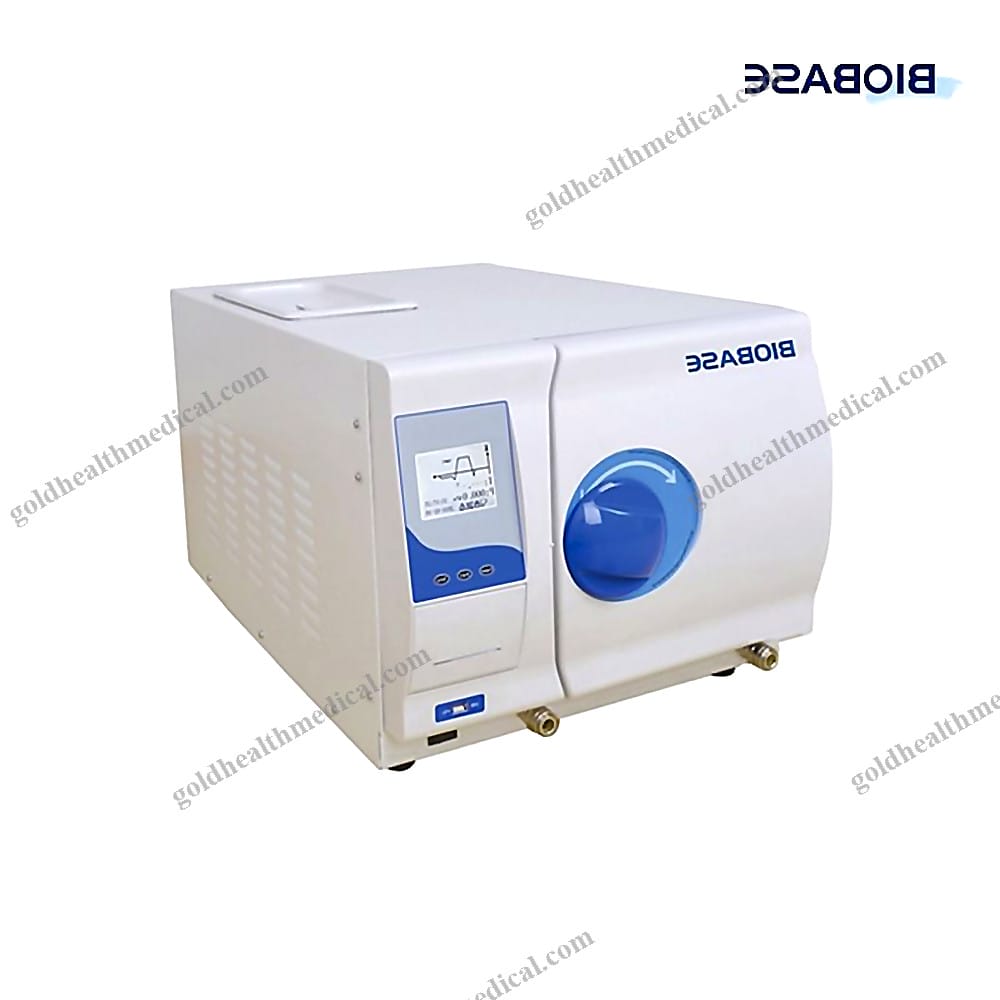

BIOBASE 23L Portable Dental Autoclave Sterilizer
Reference: 1601375285649
Sterilization Equipment
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
Product Description
GoldHealth Medical presents a cutting-edge hot air sterilizer designed for exceptional performance in medical and laboratory environments. This device is ideal for use in departments of stomatology, ophthalmology, operating rooms, supply rooms, dialysis rooms, and other healthcare institutions. It is engineered to sterilize unpacked items, solid instruments, dental handpieces, endoscopes, implantable instruments, dressing fabric, rubber tubes, glassware, petri dishes, and more.
Key Features
- Advanced Safety: Equipped with an over-temperature alarm and multiple fail-safes, including pressure lock systems and relief valves for over-pressure scenarios.
- Customizable Operation: Adjustable sterilization time and top air outlet with variable air volume to suit specific needs.
- Rapid Performance: Fast heating and forced-air convection ensure quick and efficient sterilization cycles.
- Precision Engineering: High-precision microprocessor temperature control and a durable 304 stainless steel inner chamber for consistent reliability.
- Comprehensive Testing: Includes B&D Test, Vacuum Test, and Helix Test to ensure optimal sterilization results.
Applications
This sterilizer is indispensable for medical and veterinary clinics, hospitals, pharmacies, health care centers, laboratories, and other facilities requiring precision sterilization of small surgical instruments, glassware, and petri dishes.
Technical Specifications
- Capacity Options: Available in 18L and 23L configurations.
- Chamber Dimensions:
- 18L: Ο247mm x 360mm
- 23L: Ο247mm x 470mm
- Sterilization Class: Class B.
- Sterilization Temperature: 121β and 134β.
- Drying System: Vacuum drying system for efficient moisture removal.

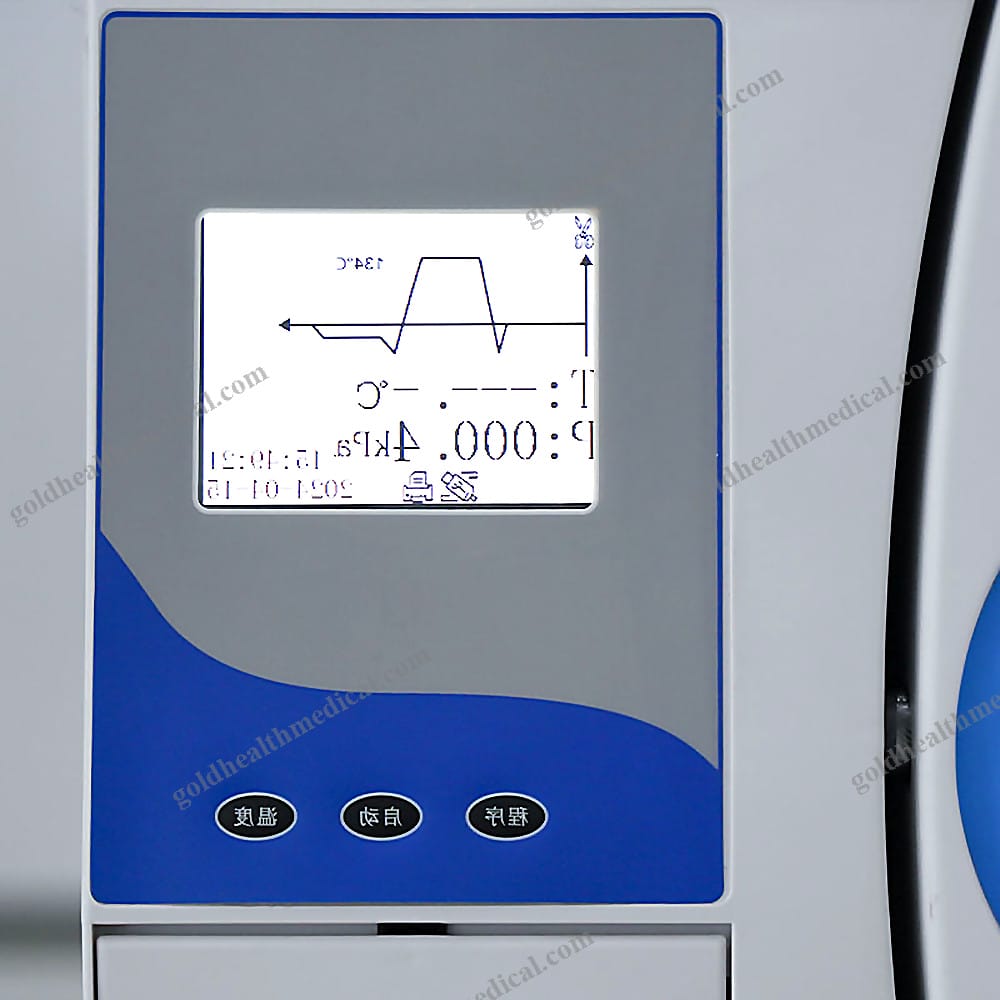

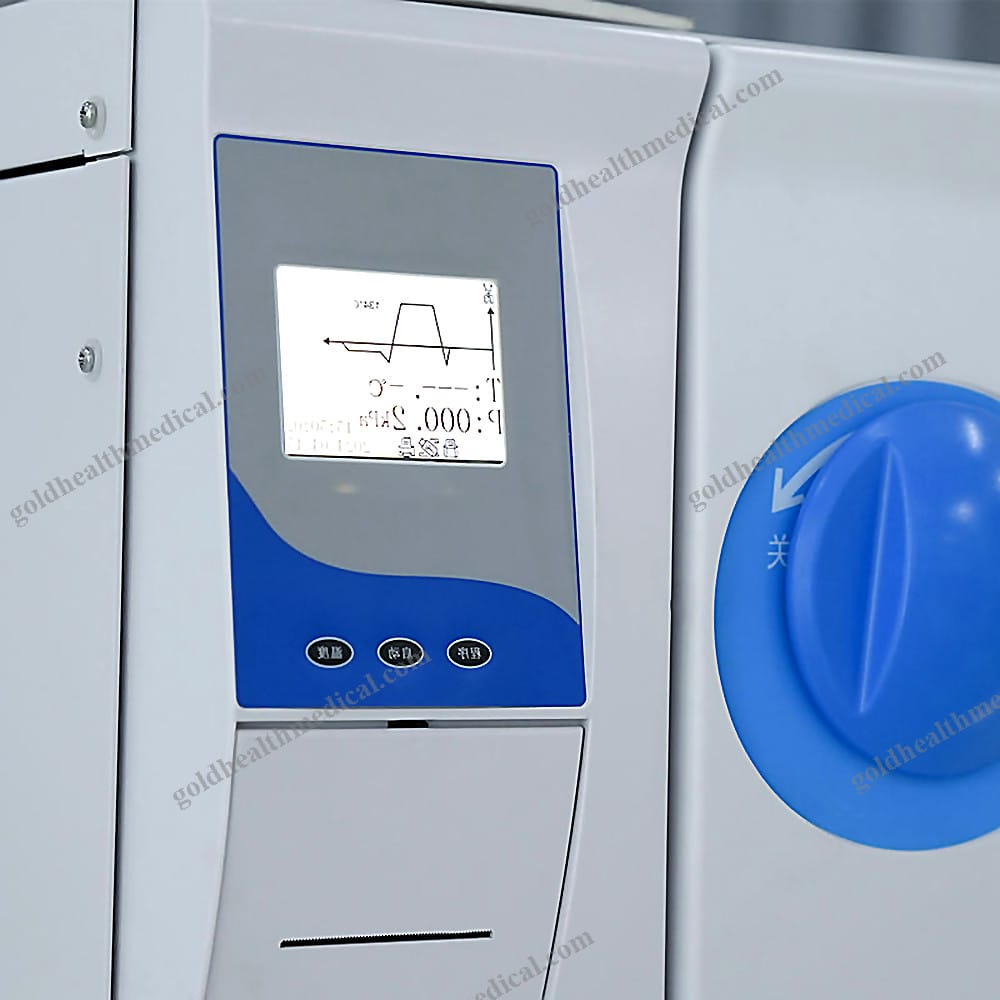

- Display: Intuitive LCD interface for real-time monitoring.
- Control Precision: Temperature control accurate to 1β; pressure control accurate to 0.1bar.
- Sterilization Data Management: Standard USB connectivity and optional printer for data recording.
- Safety Systems: Hand lock door, pressure lock system, over-pressure relief valve, overload protection for pressure and temperature, system failure alarms, cycle completion reminders, and water level warnings.
- Water Supply System: Built-in, easy-to-clean water tank with a capacity of 3.5L.
- Water Consumption: 0.16L to 0.18L per cycle.
- Tray Holder: Includes 3 stainless steel trays on a stainless steel shelf.
- Chamber Material: Durable SUS304 stainless steel.
- Pressure Range: Maximum working pressure of 2.3bar; minimum working pressure of -0.9bar.
- Design Temperature: Up to 140β.
- Ambient Temperature: Operates effectively in environments between 5β and 40β.
- Noise Level: Less than 65dB for quiet operation.
- Power Consumption: 1950VA.
- Power Supply Options:
- Standard: 220V Β± 10%, 50Hz/60Hz.
- Optional: 110V Β± 10%, 50Hz/60Hz.
- External Dimensions:
- 18L: 495mm x 600mm x 410mm.
- 23L: 495mm x 700mm x 410mm.
- Gross Weight:
- 18L: 63kg.
- 23L: 65kg.
GoldHealth Medicalβs hot air sterilizer combines advanced technology, precision engineering, and user-friendly design to deliver unparalleled sterilization performance. It is the ultimate solution for healthcare professionals seeking reliability, efficiency, and safety in their daily operations.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Overview
GoldHealth Medical presents the Table Top Autoclave Class B Series, a cutting-edge sterilization solution designed for precision, reliability, and ease of use. Engineered to meet the highest standards of medical and laboratory environments, this autoclave ensures optimal sterilization performance with advanced features tailored for modern healthcare needs.
Key Features and Specifications
- Capacity: 23L, ideal for small to medium-sized sterilization tasks in clinics, labs, and research facilities.
- Chamber Dimensions: 247mm x 470mm, providing ample space for a variety of instruments and materials.
- Sterilization Temperature: Operates at 121Β°C and 134Β°C, ensuring effective elimination of pathogens, including HIV and HBV, with specialized long-cycle programs.
- Sterilization Class: Class B, delivering exceptional sterilization results for wrapped, unwrapped, and porous loads.
- Drying System: Advanced vacuum drying system for thorough moisture removal, ensuring items are ready for immediate use.
- Display: Intuitive LCD interface for real-time monitoring and effortless operation.
- Water Supply System: Built-in 2L water tank, designed for easy cleaning and maintenance.
- Instrument Classification: Class II medical device, certified for safety and performance.
Unique Selling Points
- Precision Engineering: Achieves consistent sterilization results with advanced temperature and pressure control.
- User-Centric Design: Compact tabletop design with an ergonomic interface, perfect for space-constrained environments.
- Versatility: Suitable for hospitals, clinics, laboratories, rehabilitation centers, and home healthcare settings.
- Reliability: Backed by a 1-Year Warranty and supported by online technical assistance for seamless after-sales service.
Packaging and Delivery Details
- Package Dimensions: 81cm x 61cm x 59cm
- Gross Weight: 65.000 kg
- Units per Package: Single item
GoldHealth Medicalβs Table Top Autoclave Class B Series is your trusted partner in achieving uncompromising hygiene and operational efficiency. Elevate your sterilization standards today.
