Stainless Steel Horizontal Autoclave Sterilizer Machine
Reference: 1600656070977
Sterilization Equipment
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

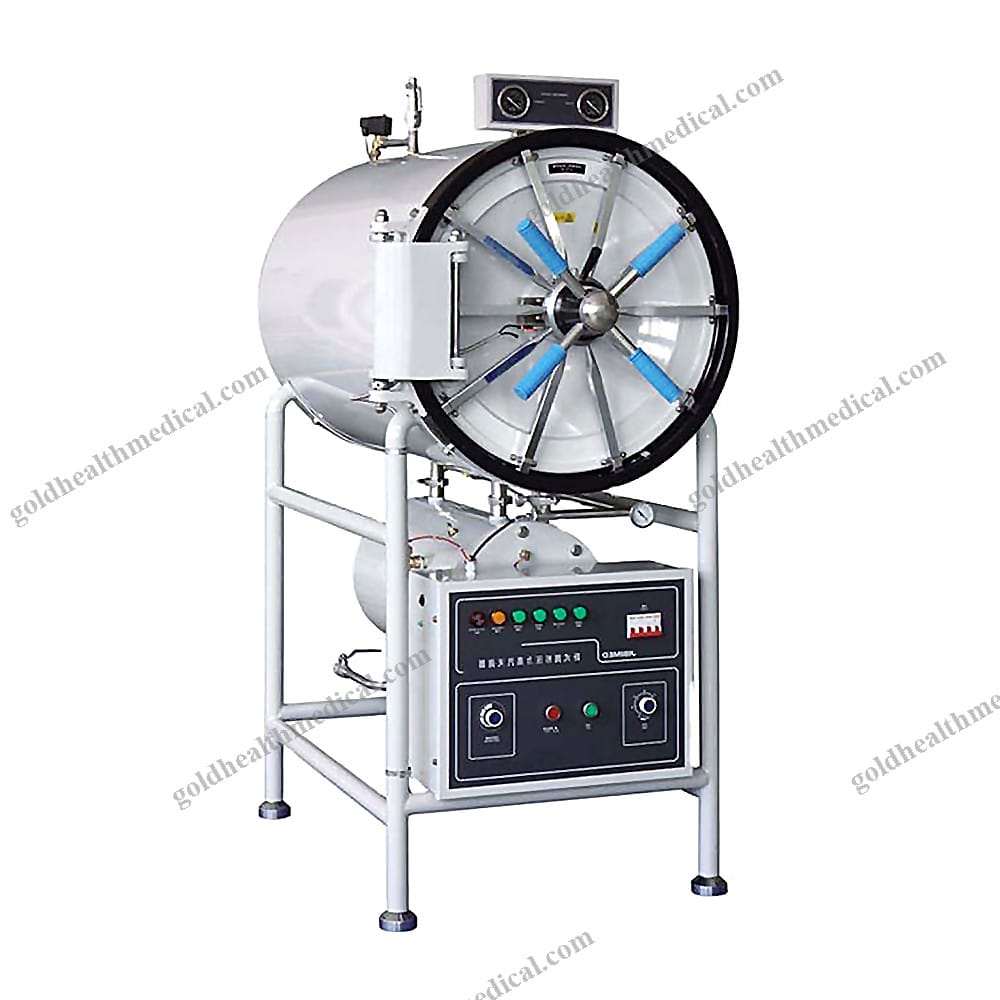

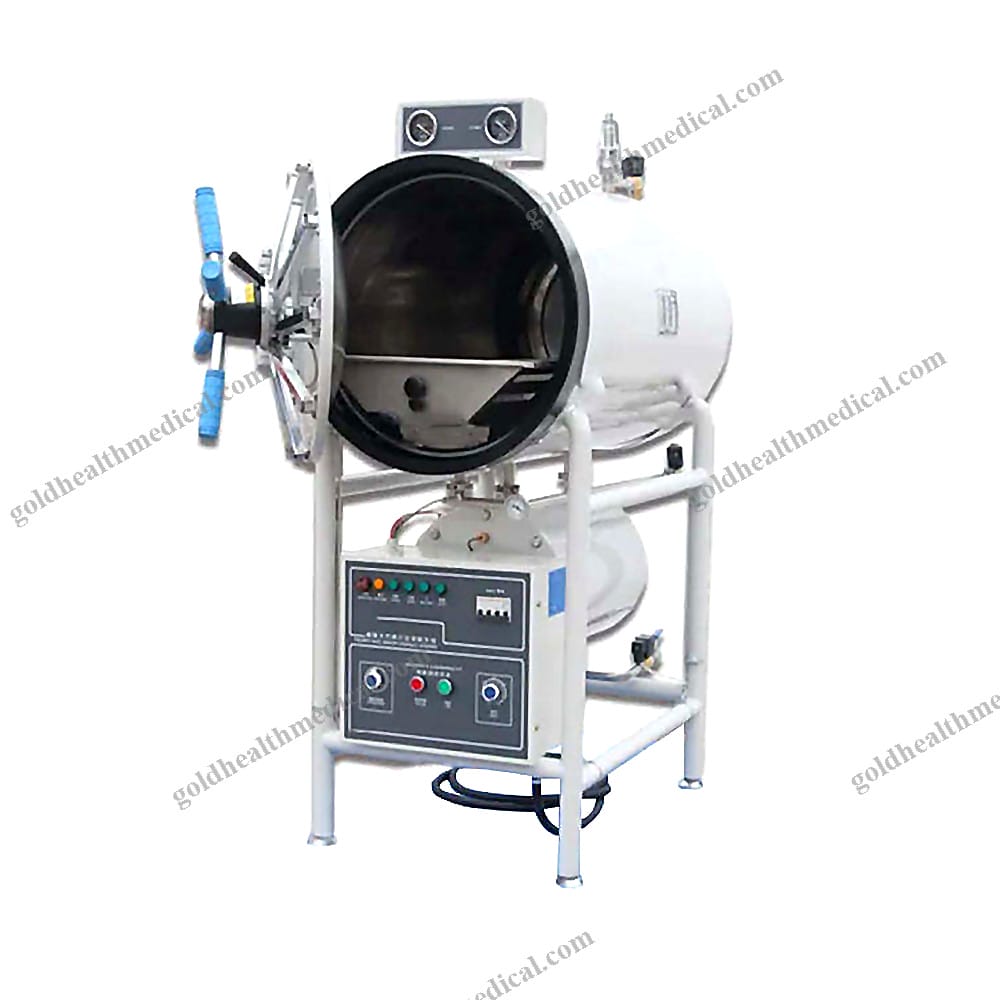

GoldHealth Medical Horizontal Cylindrical Pressure Steam Sterilizer Autoclave
Product Overview
GoldHealth Medical introduces a state-of-the-art Horizontal Cylindrical Pressure Steam Sterilizer Autoclave, designed to deliver unparalleled sterilization performance. This autoclave is meticulously engineered for hospitals, clinics, research institutions, and more, ensuring the highest standards of hygiene and safety.
Key Features
- Automated Sterilization: Effortlessly manage the sterilization process with advanced automatic controls.
- Integrated Drying Function: Perfect for drying dressings and other materials, enhancing operational efficiency.
- Advanced Safety Mechanisms: Equipped with over-temperature and over-pressure auto-protection devices.

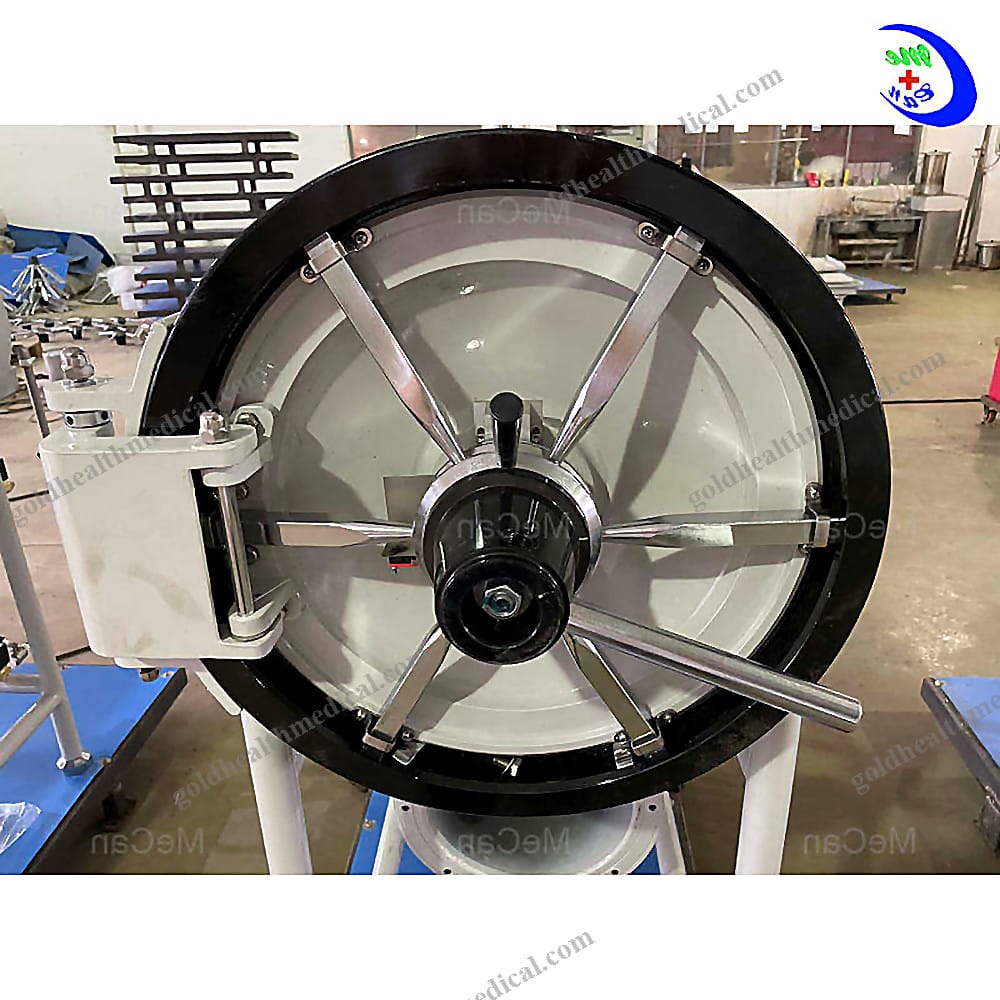

- Secure Door Operation: The door cannot be opened until chamber pressure reduces to 0.027MPa, ensuring user safety.
- Automatic Safety Valve: Opens when inner pressure exceeds 0.24MPa, releasing steam into the water tank.

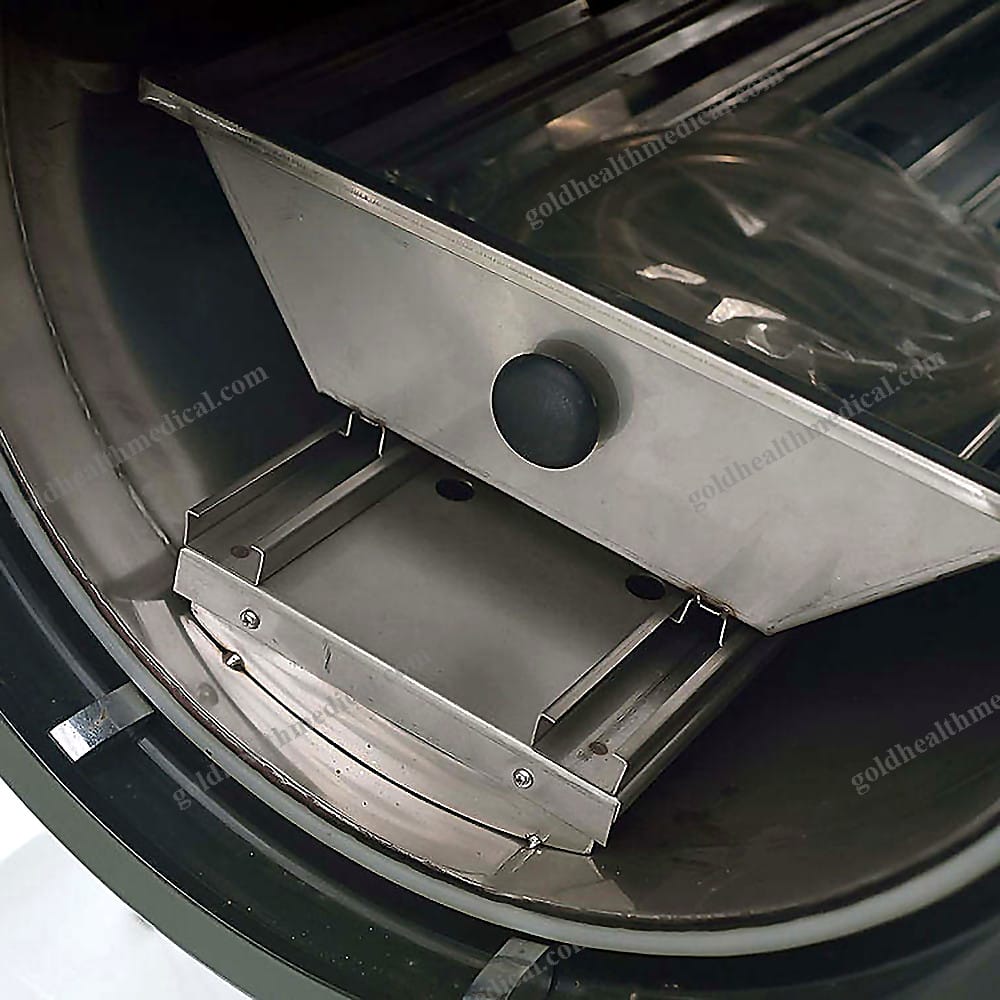

- Durable Stainless Steel Chamber: Ensures longevity and resistance to corrosion.
- Automatic Power Cut-off: Prevents damage by cutting off power and water supply when the machine lacks water, accompanied by an alarm.
Applications
- Gravity Exchange Technology: Efficiently removes cold air from the chamber, ensuring reliable sterilization.
- Smart Control System: Automatically adjusts steam inlet and outlet based on chamber temperature during sterilization.
- Versatile Usage: Ideal for sterilizing surgical instruments, dressings, medicines, culture mediums, food, and more.
Product Specifications
- Sterilizing Chamber Volume:
- 150L: φ480×850mm
- 200L: φ515×1000mm
- 280L: φ600×1000mm
- 400L: Φ700×1100mm
- 500L: Φ700×1300mm
- Working Pressure: 0.22MPa
- Working Temperature: 134°C
- Temperature Adjustment Range: 40°C - 134°C
- Sterilization Time: 0-60 minutes
- Drying Time: 0-60 minutes
- Temperature Uniformity: ≤± 2°C
- Power Requirements:
- 9KW/380V, 50Hz (150L, 200L)
- 12KW/380V, 50Hz (280L)
- 18KW/380V, 50Hz (400L, 500L)
- Dimensions (mm):
- 150L: 1400×600×1300
- 200L: 1400×670×1650
- 280L: 1400×770×1780
- 400L: 1430×880×1830
- 500L: 1800×900×1820
- Transport Dimensions (mm):
- 150L: 1550×750×1850
- 200L: 1560×820×1850
- 280L: 1680×920×2100
- 400L: 1800×1050×2100
- 500L: 1850×1050×2100
- Weight (G.W/N.W):
- 150L: 320/240 KG
- 200L: 350/260 KG
- 280L: 465/365 KG
- 400L: 530/520 KG
- 500L: 580/470 KG
Why Choose GoldHealth Medical?
GoldHealth Medical's Horizontal Cylindrical Pressure Steam Sterilizer Autoclave stands out with its robust design, advanced safety features, and precise control systems. It is the ultimate solution for ensuring sterile environments in medical and research settings.
Experience the reliability and efficiency that GoldHealth Medical delivers, setting new benchmarks
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
GoldHealth Medical Autoclave Steam Sterilizer – Precision Redefined for Modern Healthcare
-
Product Overview:
The GoldHealth Medical Autoclave Steam Sterilizer is a cutting-edge solution designed for high-pressure steam sterilization. Engineered with precision, this horizontal autoclave integrates advanced technology to deliver consistent, reliable, and automated sterilization processes. Suitable for medical, laboratory, and research environments, it ensures the highest standards of hygiene and safety. -
Key Features:
- Self-Contained Steam Generator: Eliminates dependency on external systems, ensuring seamless operation.
- Automated Sterilization Control: Simplifies workflows with an intuitive interface for effortless operation.
- Over-Pressure Auto-Protection Device: Guarantees safety by preventing system overloads.
- Stainless Steel Chamber: Durable, corrosion-resistant, and easy to clean, ensuring longevity and hygiene.
- Adjustable Temperature Range: Precise control from 40°C to 134°C for versatile sterilization needs.
- Working Pressure: Optimized at 0.22MPa for efficient and effective sterilization.
-
Drying Functionality: Ideal for sterilizing and drying dressings, enhancing operational efficiency.
-
Technical Specifications:
- Power Options: Available in 9kW, 12kW, and 18kW configurations to suit varying facility requirements.
- Capacity Options:
- 150L: Dimensions: 15507501850mm, G.W.: 320KG
- 200L: Dimensions: 15608201850mm, G.W.: 350KG
- 280L: Dimensions: 16809202100mm, G.W.: 465KG
- 400L: Dimensions: 180010502100mm, G.W.: 530KG
- 500L: Dimensions: 185010502100mm, G.W.: 580KG
-
Instrument Classification: Class II medical device, ensuring compliance with global safety standards.
-
Packaging and Delivery:
- Packaging: Secure wooden packaging designed for safe sea shipment.
- Ports: Available for export from Guangzhou, Shenzhen, Shanghai, and Hong Kong.
-
Supply Capacity: Monthly production capacity of 3000 units, with stock readily available for immediate deployment.
-
Warranty and Support:
- Warranty: Comprehensive 1-year warranty for peace of mind.
- After-Sales Service: Dedicated online technical support to address any operational queries or concerns.
GoldHealth Medical – Elevating Sterilization Standards Worldwide
