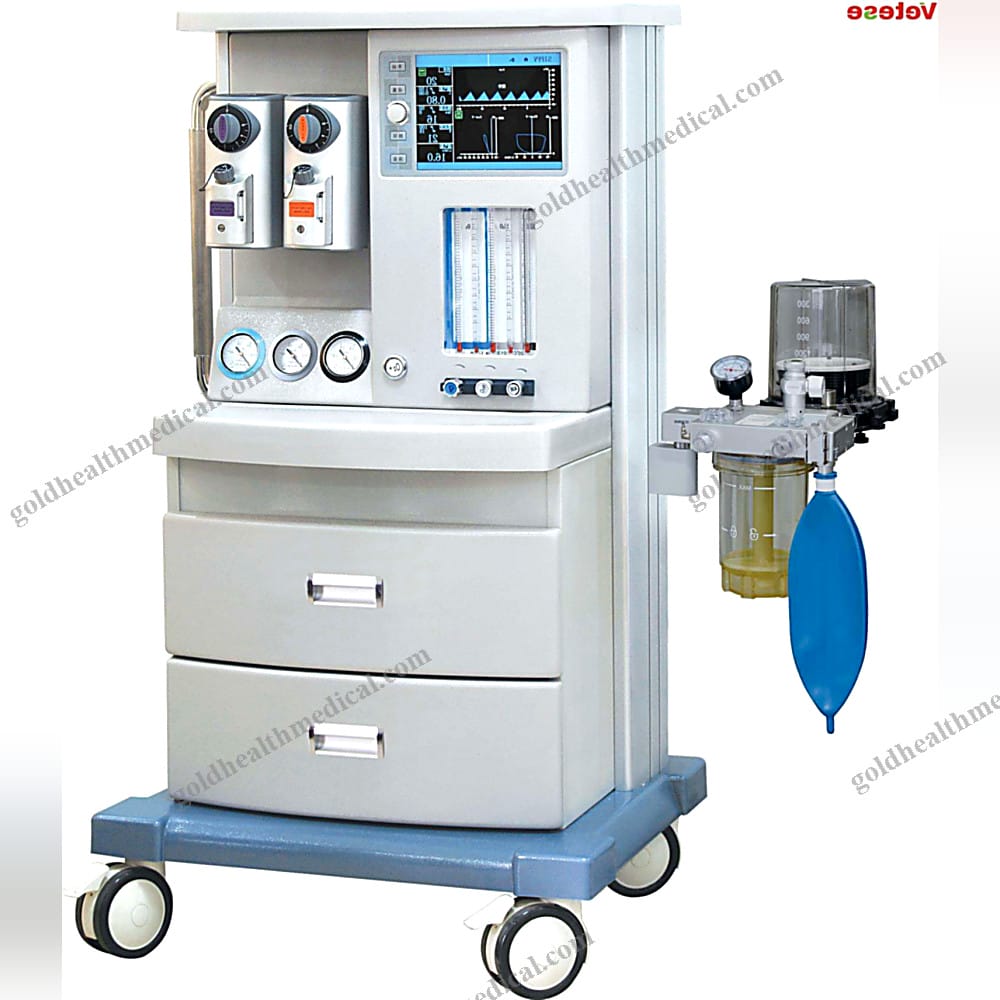

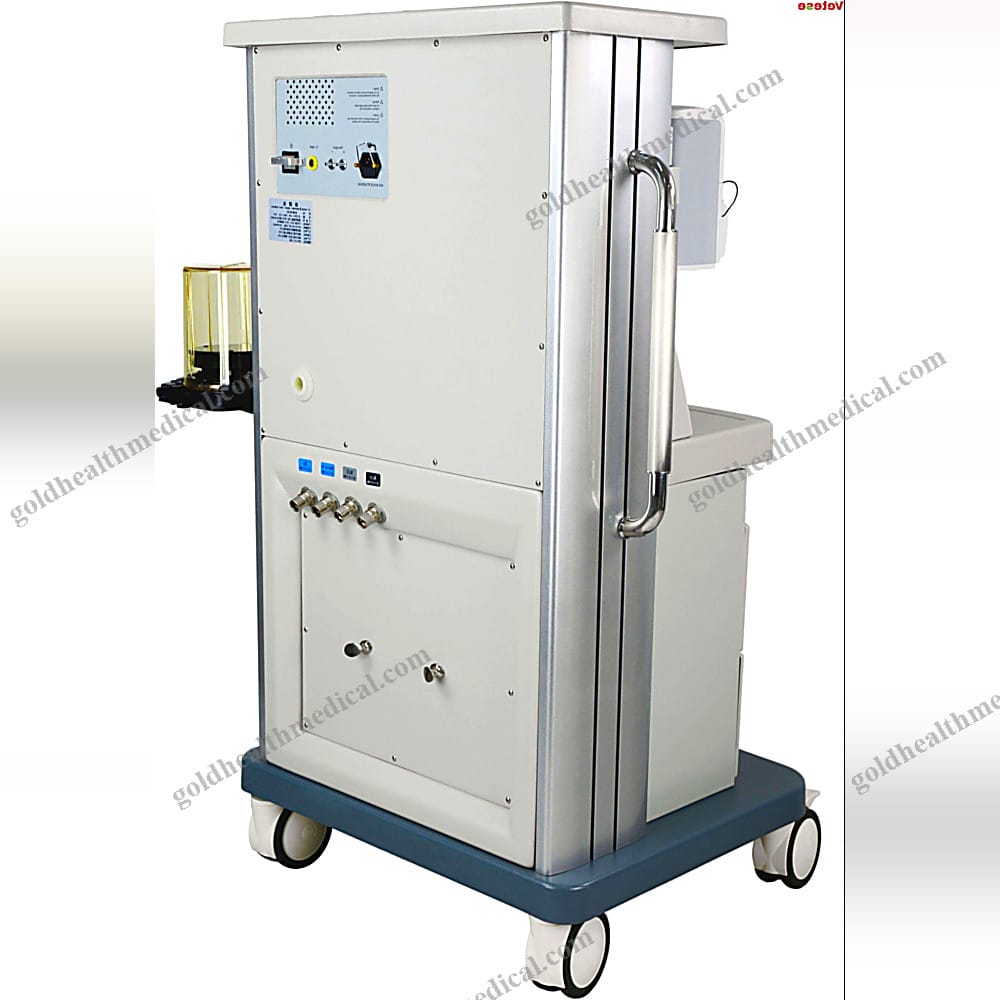

Portable Anesthesia Workstation Pro
Reference: 1600767146809
Anesthesia Equipments & Accessories
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

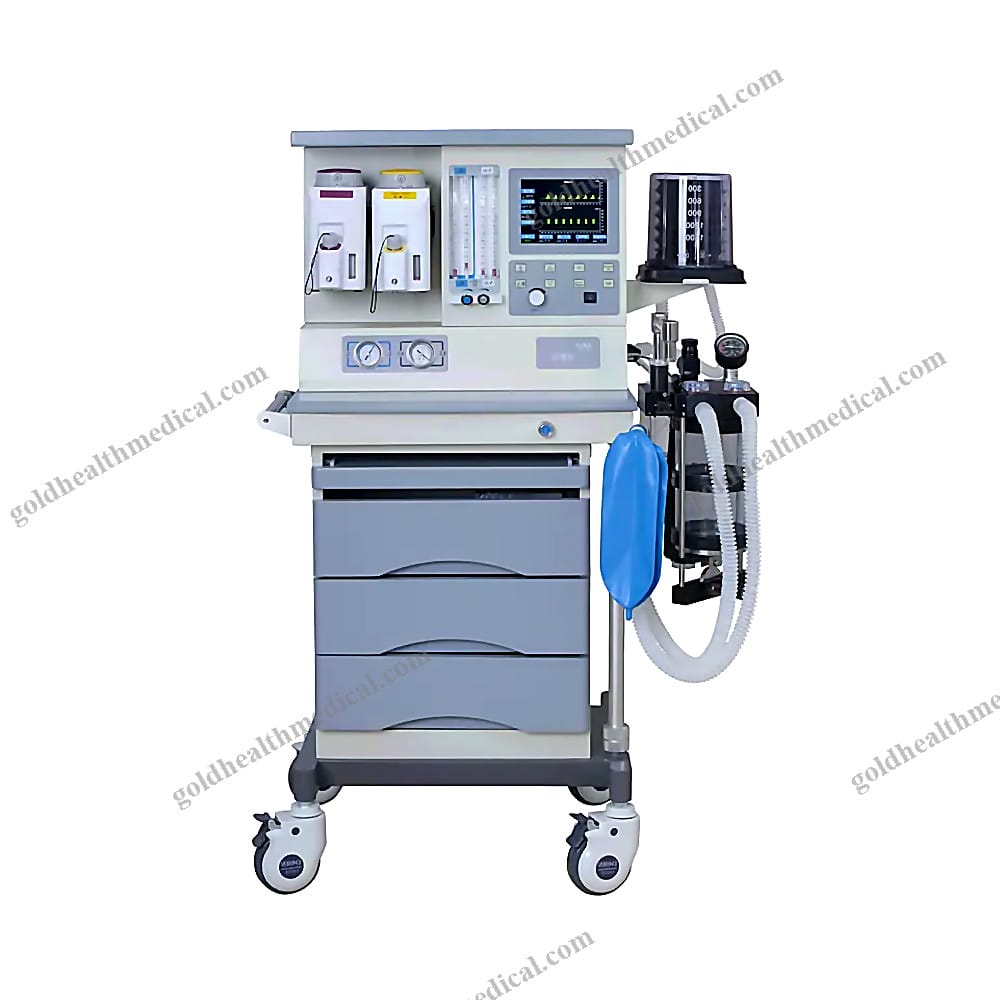

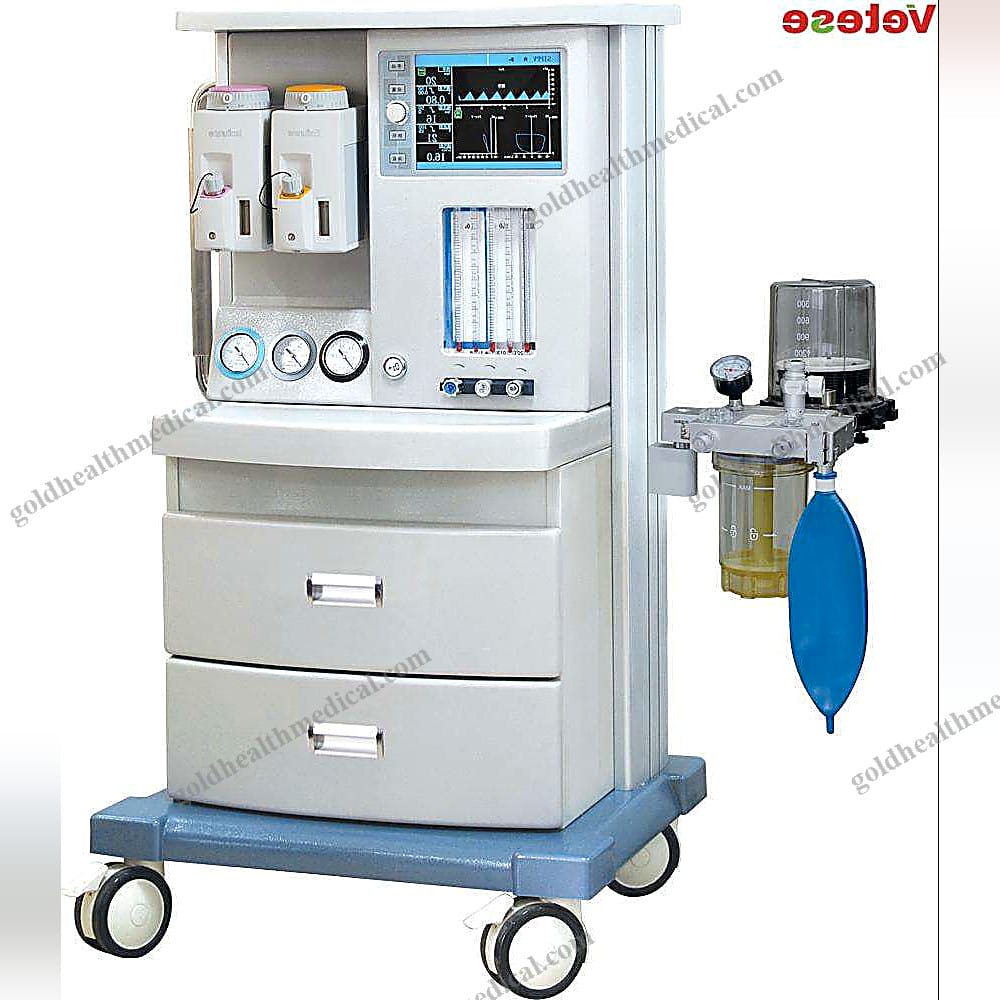

GoldHealth Medical Anesthesia Machine
Revolutionizing patient care with precision engineering and innovative design, the GoldHealth Medical Anesthesia Machine is a cornerstone of modern medical environments. Designed for high-performance use in ICUs, operating rooms, and advanced care facilities, this device combines cutting-edge technology with user-focused functionality.
Key Features
- Integrated Metallic Modular Respiratory Circuit: Engineered for reliability, this robust system ensures complete gas sealing even under high-temperature disinfection. Its smooth surfaces are effortless to clean, maintaining hygiene standards with minimal effort.
- High-Precision Five-Tube Flowmeter: Equipped with an interlocking oxygen-nitrous oxide supply mechanism, it guarantees oxygen output never drops below 21%, ensuring patient safety at all times.
- Eco-Friendly Frame with Automated Intelligence: Constructed with environmentally safe materials, the machine features an elegant design and automated self-checking during startup. Its self-calibrating sensors ensure consistent accuracy without manual intervention.
- Advanced Adjustable Pressure Limiting (APL) Valve: Optimized for both low and ultra-low flow anesthesia, this valve provides stability and precision, enhancing control during critical procedures.
- Rotating Na-Lime Canister: Designed for ease of use, this canister requires only one hand to operate. Made from imported PPSU material, it is temperature-resistant up to 134°C, ensuring durability and reliability.

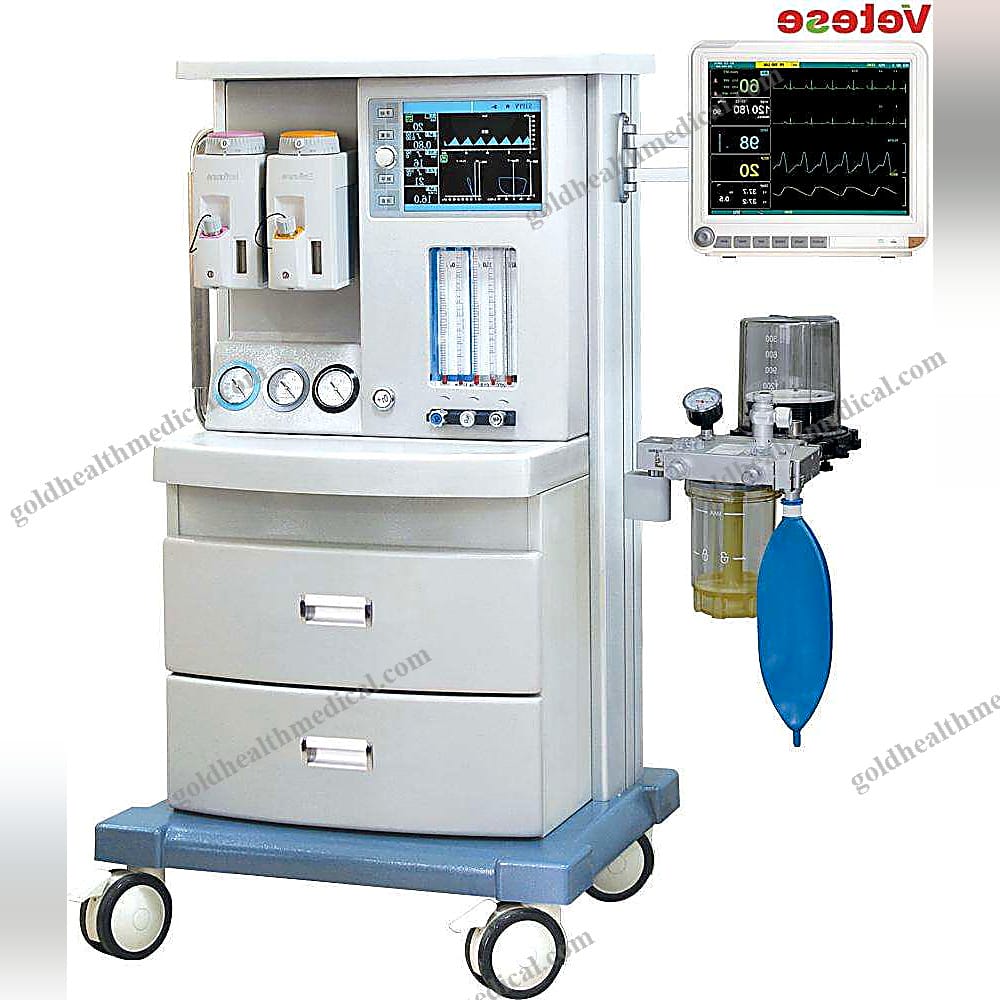

- Optional Multi-Parameter Patient Monitor: Enhance your setup with an optional monitor for comprehensive patient tracking.
Technical Specifications

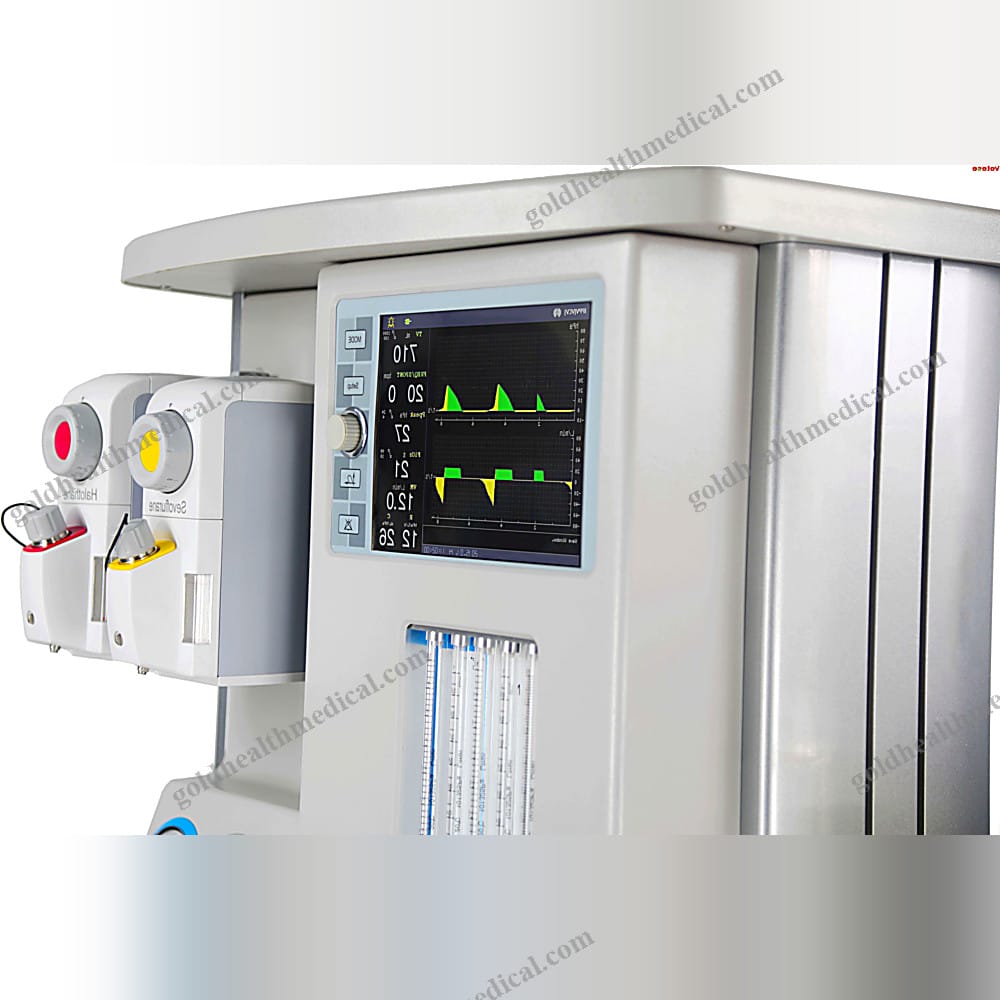

- Display: 10.4-inch TFT display for clear, real-time data visualization.
- Flowmeter Range:
- Oxygen (O2): 0.1~10L/min
- Nitrous Oxide (N2O): 0.1~10L/min
- Air: 0.1~10L/min
- Ventilation Modes: IPPV, SIPPV, VCV, PCV, IMV, SIMV, MANUAL.
- Backup Power Supply: Provides uninterrupted operation for at least 4 hours.
- Tidal Volume:
- Adjustable Range: 20~1500ml
- Display Range: 0~2000ml
- Respiratory Rate: 1~100 breaths per minute (bpm).
- Inspiratory/Expiratory (I:E) Ratio: 8:1 to 1:10 for precise ventilation control.
- PEEP Range: 0~20cmH2O (electronically controlled).
- Inspiratory Pressure Trigger Range: -10~10cmH2O (electronically controlled).
- SIGH Function: Delivers 1 sigh breath every 80~120 breaths for enhanced lung compliance.
- Inhaled Oxygen Concentration Monitor: Tracks oxygen levels from 21% to 100%.
- SIMV Rate: 1~20bpm for synchronized intermittent mandatory ventilation.
- Inspiratory Plateau: Adjustable from 0 to 1 second.
- Vaporizer Concentration Ranges: 0~5%.
- Vaporizer Compatibility: Supports Enflurane, Isoflurane, Sevoflurane, and optional Halothane.
GoldHealth Medical’s Anesthesia Machine is designed to meet the rigorous demands of modern healthcare environments. Its blend of advanced technology, user-centric design, and unmatched reliability makes it the ideal choice for hospitals, clinics, and research institutions worldwide. Elevate your medical practice with a device that prioritizes precision, safety, and innovation.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Overview
GoldHealth Medical presents a cutting-edge Class II medical ventilator designed to deliver precision, reliability, and versatility in respiratory care. Engineered to meet the rigorous demands of modern healthcare, this device is ideal for hospitals, clinics, research institutions, and home care environments. With advanced ventilation modes, intuitive controls, and compliance with global safety standards, it ensures optimal patient outcomes in critical care scenarios.
Key Features and Specifications
- Ventilation Modes: Offers multiple modes including IPPV, SIPPV, VCV, PCV, IMV, SIMV, Manual, and Standby, providing flexibility for diverse clinical needs.
- Respiratory Rate: Adjustable range of 1-100 bpm, ensuring precise control for pediatric to adult patients.
- Tidal Volume: Fully adjustable from 0 to 1500 mL, accommodating a wide range of patient requirements.
- Inspiratory Trigger Pressure (Ptr): Configurable between -1.0 to 2.0 kPa for enhanced patient-ventilator synchronization.
- Inspiratory Plateau: Adjustable duration from 0 to 1 second for tailored ventilation support.
- PEEP (Positive End-Expiratory Pressure): Range of 0-20 cmH2O to optimize lung recruitment and oxygenation.
Design and Build Quality
- Materials: Constructed with high-grade metal, steel, and durable plastic for long-lasting performance.
- Safety Standards: Compliant with IEC 60601, ensuring the highest levels of electrical and operational safety.
- Quality Certifications: ISO 13485 and RoHS certified, guaranteeing adherence to international quality and environmental standards.
Performance and Reliability
- Power Source: Electric, ensuring consistent and uninterrupted operation.
- Shelf Life: 6 years, providing extended usability and value.
- Warranty: Comprehensive 6-year warranty, reflecting confidence in product durability and performance.
Packaging and Delivery
- Single Package Dimensions: 94 x 79 x 160 cm, designed for secure and efficient transport.
- Single Gross Weight: 68.000 kg, ensuring stability during shipping and handling.
After-Sales Support
GoldHealth Medical is committed to customer satisfaction with online technical support available to assist with installation, troubleshooting, and maintenance.
Why Choose GoldHealth Medical?
Our ventilator stands out with its advanced engineering, versatile functionality, and unwavering commitment to safety and quality. Designed to empower healthcare professionals and improve patient care, this device is a trusted solution for respiratory support across diverse medical settings.
