Advanced Multifunction Anesthesia Machine for Hospital Surgical Use
Reference: 1601173431826
Anesthesia Equipments & Accessories
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

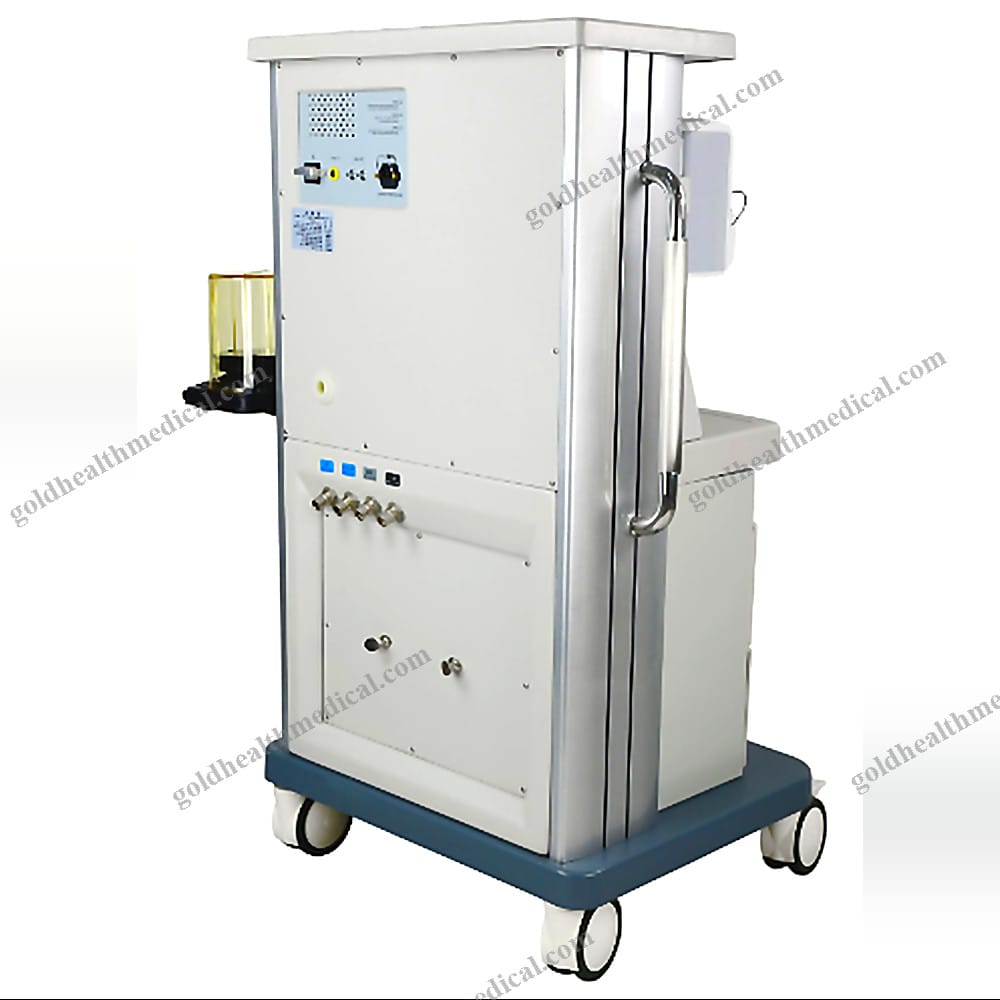

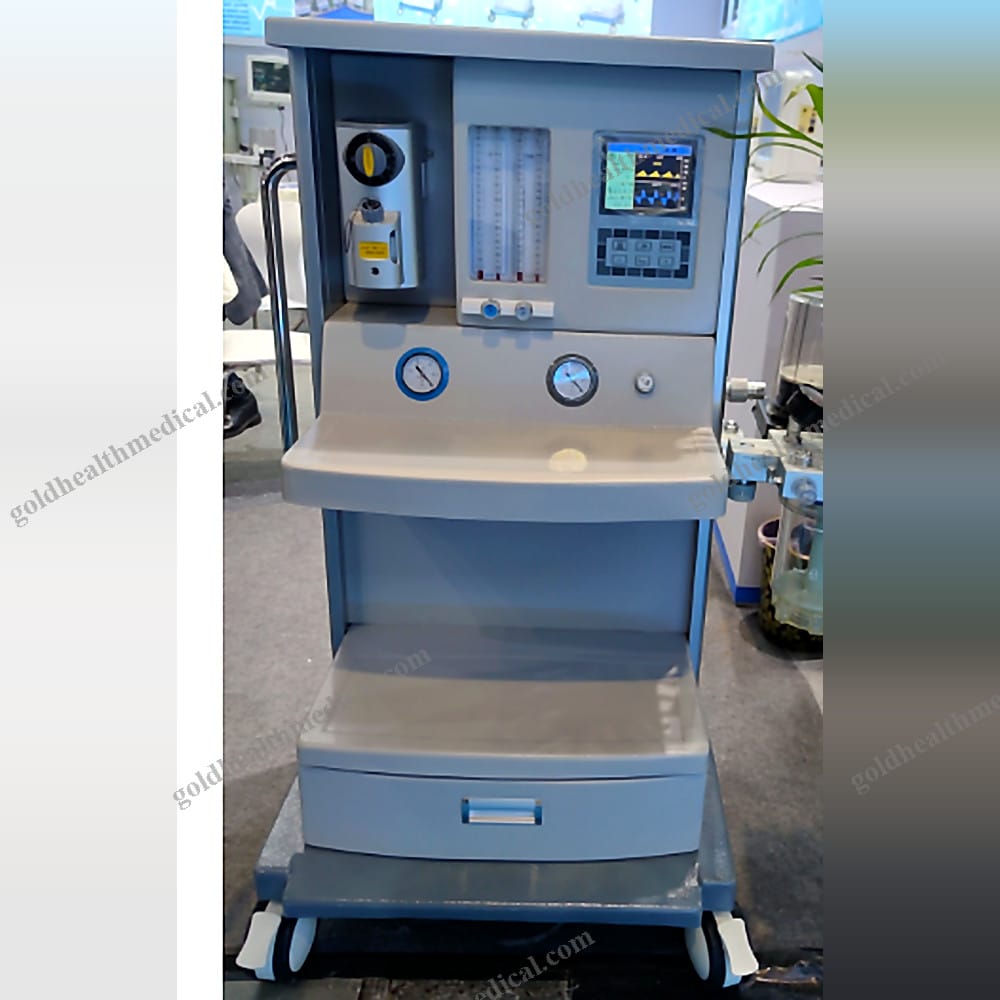

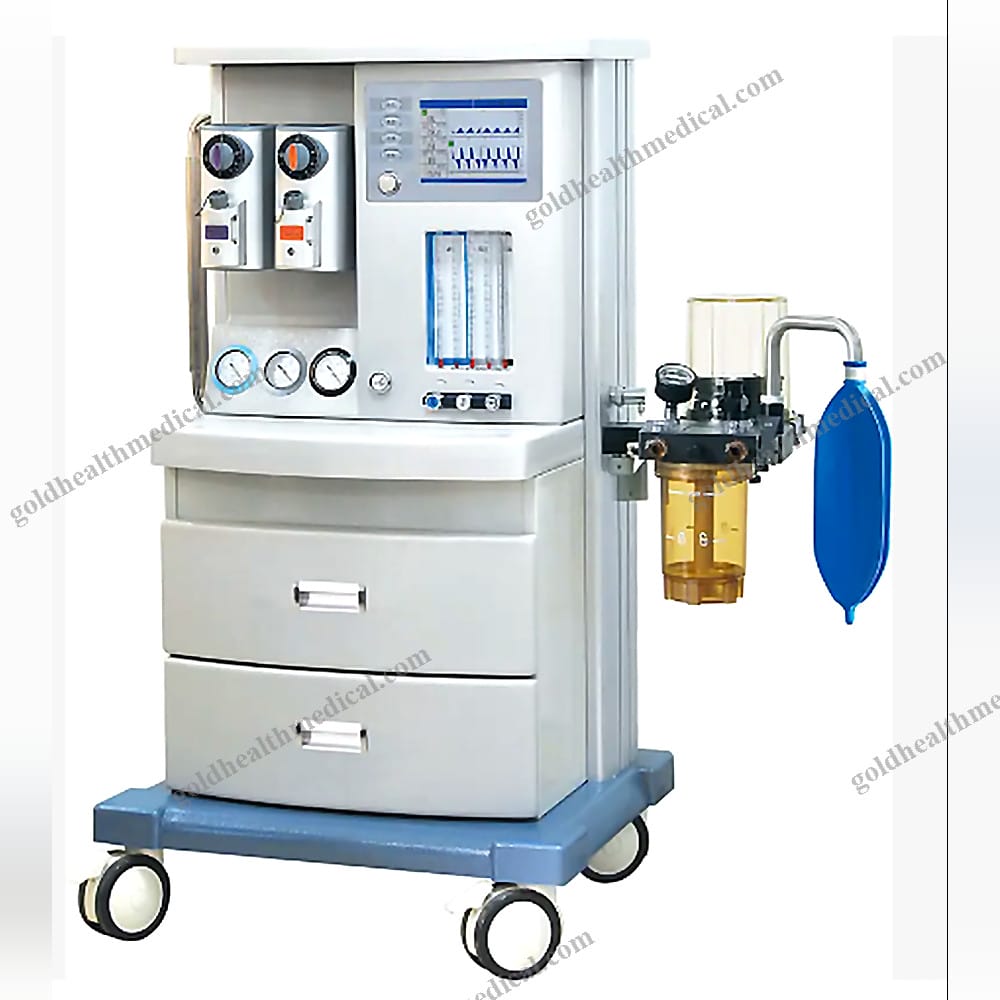

GoldHealth Medical Anesthesia Machine
Experience precision and reliability with GoldHealth Medical's advanced mobile anesthesia machine, designed to meet the needs of modern medical environments. Engineered with cutting-edge technology and user-centric features, this device ensures seamless performance for both clinicians and patients.
Key Features
- Operating Modes: Pneumatically driven and electronically controlled, supporting closed, semi-closed, and semi-open systems for versatile anesthesia delivery.
- Anesthesia Ventilator: Equipped with an 8.4-inch color TFT display, offering real-time visualization of Pressure-Time, Frequency-Time, Pressure-Volume, and Frequency-Volume waveforms. Instant waveform cycling is available at the touch of a button.

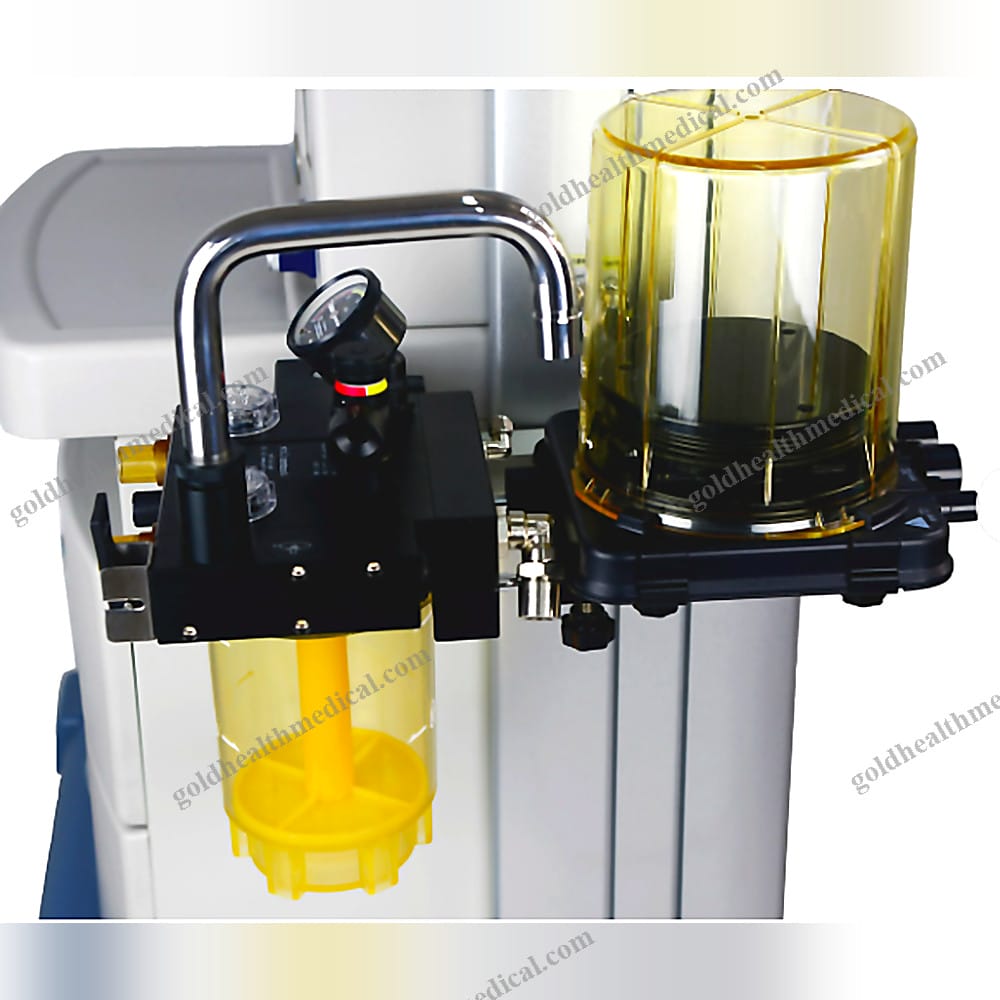

- Respiratory Circuit: Features a standard integrated metallic modular design, ensuring superior gas sealing even after high-temperature disinfection. Easy to clean and maintain.
- Power Failure Support: Automatically switches to backup power during AC outages, ensuring uninterrupted operation.
- Flow Sensor and Valve: Includes an electronic pressure differential flow sensor and an imported respiratory control valve for stability, reliability, and rapid response.
- Five-Tube Flowmeter: High-precision flowmeter with interlocking oxygen-nitrous oxide supply, guaranteeing oxygen output never drops below 21%.
- Eco-Friendly Design: Constructed with nonhazardous materials, featuring precise engineering and an elegant aesthetic. Includes automated self-checking and self-calibrating sensors for enhanced safety.
- Comprehensive Alarms: Audible and visual alerts for tidal volume, airway pressure, oxygen concentration, asphyxia, power failure, and oxygen failure. Alarm query functionality provides detailed insights.

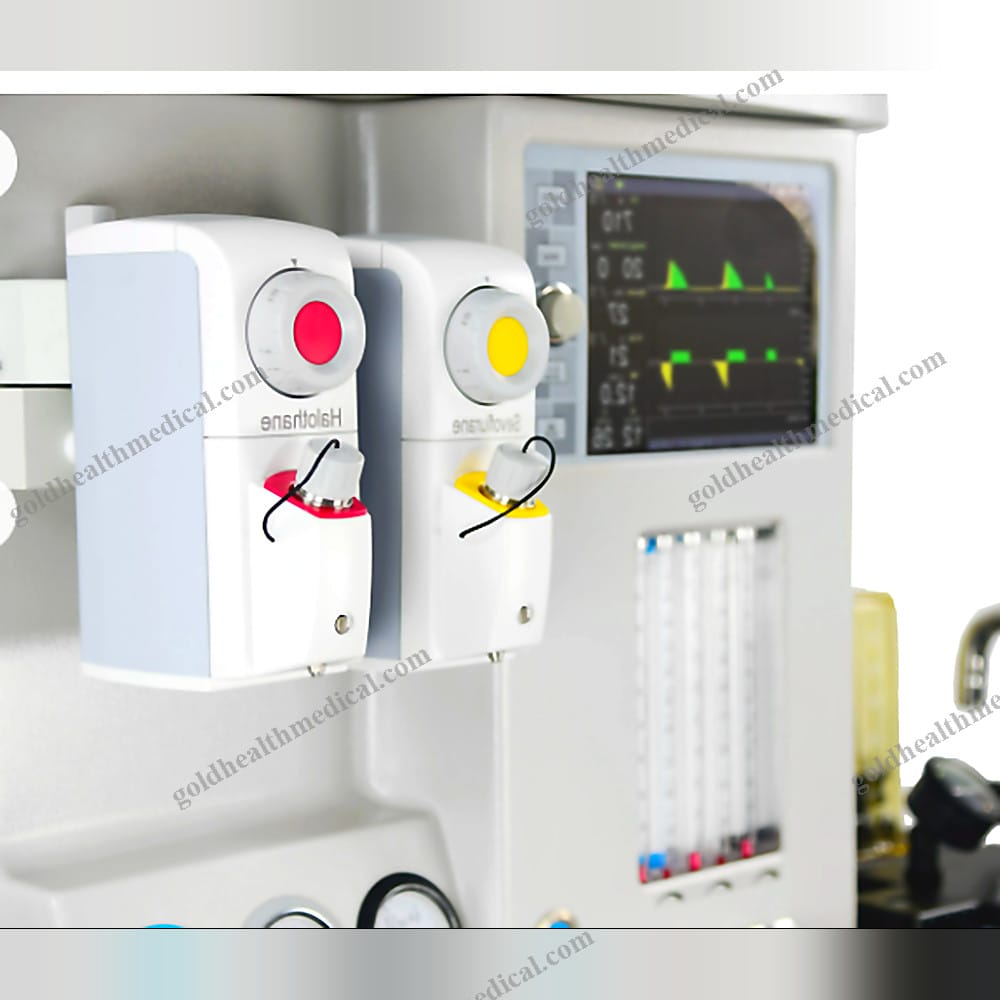

- Vaporizer: Locally assembled with imported components, compatible with Enflurance, Isoflurance, and Sevoflurance (Halothance optional). Self-compensating functionality ensures consistent performance.
- APL Valve: Advanced Adjustable Pressure Limiting (APL) valve, optimized for low and ultra-low flow anesthesia.
- Na-lime Tank: International-grade rotating tank, easy to operate with one hand, made from imported PPSU material and resistant to temperatures up to 134°C.
Technical Specifications
- Display: 10.4-inch LCD screen
- Suitable For: Adults and children
- Flowmeters:
- Oxygen (O2): 0.1–10 L/min
- Nitrous Oxide (N2O): 0.1–10 L/min
- Air: 0.1–10 L/min
- Safety Valve: <12.5 kPa
- Respiratory Rate: 1–99 bpm
- Oxygen Concentration in Mixed Gas (N2O/O2): >21%
- Oxygen Flush: 25–75 L/min
- PEEP: 0–20 hPa
- Pressure Limit Range: 0–6.0 kPa
- Tidal Volume: 0–1500 mL
- I/E Ratio: 8:1 to 1:10
- O2 Concentration Range: 21%–100%
- Operating Conditions:
- Ambient Temperature: 10–40°C
- Relative Humidity: ≤80%
- Atmospheric Pressure: 860–1060 hPa
- Power Requirements: ~220–240V, 50/60Hz, 40VA (must be well-grounded)
Alarm System
- Airway Pressure Alarm: Audible and visual with yellow and red indicators
- Lower: 0.2–5.0 kPa
- Upper: 0.3–6.0 kPa (±0.2 kPa)
- Tidal Volume Alarm: Audible and visual with yellow and red indicators
- Upper: 50–2000 mL
- Lower: 0–1800 mL
- Oxygen Concentration Alarm: Audible and visual with yellow and red indicators
- Upper: 21%–100%
- Lower: 10%–80%
Unique Selling Points
- Precision Engineering: Designed for accuracy and reliability in critical medical scenarios.
- User-Friendly Interface: Intuitive controls and real-time data visualization enhance usability.
- Safety First: Comprehensive alarm systems and fail-safe mechanisms ensure patient and operator safety.
- Durability and Hygiene: High-quality materials and easy-to-clean components make it ideal for sterile environments.
GoldHealth Medical’s anesthesia machine is the ultimate solution
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Overview
GoldHealth Medical proudly presents the Advanced Anesthesia Machine, a cutting-edge solution designed to elevate patient care in operating rooms and medical facilities. Engineered with precision and reliability in mind, this Class II medical instrument is ideal for surgeries and other critical medical procedures. Backed by GoldHealth Medical's commitment to excellence, this device combines advanced technology with user-friendly features to ensure seamless performance.
Key Features and Specifications
- Application: Specifically designed for operating rooms, ensuring optimal support during surgical procedures.
- Display: Equipped with a high-resolution LCD display for clear, real-time monitoring of critical parameters.
- Power Source: Integrated with a reliable power system tailored for anesthesia delivery.
- Material: Constructed from premium, medical-grade materials for durability and safety.
- Packing: Securely packaged in a robust wooden case to ensure safe transportation and storage.
Certifications and Compliance
- Quality Certifications: Compliant with CE and ISO standards, guaranteeing safety and reliability.
- Instrument Classification: Class II medical device, ensuring adherence to stringent industry regulations.
Product Details
- Shelf Life: 1 year, ensuring long-term usability and performance.
- Warranty: Comprehensive 1-year warranty for peace of mind and assured quality.
- After-Sale Service: Access to online technical support, providing expert assistance whenever needed.
Ordering Information
- Minimum Order Quantity (MOQ): 1 set, making it accessible for both large institutions and smaller practices.
Why Choose GoldHealth Medical's Anesthesia Machine?
- Precision Engineering: Designed to deliver accurate and consistent anesthesia administration.
- User-Centric Design: Intuitive controls and an ergonomic interface ensure ease of use for medical professionals.
- Trusted Performance: Backed by GoldHealth Medical’s reputation for innovation and reliability in the healthcare industry.
Applications
- Ideal for use in hospitals, clinics, research laboratories, and rehabilitation centers.
- Suitable for both professional medical environments and home healthcare settings.
GoldHealth Medical’s Anesthesia Machine is more than just a device—it’s a reliable partner in delivering exceptional patient care. Experience the perfect blend of innovation, safety, and performance today.
