Portable Anesthesia Machine Pro Plus
Reference: 1601374081818
Anesthesia Equipments & Accessories
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

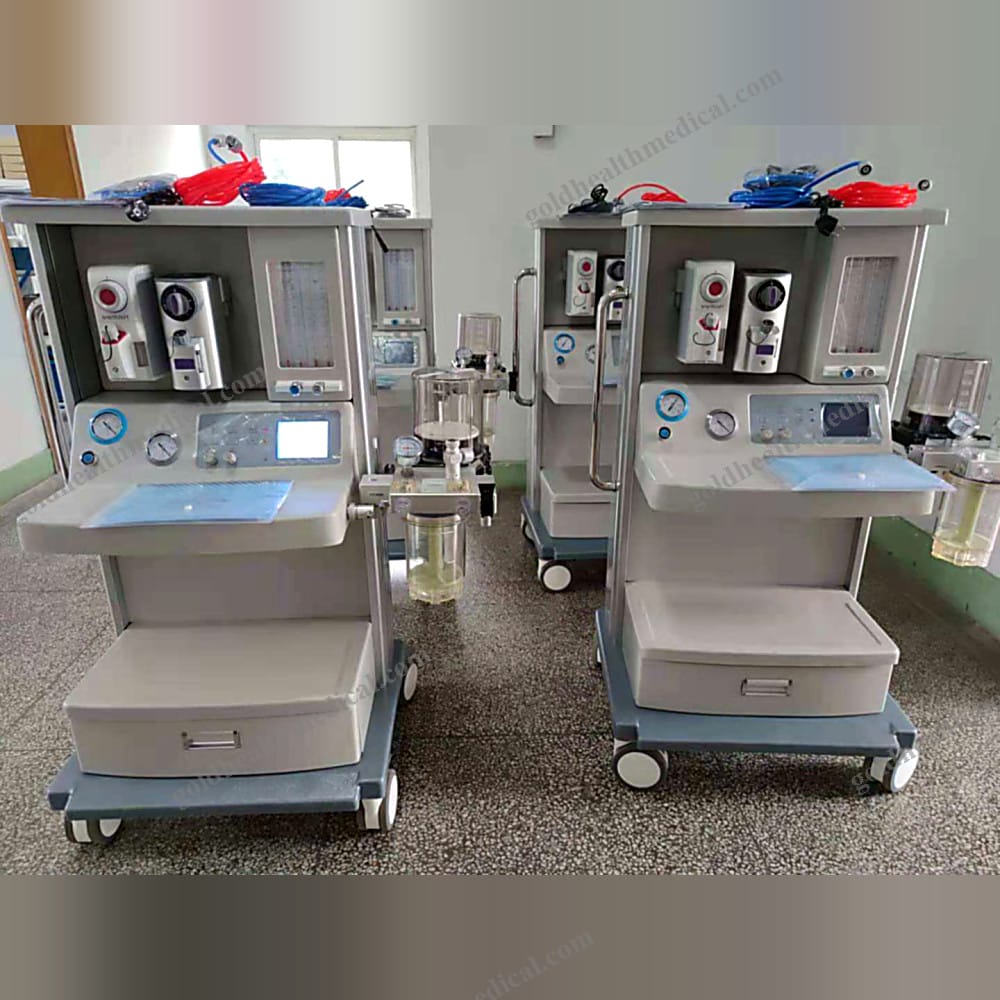

GoldHealth Medical Anesthesia System
Operating Modes
- Pneumatically driven and electronically controlled
- Supports closed, semi-closed, and semi-open configurations
Anesthesia Ventilator
- Features a built-in 5.4-inch TFT display
- Real-time visualization of Pressure-Time and Frequency-Time waveforms
- Instant waveform cycling with a single touch
Respiratory Circuit
- Standard integrated metallic modular design
- Ensures gas sealing integrity even under high-temperature disinfection
- Effortless cleaning and disinfection
- Environmentally friendly, nonhazardous frame with precise engineering and elegant aesthetics
- Automated self-checking during startup and self-calibrating sensor for enhanced reliability
Flowmeter
- High-precision dual-tube design
- Interlocking oxygen-nitrous oxide supply ensures oxygen output never drops below 21%
Safety Features
- Oxygen failure alarm system: Activates when oxygen supply falls below 0.20 MPa, cutting off nitrous oxide
- Power failure support: Automatically switches to backup power mode during AC outages, ensuring uninterrupted operation
- Comprehensive alarm system: Audible and visual alerts for tidal volume, airway pressure, oxygen failure, power failure, and more
- Alarm query function for detailed diagnostics
Gas Flow Sensor
- Equipped with an advanced infrared turbine flow sensor
- Delivers precise and stable gas flow measurements

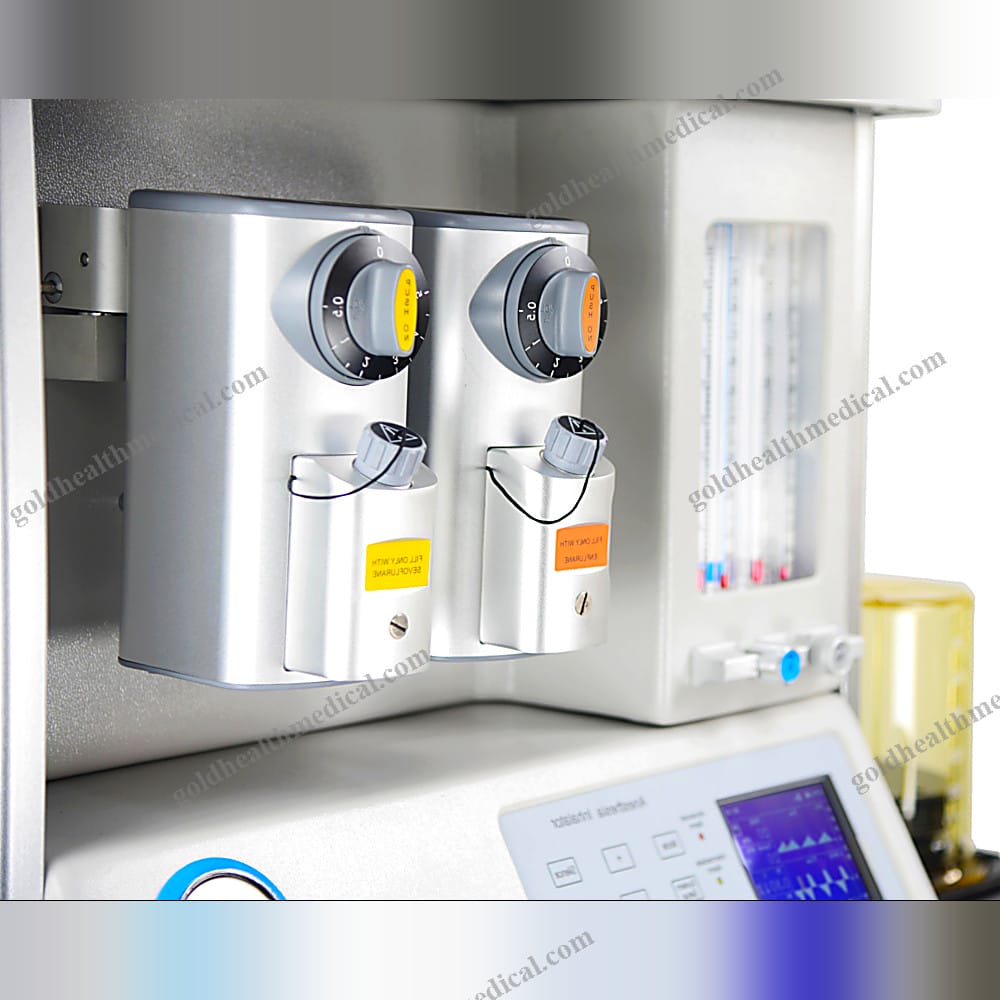

Vaporizer
- Locally assembled with imported tank components
- Compatible with Enflurane, Isoflurane, and Sevoflurane (Halothane optional)
- Self-compensating functionality for consistent performance
Na-lime Tank
- Advanced rotating design for effortless one-handed operation
- Constructed from imported PPSU material, temperature-resistant up to 134°C
Advanced Model Features
- Dual-tank vaporizer design extends surgical durations
- Interlocking tank capability for enhanced safety
Ventilation Parameters
- Ventilation modes: IPPV, SIPPV, IMV, SIMV, MANUAL
- Tidal volume adjustable range: 50–1500ml; display range: 0–2000ml
- Respiratory rate: 1–99bpm
- Inspiratory/Expiratory (I:E) ratio: 4:1 to 1:10 (supports inverse ratio ventilation)
- Inspiratory pressure trigger range: -10 to 10cmH2O (electronically controlled)
- SIGH: 1 sigh breath every 80–160 breaths
Monitoring Capabilities
- Monitors minute volume (MV), tidal volume (VT), breathing frequency, peak pressure, PEEP, spontaneous inspiration, airway resistance, oxygen concentration, lung compliance, and power supply
Vaporizer Specifications
- Concentration range: 0–5%
- Single or double PA-l type slots available
Gas Supply Parameters
- Oxygen supply flow rate: 25–75L/min
- Gas supply pressure: O2: 0.32MPa–0.6MPa; N2O: 0.32MPa–0.6MPa
Backup Power Supply
- Provides at least 4 hours of operation during power outages
Absorber Volume
- 1.5L capacity
GoldHealth Medical delivers cutting-edge medical solutions designed to meet the needs of hospitals, clinics, laboratories, and home care environments. Our anesthesia systems combine precision engineering, advanced safety features, and user-friendly design to ensure optimal performance and patient care.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Company Name: GoldHealth Medical
Product Name: Anesthesia Machine
Product Overview:
The GoldHealth Medical Anesthesia Machine is a state-of-the-art Class II medical instrument designed to deliver precision, reliability, and safety in operating room environments. Engineered with cutting-edge technology, this luxury anesthesia machine ensures optimal performance for hospitals, clinics, and research institutions. Its sleek silver-gray design combines functionality with modern aesthetics, making it a standout addition to any professional medical setting.
Key Features and Specifications:
- Application: Specifically designed for use in operating rooms, ensuring seamless integration into surgical workflows.
- Power Source: Electric-powered for consistent and reliable operation.
- Shelf Life: 1 year, maintaining high performance and durability.
- Quality Certifications: ISO and CE certified, guaranteeing compliance with international safety and quality standards.
- Weight: Gross weight of 96kg, ensuring stability and robustness during use.
- Customization: OEM services available to meet specific client requirements.
- Packing: Securely packed in durable cartons for safe transportation.
After-Sales Support:
- Comprehensive 1-year warranty for peace of mind.
- Access to online technical support, ensuring prompt assistance whenever needed.
Why Choose GoldHealth Medical's Anesthesia Machine?
- Precision Engineering: Designed to deliver accurate and consistent results, enhancing patient safety during procedures.
- Luxury Design: Combines advanced functionality with a sophisticated silver-gray finish, elevating the standard of medical equipment.
- Global Standards: Backed by ISO and CE certifications, ensuring world-class quality and reliability.
- Versatility: Suitable for a wide range of medical environments, including hospitals, research labs, and rehabilitation centers.
Ordering Details:
- Minimum Order Quantity (MOQ): 1 set, making it accessible for both large institutions and smaller practices.
GoldHealth Medical is committed to delivering innovative and reliable medical solutions that empower healthcare professionals worldwide. Choose our Anesthesia Machine for unmatched precision, durability, and performance.
