Portable Anesthesia Machine Pro
Reference: 1601374157270
Anesthesia Equipments & Accessories
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

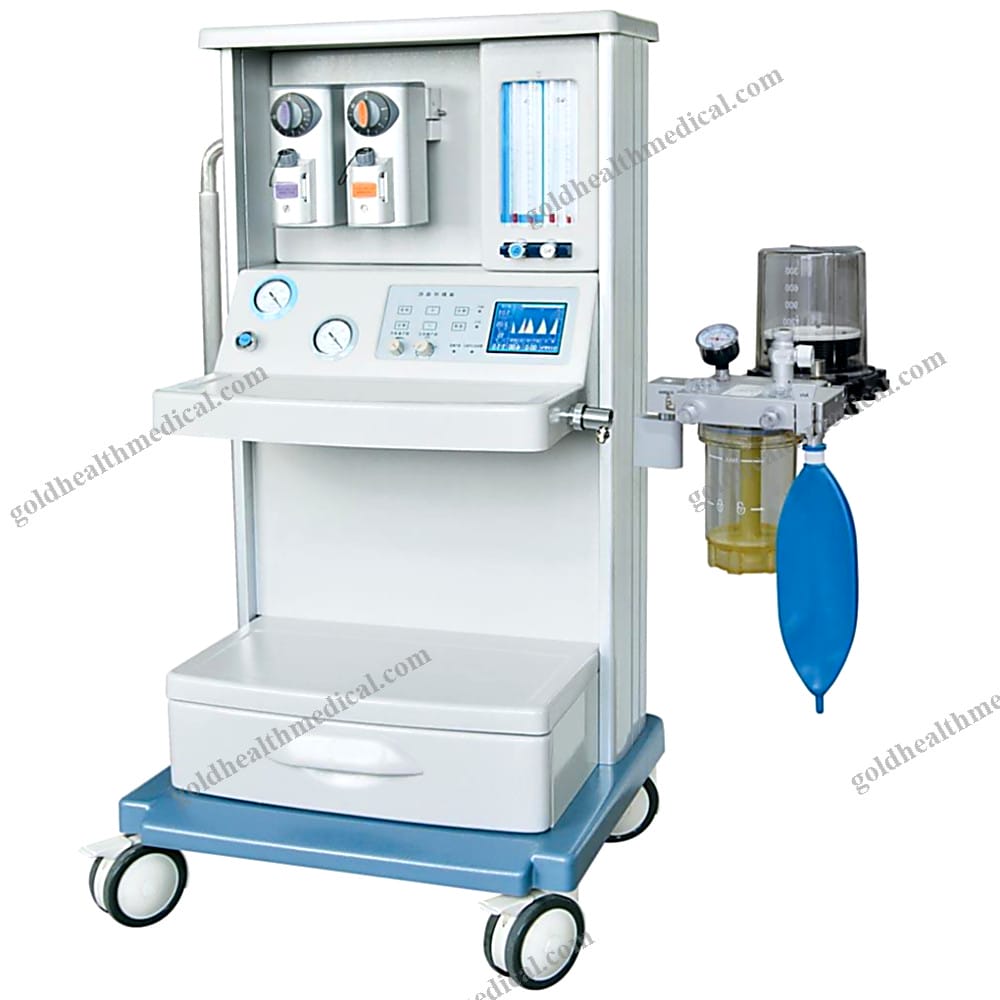

GoldHealth Medical presents a cutting-edge Anesthesia System designed for precision, reliability, and ease of use in medical environments.
Product Highlights
- Operating Modes: Pneumatically driven and electronically controlled, supporting closed, semi-closed, and semi-open configurations for versatile applications.

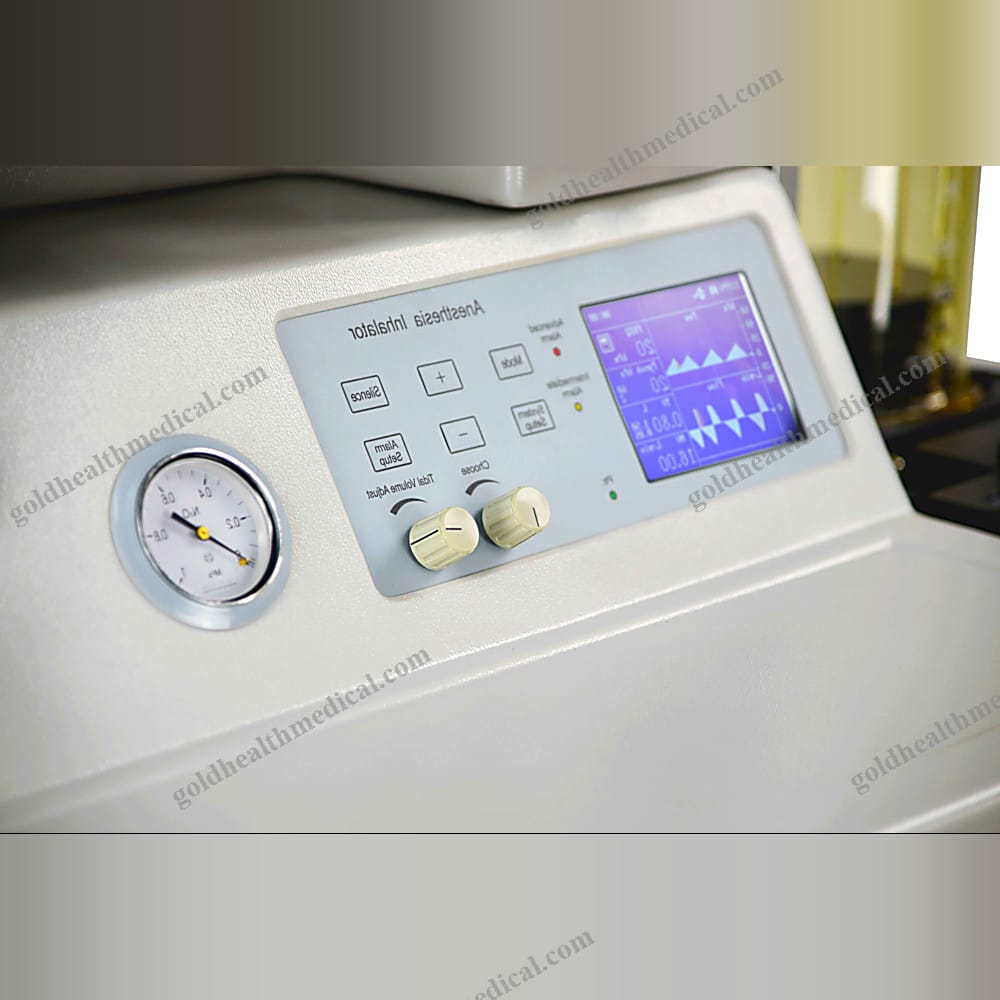

- Anesthesia Ventilator: Features a built-in 5.4-inch TFT display, offering real-time visualization of Pressure-Time and Frequency-Time waveforms. Instant waveform cycling is available at the touch of a button for seamless operation.
- Respiratory Circuit: A standard integrated metallic modular design ensures superior gas sealing, even under high-temperature disinfection. The circuit is easy to clean, environmentally friendly, and constructed with precision for durability and elegance. Includes an automated self-check function and self-calibrating sensor for enhanced reliability.
- Flowmeter: High-precision dual-tube design with interlocking oxygen-nitrous oxide supply, ensuring oxygen output never drops below 21% for patient safety.
- Oxygen Failure Alarm: Integrated into the anesthetic gas delivery system, triggering an alarm and cutting off nitrous oxide when oxygen supply falls below 0.20 MPa.
- Power Failure Support: Automatically switches to backup power mode during AC outages, ensuring uninterrupted operation for up to 4 hours.
- Advanced Alarm System: Provides audible and visual alerts for tidal volume, airway pressure, power failure, oxygen failure, and more. Includes an alarm query function for detailed diagnostics.
- Infrared Turbine Flow Sensor: Delivers precise gas flow measurements with exceptional stability and reliability.

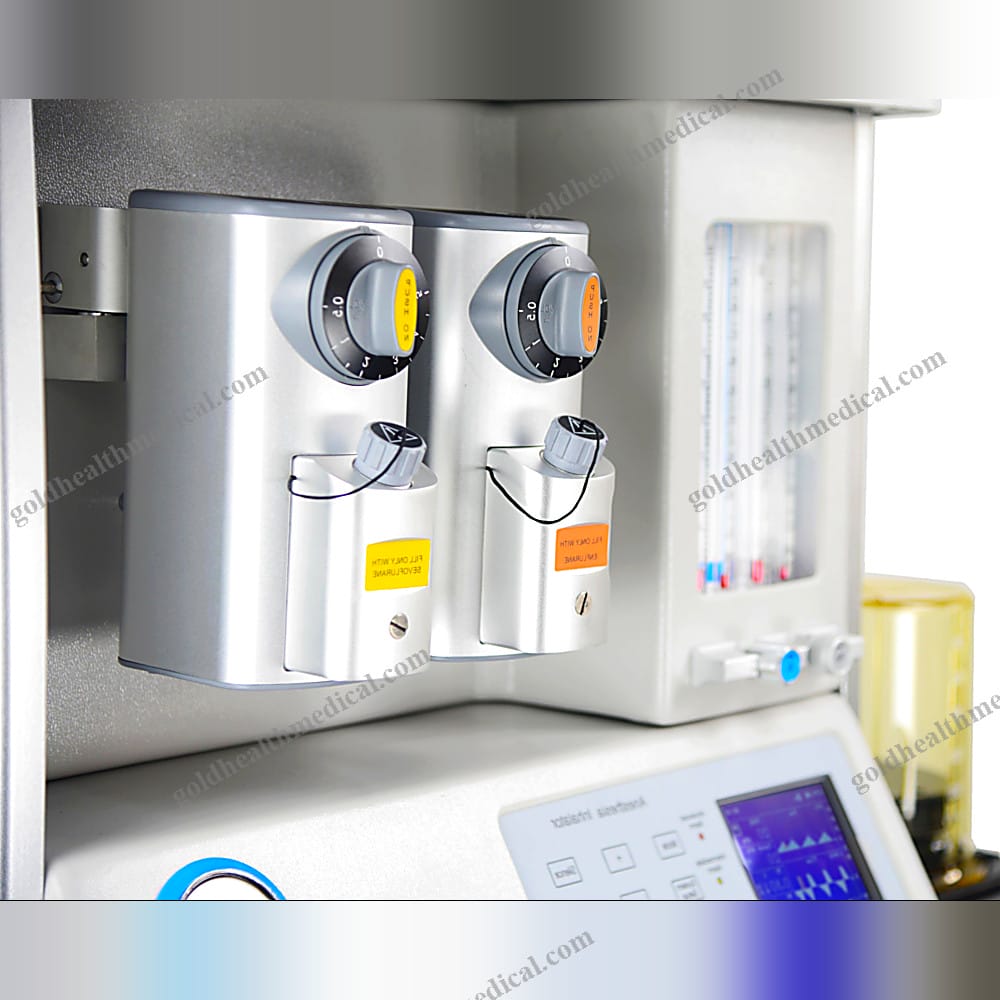

- Vaporizer: Locally assembled with imported tank components, compatible with Enflurane, Isoflurane, and Sevoflurane (Halothane optional). Features self-compensating functionality for consistent performance.
- Rotating Na-lime Tank: Advanced international design, operable with one hand, constructed from imported PPSU material, and resistant to temperatures up to 134°C.
Key Features

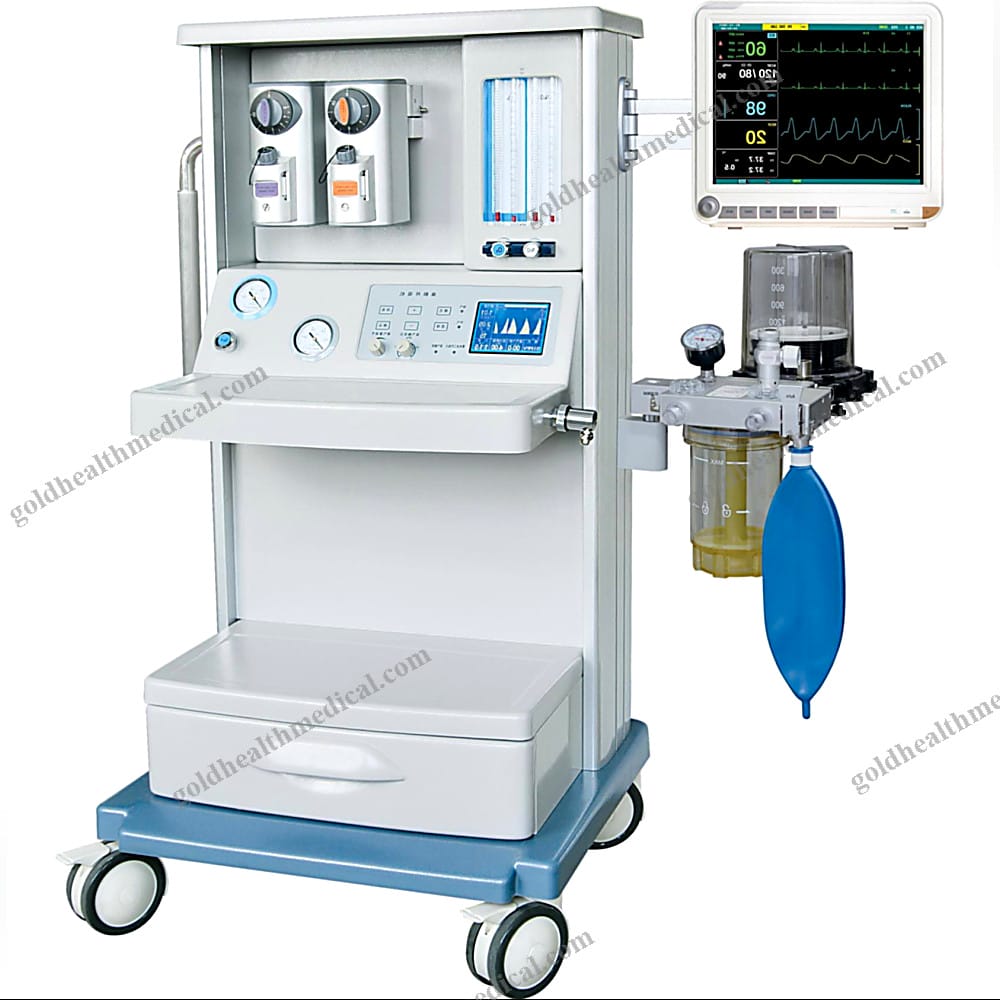

- Multi-parameter Patient Monitoring: Optional advanced model supports comprehensive patient monitoring.
- Dual Tank Vaporizer: Extends surgical durations and ensures interlocking tank capability for enhanced safety.
- User-Friendly Design: Elegant and precise construction with an environmentally friendly frame.
Technical Specifications
- Display: 5.4-inch TFT display for clear and intuitive monitoring.
- Flowmeter Range:
- Oxygen (O2): 0.1~10L/min
- Nitrous Oxide (N2O): 0.1~10L/min
- Ventilation Modes: IPPV, SIPPV, IMV, SIMV, MANUAL.
- Tidal Volume:
- Adjustable Range: 50~1500ml
- Display Range: 0~2000ml
- Respiratory Rate: 1~99bpm.
- Oxygen Supply Flow Rate: 25~75L/min.
- Inspiratory/Expiratory (I:E) Ratio: 4:1~1:10, capable of inverse ratio ventilation.
- Inspiratory Pressure Trigger Range: -10~10cmH2O (electronically controlled).
- SIGH Function: 1 sigh breath every 80~160 breaths.
- Vaporizer Concentration Ranges: 0~5%.
- Gas Supply Pressure:
- Oxygen (O2): 0.32MPa~0.6MPa
- Nitrous Oxide (N2O): 0.32MPa~0.6MPa
- Absorber Volume: 1.5L.
- Monitoring Parameters: Minute Volume (MV), Tidal Volume (VT), breathing frequency, peak pressure, PEEP, spontaneous inspiration rate, airway resistance, oxygen concentration, lung compliance, and power supply status.
Why Choose GoldHealth Medical?
GoldHealth Medical is dedicated to delivering innovative and reliable medical solutions tailored to meet the needs of hospitals, clinics, laboratories, and home care environments. Our anesthesia systems are designed with precision engineering, advanced technology, and user-centric features to ensure optimal performance and patient safety.
Experience the future of medical care with GoldHealth Medical’s state-of-the-art anesthesia solutions.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Overview
GoldHealth Medical proudly presents the Anesthesia Machine, a state-of-the-art solution designed to deliver precision, reliability, and comfort in operating rooms. Engineered with cutting-edge technology, this Class II medical instrument is tailored for hospitals, clinics, and research institutions seeking uncompromising quality and performance.
Key Features and Specifications
- Application: Specifically designed for use in operating rooms, ensuring seamless integration into surgical workflows.
- Power Source: Electric-powered for consistent and reliable operation.
- Color: Sleek and professional silver-gray finish, combining aesthetics with durability.
- Weight: Gross weight of 96kg, ensuring stability and robustness during procedures.
- Shelf Life: 1 year, maintaining optimal functionality and safety standards.
Certifications and Compliance
- ISO-certified for quality assurance and operational excellence.
- CE-marked, guaranteeing adherence to international safety and performance standards.
Warranty and Support
- Comprehensive 1-year warranty for peace of mind.
- Access to online technical support, ensuring prompt assistance whenever needed.
Customization and Packaging
- OEM services available to meet specific institutional requirements.
- Securely packed in durable cartons for safe transportation and storage.
Why Choose GoldHealth Medical's Anesthesia Machine?
- Precision Engineering: Delivers accurate and controlled anesthesia delivery, enhancing patient safety.
- Luxury Design: Combines advanced functionality with an elegant, modern aesthetic.
- Reliability: Built to perform consistently in high-stakes environments, ensuring confidence during critical procedures.
GoldHealth Medical is committed to empowering healthcare professionals with innovative tools that elevate patient care and operational efficiency.
