Multifunctional Surgical Anesthesia Machine HighQuality Cost
Reference: 1600424433912
Anesthesia Equipments & Accessories
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

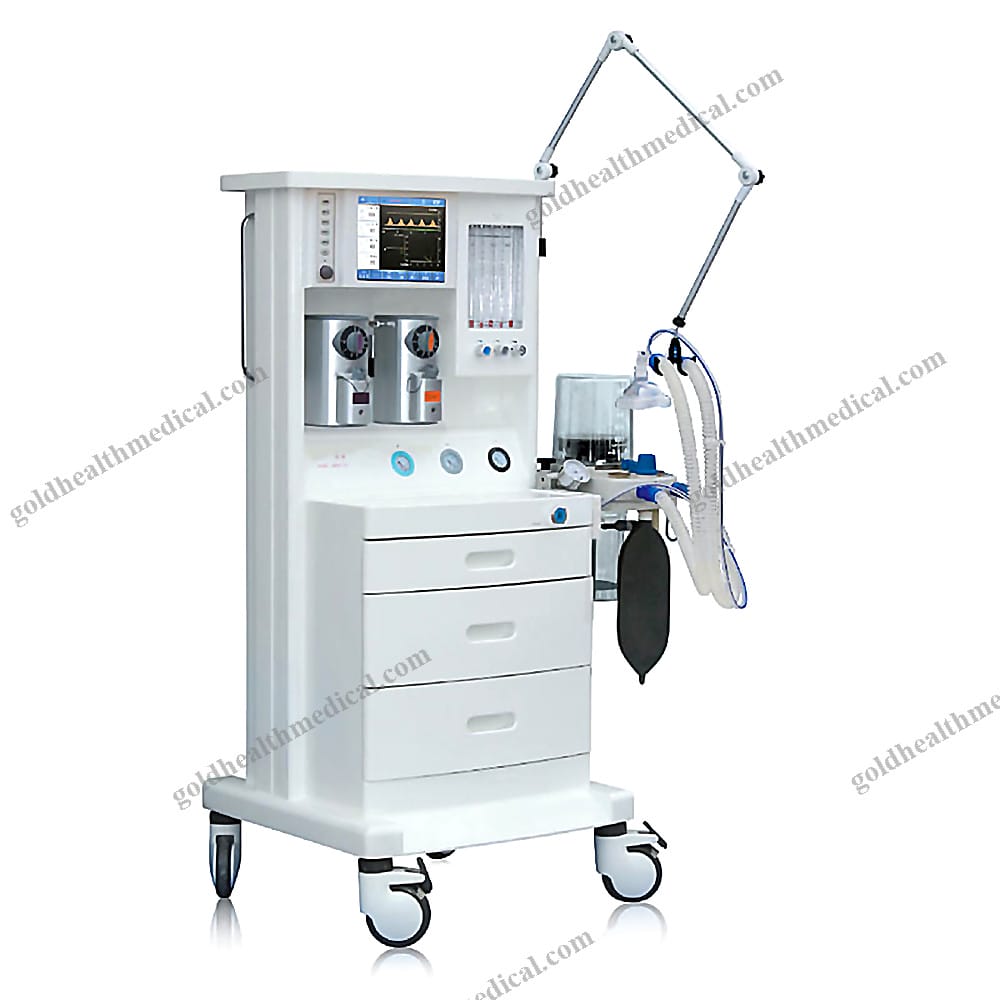

GoldHealth Medical Anesthesia Machine
Engineered with cutting-edge technology, the GoldHealth Medical Anesthesia Machine is a pinnacle of utility, performance, and functionality. Designed to deliver exceptional value, it meets the diverse needs of medical professionals with precision and reliability.
Key Features
- Advanced Anesthetic Vaporizer: Equipped with a highly accurate, dedicated anesthetic vaporizer and safety mechanisms to prevent cyanosis, ensuring patient safety with essential alarm systems.
- Standardized Interfaces: Every connection on the machine features a standard interface, enhancing compatibility and ease of use.
- Efficient Carbon Dioxide Absorption: A high-efficiency, large-volume soda lime absorber minimizes patient re-inhalation of carbon dioxide.
Specifications
- Main Body: Constructed from high-strength engineering plastic, the rack is lightweight, aesthetically pleasing, and corrosion-resistant.
- Applications: Suitable for both adults and children.
- Gas Source:
- Oxygen (O2): 0.28～0.6MPa
- Nitrous Oxide (N2O): 0.28～0.6MPa

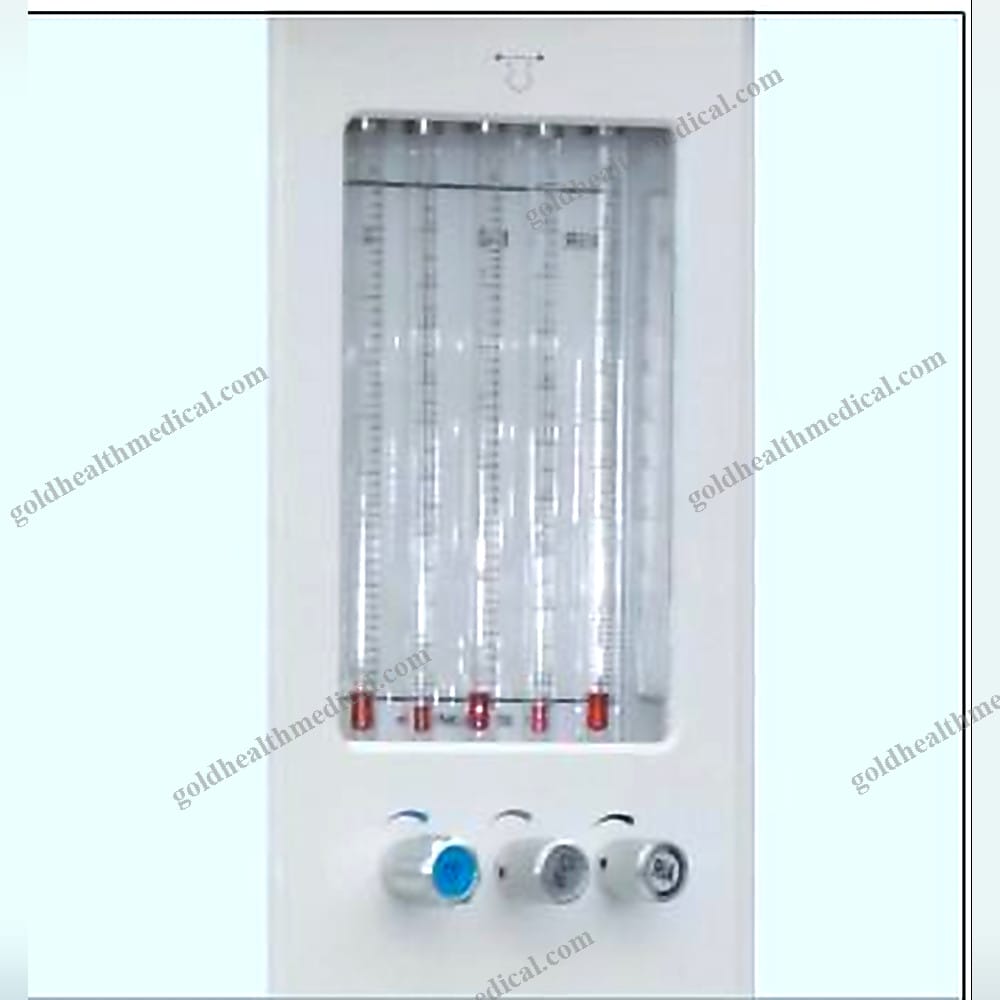

- Flow Meter:
- O2: 0.1～1.0L/min, 1.1～10L/min
- N2O: 0.1～1.0L/min, 1.1～10L/min
- Air: 0.1～10L/min
- Rapid Oxygen Supply Flow Rate: 25～75L/min
- Work Modes: All close, semi-close, semi-open
- Trolley: Fitted with four anti-static rubber castors, two of which are lockable for braking, ensuring easy maneuverability with foot-operated brake provisions.
- Drawer Unit: One totally extractable drawer (optional).
- O2, N2O Linkage and N2O Stopper: Ensures oxygen concentration remains above 25% when using nitrous oxide; cuts off nitrous oxide flow if oxygen pressure drops below 0.2MPa.
- Low Oxygen Pressure Alarm: Audible alarm triggers when oxygen pressure falls below 0.2MPa.

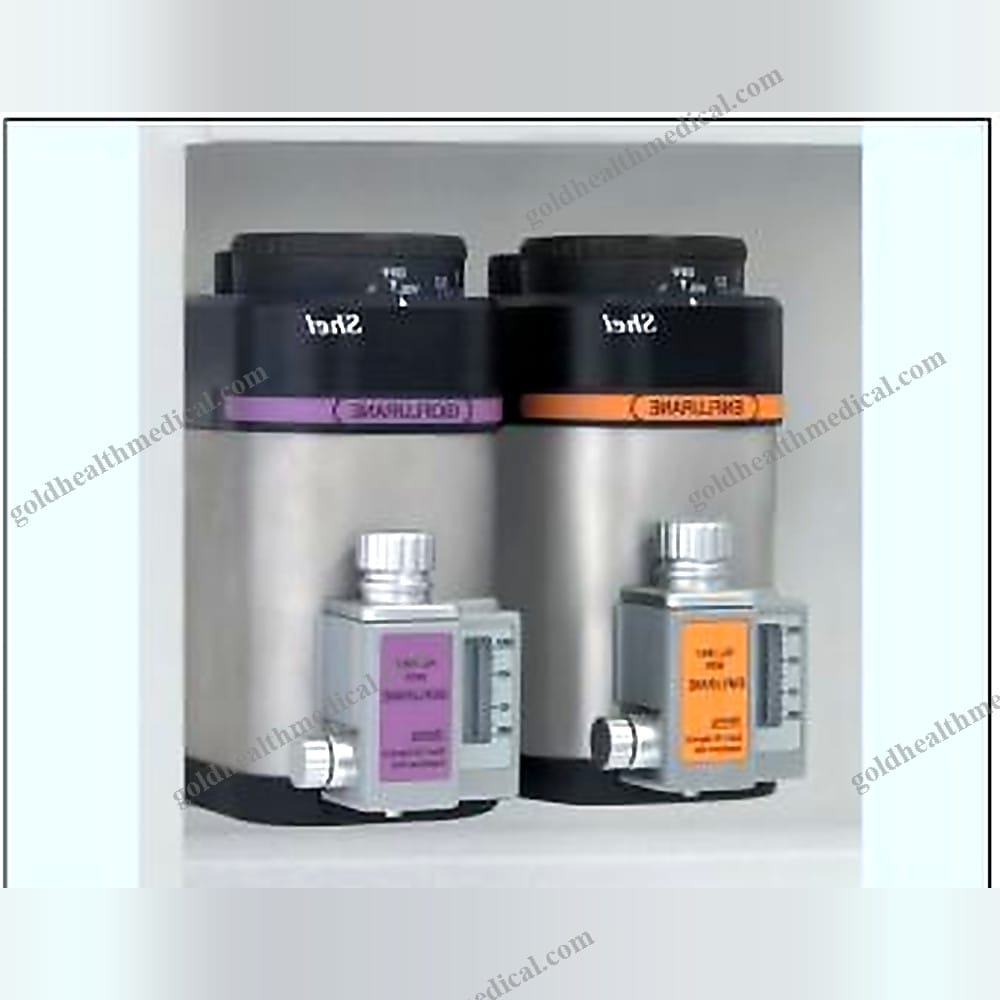

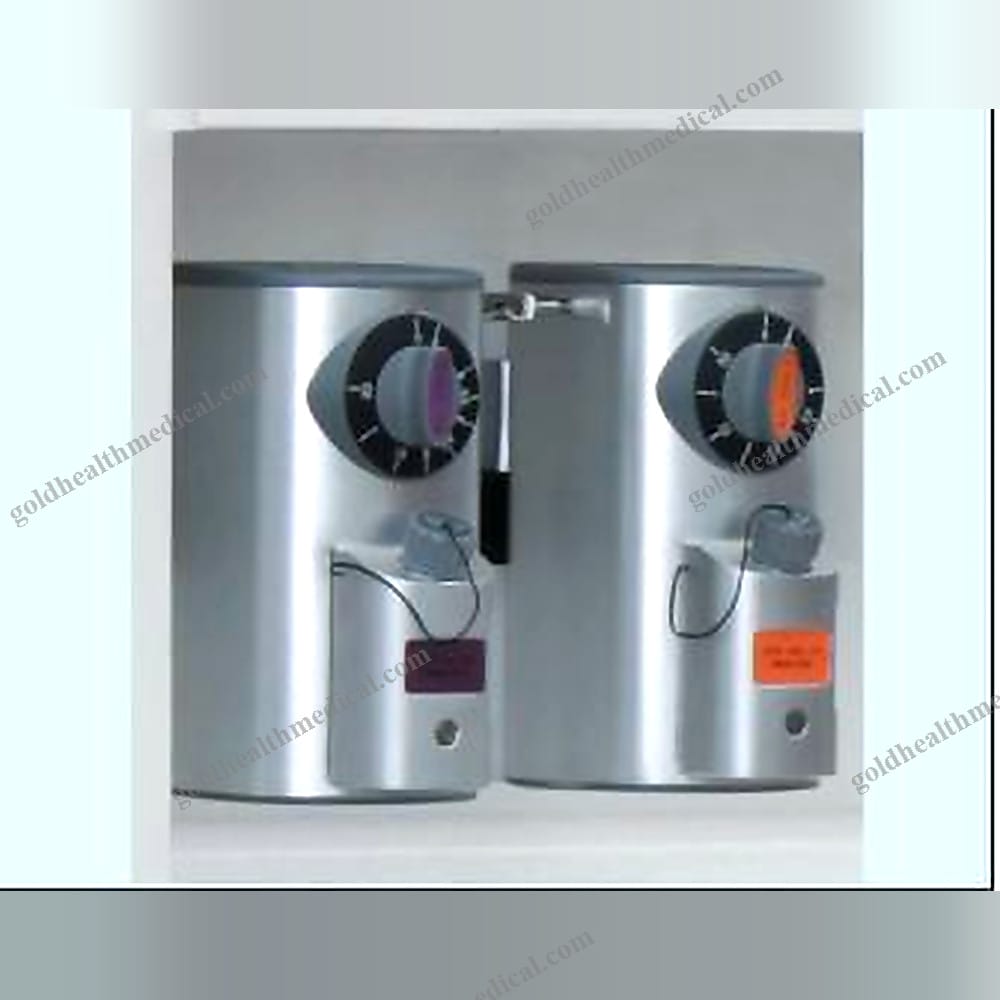

- Vaporizer: Automatic compensation based on pressure, temperature, and flow rate. Regulation range of evaporator concentration is 0-5vol%. Choose from Halothane, Enflurane, Isoflurane, and Sevoflurane as required.

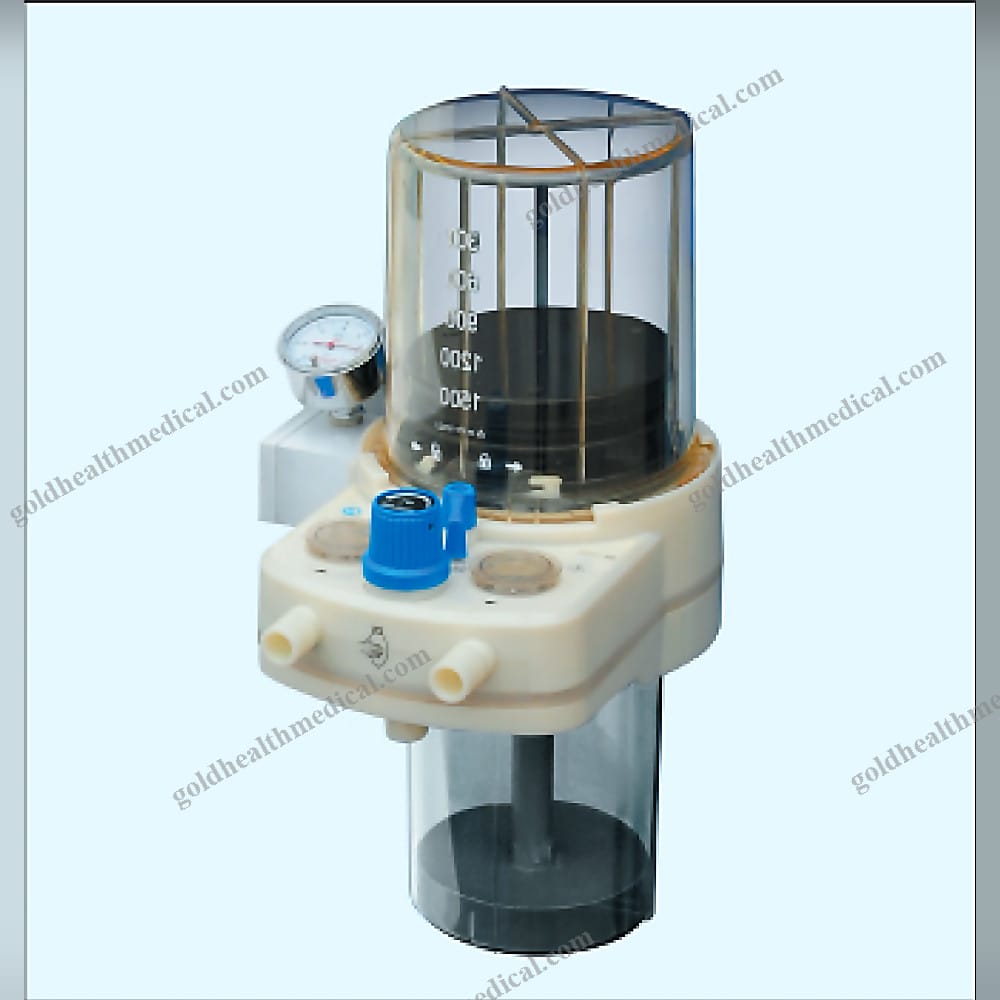

- Respiratory Bellows:
- Adults: Tidal volume range 0～1500ml
- Children: Tidal volume range 0～300ml
- Ventilation Parameters:
- Tidal Volume: 20～1500ml
- Rate: 2～120bpm
- SIMV Rate: 2～20bpm
- I:E Ratio: 4:1～1:8
- Certifications: Large colored LCD with adjustable viewing angles. Microcomputer-controlled ventilator with high-definition TFT color LCD display, integrating respiratory control and monitoring parameters.
Unique Selling Points
- Precision Flow Control: High-precision flow control system tailored for versatile applications, especially low-flow anesthesia. Backlit flowmeter aids visibility in dark operating rooms.
- Automatic Compensation: Ensures accuracy in anesthetic concentration with imported vaporizers offering automatic compensation based on pressure, temperature, and flow rate.
- Versatile Respiratory Circuit: Perfectly designed with adult and pediatric bellows, supporting tidal volumes from 0～1500ml.
GoldHealth Medical's Anesthesia Machine stands out with its innovative design, robust performance, and unwavering commitment to patient safety, making it an indispensable tool for modern medical environments.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
GoldHealth Medical presents the Anesthesia Machine Quality Multifunctional Surgical Anesthesia Machine, a cutting-edge solution designed for all surgical anesthesia and invasive examination needs. Engineered with precision and reliability in mind, this device redefines versatility and performance in medical environments.
Key Features:
- Advanced Ventilation Modes: Offers multiple ventilation options including VCV, PCV, SIMV, and MANUAL, ensuring optimal patient care tailored to specific requirements.
- PEEP Functionality: Adjustable PEEP range of 0~25 cmH2O for enhanced respiratory support during critical procedures.
- Durable Construction: Crafted from high-quality materials such as metal, plastic, and steel, ensuring long-lasting durability and hygiene compliance.
- Safety Standards: Compliant with GB/T18830-2009 safety regulations, guaranteeing secure operation in demanding medical settings.
- Certifications: Backed by CE, ISO13485, and ISO9001 certifications, reflecting our commitment to quality and reliability.
- Power Source: Fully electric operation for seamless integration into modern healthcare facilities.
Application:
- Designed for use in hospitals, ICUs, clinics, laboratories, and rehabilitation centers.
- Suitable for both professional and home healthcare environments.
Additional Details:
- Warranty: Comprehensive 12-month warranty for peace of mind.
- After-Sales Support: Access to online technical support, ensuring uninterrupted performance.
- Customization: OEM services available to meet specific institutional needs.
- Shelf Life: 1 year, ensuring product integrity and usability.
- Supply Capacity: Up to 300 sets per month, ensuring timely delivery for bulk orders.
Instrument Classification:
- Class II medical device, balancing advanced functionality with user-friendly operation.
Place of Origin:
- Proudly manufactured in Jiangsu, China, known for its excellence in medical equipment production.
This state-of-the-art anesthesia machine is not just a device; it’s a reliable partner in delivering exceptional patient care. With its robust design, versatile functionality, and adherence to global standards, it stands as a testament to GoldHealth Medical’s dedication to innovation and quality in healthcare solutions.
