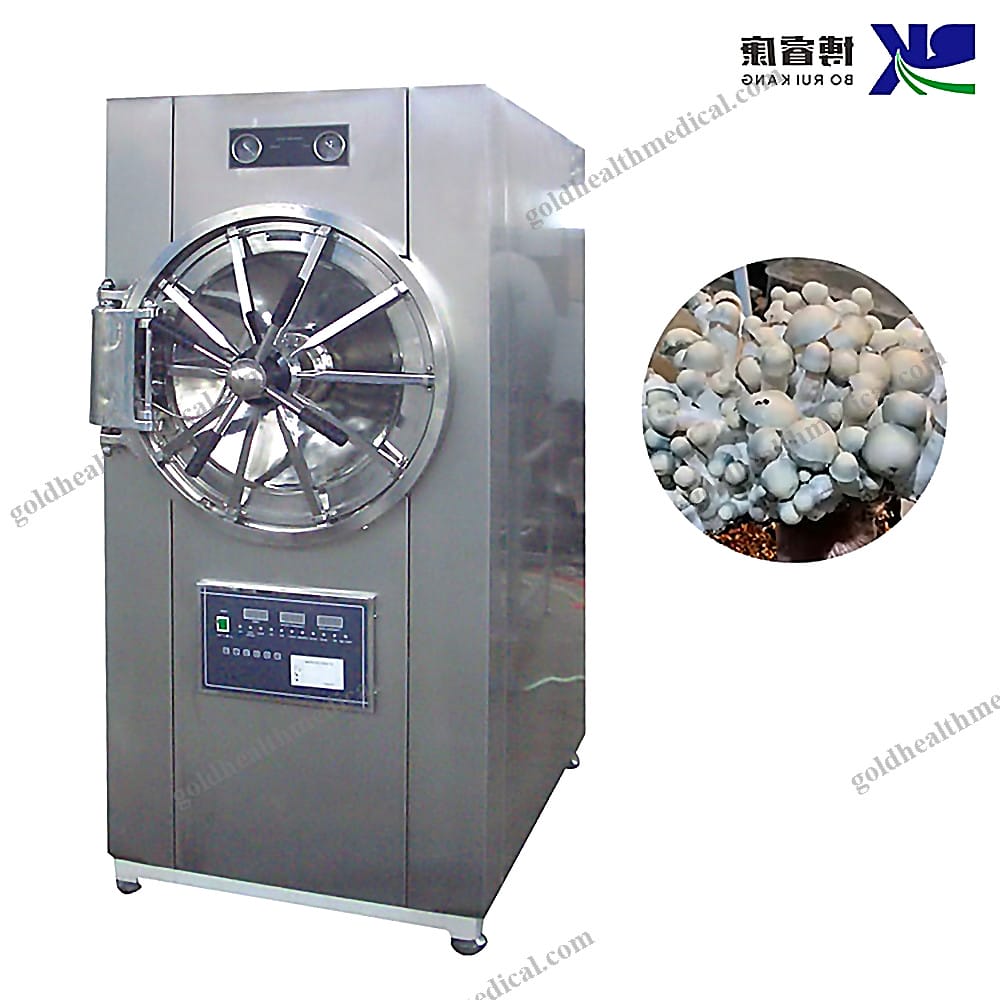

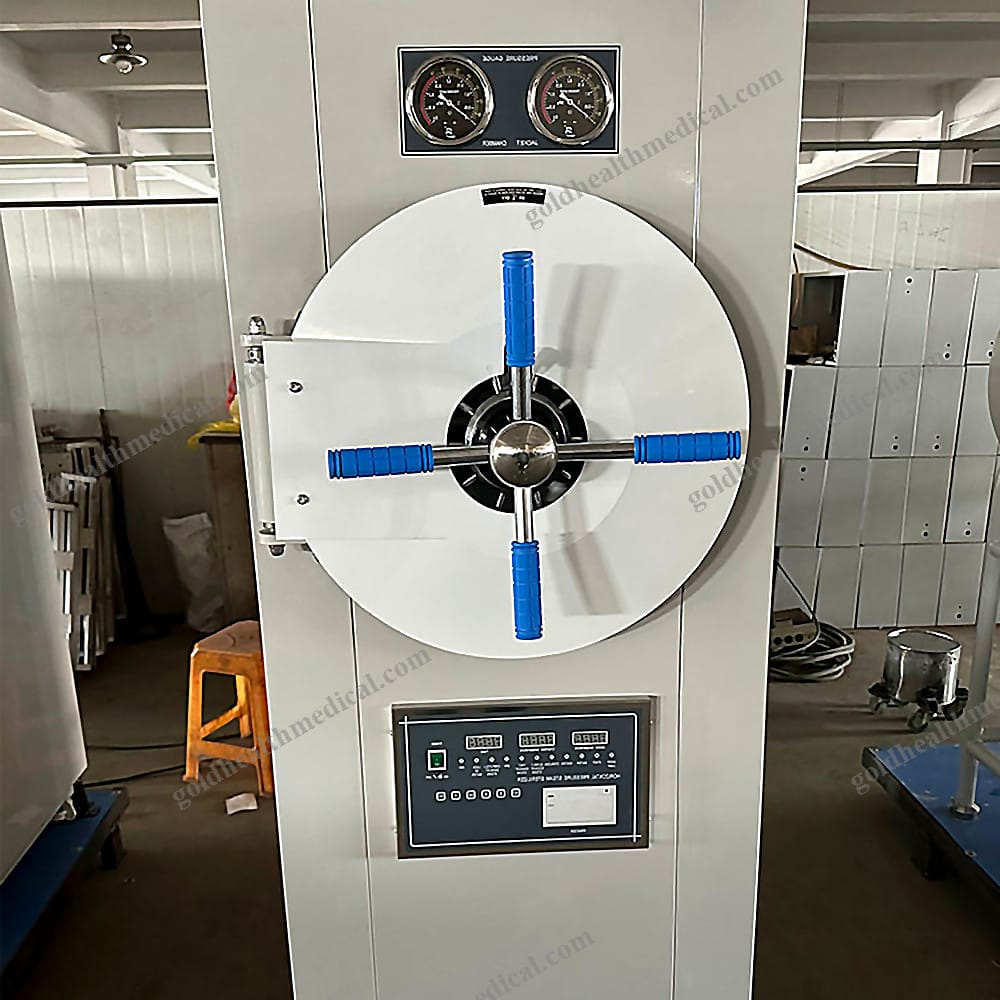

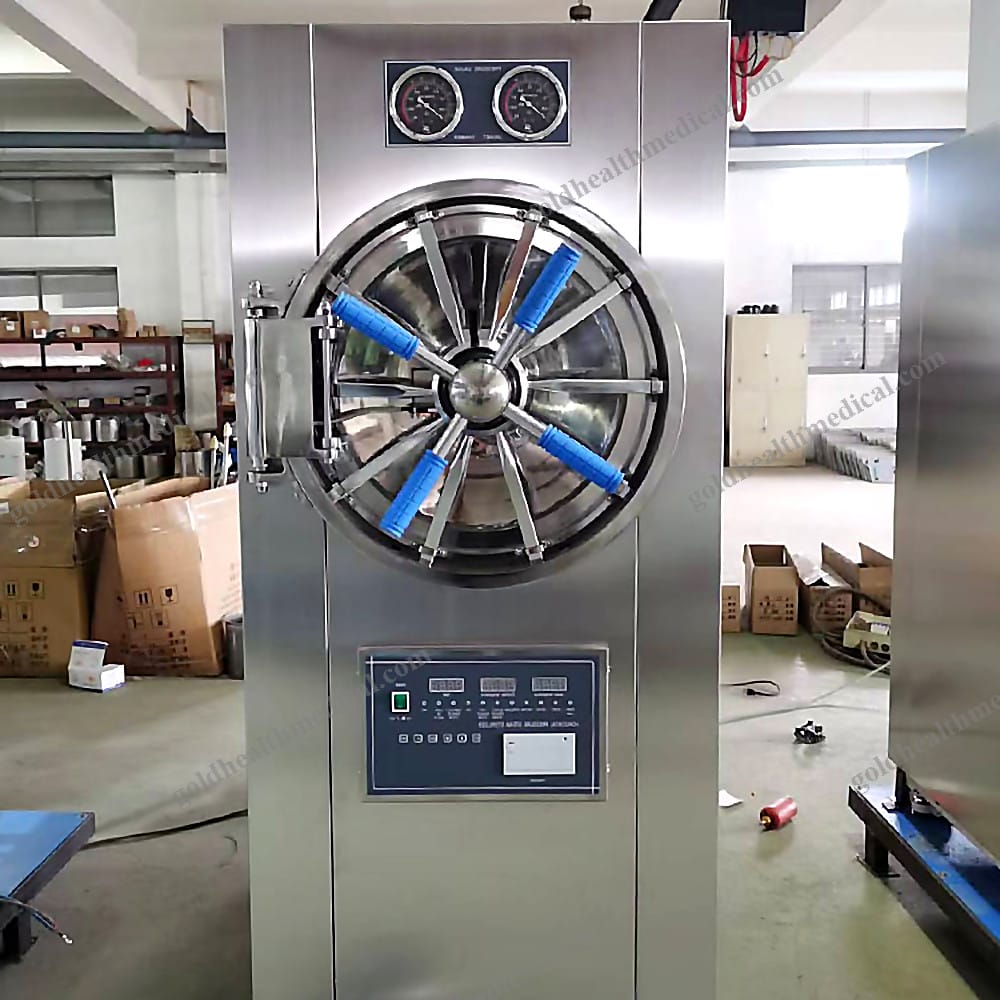

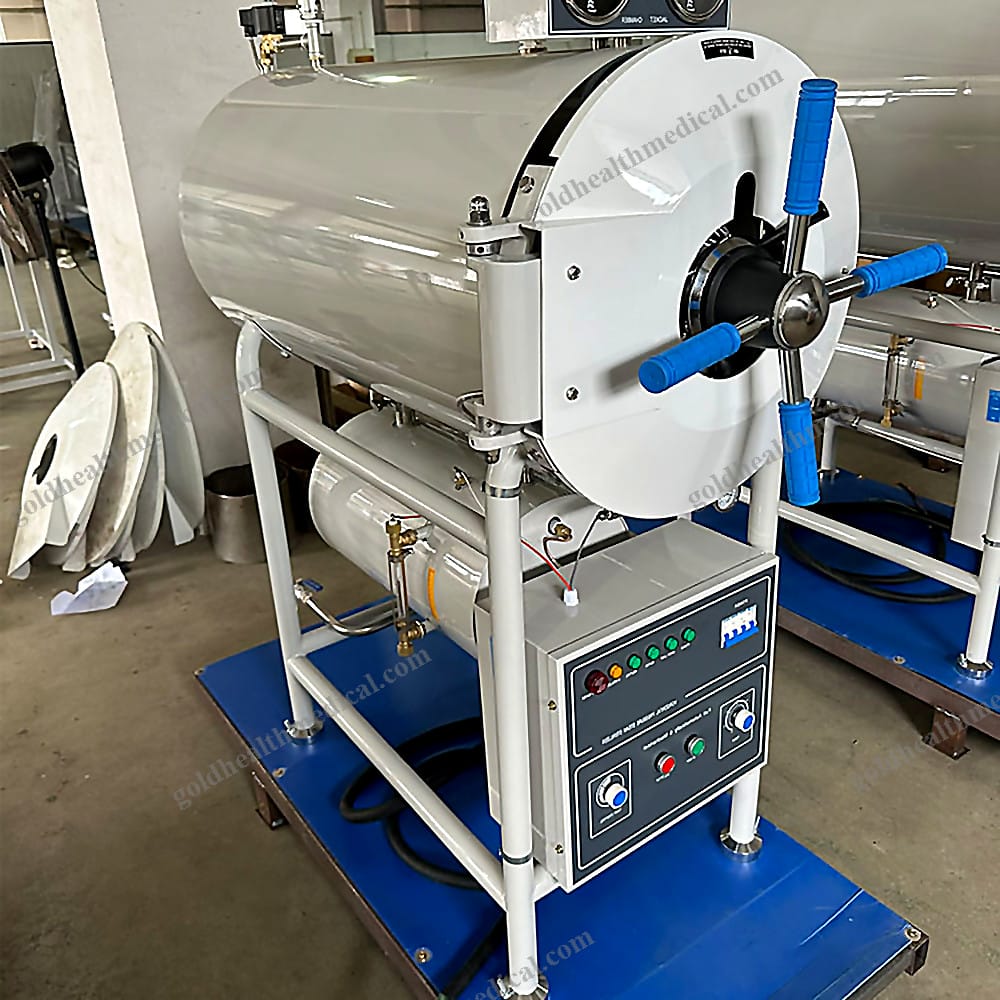

Mini Horizontal Autoclave for Bottle Jar Cans Sterilization Steam Generator
Reference: 1601118034971
Sterilization Equipment
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical: Advanced Sterilization Solutions
GoldHealth Medical presents a range of cutting-edge sterilization chambers designed to meet the highest standards of medical, laboratory, and research environments. Our sterilizers combine precision engineering with innovative technology to deliver unparalleled performance and reliability.
Product Highlights
- Unmatched Precision: Achieve consistent sterilization with advanced temperature control and uniform heat distribution.
- Customizable Settings: Tailor sterilization and drying times to suit specific requirements.
- Energy Efficiency: Optimized power consumption ensures operational cost savings without compromising performance.
- Durable Construction: Built to withstand rigorous daily use in demanding environments.
Technical Specifications
- Sterilizing Chamber Volumes:
- 150L: Ο440Γ1000mm
- 200L: Ο515Γ1000mm
- 280L: Ο600Γ1000mm
- 400L: Ξ¦700Γ1100mm
-
500L: Ξ¦700Γ1300mm
-
Performance Parameters:
- Working Pressure: 0.22MPa
- Working Temperature: 134β
- Temperature Adjustment Range: 40β - 134β
- Sterilization Time: Adjustable from 0-60 minutes
- Drying Time: Adjustable from 0-60 minutes
-
Heat Uniformity: β€Β±2β
-
Power Requirements:
- 150L & 200L: 9KW/380V 50Hz
- 280L: 12KW/380V 50Hz
-
400L & 500L: 18KW/380V 50Hz
-
Dimensions:
- 150L: 1350Γ600Γ1520mm
- 200L: 1400Γ670Γ1650mm
- 280L: 1400Γ770Γ1780mm
- 400L: 1430Γ880Γ1830mm
-
500L: 1800Γ900Γ1820mm
-
Transport Dimensions:
- 150L: 1560Γ750Γ1850mm
- 200L: 1560Γ820Γ1930mm
- 280L: 1680Γ920Γ1950mm
- 400L: 1600Γ1050Γ2050mm
-
500L: 1850Γ1050Γ2050mm
-
Weight:
- 150L: G.W. 320KG / N.W. 278KG
- 200L: G.W. 378KG / N.W. 318KG
- 280L: G.W. 465KG / N.W. 391KG
- 400L: G.W. 530KG / N.W. 456KG
- 500L: G.W. 627KG / N.W. 540KG
Why Choose GoldHealth Medical?
- Proven Expertise: With decades of experience, we are a trusted leader in sterilization technology.
- Global Reach: Our products are utilized in hospitals, clinics, and laboratories worldwide.
- Commitment to Excellence: Every unit is crafted to deliver "zero-defect" performance with meticulous attention to detail.
- Comprehensive Support: From pre-production samples to final inspection, we ensure quality at every step.
GoldHealth Medical is dedicated to empowering healthcare professionals and institutions with reliable, high-performance sterilization solutions. Partner with us to experience innovation, precision, and excellence in every product.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
GoldHealth Medical presents the Horizontal Pressure Steam Sterilizer, a cutting-edge solution designed for precision and reliability in demanding environments. Engineered with a fully stainless steel structure, this Class II medical equipment delivers exceptional durability and hygiene, making it indispensable for hospitals, laboratories, clinics, universities, and more.
Key Features:
- Versatile Applications: Ideal for sterilizing liquids, dressings, surgical instruments, food, and seeds.
- Advanced Performance: Operates at a working temperature of 134Β°C and a working pressure of 0.22MPa, ensuring thorough and consistent sterilization.
- Multiple Volume Options: Available in 150L, 200L, 280L, 400L, and 500L capacities to meet diverse operational needs.
- Powerful and Efficient: Equipped with power ratings of 9KW, 12KW, or 18KW for optimal energy utilization.
- Robust Build: Weighing between 278Kg to 540Kg, depending on the model, this sterilizer is built to handle heavy-duty tasks with ease.
Technical Specifications:
- Material: Fully stainless steel structure for enhanced durability and corrosion resistance.
- Working Temperature: 134Β°C.
- Working Pressure: 0.22MPa.
- Volume Options:
- 150L
- 200L
- 280L
- 400L
- 500L
- Power Ratings:
- 9KW
- 12KW
- 18KW
- Weight Options:
- 278Kg
- 318Kg
- 391Kg
- 456Kg
- 540Kg
Support and Assurance:
- Warranty: Backed by a 1-year warranty for peace of mind.
- After-Sale Service: Access to online technical support ensures seamless operation and quick resolution of queries.
Why Choose GoldHealth Medical?
Our Horizontal Pressure Steam Sterilizer combines precision engineering with user-focused design, offering unmatched performance in critical environments. Whether you're managing a hospital, laboratory, or research facility, this sterilizer is engineered to meet the highest standards of safety, efficiency, and reliability.
Elevate your sterilization processes with GoldHealth Medical β where innovation meets excellence.
