ICU Emergency Anesthesia Workstation 84 TFT Display Portable
Reference: 1601181012751
Anesthesia Equipments & Accessories
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

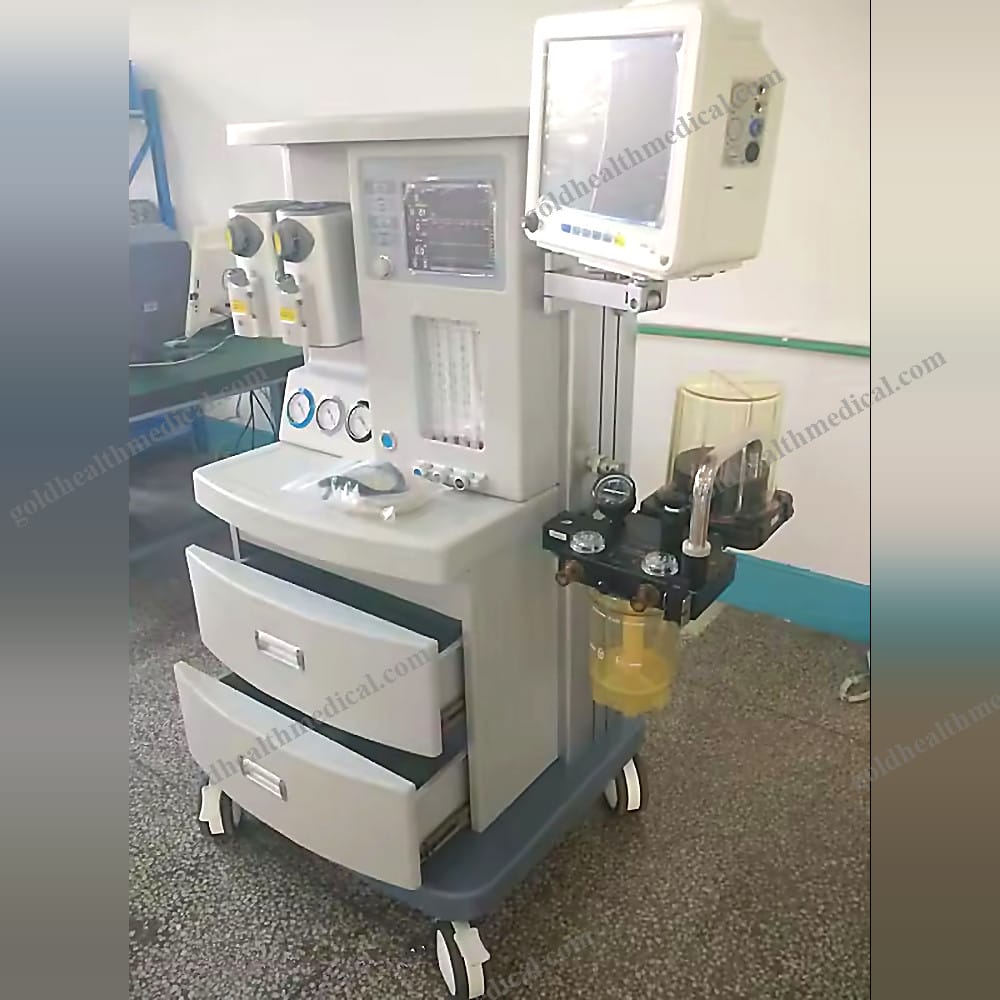

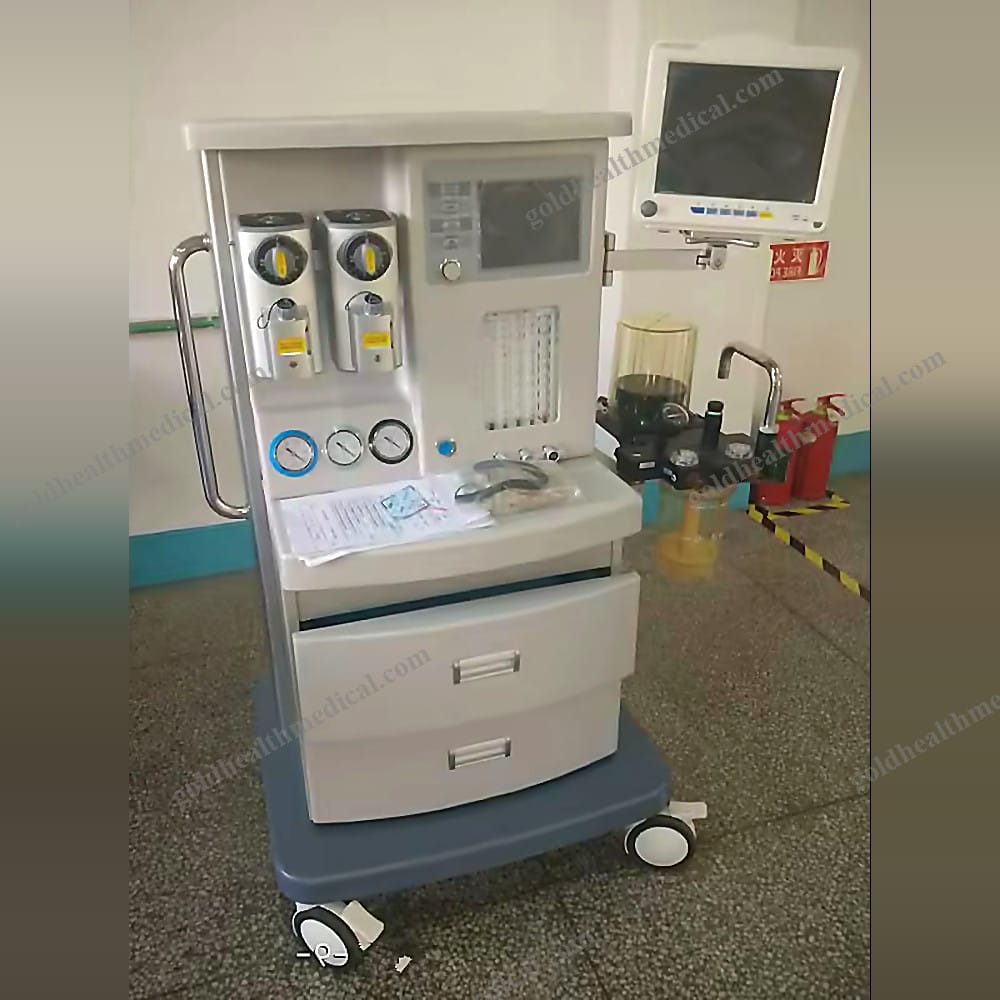

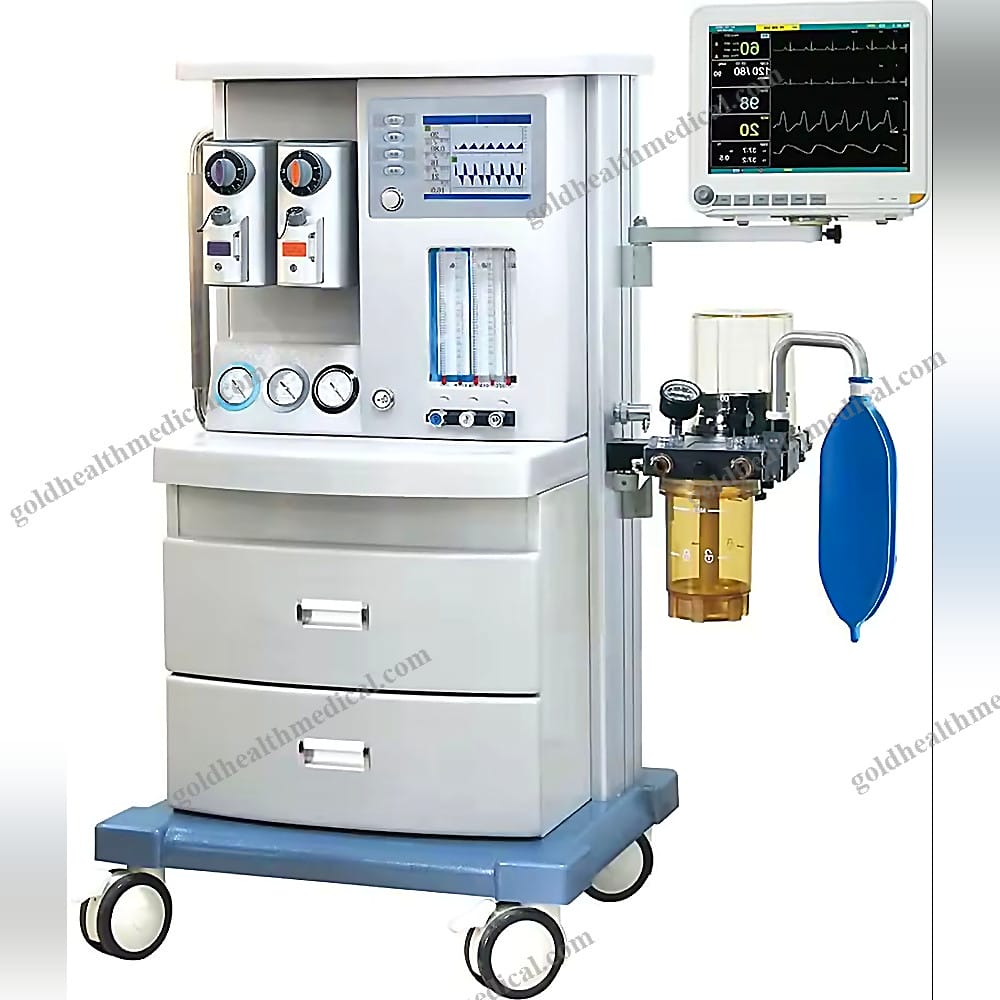

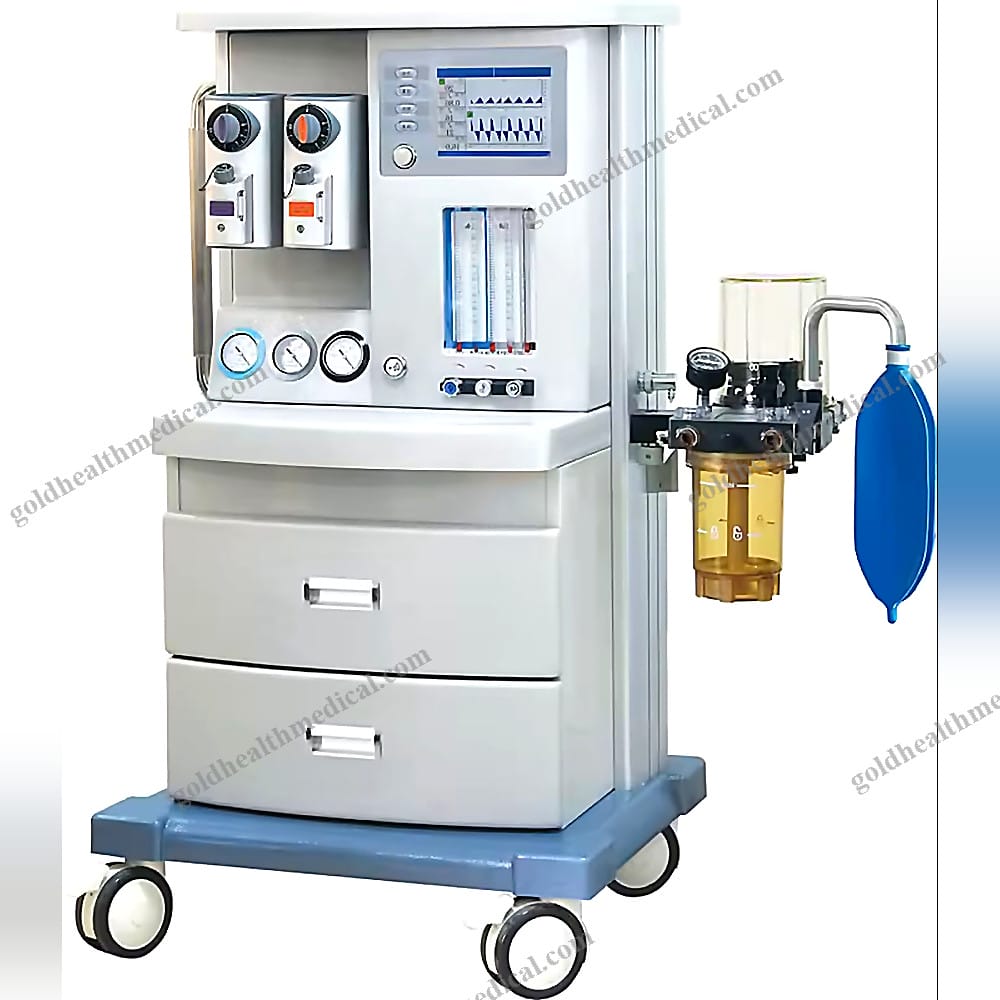

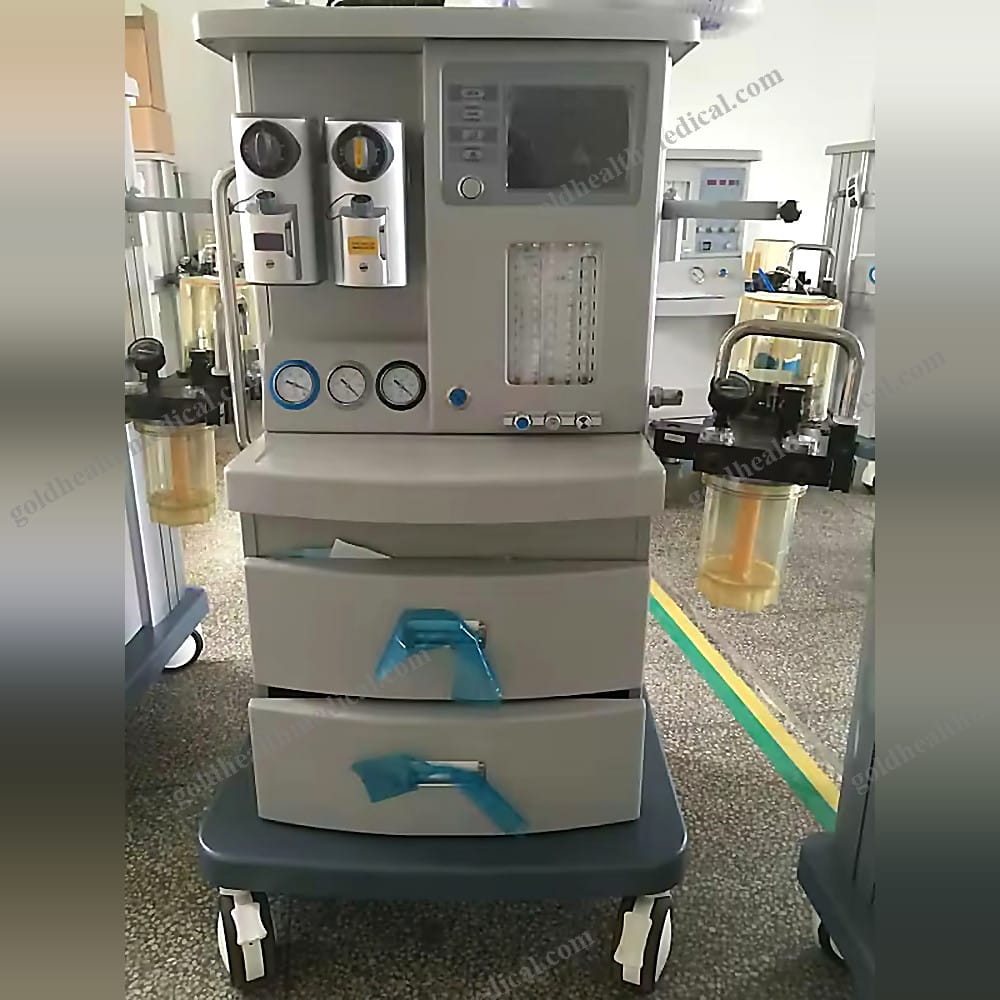

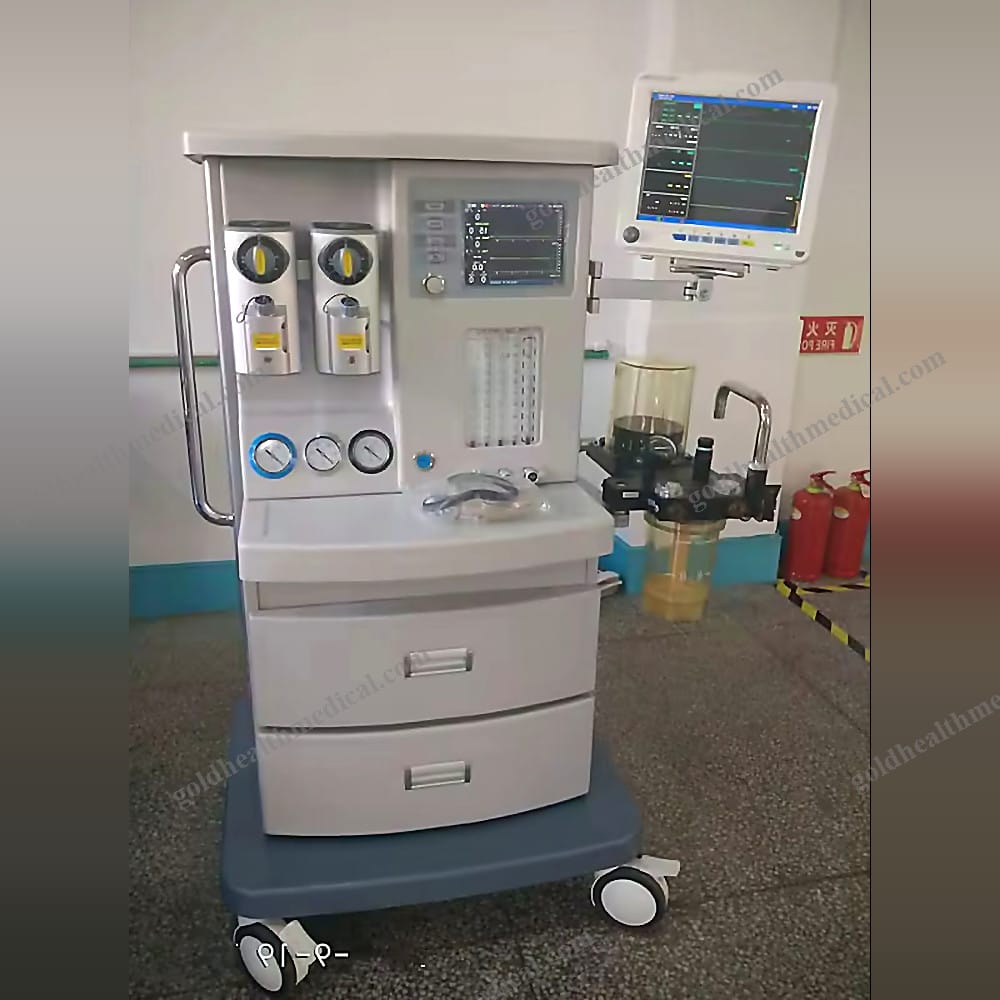

GoldHealth Medical Anesthesia Machine
Experience precision and reliability with the GoldHealth Medical Anesthesia Machine, designed to meet the demands of modern medical environments. This advanced system combines cutting-edge technology with user-friendly features, ensuring optimal performance for both adult and pediatric applications.
Key Features
- Pneumatically Driven, Electrically Controlled System: Ensures smooth and precise operation for consistent delivery of anesthesia.
- Built-in Ventilator: Provides versatile respiratory support tailored to patient needs.
- 8.4" LCD Display Screen: Offers clear, real-time monitoring of critical parameters for enhanced control.
- Multiple Working Modes: Supports Closed, Semi-Closed, and Semi-Open configurations for maximum flexibility.
Technical Specifications
- Gas Requirements:
- Medical oxygen and nitrous oxide with a pressure range of 0.32~0.6 MPa.
-
5-tube flowmeters for O2, N2O, and air, adjustable from 0.1L/min to 10L/min.
-
Oxygen Flush: Delivers a rapid flow rate of 25~75L/min for emergency situations.
-
Respiration Modes:
-
A/C, IPPV, SIPPV, IMV, SIMV, VCV, PCV, PEEP, SIGH, MANUAL.
-
Tidal Volume:
- Adjustable range: 20~1500 ml.
-
Display range: 0~2000 ml.
-
I/E Ratio: Configurable from 8:1 to 1:10 for precise ventilation control.
-
Vaporizer Options: Compatible with Enflurane, Isoflurane, Sevoflurane (Halothane optional).
-
Setting range: 0.5%~5%.
-
Respiration Frequency: Adjustable from 1~100 bpm.
-
Lung Compliance: ≤30 mL/kPa for accurate monitoring.
-
IMV Frequency: Adjustable from 1~20 bpm.
-
PEEP: Adjustable range: 0~2.0 kPa.
-
CO2 Absorber Capacity: 1 kg for extended use without frequent replacements.
-
Inspiratory Plateau: Adjustable from 0~1 second.
-
O2 Concentration: Adjustable from 21% to 100% for precise oxygen delivery.
Advanced Safety Features
- Comprehensive Alarm Parameters:
- Upper/lower limits of airway pressure.
- Tidal volume exceedance or absence.
- Apnea detection.
- Oxygen concentration monitoring.
- AC power malfunction alerts.
- Low battery warnings.
Why Choose GoldHealth Medical?
- Unmatched Precision: Engineered for accuracy and reliability in critical care environments.
- Customizable Solutions: Optional patient monitors and OEM services available to meet your specific needs.
- Expert Support: Backed by experienced engineers dedicated to helping you maximize the machine’s potential.
- Commitment to Excellence: Rigorous quality control ensures top-tier performance and durability.
GoldHealth Medical is your trusted partner in delivering innovative solutions that enhance patient care and streamline medical workflows. Let us empower your practice with technology that truly makes a difference.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Overview
GoldHealth Medical proudly presents a cutting-edge Anesthesia Machine designed to deliver precision, reliability, and versatility in medical environments. Engineered for both adult and pediatric applications, this Class II medical instrument combines advanced technology with user-centric design to ensure optimal patient care and seamless operation.
Key Features and Specifications
- Display: Equipped with an 8.4" LCD color display for clear, real-time monitoring of critical parameters.
- Vaporizer: Includes 1 high-precision vaporizer for accurate anesthetic delivery.
- Flowmeter: Features 5-tube flowmeters for precise gas flow control.
- Tidal Volume: Adjustable range of 50-1500ml to accommodate diverse patient needs.
- IE Rate: Offers a flexible ratio of 4:1 to 1:10 for tailored ventilation strategies.
- Breathing Circuit: Integrated standard breathing circuit for enhanced safety and ease of use.
Technical Details
- Power Source: Electric, ensuring consistent and reliable performance.
- Material: Constructed with durable metal and high-quality plastic components.
- Safety Standards: Compliant with IEC 60601, guaranteeing the highest level of safety and performance.
- Shelf Life: 3 years, ensuring long-term usability and reliability.
Applications
- Suitable for a wide range of medical settings, including hospitals, clinics, research labs, and rehabilitation centers.
- Designed for both adult and pediatric use, making it a versatile choice for diverse clinical needs.
Support and Assurance
- Warranty: Backed by a 3-year warranty for peace of mind.
- After-Sale Service: Access to online technical support for prompt assistance and troubleshooting.
Quality and Certifications
- Certified with CE marking, ensuring compliance with international quality and safety standards.
- Manufactured in Zhejiang, China, with meticulous attention to detail and quality assurance.
GoldHealth Medical’s Anesthesia Machine is more than just equipment—it’s a reliable partner in delivering exceptional patient care. With its advanced features, robust build, and unwavering precision, it sets a new benchmark in the field of anesthesia delivery systems.
