CHINCAN LS100HD Digital Autoclave Steril
Reference: 10000019721776
Sterilization Equipment
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

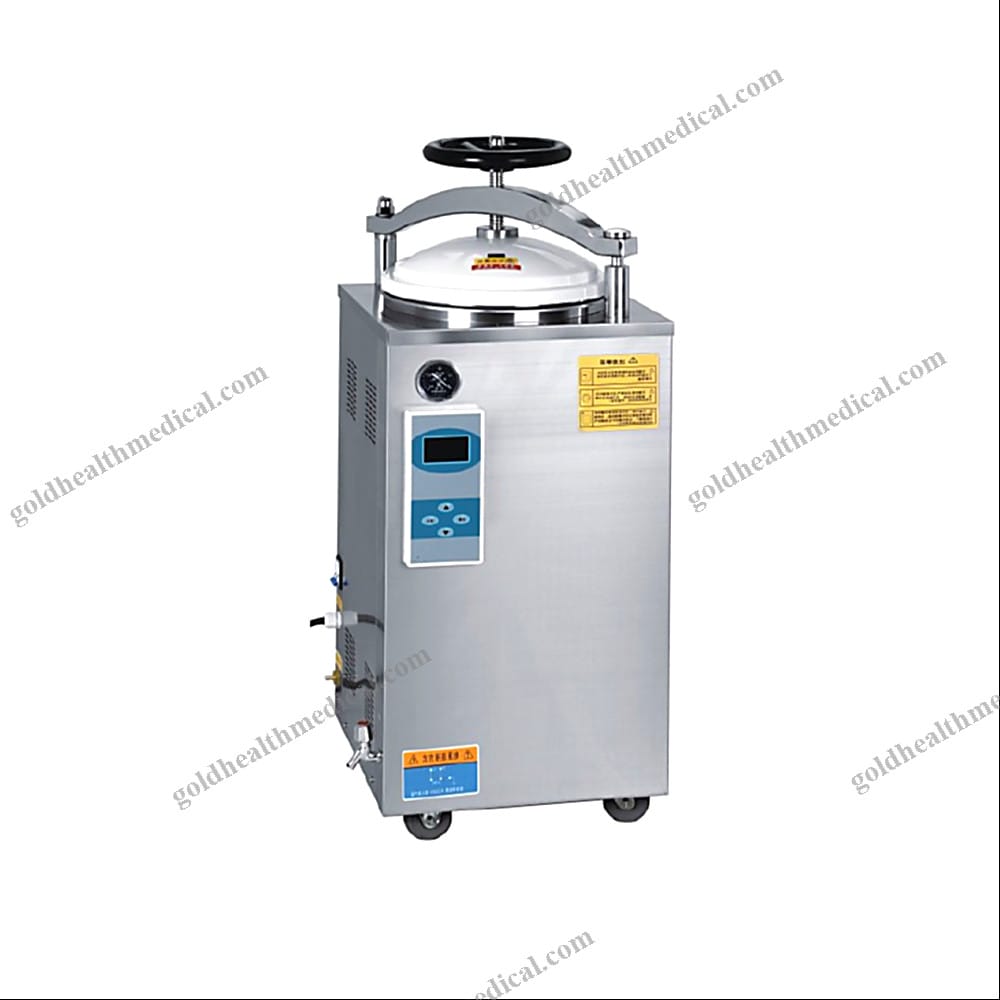

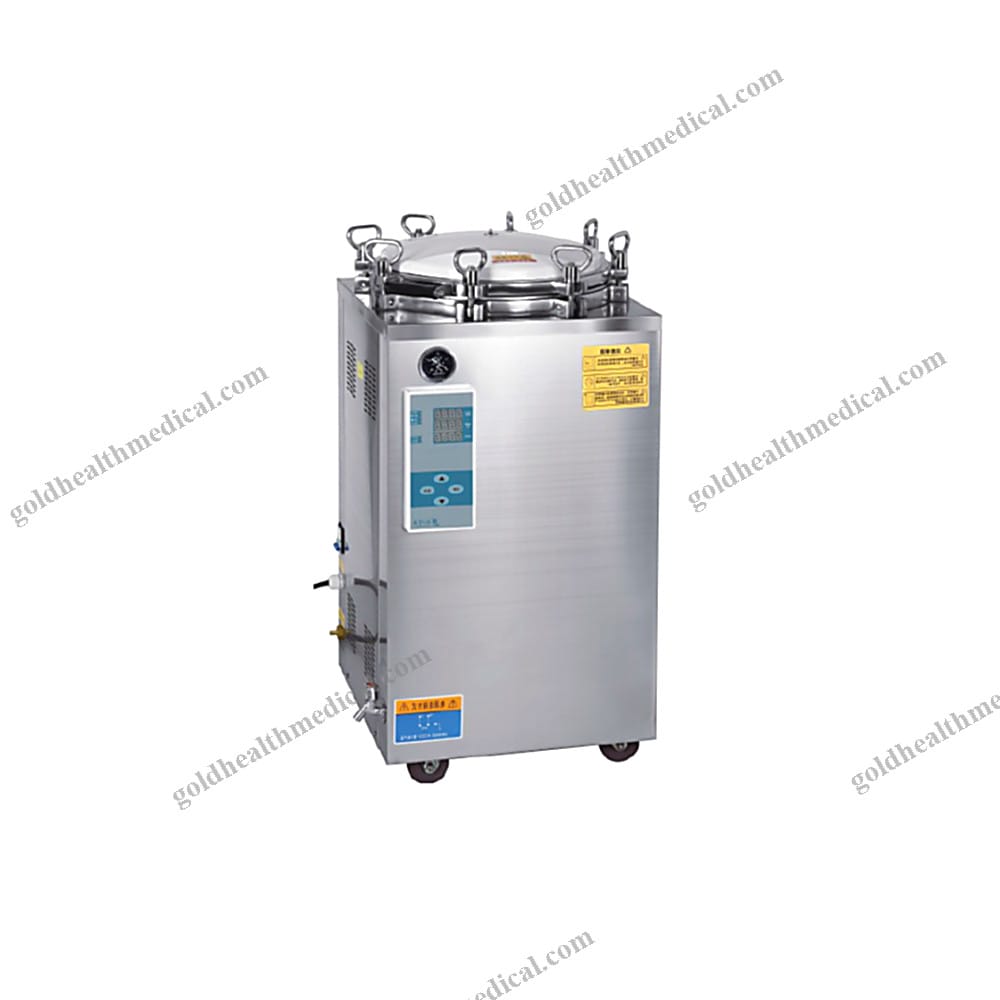

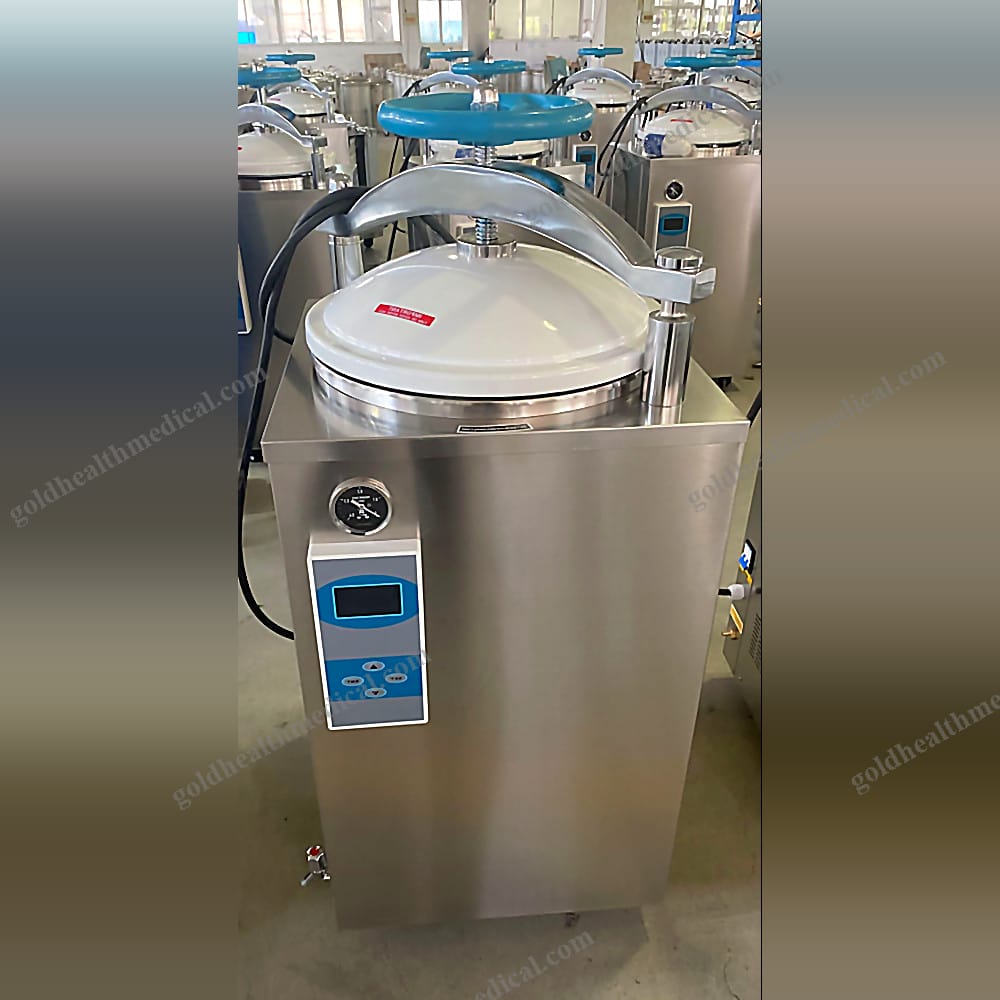

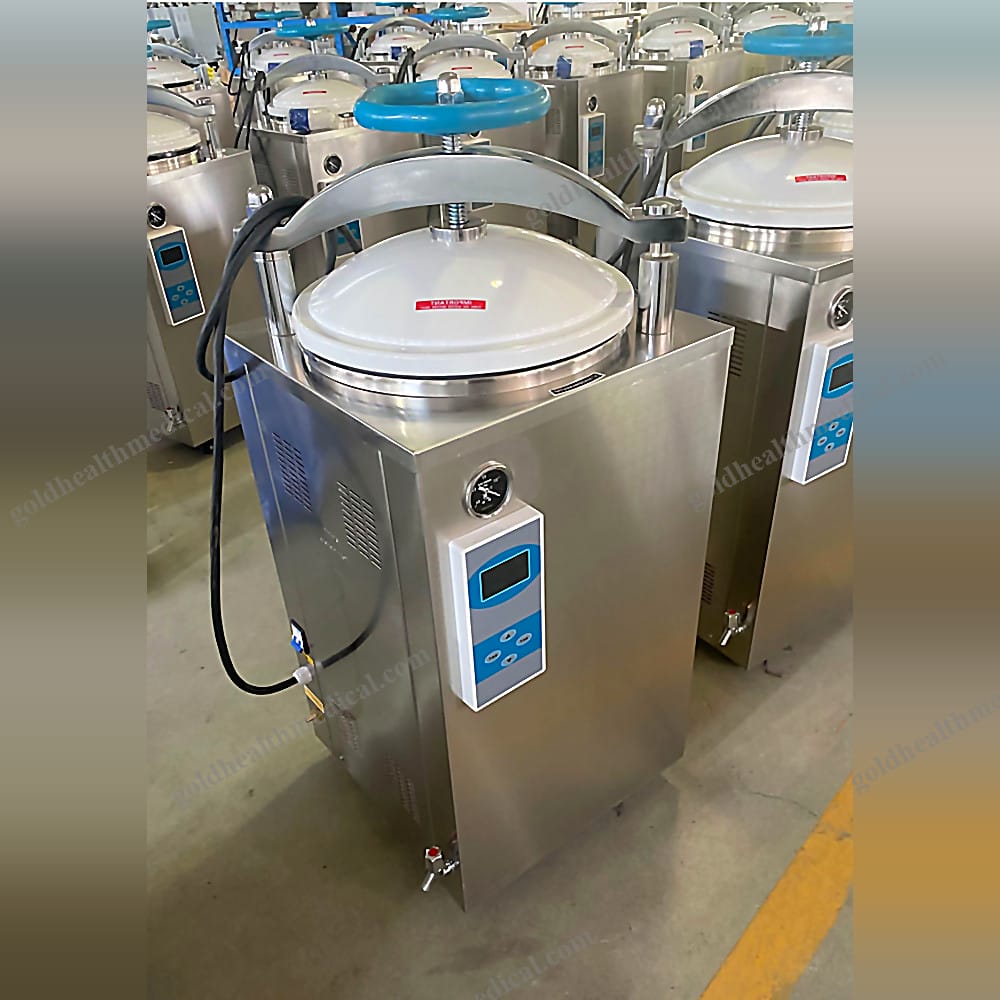

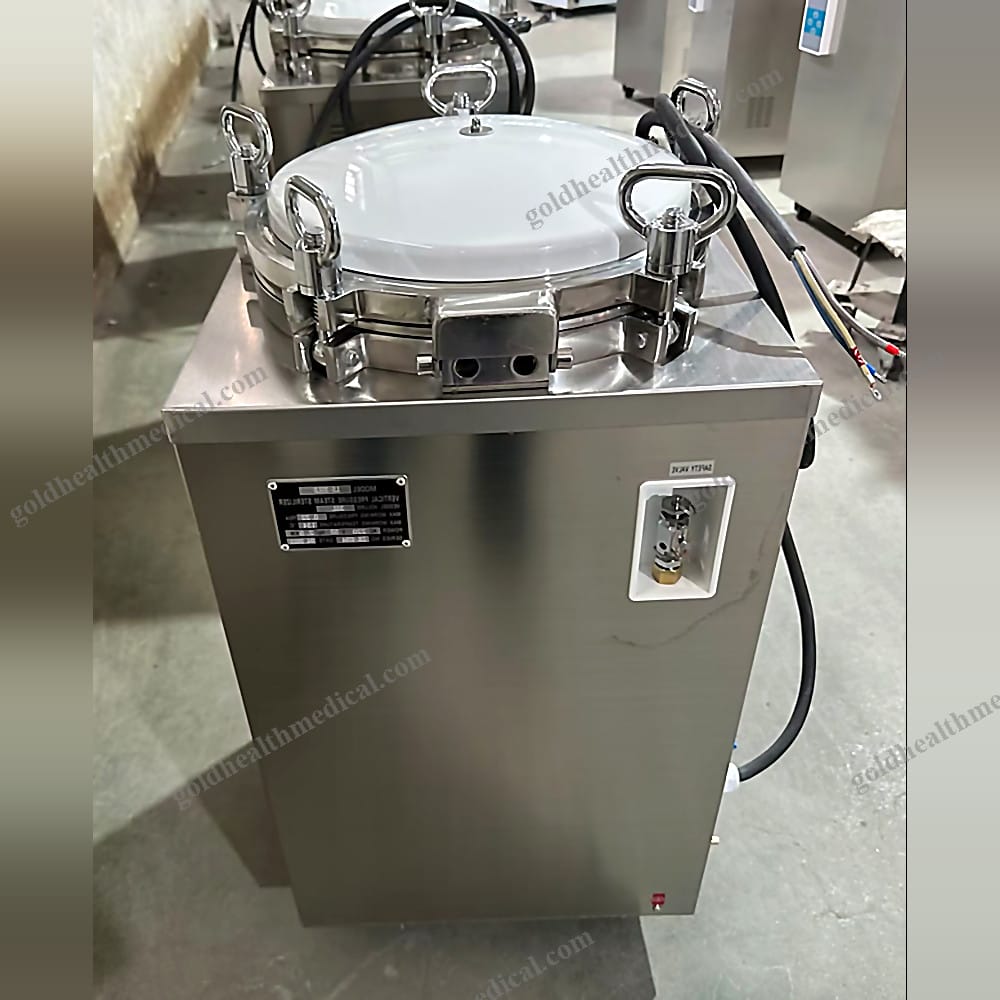

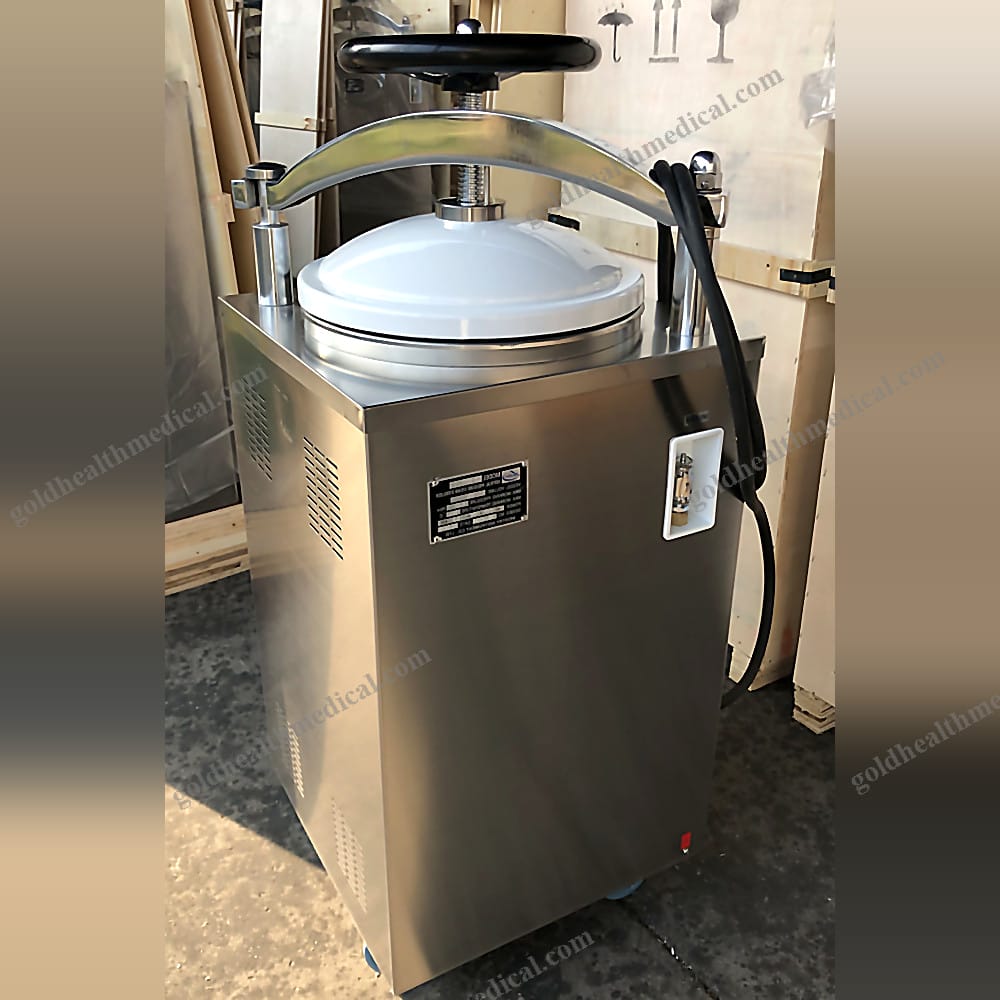

GoldHealth Medical Vertical Pressure Steam Sterilizer / Autoclave
Experience unparalleled sterilization performance with GoldHealth Medical’s Vertical Pressure Steam Sterilizer. Designed for precision, durability, and safety, this autoclave is a trusted solution for medical, laboratory, and research environments.
Key Features
- Fully Stainless Steel Construction: Built with premium SUS304/AISI 304 stainless steel (3mm thickness), ensuring exceptional durability and corrosion resistance.
- Quick-Open Door with Handwheel Design: Effortlessly open and close the chamber with a secure handwheel mechanism.
- Advanced Safety Systems: Equipped with a door safety lock, over-temperature, over-pressure, and water-lacking protection for maximum operational safety.
- Intuitive Digital Display: Monitor working status and control settings with a responsive touch-key interface.
- Automated Air and Steam Management: Automatically discharges cool air during operation and vents steam post-sterilization for optimal results.
- Self-Inflating Seal: Ensures a tight, reliable seal to maintain pressure and temperature consistency.
- Sterilization Completion Alert: Audible beep and automatic shut-off notify users when the cycle is complete.
- Versatile Applications: Ideal for sterilizing medical instruments, cotton products, and other critical materials.
- Optional Drying System: Customizable with an optional drying system to meet specific operational needs.
- Extended Warranty: Backed by a 24-month warranty for peace of mind.
Technical Specifications
- Chamber Volume Options:
- 35L (φ318×450 mm)
- 50L (φ340×550 mm)
- 75L (φ400×600 mm)
- 100L (φ440×650 mm)
- Working Pressure: 0.22 MPa
- Working Temperature: 134°C
- Maximum Working Pressure: 0.23 MPa
- Temperature Uniformity: ≤±1°C
- Timer Range: 0–99 minutes or 0–99 hours 59 minutes
- Temperature Adjustment Range: 105–134°C
- Power Options:
- 2.5 kW / AC220V / 50Hz
- 3 kW / AC220V / 50Hz
- 4.5 kW / AC220V / 50Hz
- Overall Dimensions:
- 35L: 450×450×1010 mm
- 50L: 510×470×1130 mm
- 75L: 560×560×1120 mm
- 100L: 540×560×1250 mm
- Transport Dimensions:
- 35L: 570×550×1150 mm
- 50L: 590×590×1280 mm
- 75L: 650×630×1280 mm
- 100L: 680×630×1370 mm
- Weight (Gross/Net):
- 35L: 72 kg / 56 kg
- 50L: 88 kg / 68 kg
- 75L: 100 kg / 80 kg
- 100L: 110 kg / 85 kg
Why Choose GoldHealth Medical?
GoldHealth Medical’s Vertical Pressure Steam Sterilizer combines cutting-edge technology with meticulous engineering to deliver unmatched reliability. Whether you’re managing a hospital, clinic, laboratory, or research facility, this autoclave ensures precision, safety, and efficiency in every sterilization cycle.
For more information or to explore customization options, contact GoldHealth Medical today.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Brand Name: GoldHealth Medical
Instrument Classification: Class II
Product Type: Pressure Steam Sterilization Equipment
Product Overview
GoldHealth Medical presents a state-of-the-art Pressure Steam Sterilization Equipment designed to deliver unparalleled performance and reliability. Engineered with precision, this sterilizer is ideal for hospitals, clinics, laboratories, and research facilities seeking efficient, dependable, and hygienic sterilization solutions. Its robust stainless steel construction ensures durability, while its advanced temperature and pressure controls guarantee optimal sterilization results for a wide range of medical and laboratory instruments.
Key Features
- Large Capacity Chamber: 100L (Diameter: 440mm x Depth: 650mm) – Perfect for sterilizing large volumes of equipment in a single cycle.
- Precise Temperature Control: Adjustable range of 105°C to 134°C for versatile sterilization needs.
- Optimized Working Pressure: Operates at 0.22MPa for efficient and consistent sterilization.
- Intelligent Timer Functionality: Offers flexible timing options (0–99 minutes or 0–99 hours 59 minutes) to suit various sterilization protocols.
- Durable Build: Constructed from premium-grade stainless steel for long-lasting performance and resistance to corrosion.
- Compact Design: Dimensions of 540mm x 560mm x 1250mm make it suitable for spaces with limited room.
- Lightweight Yet Sturdy: Weighs only 85kg, ensuring ease of installation and mobility without compromising stability.
Warranty and Support
- Comprehensive Warranty: Backed by a 1-year warranty for peace of mind.
- Exceptional After-Sales Service: Includes free spare parts to ensure uninterrupted operation and long-term reliability.
Technical Specifications
- Chamber Volume: 100L (Diameter: 440mm x Depth: 650mm)
- Working Pressure: 0.22MPa
- Temperature Range: 105°C to 134°C
- Timer Settings: 0–99 minutes or 0–99 hours 59 minutes
- Material: High-grade stainless steel
- Dimensions: 540mm x 560mm x 1250mm
- Weight: 85kg
Packaging Details
- Selling Unit: Single item
- Package Weight: XX kg
GoldHealth Medical’s Pressure Steam Sterilization Equipment is the ultimate solution for achieving superior sterilization outcomes while maintaining operational efficiency. Elevate your facility’s standards with a product designed to meet the demands of modern healthcare and research environments.
