BIOBASE Class B Dental Steam Sterilizer Autoclave
Reference: 1601230038483
Sterilization Equipment
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical Sterilizer
Product Introduction
The GoldHealth Medical sterilizer is an advanced automatic high-temperature and high-pressure rapid sterilizer that operates using steam as its medium. Designed for versatility, it is ideal for use in dental and ophthalmology departments, operating rooms, supply rooms, dialysis rooms, and other medical facilities. It effectively sterilizes unpacked items, solid instruments, dental handpieces, endoscopes, implantable instruments, dressing fabrics, and rubber tubes.
Features
- Built-in Open Water Tank: The sterilizer features an easy-to-clean open water tank, allowing for repeated program cycles when fully filled with water.
- High-Efficiency Ultimate Vacuum: Equipped with a high-efficiency, low-noise vacuum system, ensuring excellent performance.
- Large LCD Display: Provides clear visibility of temperature, pressure, time, operating status, and failure warnings, making it convenient to monitor the sterilization process.
- Multiple Program Types: Offers various programs including options for packed and unpacked items, BD testing, vacuum testing, drying functions, custom programs, rapid programs, and preheat functions.
- Standard USB Port: Allows users to store sterilization data using a USB drive.
- Optional Mini Printer: Can be attached to record the sterilization process.
Specifications
- Capacity:
- 18L
- 23L
- Chamber Size (mm):
- φ247*360
- φ247*470
- Sterilization Class: Class B
- Sterilization Temperature: 121℃, 134℃
- Drying System: Vacuum drying system
- Display: LCD display
- Testing System: B&D Test, Vacuum Test, Helix Test
- Control Precision:
- Temperature: 1℃
- Pressure: 0.1bar
- Sterilization Data: USB (standard) and printer (optional)

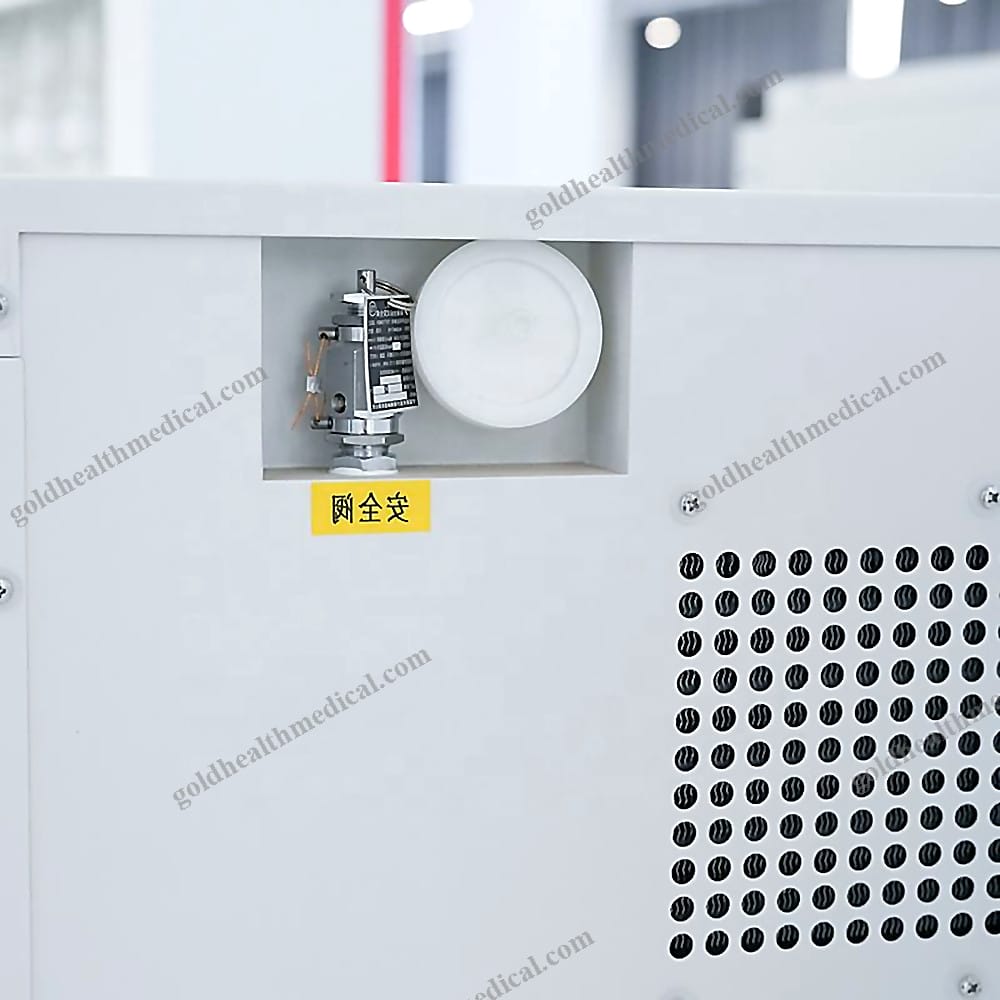

- Safety System: Hand lock door, pressure lock system, relief valve for overpressure, pressure or temperature overload protection, system failure alarm, finish reminder, water level warning
- Water Supply System: Built-in water tank, easy to clean
- Water Tank Capacity: 3.5L
- Water Consumption: 0.16L~0.18L per cycle

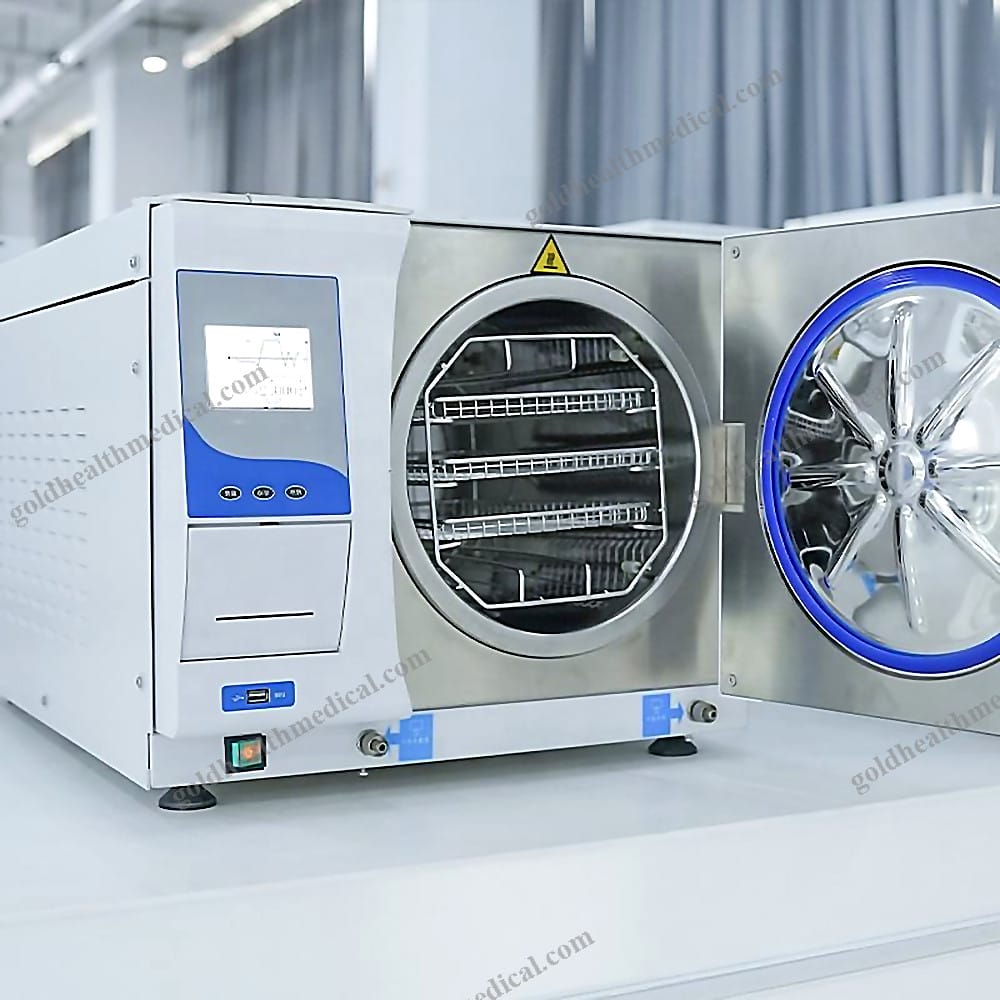

- Tray Holder: 3 pcs SS trays on SS shelf
- Chamber: SUS304, Max working pressure: 2.3bar, Min working pressure: -0.9bar, Design temperature: 140℃
- Ambient Temperature: 5～40℃
- Noise: <65dB
- Consumption: 1950VA
- Power Supply: Standard: 220V±10%, 50Hz/60Hz; Optional: 110V±10%, 50Hz/60Hz
- External Size (WDH) mm:
- 495600410
- 495700410
- Package Size (WDH) mm:
- 610810590
- 610810590
- Gross Weight (kg):
- 63
- 65
Unique Selling Points
- Advanced Vacuum System: Ensures thorough sterilization and efficient drying.
- User-Friendly Interface: Large LCD display and multiple program options provide ease of use and flexibility.
- Data Management: Standard USB port and optional mini printer for comprehensive sterilization data recording.
- Safety Features: Comprehensive safety systems to protect users and ensure reliable operation.
GoldHealth Medical is dedicated to delivering unparalleled quality and earning the highest level of customer satisfaction. Every piece of feedback and recognition motivates us to continually improve and innovate.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Overview
Introducing the GoldHealth Medical Table Top Autoclave Class B Series, a state-of-the-art sterilization solution designed to meet the rigorous demands of modern healthcare environments. Engineered with precision and reliability in mind, this autoclave delivers exceptional performance for hospitals, clinics, laboratories, and more.
Key Features and Specifications
- Capacity: 23 liters, ideal for small to medium sterilization needs.
- Power: 1950VA, ensuring consistent and dependable operation.
- Sterilization Class: CLASS B, offering advanced sterilization for wrapped, unwrapped, and porous items.
- Sterilization Temperature: Dual settings at 121°C and 134°C for versatile applications.
- Drying System: Equipped with a vacuum drying system for efficient moisture removal.
- Display: Intuitive LCD display for real-time monitoring and control.
- Control Precision: Temperature accuracy of ±1°C and pressure accuracy of ±0.1 bar for unparalleled precision.
- Sterilization Data: Standard USB connectivity and optional printer for comprehensive data logging.
- Ambient Temperature Range: Operates reliably in environments between 5°C and 40°C.
- Power Supply: AC110/220V ±10%, 50/60Hz, adaptable to global power standards.
Instrument Classification
- Class II medical device, ensuring compliance with stringent safety and performance standards.
Weight and Dimensions
- Weight: 65kg, designed for stability and durability.
- Package Size: 61 x 81 x 59 cm, compact and easy to transport.
Warranty and Support
- Warranty: 1-year comprehensive warranty for peace of mind.
- After-Sales Service: Access to online technical support, ensuring uninterrupted performance.
Why Choose GoldHealth Medical?
The GoldHealth Medical Table Top Autoclave Class B Series stands out with its advanced vacuum drying system, precise temperature and pressure control, and robust CLASS B sterilization capabilities. Designed for efficiency, reliability, and ease of use, it is the ultimate choice for healthcare professionals seeking uncompromising quality in sterilization technology.
Applications
Perfect for hospitals, clinics, research institutions, laboratories, rehabilitation centers, and home healthcare settings, this autoclave ensures the highest standards of hygiene and safety.
Choose GoldHealth Medical for innovative solutions that redefine excellence in medical equipment.
