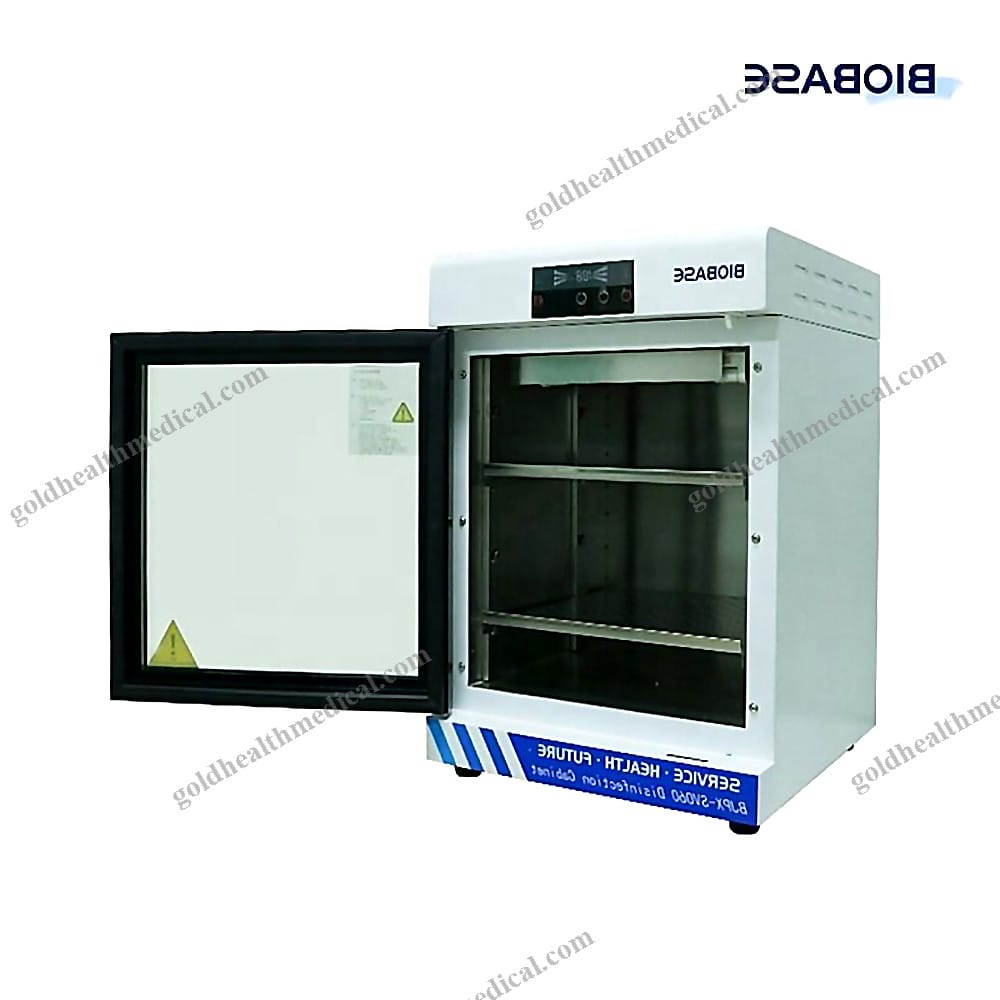

BIOBASE 90L UV Ozone Sterilizer Cabinet with
Reference: 1600870473201
Sterilization Equipment
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical presents an advanced sterilization solution designed to meet the highest standards of hygiene and efficiency.
Product Highlights
- Human-Centric Design: Featuring premium sealing materials, adjustable shelving, and customizable configurations to suit specific needs, ensuring ease of use and adaptability.
- Intelligent Control System: Fully automated operation with customizable sterilization durations and automatic shutdown upon cycle completion, delivering precision and reliability.
- Ozone Sterilization Technology: Achieves thorough, rapid, and stable sterilization with 360-degree coverage, eliminating bacteria, viruses, and fungi effectively.
- Durable Construction: Equipped with a high-temperature-resistant, anti-corrosive 304 stainless steel inner cavity, offering both durability and a sleek, modern aesthetic.
- Quiet and Reliable Performance: Engineered for low noise levels, stable operation, and long-lasting durability, ensuring safety and convenience in every use.
Technical Specifications
- Capacity Options: Available in 70L and 90L configurations.
- Internal Dimensions:
- 398mm (W) x 398mm (D) x 452mm (H) for 70L model.
- 398mm (W) x 498mm (D) x 452mm (H) for 90L model.
- External Dimensions:
- 495mm (W) x 501mm (D) x 760mm (H) for 70L model.
- 495mm (W) x 601mm (D) x 760mm (H) for 90L model.
- Sterilization Method: Ozone-based sterilization.
- Shelving: Includes 2 adjustable shelves, with an option to add 2 more.
- Materials:
- Work Zone: 304 stainless steel, 1.0mm thick.
- Main Body: Cold-rolled steel with a protective coating.
- Ozone Concentration: >60mg/m³.
- Ozone Leakage: <0.16mg/m³.
- Sterilization Level: Medium to low level.
- Indicator Bacteria: Effective against Escherichia Coli, Staphylococcus Aureus, and Candida Albicans.
- Log Kill Value: Each point achieves ≥3.00.
- Sterilization Rate: Exceeds 99.99% for all bacteria, viruses, and fungi.

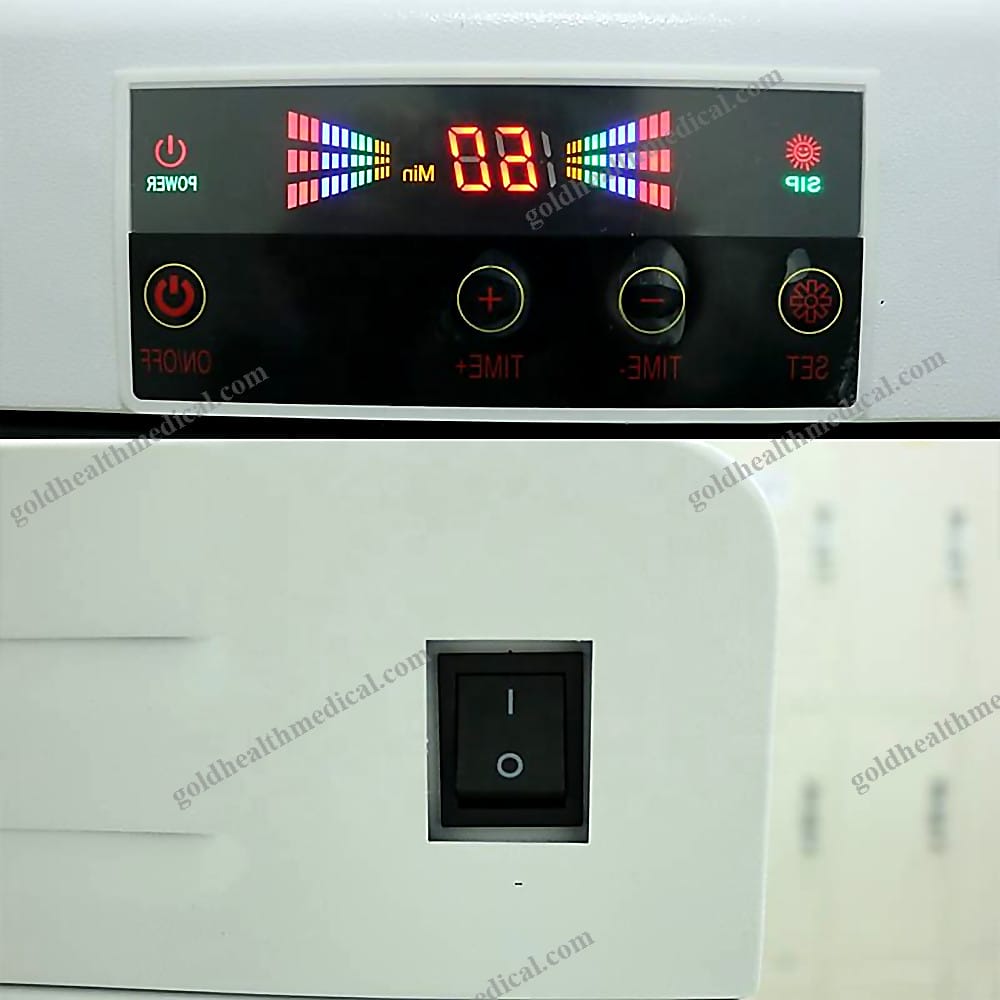

- Control System: Fully automatic.
- Operating Conditions:
- Ambient temperature: 5°C to 40°C.
- Relative humidity: ≤85%.
- Atmospheric pressure: 70kPa to 106kPa.
- Environment free of flammable, corrosive gases, or conductive dust.
- Power Supply: AC 220V 50Hz (Standard); 110V 60Hz (Optional).
- Packaging Dimensions:
- 626mm (W) x 620mm (D) x 860mm (H) for 70L model.
- 726mm (W) x 620mm (D) x 860mm (H) for 90L model.
- Gross Weight: 50kg (70L model), 55kg (90L model).
Why Choose GoldHealth Medical?
GoldHealth Medical’s sterilization equipment combines cutting-edge technology with meticulous craftsmanship, ensuring unparalleled performance and reliability. Whether for hospitals, laboratories, or home use, our products are engineered to deliver consistent results while maintaining user safety and operational efficiency.
Experience the next generation of sterilization with GoldHealth Medical—where innovation meets precision.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
GoldHealth Medical presents the Ozone UV Sterilization Cabinet
A cutting-edge solution designed for precision and reliability in medical, laboratory, and home environments. Combining advanced ozone technology with UV sterilization, this cabinet ensures superior hygiene and safety for your critical applications.
Product Highlights
- Sterilization Method: Utilizes ozone technology with a concentration of 6mg/m³, ensuring effective elimination of bacteria and microorganisms.
- Ozone Leakage Control: Maintains an ultra-low leakage rate of 0.1mg/m³, guaranteeing user safety and environmental compliance.
- Sterilization Level: Achieves medium to low-level sterilization, targeting key indicator bacteria such as Escherichia Coli, Staphylococcus Aureus, and Candida Albicans.
- Adjustable Shelves: Comes with 2 shelves (optional 2 additional shelves), fully adjustable to accommodate various item sizes and configurations.
Technical Specifications
- Capacity: 90L, offering ample space for sterilizing medical tools, lab equipment, or personal items.
- Internal Dimensions (WDH): 398498452mm, optimized for efficient use of space.
- External Dimensions (WDH): 495601760mm, compact yet robust for diverse settings.
- Instrument Classification: Class II, ensuring compliance with stringent medical device standards.
Packaging and Delivery
- Packaging Details: Standard protective packaging to safeguard the unit during transit.
- Package Dimensions: 72.6X62X86 cm, designed for secure and efficient shipping.
- Gross Weight: 55.000 kg, ensuring stability and durability.
- Port of Origin: Qingdao, China, facilitating global logistics.
Supply and Support
- Supply Ability: Up to 500 units per month, ensuring consistent availability for bulk orders.
- Warranty: 1-year comprehensive warranty for peace of mind.
- After-Sale Service: Dedicated online technical support to address any operational or technical queries.
Why Choose GoldHealth Medical?
Our Ozone UV Sterilization Cabinet is engineered for excellence, combining innovative technology with user-centric design. Whether you're managing a hospital, laboratory, or home environment, this product delivers unmatched sterilization performance, safety, and reliability.
Experience the GoldHealth Medical difference today.
