Advanced Human Veterinary Anesthesia Machine for Medical Clinics Emergency Use
Reference: 1601092829137
Anesthesia Equipments & Accessories
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

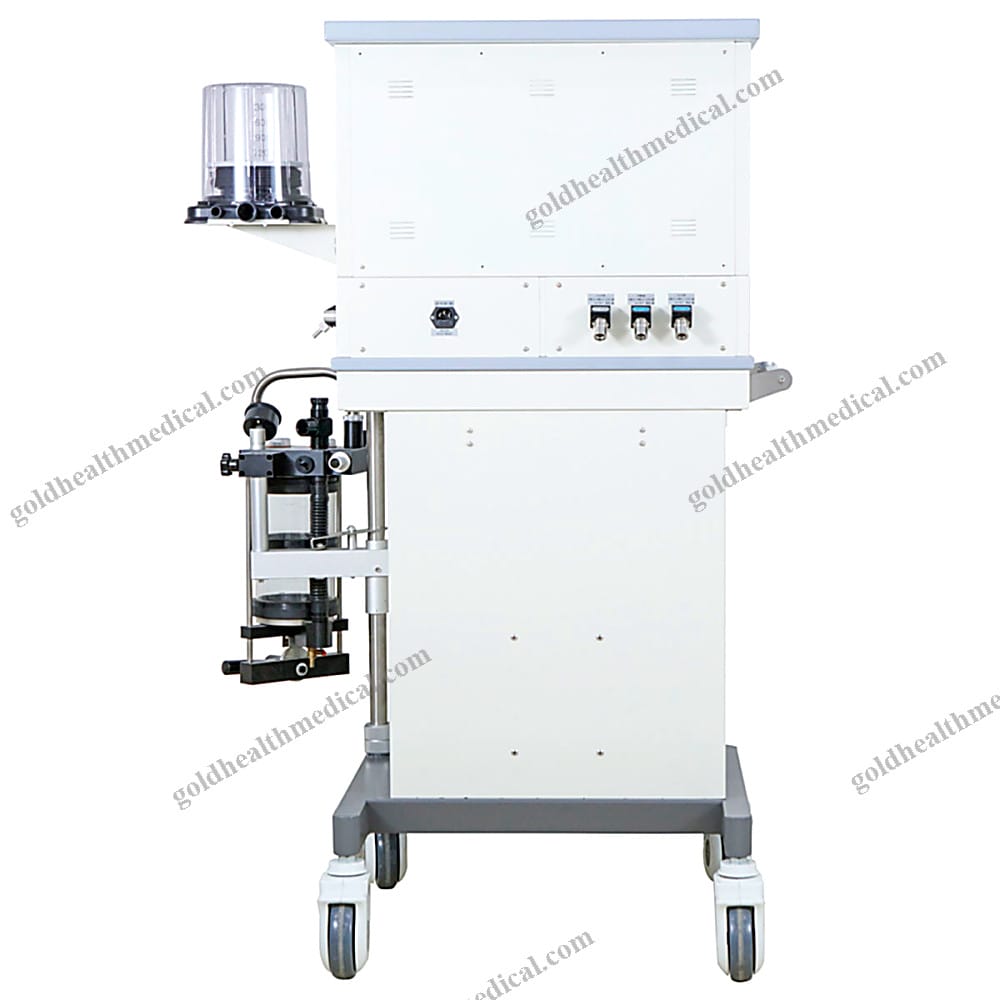

GoldHealth Medical Anesthesia Machine
Experience precision and reliability with GoldHealth Medical's advanced anesthesia delivery system, designed for both human and veterinary applications. Engineered to meet the demands of modern medical environments, this device combines cutting-edge technology with user-centric design to ensure safety, accuracy, and ease of use.
Key Features and Specifications
Flow Control
- Oxygen Flow Range: Dual-channel control with ranges of 0.0L/min–2L/min and 2.0L/min–10.0L/min.
- Nitrous Oxide Flow Range: Dual-channel control with ranges of 0.0L/min–2L/min and 2.0L/min–10.0L/min.
- Flowmeter Precision: Under standard conditions (20°C, 101.3kPa), flow accuracy is within ±10% of the indicated value for flows between 10% of full scale or 300mL/min (whichever is greater). For flows below these thresholds, precision meets Grade 4 standards.
Rapid Oxygen Supply
- Delivers an impressive flow rate of 35L/min–75L/min for emergency oxygenation.

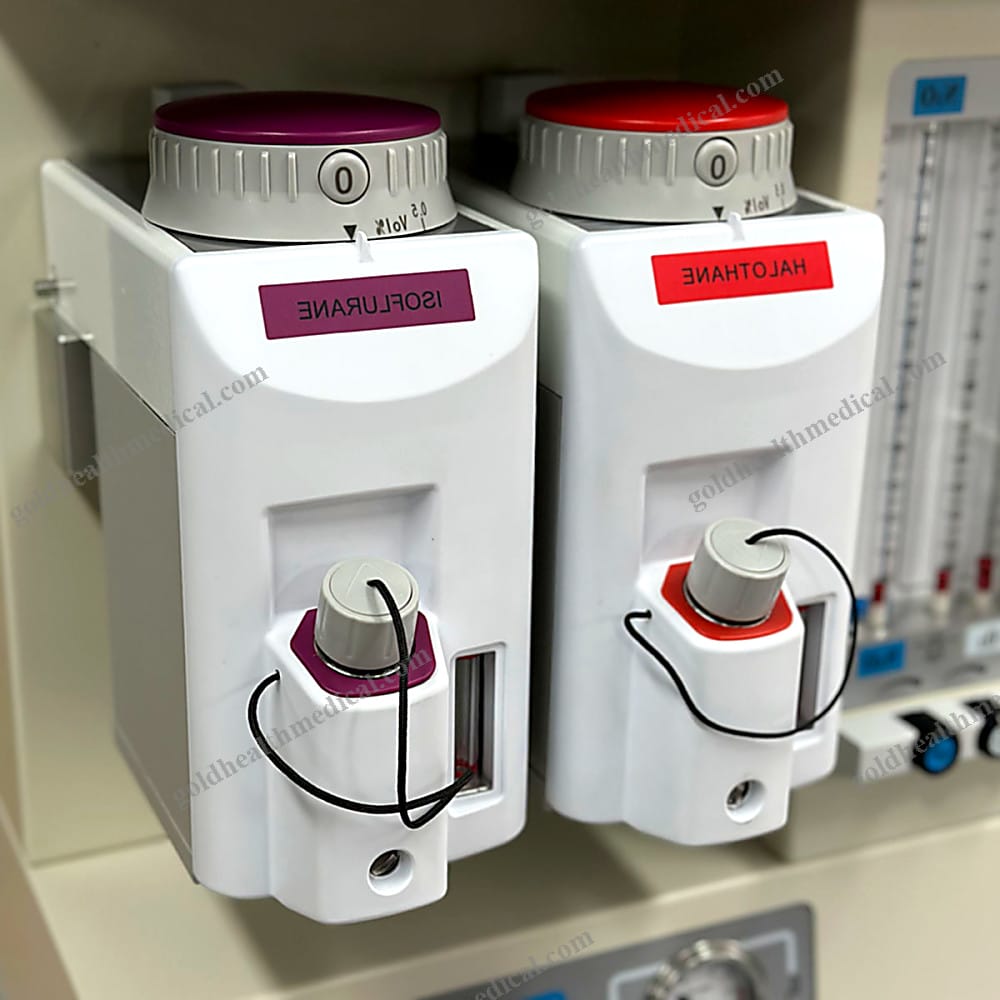

Evaporator Performance
- Anesthetic Concentration Range: Adjustable from 0% to 5.0%.
- Equipped with automatic temperature and flow compensation for consistent vapor output.
Proportional Control Device
- The integrated oxygen and nitrous oxide linkage ensures an oxygen concentration of no less than 25%, safeguarding patient safety.

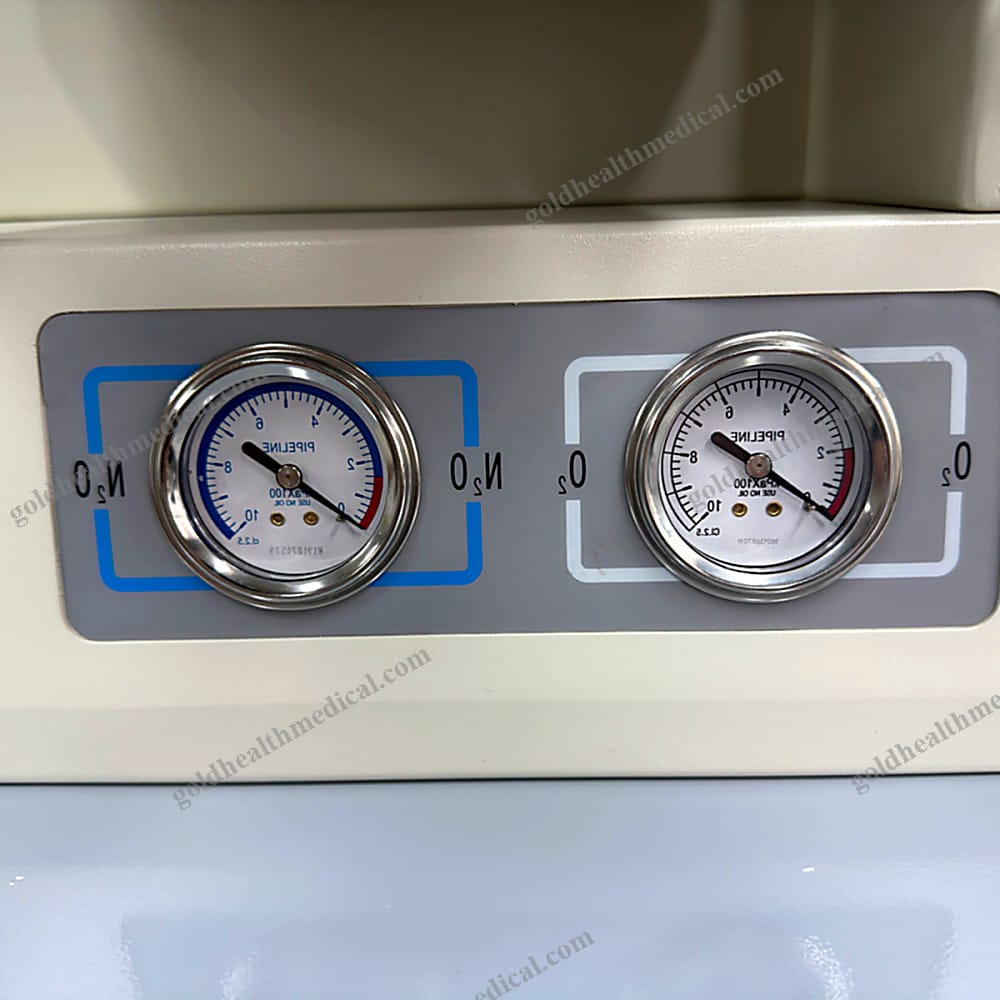

Source Gas Parameters
- Oxygen Supply Pressure: 0.40MPa ± 0.1MPa.
- Nitrous Oxide Supply Pressure: 0.40MPa ± 0.1MPa.
- Oxygen Shortage Alarm: Audible alert activates when oxygen pressure drops below 0.2MPa–0.05MPa, lasting over 7 seconds with a sound intensity exceeding 57dB.
- Nitrous Oxide Cut-off: Automatically interrupts gas supply when oxygen pressure falls below 0.05MPa.
Ventilator Gas Path Performance
- Maximum Safety Pressure: ≤6kPa, with a tolerance of ±15%.
- Ventilation Modes: Machine-controlled and manual operation.
- Respiratory Modes: IPPV, SIPPV, and SIGH.
- Respiratory Frequency: Adjustable from 4–99 breaths/min, with a tolerance of ±1 breath/min.
- Inspiration/Expiration Ratio: Ranges from 1:0.5 to 1:8, with a tolerance of ±15%.
- Tidal Volume: Continuously adjustable from 50mL to 1200mL, with a tolerance of ±20%.
- Minute Ventilation Volume: ≥18L/min.
Monitoring Capabilities
- Digital Monitoring: Tidal volume range of 50mL–1200mL, with a tolerance of ±20%.
- Gas Path Pressure Monitoring: Tolerance of ±20%.
- Oxygen Concentration Monitoring: 0%–100%, with a tolerance of ±15%.
Alarming Functions
- Upper Gas Path Pressure Alarm: Adjustable range of 2kPa–8kPa, with a tolerance of ±20%. Activates audible and visual alerts when pressure exceeds the set threshold, transitioning from inspiratory to expiratory phase.
- Lower Gas Path Pressure Alarm: Adjustable range of 0kPa–4kPa, with a tolerance of ±20%. Alerts within 4–15 seconds when pressure falls below the set threshold.
- Silent Mode: Alarm can be muted for up to 2 minutes.
- Memory Function: Automatically restores the last operational settings for seamless continuity.
Electrical and Safety Performance
- Power Consumption: ≤50VA.
- Safety Compliance: Meets Type B equipment standards as per IEC60601-2-13:2003.
- Noise Level: ≤65dB(A).
Power Supply and Warm-Up
- Gas Source: Requires 0.4MPa oxygen.
- Power Supply: AC 220V ± 22V, 50Hz ± 1Hz.
- Warm-Up Time: ≥5 minutes.
- Fuse Specification: 250V, Φ5x20, 3A (slow blow).
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Name: Human & Veterinary Anesthesia Machine by GoldHealth Medical
Overview:
The Human & Veterinary Anesthesia Machine from GoldHealth Medical is a cutting-edge solution designed for precision, reliability, and versatility in medical and veterinary settings. Engineered to meet the demands of modern healthcare, this anesthesia machine ensures seamless operation, advanced safety features, and exceptional performance for both human and animal patients.
Key Features and Specifications:
- Rapid Oxygen Supply: Delivers an adjustable oxygen flow rate of 35L/min to 75L/min, ensuring quick and efficient oxygen delivery tailored to patient needs.
- Oxygen Supply Pressure: Maintains a consistent pressure of 0.40MPa ± 0.1MPa for stable and reliable performance.
- Respiratory Frequency: Offers a wide range of 4 to 99 breaths per minute, accommodating diverse patient requirements.
- Inspiration/Expiration Ratio: Adjustable from 1:0.5 to 1:8, providing precise control over ventilation patterns.
- Flow Range: Supports a flow range of 0.5 to 5L/min, ideal for both delicate and robust applications.
- Atmospheric Pressure Compatibility: Designed to operate optimally at 101.3KPa, ensuring consistent performance across various environments.
- Temperature Range: Functions reliably within +15°C to +35°C, making it suitable for diverse climates and settings.
Technical Details:
- Power Source: Electric, ensuring efficient and consistent operation.
- Material: Constructed with high-quality acrylic and metal components for durability and longevity.
- Instrument Classification: Class II medical device, reflecting its advanced functionality and safety standards.
- Safety Standard Compliance: Meets GB2626-2006 standards, guaranteeing the highest levels of safety and performance.
- Place of Origin: Proudly manufactured in Guangdong, China, known for its excellence in medical device production.
Quality Assurance:
- Warranty: Backed by a comprehensive 2-year warranty, ensuring peace of mind for users.
- After-Sale Service: Access to online technical support for prompt assistance and troubleshooting.
- Shelf Life: Components and materials are designed to maintain optimal performance for up to 2 years.
- Certifications: CE-certified, underscoring its compliance with international quality and safety standards.
Why Choose GoldHealth Medical?
GoldHealth Medical is committed to delivering innovative, high-performance medical equipment that meets the evolving needs of healthcare professionals. Our Human & Veterinary Anesthesia Machine combines advanced engineering, user-friendly design, and unmatched reliability, making it the ideal choice for hospitals, clinics, research institutions, and veterinary practices worldwide.
Experience the GoldHealth Medical difference today—where precision meets care.
