75L Vertical Electric Steam Sterilizer with Auto Recycle for Food
Reference: 1600105810251
Sterilization Equipment
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

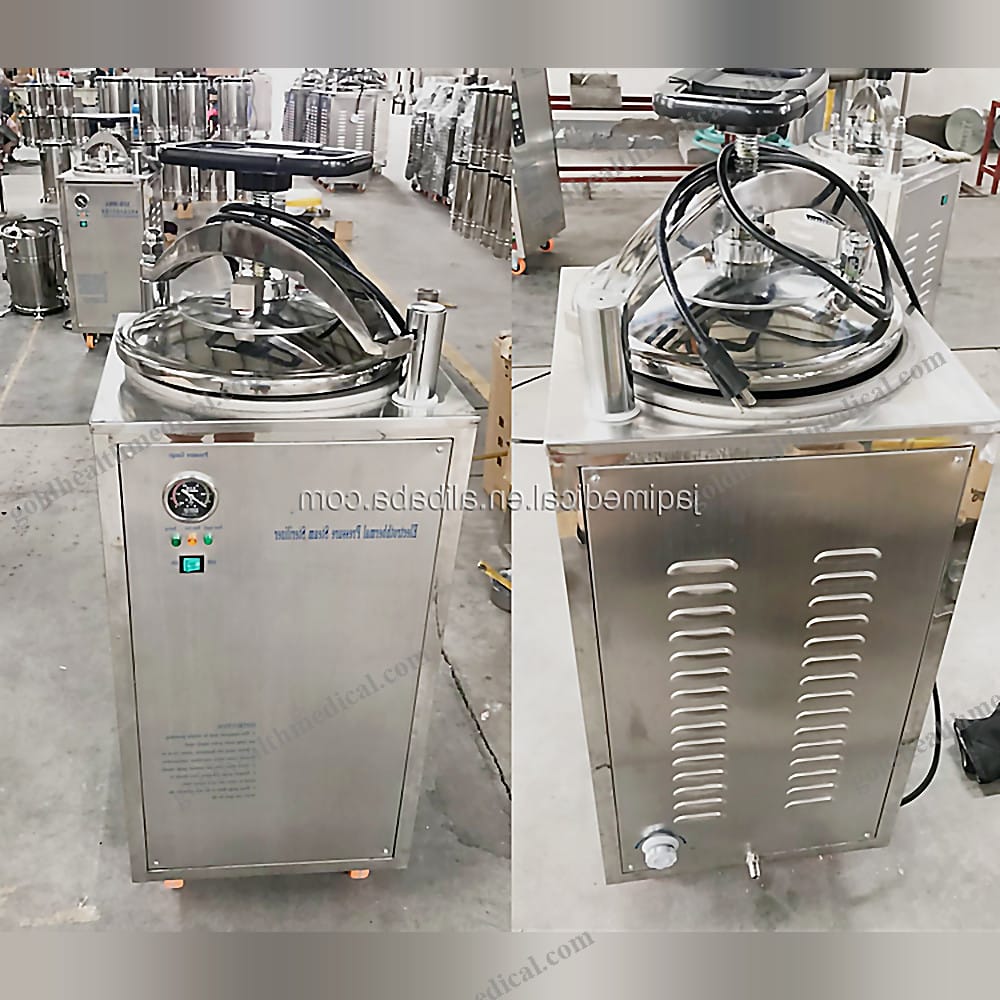

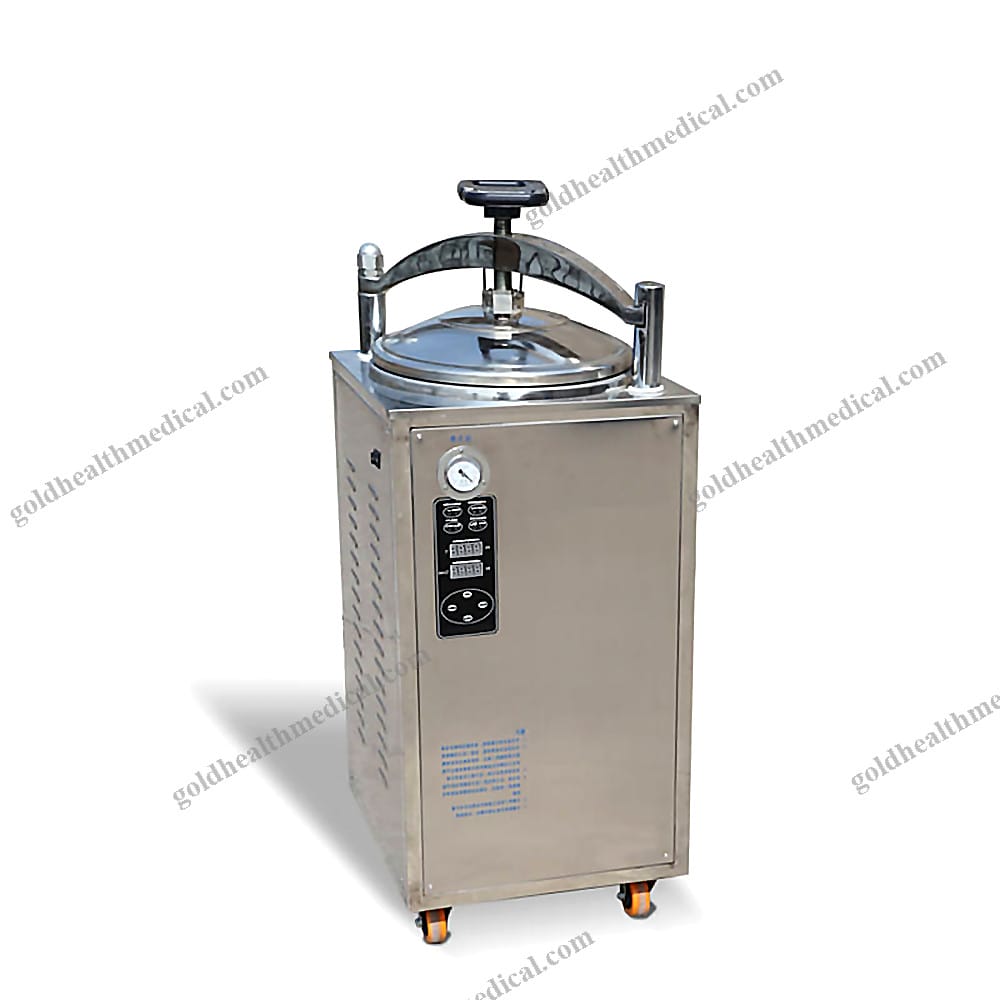

GoldHealth Medical presents an advanced vertical electric heated high-pressure steam sterilizer, designed for automatic time and temperature cycle sterilization. This state-of-the-art sterilizer is crafted to meet the rigorous demands of modern healthcare and research environments.
Features:

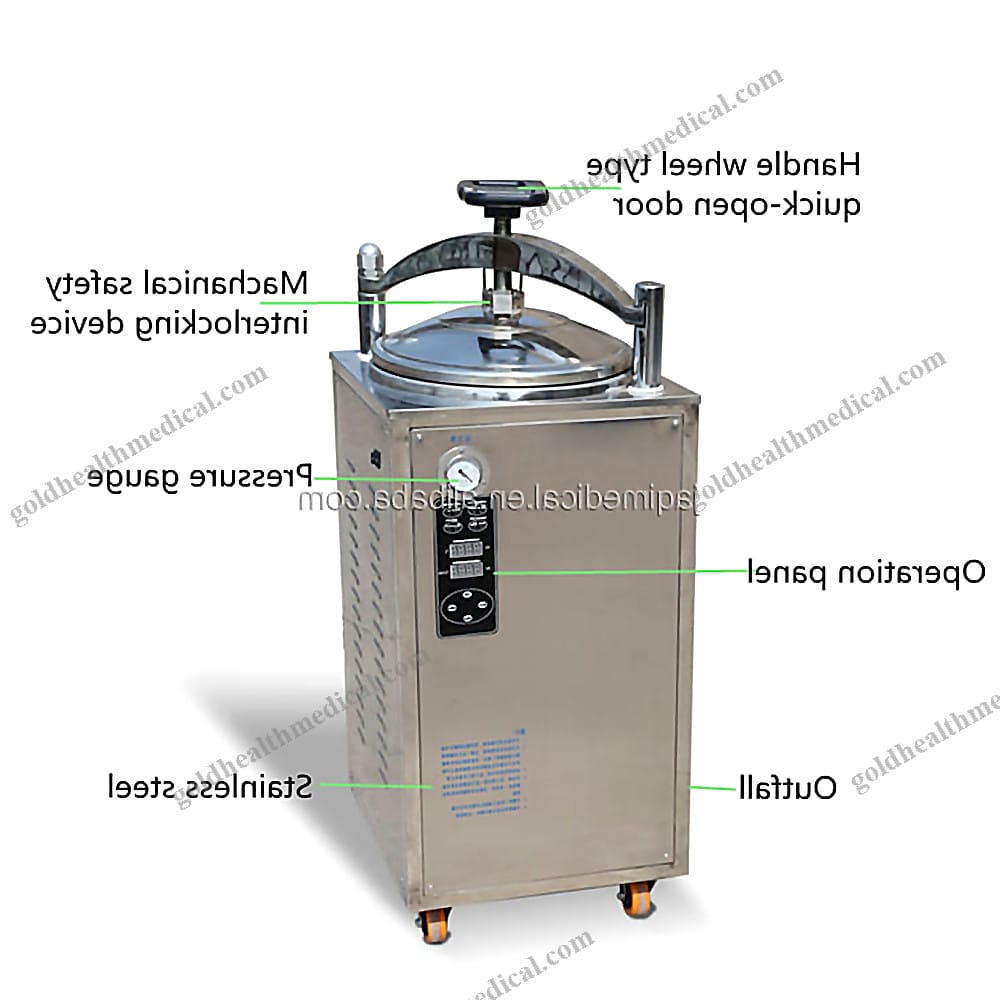

- Premium All-Stainless Steel Construction: Ensures durability and hygiene.
- Ergonomic Hand Wheel Door Opening: Provides easy and secure access.
- Mechanical Safety Interlock: Guarantees user safety during operation.
- Computer-Controlled Automation: Delivers precise and reliable sterilization cycles.

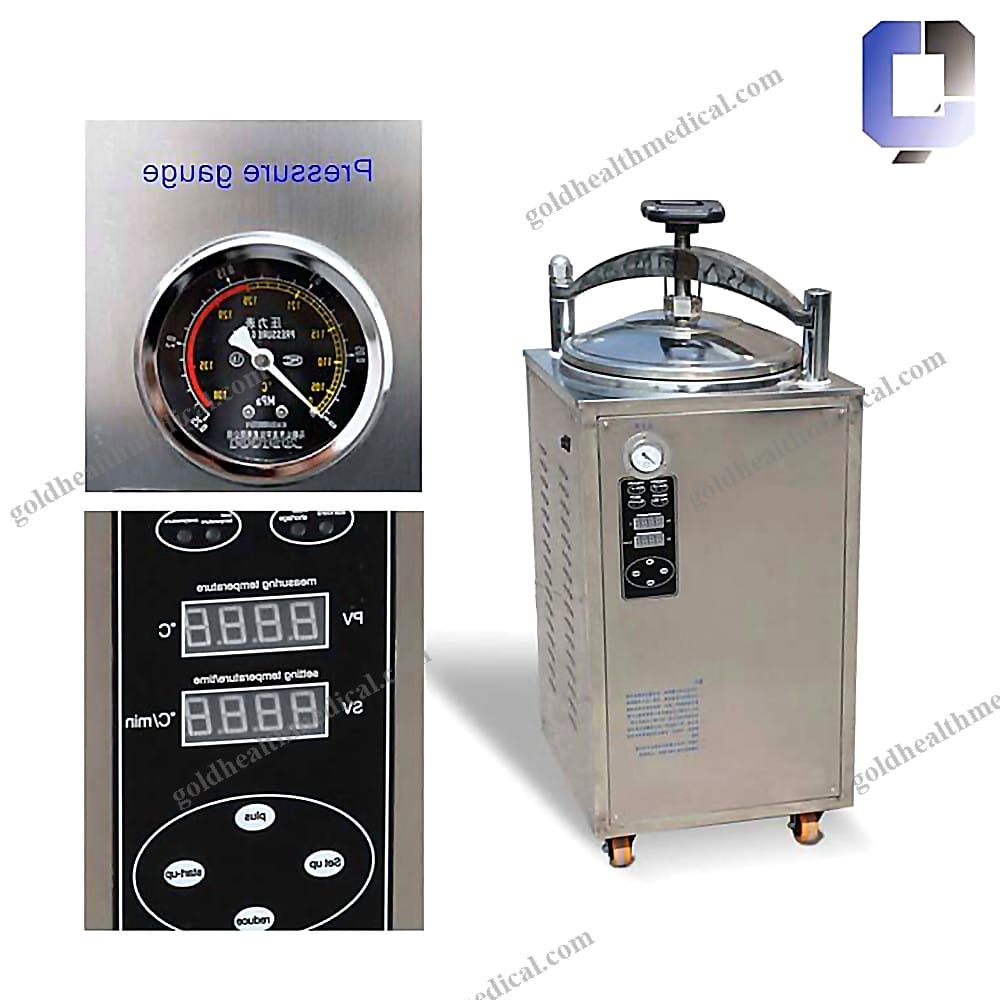

- Digital LCD Display: Offers clear visibility of working status.
- Temperature Range: Adjustable from 50°C to 134°C for versatile applications.
- Time Range: Configurable from 0 to 9999 minutes for comprehensive sterilization.
- Over-Pressure Self-Discharge: Automatically discharges at 0.22 Mpa for added safety.
- Buzzer Alert and Auto Shutdown: Notifies users upon sterilization completion and powers down automatically.
Applications:
This sterilizer is ideal for medical and healthcare institutions, laboratories, clinical settings, biological research facilities, and the food industry. It effectively sterilizes medical tools, dressings, glassware, solution culture media, feeds, canned foods, fruits, mushrooms, and more.
Product Specifications:

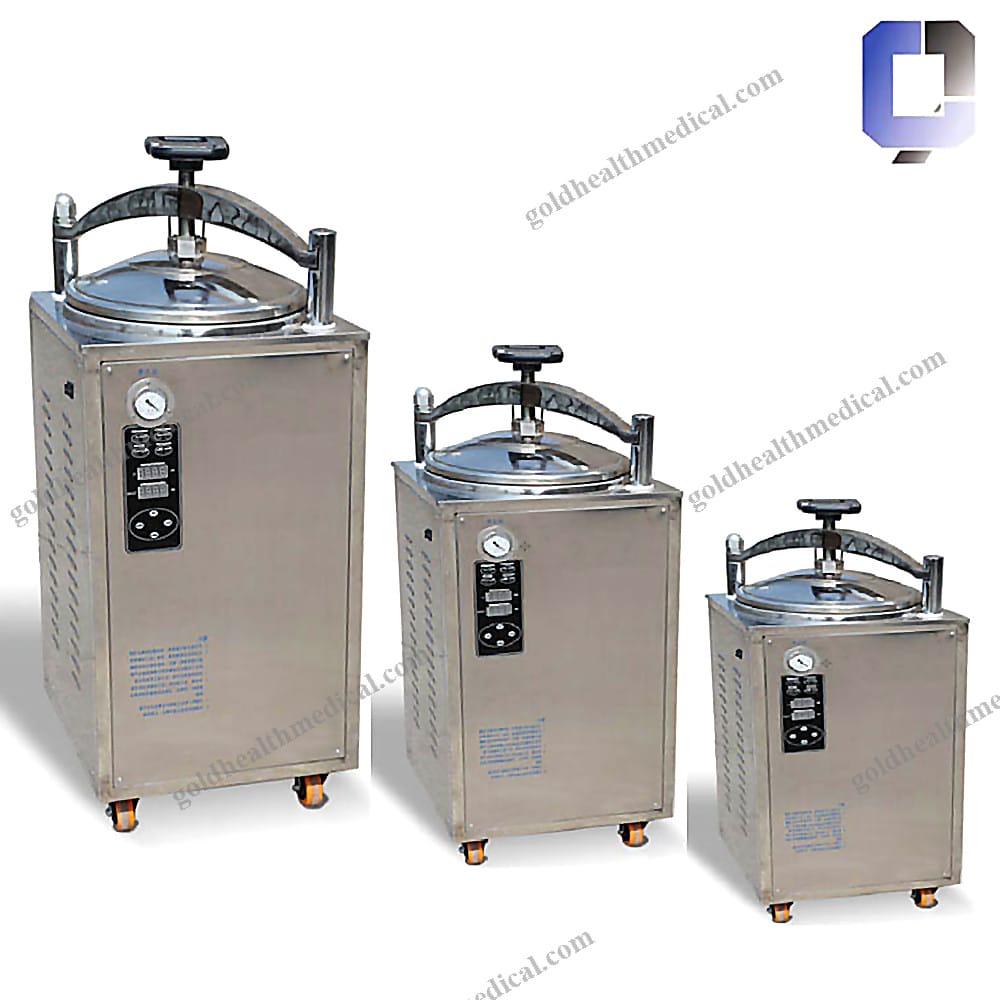

- Volume Options: Available in 30L, 40L, 50L, and 75L capacities.
- Power Ratings: 3.5KW for smaller models and 4.5KW for the 75L variant.
- Voltage: Operates on AC 220V/50HZ.
- Chamber Dimensions:
- 30L: Φ280*400mm
- 40L: Φ340*425mm
- 50L: Φ340*525mm
- 75L: Φ380*530mm
- Basket Dimensions:
- 30L: 260*350mm (1pc)
- 40L: 310*160mm (2pcs)
- 50L: 310160mm (1pc) & 310260mm (1pc)
- 75L: 350*240mm (2pcs)
- Packing Dimensions:
- 30L: 5105101170mm
- 40L: 5705701150mm
- 50L: 5705701330mm
- 75L: 6306301400mm
- Net/Gross Weight:
- 30L: 47kg/68kg
- 40L: 55kg/77kg
- 50L: 58kg/80kg
- 75L: 77kg/105kg
Optional Functions:
- Automatic Water Inflow & Steam Exhaust: Enhances operational convenience.
- Drying Function: Ensures items are ready for immediate use.
- Print with F0 Value Sterilization Effect: Provides detailed sterilization records.
Unique Selling Points:
- Enhanced Safety with Air Switch: Eliminates the need for power plugs, ensuring a safer operation.
- Versatile Applications: Suitable for a wide range of sterilization needs across various industries.
- Precision Engineering: Combines advanced technology with user-friendly features for optimal performance.
GoldHealth Medical's sterilizers are designed to deliver unparalleled reliability and efficiency, making them the preferred choice for professionals seeking top-tier sterilization solutions.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Brand Name: GoldHealth Medical
Product Name: Automatic Time and Temperature Autoclave
Product Overview
The Automatic Time and Temperature Autoclave by GoldHealth Medical is a cutting-edge sterilization solution designed for precision, reliability, and efficiency. Engineered to meet the rigorous demands of modern healthcare environments, this autoclave ensures superior sterilization performance for a wide range of applications. Its advanced features and robust construction make it an indispensable tool for hospitals, clinics, laboratories, and research facilities.
Key Features
- Precision Control: Automatically regulates time and temperature for consistent, reliable sterilization cycles.
- Spacious Chamber: A large 75L sterilization chamber (380*530mm) accommodates a variety of medical instruments and equipment.
- Wide Temperature Range: Operates between 50°C and 134°C, ensuring compatibility with diverse sterilization requirements.
- Extended Cycle Flexibility: Adjustable sterilization time from 0 to 9999 minutes for tailored treatment protocols.
- Durable Construction: Made from premium 304 stainless steel for exceptional corrosion resistance and longevity.
- Powerful Performance: Equipped with a 4.5KW heating system for rapid and efficient sterilization.
Technical Specifications
- Instrument Classification: Class II
- Type: Pressure Steam Sterilization Equipment
- Volume: 75L
- Sterilization Chamber Dimensions: 380mm x 530mm
- Power Rating: 4.5KW
- Sterilization Temperature Range: 50°C to 134°C
- Sterilization Time Range: 0 to 9999 minutes
- Heating Type: Electric Power
- Material: 304 Stainless Steel
- Product Weight: 77kg
Support and Warranty
- Comprehensive Warranty: Backed by a 1-year warranty for peace of mind.
- Dedicated Support: Access to online technical support ensures seamless operation and troubleshooting.
GoldHealth Medical’s Automatic Time and Temperature Autoclave combines innovative engineering with user-focused design, delivering unparalleled performance and reliability for critical sterilization needs.
